What is the maximum lifting height of the forklift

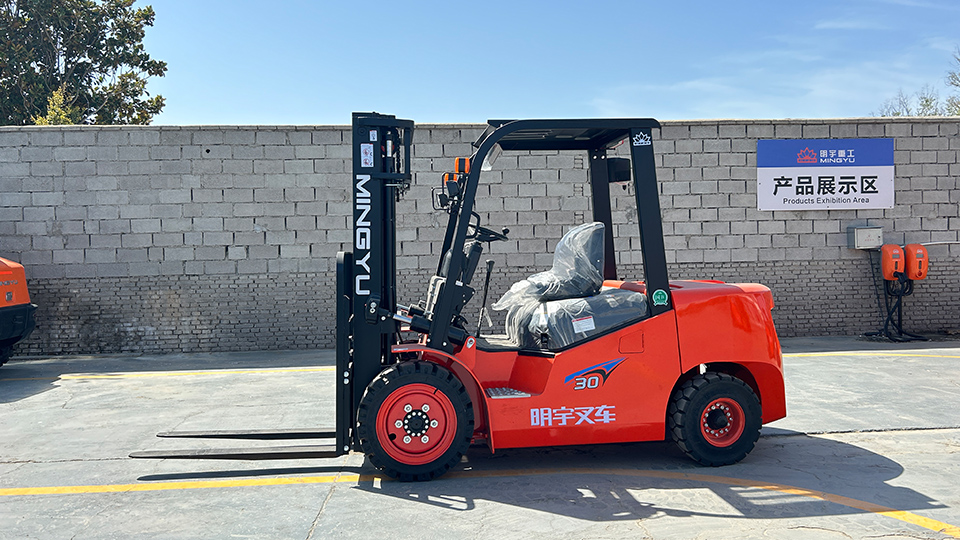

Introduction

The question sounds trivial—until you realise that "maximum lifting height" is one of the most misunderstood and abused numbers in materials-handling technology. Marketing brochures often print the tallest figure the mast builder can achieve in a static test, while the truck destined for your site may never reach that height once you load it, tilt it, side-shift it, or simply drive it over the expansion joints in your floor.

This 2 000-word technical article unpacks the physics, standards, and real-world constraints that determine how high a forklift can actually lift. It is written for facility engineers, fleet specifiers, and safety managers who need to predict—within ±50 mm—where the top of the forks will stop when the truck is working at 95 % of rated capacity on a −5 °C morning with a 25 km/h wind. Where possible, data are taken from 2024–2025 field studies, OEM validation sheets, and updated ANSI/ISO test protocols.

1. Defining "Maximum Lifting Height" – Which Standard Wins?

Five competing definitions circulate in the industry:

Lift height (H1) – top of fork carriage at full extension, truck level, no load (ISO 5053-1:2020).

Extended mast height (H2) – highest point of the mast structure itself, still no load.

Maximum working height (H3) – H1 + 600 mm, the approximate height an operator needs to reach across a 1 200 mm-deep pallet.

Free-lift height (H4) – how high the carriage can rise before the inner mast sections begin to extend (critical for low-door trailers or container work).

Rated lift at capacity (H5) – the highest height at which the truck can still handle its name-plate load centre without exceeding the stability moment defined by ANSI B56.1.

H5 is almost always the lowest figure, and it is the only one that matters for safety and insurance. Unfortunately, many procurement sheets quote H1 or H2. The remainder of this article therefore treats H5 as the de-facto maximum lifting height unless stated otherwise.

2. The Stability Moment – Why the Forklift Forgets 30 % of Its Capacity at 6 m

A counter-balanced forklift is a seesaw: the front axle is the fulcrum. The overturning moment is the product of load weight × horizontal distance from the fulcrum to the load centre (normally 500 mm or 600 mm). The resisting moment is counterweight × horizontal distance from the fulcrum to the counterweight's centre of gravity.

When the mast rises, two things erode the resisting moment:

The mast's own weight shifts forward because the inner channels telescope.

The combined centre of gravity of the truck + load rises, narrowing the stability triangle.

ANSI B56.1 therefore mandates a 4 % stability margin: at full height the truck must still resist 1.33 × the rated overturning moment when tilted 3 ° sideways on a 2 % slope.

Example: A 2.5 t truck with a 3-stage 4.8 m mast can lift 2 500 kg up to about 2 m. At 4.8 m its residual capacity is only 1 760 kg—a 30 % haircut. If you need to lift 2 500 kg all the way to 4.8 m you must buy a 3.5 t chassis.

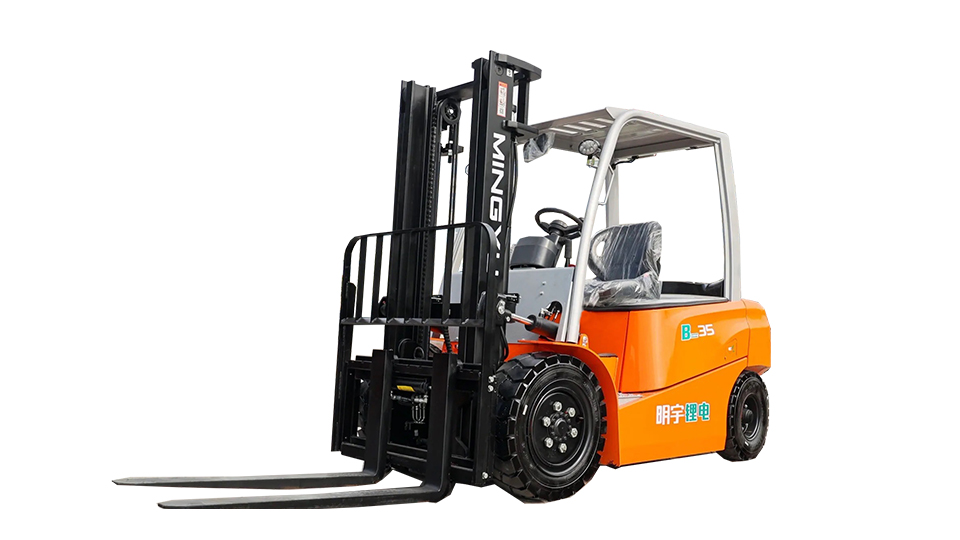

3. Mast Architecture – How the Number of Stages Affects Height

Stages Free-lift (H4) Max H1 (no-load) Typical H5 @ 1 000 kg Tilt-back loss

2-stage duplex 50–100 mm 3.0–3.5 m 3.0 m 0.2°

3-stage triplex 1.5–2.2 m 4.3–6.5 m 4.5–5.8 m 0.4°

4-stage quad 1.6–2.4 m 7.0–10.0 m 6.5–8.5 m 0.6°

Each extra stage adds roughly 150 kg of mobile mast weight and consumes 50 mm of forward reach because the rollers must overlap. Quad masts also amplify chain slack: a 2 mm elongation per chain translates into 8 mm fork drop at 8 m. For that reason, quad masts above 8 m now use toothed belts (Hyster-Yale "Vista" mast) or hydraulic chain tensioners (Linde "LRX") to keep fork drop within 20 mm over 1 000 h.

4. Chain & Roller Physics – The 8 m Ceiling

The standard 16B-2 leaf chain (pitch 25.4 mm) has a minimum ultimate tensile strength of 113 kN. At a 5 : 1 safety factor (ANSI B29.8) the working load is 22.6 kN, enough for 2 300 kg gross load after derating for shear, fatigue and multi-plate articulation.

Above 8 m the catenary action of the chain causes whip when the carriage decelerates. FEM 4.004 now limits chain speed to 0.25 m/s above 6.5 m unless an active damper is fitted. That is why most OEMs cap "standard" masts at 8.5 m. Heights beyond that require:

20B-2 chain (177 kN UTS)

Dual-chain reeving (halves individual tension)

Profiled mast rails (C-section instead of U-section) to stop roller scissoring.

5. Hydraulic System – Pressure, Flow and Temperature

Lifting a 1 800 kg load to 8 m in 12 s demands roughly 36 kW hydraulic power. On an electric truck that is a 180 A draw at 80 V—enough to sag the battery to 72 V and trigger a low-voltage cut-out unless the truck has a "lift cut-back" algorithm that reduces motor RPM under load.

Cold weather thickens oil: at −10 °C ISO-46 oil viscosity jumps to 380 cSt, causing a 0.8 s delay in full-pressure build-up. That sounds trivial, but it adds 40 mm of "micro-creep" after the operator releases the lever, enough to crack ceiling sprinkler heads. Outdoor-rated trucks therefore switch to ISO-32 low-temp oil and fit 2 kW sump heaters that circulate oil at 15 °C minimum.

6. Floor Flatness – The ±3 mm Myth

The Concrete Society TR34 4th edition specifies "flatness" (property value F) and "levelness" (property value L) for very-narrow-aisle (VNA) trucks. A conventional forklift is more tolerant, but above 7 m a 3 mm ridge under one front tyre tilts the truck 0.24 ° laterally. Combined with mast deflection (see §7) the fork tips can swing 70 mm sideways—enough to dislodge a pallet from a rack beam.

Best practice for >7 m lifting is therefore FM = 65 / FL = 35 (super-flat) in the first 600 mm outside the rack footprint. Laser-screed floors routinely achieve this for an extra $4/m², far cheaper than replacing collapsed racking.

7. Mast Deflection & Side-shift Sag – The Invisible 50 mm

A 3-stage 7 m mast loaded to 1 000 kg at 600 mm load centre deflects 38 mm forward and 15 mm sideways under full hydraulic pressure. Add 10 mm of roller clearance and the fork tips drop 18 mm when the load is lowered onto the rack because the elastic energy stored in the mast is released.

Side-shift carriages compound the problem: the hung-on sub-frame can sag 12 mm at 7 m. High-reach trucks therefore integrate side-shift into the carriage itself ("integral" SS) and use chrome-plated, induction-hardened slide rails (700 HV) to cut sag to <5 mm.

8. Tilt Stability – Why 2 ° Forward Tilt Can Kill 250 mm of Height

To insert a pallet into a rack the operator tilts forward 2–3 °. That moves the load centre 25–30 mm in front of the fork face, increasing the overturning moment by 5 %. To stay within the 4 % ANSI margin the truck's electronic limiter may cut hydraulic lift when the tilt angle exceeds 1.5 ° at >6 m.

In practical terms you lose ~250 mm of working height. If you need to deposit a load at exactly 7 500 mm, specify a mast whose H1 is 7 750 mm so that H5 still equals 7 500 mm even with 2 ° forward tilt.

9. Wind & Dynamic Sway – Outdoor High-Reach Rules

Outdoor forklifts are rare above 6 m because wind pressure on the pallet creates an additional moment. A 1 200 × 1 000 mm pallet with 1 000 kg presents 1.2 m² of area. At 25 km/h (7 m/s) dynamic pressure is 30 N/m², yielding 36 N of side force. At 6 m height that equates to 216 Nm of overturning moment—small but enough to swing the load 40 mm laterally, making precise placement impossible.

For outdoor work above 6 m, FEM recommends:

Side-wind screens (perforated steel sheet) bolted to the pallet

Mast-head anemometer interlocked to cut lift at 30 km/h

Sway-dampener: 50 mm-thick rubber pad between inner and middle mast channels, giving 8 % hysteresis.

10. Attachments – 150 mm Lost per Clamp or Rotator

Carton clamps, drum handlers and rotators hang 200–350 mm forward of the fork face. The truck's capacity derate is not linear: at 6 m the lever arm is so long that a 200 kg clamp can erase 450 kg of residual capacity.

Rule of thumb for triplex mast:

Residual kg @ 6 m = Rated kg × 0.70 – (Attachment wt × 2.2)

A 1 000 kg clamp on a 2.5 t truck leaves only 1 090 kg usable at 6 m—often less than the clamp itself. If you need to lift 1 500 kg to 6 m, move to a 3.5 t chassis or a quad mast with integral clamp.

11. Software-Enforced Height Limits – The New Normal

Since 2023 most OEMs (Toyota, KION, Crown, Hyster-Yale) ship trucks with height sensors (magnetostrictive strip or ToF laser) tied into the truck controller. The fleet manager uploads a "height map" via CAN: e.g., aisle 3 limited to 5 500 mm because of a sprinkler main. If the operator tries to lift above 5 500 mm inside the geo-fenced zone, hydraulics cut to 30 % flow—just enough to creep back down.

Insurers now give a 5 % discount on premiums if geo-fencing is active, because 28 % of rack collapses in 2024 were caused by pallets pushed into beams during high-reach placement errors.

12. Absolute Height Ceiling – What Is Technically Possible Today?

The highest production counter-balanced forklift is the Linde Series 597 quad mast, rated 1 000 kg to 11 340 mm (H5). Above that height the chassis would need to be so heavy (≥18 t) that it ceases to be economically viable compared with a reach truck or a mast-up turret truck.

For reference:

Reach truck (moving mast): 13.0 m (Crown TSP 7000)

Very-narrow-aisle (VNA) man-up: 18.5 m (Jungheinrich EKX 516ka)

Counter-balanced forklift: 11.3 m (Linde 597)

Therefore, if your requirement is above 11 m you should switch product categories, not buy a bigger counter-balanced forklift.

13. Quick-Look Derate Table (3-Stage Mast, 600 mm LC)

Chassis t H5 @ 3 m H5 @ 4.5 m H5 @ 6 m H5 @ 7 m H5 @ 8 m

1.5 t 1 500 kg 1 300 kg 1 000 kg — —

2.5 t 2 500 kg 2 200 kg 1 760 kg 1 400 kg —

3.5 t 3 500 kg 3 100 kg 2 600 kg 2 200 kg 1 800 kg

5.0 t 5 000 kg 4 500 kg 3 800 kg 3 300 kg 2 800 kg

14. Decision Checklist – Specify the Right Height First Time

Measure top beam elevation + pallet height + 150 mm clearance = target H3.

Derate for attachment: subtract 2.2 × attachment wt from residual chart.

Confirm floor flatness FM 65 / FL 35 for >7 m.

Check tilt limiter: verify truck still reaches target H3 at 2 ° forward tilt.

Enter height map into truck controller if building has obstructions.

Re-verify battery capacity: Li-ion loses 30 % at −20 °C; ensure remaining runtime covers shift.

Document H5 on the purchase order; reject any bid that quotes only H1 or H2.

15. Conclusion

The maximum lifting height of a forklift is not a single number—it is a family of curves that depend on mast architecture, chain strength, hydraulic power, floor quality, load centre, tilt angle, attachment moment, wind, and even battery voltage sag. For counter-balanced machines the practical ceiling today is 11.3 m, but most applications cluster below 8 m because residual capacity, mast deflection, and floor flatness become exponentially harder to manage above that line.

Use the derate tables, insist on H5 documentation, and enforce geo-fenced height limits. Do that and the truck will lift exactly as high as you expect—no surprises, no cracked sprinklers, no 2 a.m. call-outs because a pallet is jammed against a roof truss 50 mm lower than the brochure promised.
