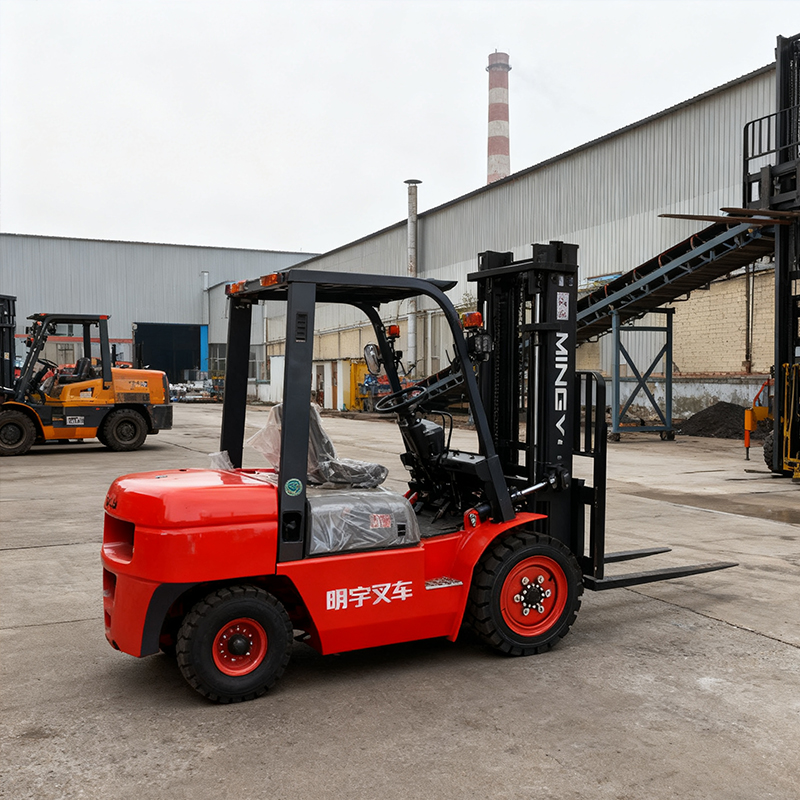

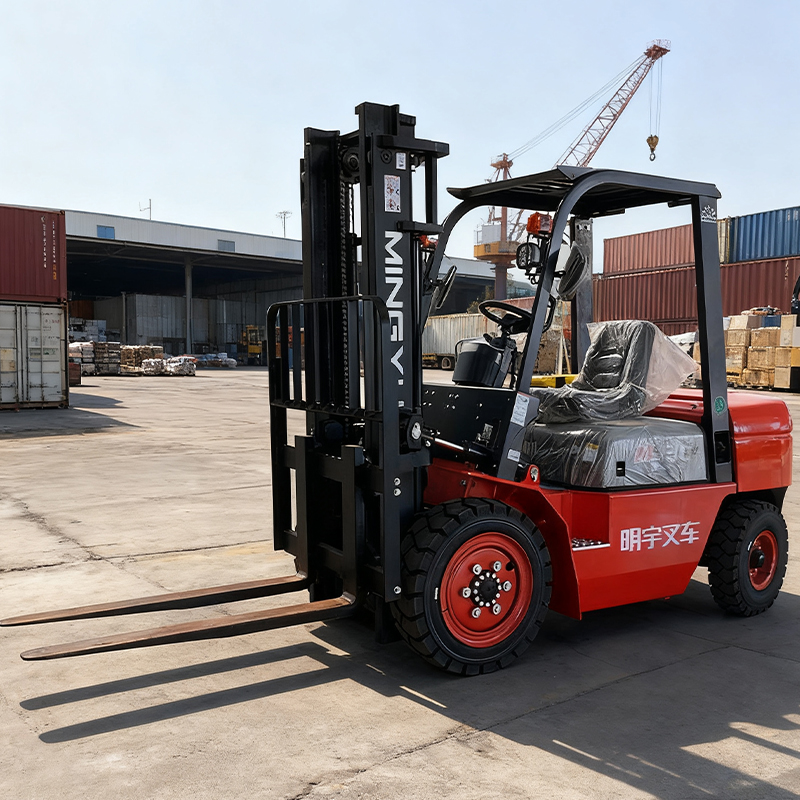

3-Ton Diesel Forklift

This 3-ton diesel forklift (Model: CPC(D)30K) is a powerful, reliable material handling solution designed for heavy-duty lifting, loading, and transportation tasks, particularly suitable for outdoor work, warehouses, and logistics centers.

�� Key Functions and Performance Features

Primary Function: Lifting, lowering, transporting, and stacking materials up to 3,000 kg.

Power and Driving: Powered by a diesel engine (Model: Quanchai) with a rated power of 39 kW at a rated speed of 2650 r/min. It uses a Sit-down driving style and is a counterbalance forklift.

Lifting Capacity:

Rated Load Lifting Capacity: 3,000 kg.

Load Centre Distance: 500 mm.

Standard Lifting Height: 3,000 mm.

Free Lifting Height: 65 mm.

Operational Speeds (Maximum):

Lifting Speed (without load): 480 mm/s.

Lifting Speed (with full load): 440 mm/s.

Operating Speed (without load/with full load): 20 Km/h.

Maneuverability:

Minimum Turning Radius: 2520 mm.

Minimum Right-Angle Channel Width: 4277 mm.

Max Gradeability (with full loading): 20% (allowing operation on inclines).

Gantry Angle (Front/Rear): $6^\circ / 12^\circ$.

Fork Adjustment Range: 260 - 1100 mm.

⚙️ Dimensions, Materials, and Chassis

Dimensions

Chassis and Materials

Tyre Type (Front/Rear): Pneumatic tyre / pneumatic tyre (provides better shock absorption for outdoor/uneven terrain).

Tyre Size (Front): $28 \times 9-15$.

Tyre Size (Rear): $6.50-10$.

Wheel Track (Front/Rear): 1000 mm / 980 mm.

Wheels (Driving/Steering): 2/2.

Brakes:

Brake/Driving Brake: Foot Brake (Hydraulic).

Parking Brake: Hand Brake (Mechanical).

The main body and mast structure are typically constructed from high-strength industrial steel to ensure durability and stability under heavy loads. The engine and hydraulic components utilize robust metals and specialized seals for long operational life.

 Packaging and Shipping

The forklift has an unladen weight of 4190 Kg. Due to its size and weight, shipping is typically handled as break bulk cargo or secured within an open-top/flat rack container.

Shipping Notes: The mast and overhead guard may need to be disassembled partially to meet container height restrictions. The weight requires specialized heavy lifting equipment for loading and unloading. Final packaging would involve comprehensive weatherproofing and securing the unit to the transport bed/container floor with chains or heavy-duty straps to prevent movement during transit.
