3.5-Ton Diesel Forklift

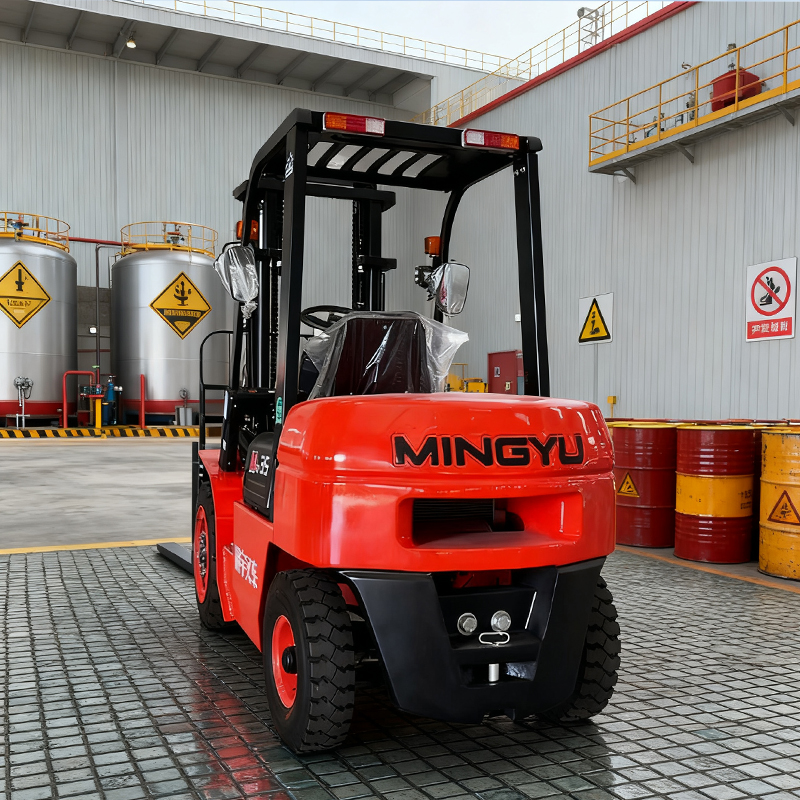

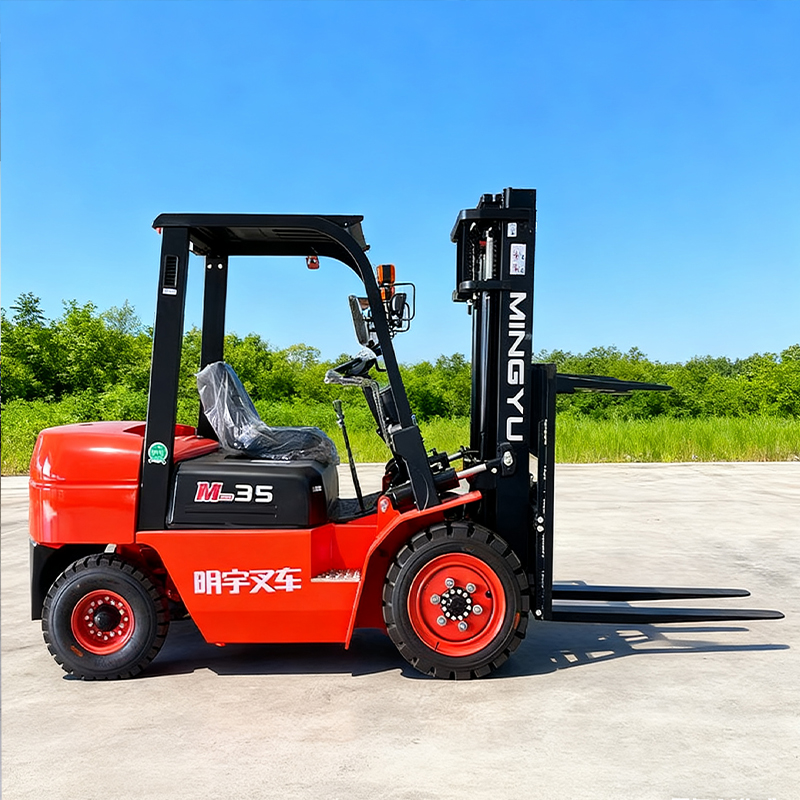

3.5-Ton Diesel Forklift (Model CPC(D)35M)

The CPC(D)35M is a robust, industrial-grade diesel forklift designed for heavy-duty material handling. With a rated lifting capacity of 3,500 kg (3.5 Tons), this sit-down counterbalance forklift is powered by a reliable Quanchai engine, making it ideal for outdoor applications, construction sites, warehousing, and logistics yards where power and endurance are required.

1. Key Functions & Capabilities

Heavy Lifting: Capable of lifting loads up to 3,500 kg with a load center of 500mm.

High Stacking: Features a standard lifting height of 3,000mm (3 meters), allowing for efficient stacking in medium-height racking systems.

Ramp & Slope Operation: Engineered with a 20% gradeability (with full load), allowing it to navigate loading docks and inclined ramps with ease.

Variable Load Handling: The fork adjustment range of 260–1100mm allows the operator to handle pallets of various widths or non-standard cargo.

2. Features & Performance

Powertrain: Equipped with a 39kw Quanchai diesel engine (rated speed 2650r/min), providing the necessary torque for continuous operation.

Speed: capable of travel speeds up to 20 km/h (both laden and unladen), ensuring quick turnaround times across large facilities.

Lifting Efficiency:

Lifting speed (without load): 480 mm/s

Lifting speed (full load): 370 mm/s

Maneuverability: despite its power, it maintains a minimum turning radius of 2,520mm, suitable for standard industrial aisles.

Mast Tilt: The gantry (mast) offers a tilt angle of 6° forward and 12° backward, helping to secure loads during transport and assisting in engaging/disengaging pallets.

3. Technical Dimensions

Overall Length (with forks): 3,890 mm

Overall Length (without forks): 2,715 mm

Overall Width: 1,228 mm

Height (Mast Lowered): 2,140 mm

Max Working Height: 4,262 mm

Overhead Guard Height: 2,100 mm (provides operator protection).

Ground Clearance: 165 mm (allows for operation on uneven surfaces).

4. Materials & Build Configuration

Tires: Features Pneumatic Tyres (Front: 28x9-15, Rear: 6.50-10). Pneumatic tires provide better shock absorption and traction on rough or outdoor terrain compared to cushion tires.

Braking System:

Driving Brake: Foot Brake for active control.

Parking Brake: Hand Brake for secure stationary positioning.

Chassis: Heavy-duty steel construction with a total unladen weight of 4,465 kg.

5. Packaging & Shipping Information

Shipping Weight: 4,465 kg (approx. 4.5 metric tons).

Shipping Dimensions: When preparing for transport, the effective footprint is typically based on the length without forks (2.72m) and the width (1.23m).

Container Loading:

Due to the mast height (2.14m lowered) and width, this unit can typically fit inside a standard 20GP or 40HQ container.

Note: For shipping, forks are often detached or folded to minimize length.

Right-Angle Stacking: Requires a minimum channel width of 4,277mm to operate effectively with standard 1100x1100 pallets.

Quick Specs Summary Table

Feature	Specification
Model	CPC(D)35M
Engine	Quanchai Diesel (39kw)
Max Load	3,500 kg
Lift Height	3,000 mm (Standard)
Travel Speed	20 km/h
Wheelbase	1,700 mm
Machine Weight	4,465 kg
