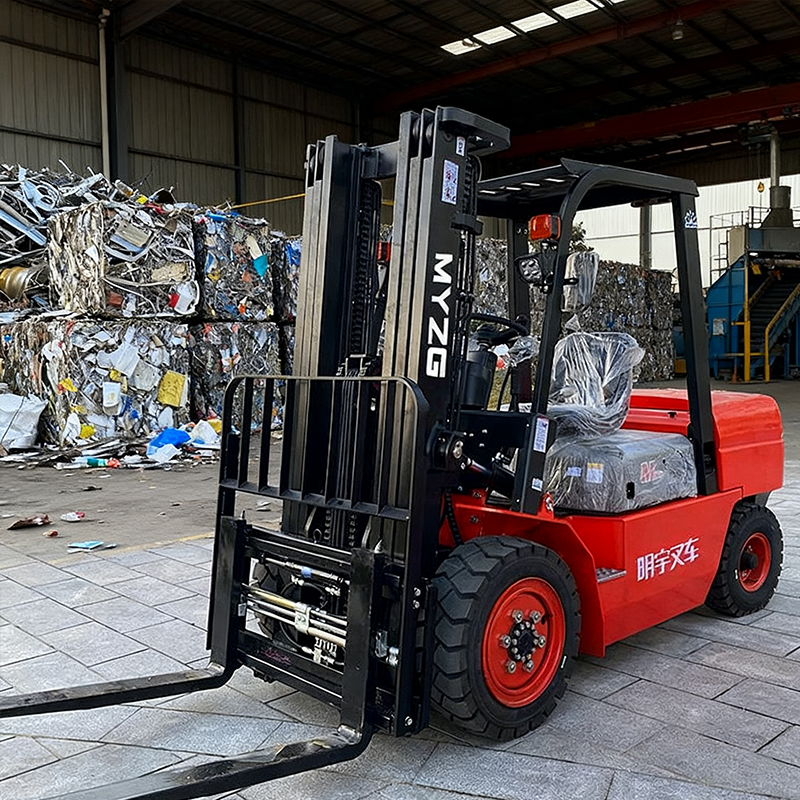

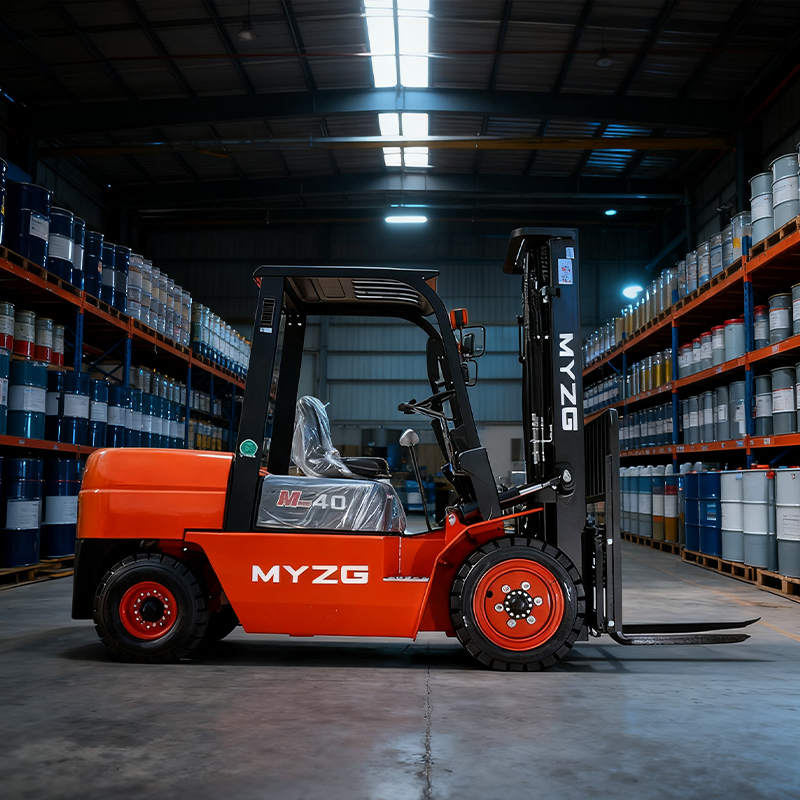

4-Ton Diesel Forklift

Functions

Heavy-duty pallet handling, stacking up to 4 300 mm and long-distance horizontal transport

Dual-stage 3 m container mast with 70 mm free-lift—enter containers and low-doorways without raising the inner mast

Side-shift-ready carriage (260–1 100 mm fork-spacing) accepts 1 100 × 1 100 mm Euro/GMA pallets

20 % full-load gradeability and 20 km/h travel speed for yard ramps, docks and semi-rough terrain

4 000 kg rated capacity @ 500 mm load centre, 2 550 mm turning radius and 4 307 mm right-angle aisle—fits standard warehouse racking and truck bays

Features & Technology

Quanchai 39 kW (53 hp) water-cooled diesel, Tier-III, low-noise (≤ 86 dB), 2650 r/min, 5 % fuel saving vs. competitors

Wet-disc rear-axle service brake + hand-lever parking brake; fails-safe on ramps

Pneumatic tyres 28×9-15 front / 6.50-10 rear = cushioning on uneven black-top, yard chip-seal or compacted gravel

Wide-view 6°/12° tilt mast, 2140 mm lowered height, 2100 mm overhead guard, 970 mm seat-to-roof space—fits 2 m doorway and tall drivers with hard-hat

Dual-element air cleaner, pre-filter + cyclone, extends filter life in dusty cement or grain plants

Full-hydraulic priority power steering, 2-wheel drive / 2-wheel steer, light 20 N steering wheel force

Easy-split floorboard, spin-on filters and side-opening hood—daily checks in < 5 min

OPS seat with 150 mm suspension, adjustable column, ergonomic joystick and cup-holder

CAN-bus LCD cluster: hour-meter, fuel, temp, error code, maintenance reminder

LED front / rear lamps, rotating beacon and rear-handle back-up alarm as standard

Materials & Build Quality

16 Mn steel mast rails, 20 % thicker for 4-ton service; internal double-roller chains, 4:1 safety factor

Reinforced boxed frame, integral counterweight (cast-iron + concrete composite) – unladen mass 4 950 kg, no extra ballast needed

Heat-treated 45 # forged forks, 45 mm thick, 1 220 mm length, zinc-phosphated & powder-coated

Robot-welded chassis, shot-blast SA 2.5, epoxy primer + polyurethane top-coat, 120 μm total thickness, UV-stable RAL 2002 red / safety yellow options

German Conti or Chinese A-brand hoses, 4:1 burst ratio; Parker O-ring face-seal fittings eliminate leaks

IP 54 sealed connectors, 105 °C rated copper cabling, anti-rodent sheath

Dimensions & Performance Summary
Overall length (with forks) 4 120 mm; (without) 2 945 mm
Width 1 228 mm
Height (guard) 2 100 mm; (mast lowered) 2 140 mm; (max lifted) 4 262 mm
Wheelbase 1 900 mm; front overhang 457 mm / rear 550 mm
Ground clearance 165 mm; min turning radius 2 550 mm
Weight unladen 4 950 kg; max draw-bar pull 18 kN
Lifting speeds 480 mm/s (empty) / 360 mm/s (full)
Lowering speed controllable ≤ 550 mm/s

Packaging for Export

FCL: One unit per 20 GP; two units per 40 HQ

Ro-Ro / Flat-rack: Mast tilted forward 5°, counterweight wrapped with 10 mm plywood + steel corner, forks removed and strapped to carriage

Anti-rust film + desiccant bags inside cab, plastic bumper mask, tires wrapped with woven bag

English / Spanish / French operation manual, tool kit, 2 gal anti-freeze, 2 spare filters packed in locked glove box

Shipping marks: Model CPC(D)40M, Net/Gross weight, Serial No., CE mark for EU, EPA tag for USA if required

Shipping & Logistic

Lead time: 15–20 days (1–5 units), 25 days (6–15 units)

Incoterms: FOB Shanghai, CIF major global port, or DAP warehouse (optional)

HS Code 84272090; Export license, FORM A / CO, CE dossier (EMC, MD, Noise) available

Warranty: 12 months or 2 000 h (whichever first); global parts depot in Rotterdam, Dubai, Houston and Sydney; 48 h courier dispatch guarantee

With rugged pneumatic tyres, strong Quanchai diesel and compact 2.55 m turning circle, the CPC(D)40M 4-ton diesel forklift is ready for container stuffing, block-stacking and fast dock-to-yard cycles in ports, logistics parks and heavy manufacturing plants.
