Lift operation platform

Product Description

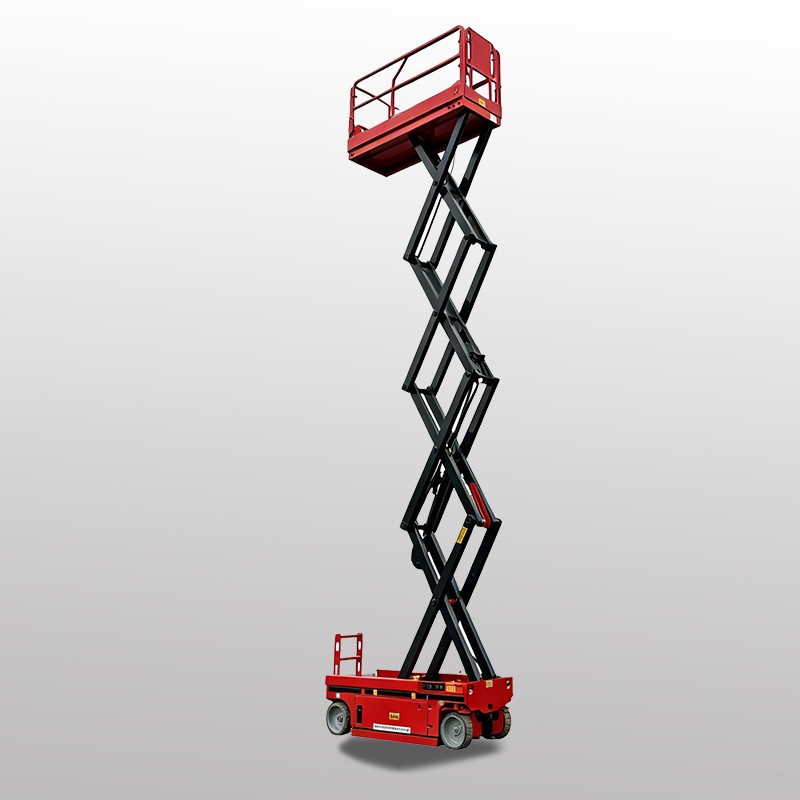

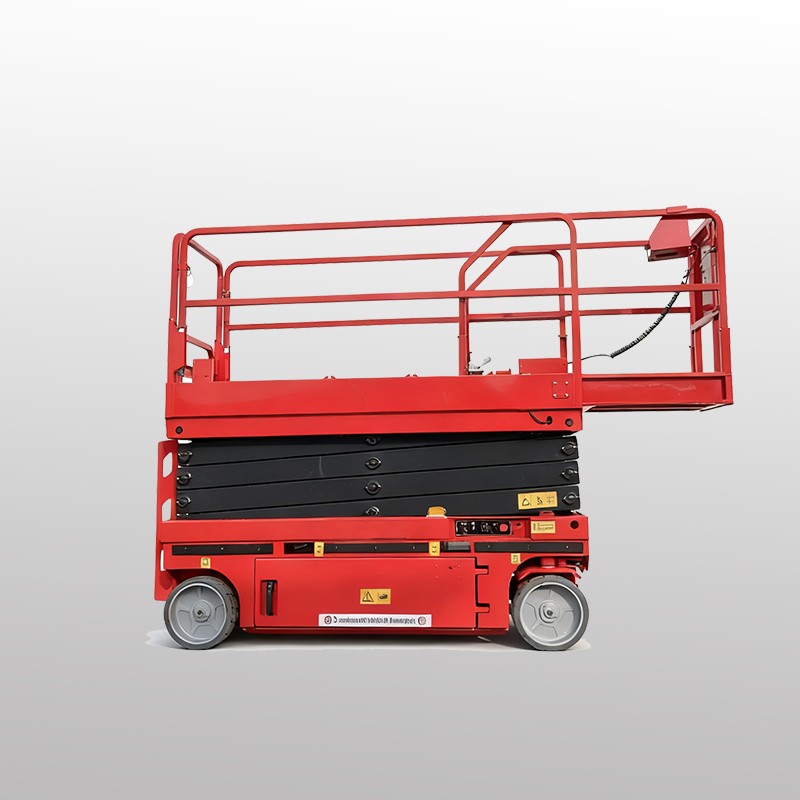

This is a scissor-type aerial work platform manufactured by SCZG. It features a red-and-black color scheme, equipped with a liftable working platform and an extension arm. Combining flexible mobility and stable operation capabilities, it is a practical device in the field of aerial work.

Core Advantages

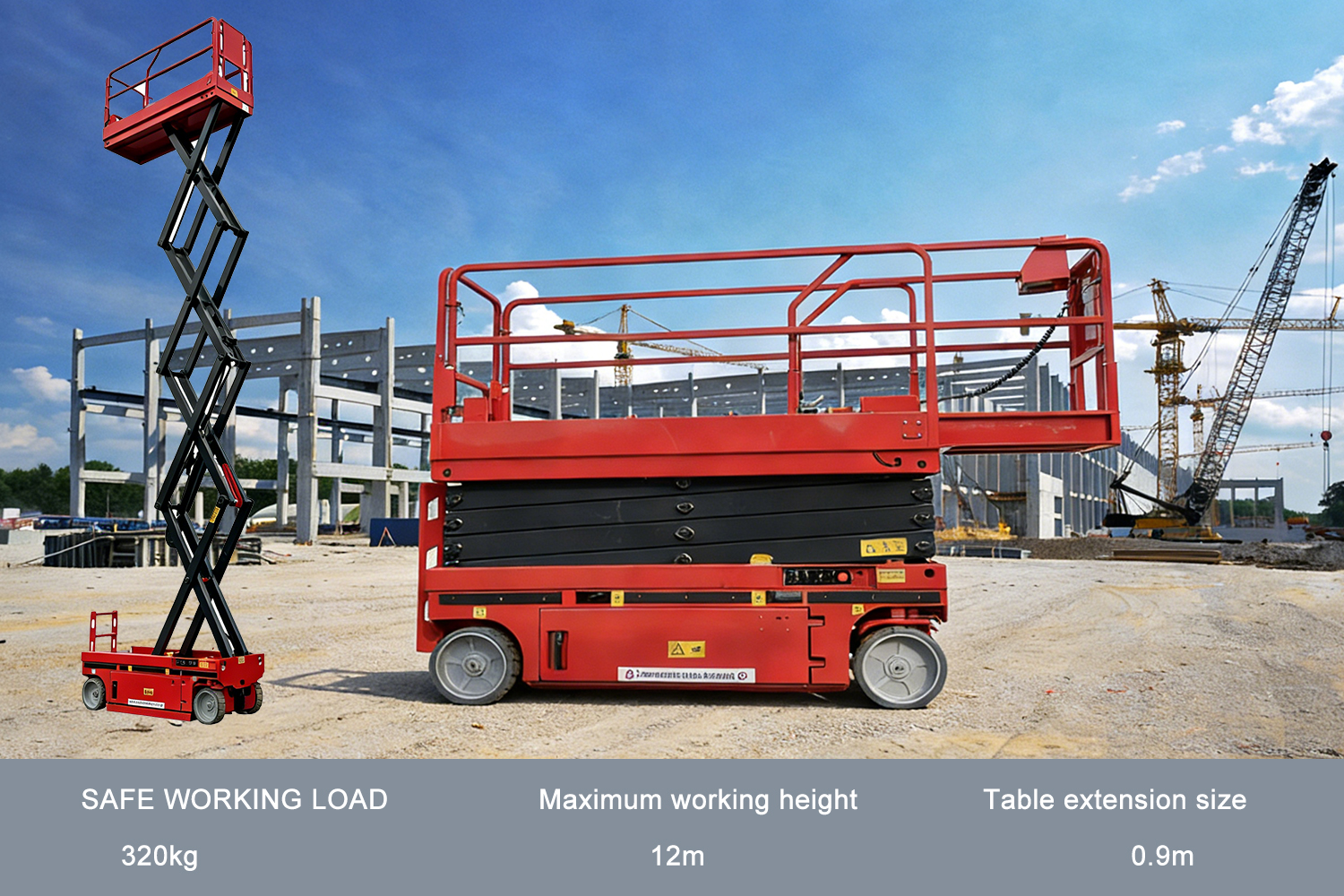

Wide working range: The maximum working height reaches 12 meters, and the platform can extend 0.9 meters, covering more operating areas;

Reliable load capacity: The platform has a rated load of 320kg (113kg for the extension arm), meeting the needs of multi-person/multi-tool operations;

Safe and efficient: The lifting speed is 3-5m/min, and the travel speed is adapted to different working conditions (3.5km/h when stowed, 0.8km/h when elevated). It also has 25% climbing ability and 1.5°/3° working angle limit to ensure operational safety;

Sufficient battery life: The 24V/203Ah battery paired with a 24V/30A charger supports long-term continuous operation.

Technical Parameters

Application Environment

It is suitable for indoor and outdoor aerial work scenarios such as construction, factory maintenance, venue cleaning, and equipment installation. It can operate stably on flat hardened surfaces (e.g., factory areas, construction sites, parks).

Container Shipping

With a self-weight of 2600kg and a compact size (small volume after the platform is stowed), multiple units can be loaded into a standard 40-foot container, facilitating cross-border transportation and batch delivery.

Service Guarantee

Warranty Service: The core structure (articulating boom, turntable) enjoys a 1-year warranty, and core components such as batteries and hydraulic systems enjoy a 6-month warranty. Free repair or replacement is provided for non-human damage.

Technical Support: 24/7 multi-channel consultation (WhatsApp/Skype/WeChat) is available, supporting remote troubleshooting, operation training and other services.

Spare Parts Supply: Long-term supply of original spare parts (such as tires, batteries) with fast delivery after ordering, ensuring continuous operation of the equipment.

Customization Service: According to the needs of the operation scenario, personalized accessories such as platform extensions and protective devices can be adapted.

About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.

MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
