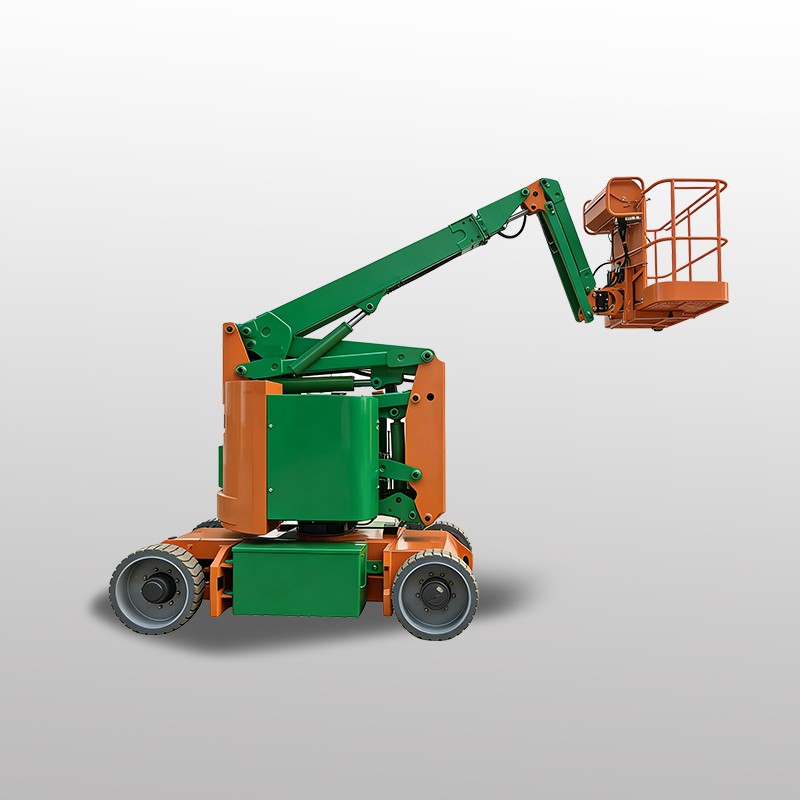

ZG-QB12 Articulating Boom Lift

Product Description

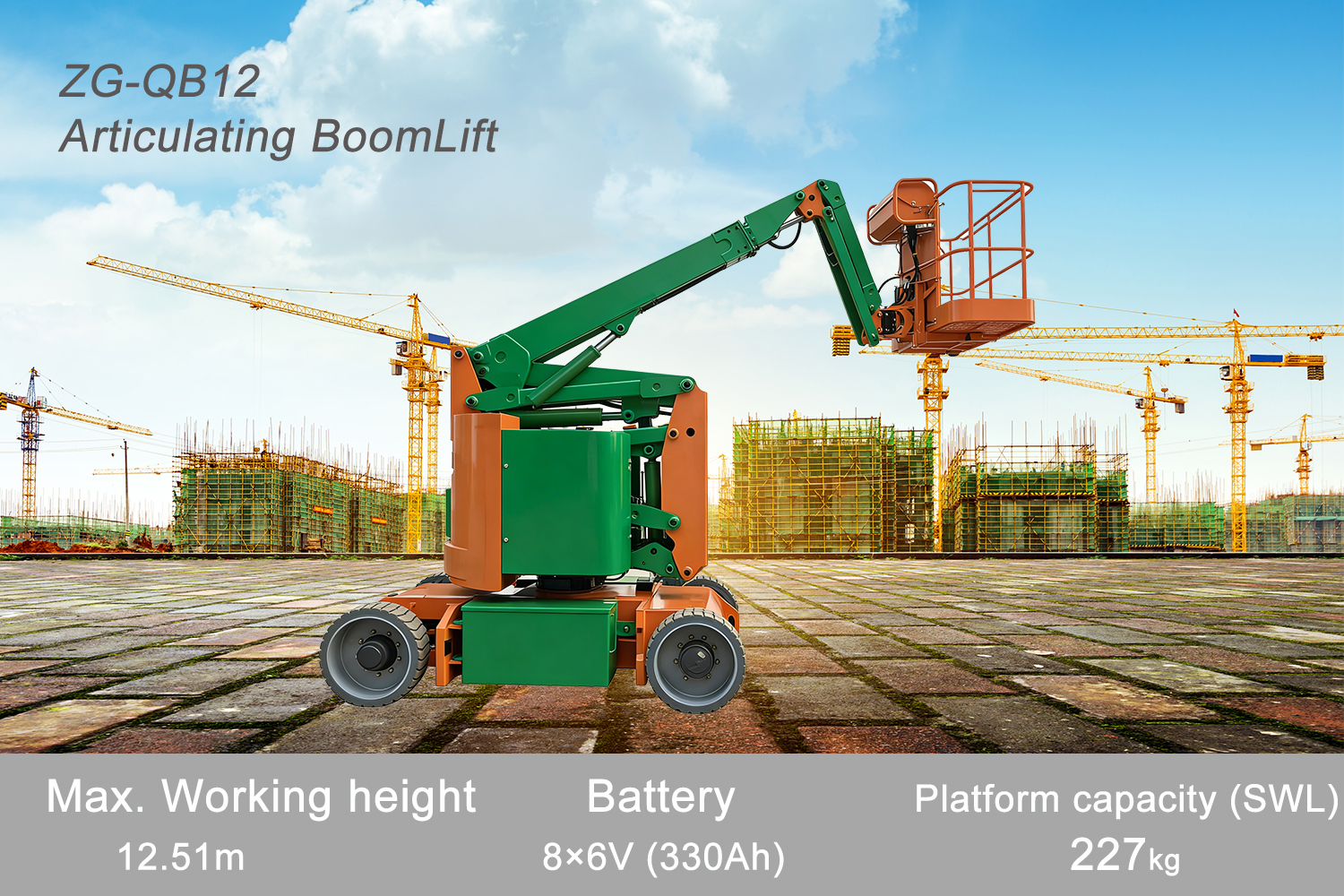

ZG-QB12 is a highly maneuverable articulating boom lift designed for high-altitude operations in complex spaces. Equipped with 365° non-continuous turntable rotation + 180° platform rotation structure, combined with a maximum operating radius of 7.51m and a spanning height of 4.64m, it can flexibly cover hard-to-reach areas such as building facades and equipment tops. With a maximum working height of 12.51m and a platform load capacity of 227kg, it supports single-person efficient operation with tools. The body is equipped with an 8×6V (330Ah) battery pack, balancing endurance and power. The compact size in the stowed state (5.78m×1.46m×2.05m) and 2.98m outside turning radius allow flexible transfer in narrow spaces, adapting to multi-scenario high-altitude operation needs.

Advantages

Flexible Operation: Articulating boom structure + large operating radius enables obstacle-crossing operations; 365° turntable rotation + 180° platform rotation achieves multi-dimensional all-round operation coverage.

Efficient & Stable: Platform lifting/lowering times are 85-100s (up) and 70-85s (down) respectively, ensuring high operation efficiency; 35% gradeability + 3° maximum working angle allows stable operation on complex terrain.

Safe & Reliable: Equipped with a tilt sensor (activated at 3°), which automatically alerts during over-range operations; 227kg load capacity + 1.4×7.8m platform size ensure operation safety and operating space.

Strong Endurance: 8×6V (330Ah) large-capacity battery + 30A charger can support long-term continuous operation with a single charge, adapting to all-day construction needs.

Detailed Parameters

Service Guarantee

Warranty Service: The core structure (articulating boom, turntable) enjoys a 1-year warranty, and core components such as batteries and hydraulic systems enjoy a 6-month warranty. Free repair or replacement is provided for non-human damage.

Technical Support: 24/7 multi-channel consultation (WhatsApp/Skype/WeChat) is available, supporting remote troubleshooting, operation training and other services.

Spare Parts Supply: Long-term supply of original spare parts (such as tires, batteries) with fast delivery after ordering, ensuring continuous operation of the equipment.

Customization Service: According to the needs of the operation scenario, personalized accessories such as platform extensions and protective devices can be adapted.

Applicable Scenarios

Construction Engineering: High-rise exterior wall decoration, curtain wall installation, roof equipment maintenance, steel structure erection, etc.

Municipal Maintenance: Street lamp replacement, traffic facility installation, bridge inspection, urban greening pruning, etc.

Industrial Field: Factory equipment installation, large machinery maintenance, warehouse shelf maintenance, pipeline laying, etc.

Commercial Scenarios: Shopping mall facade cleaning, exhibition venue construction, hotel high-altitude facility maintenance, etc.
