SJY0.5-12 Liftoperationplatform

Product Details

Product Description

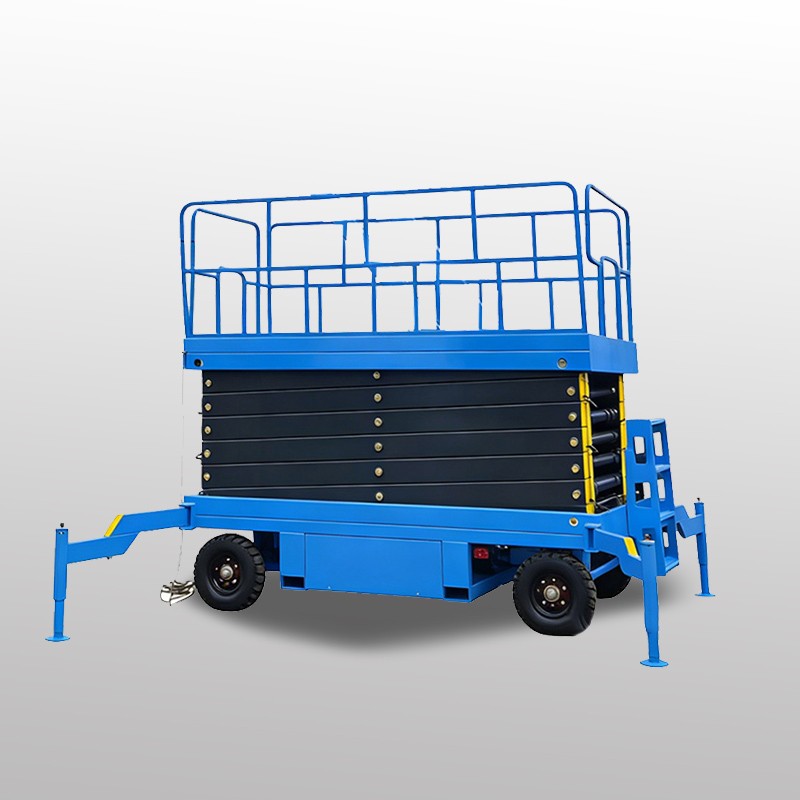

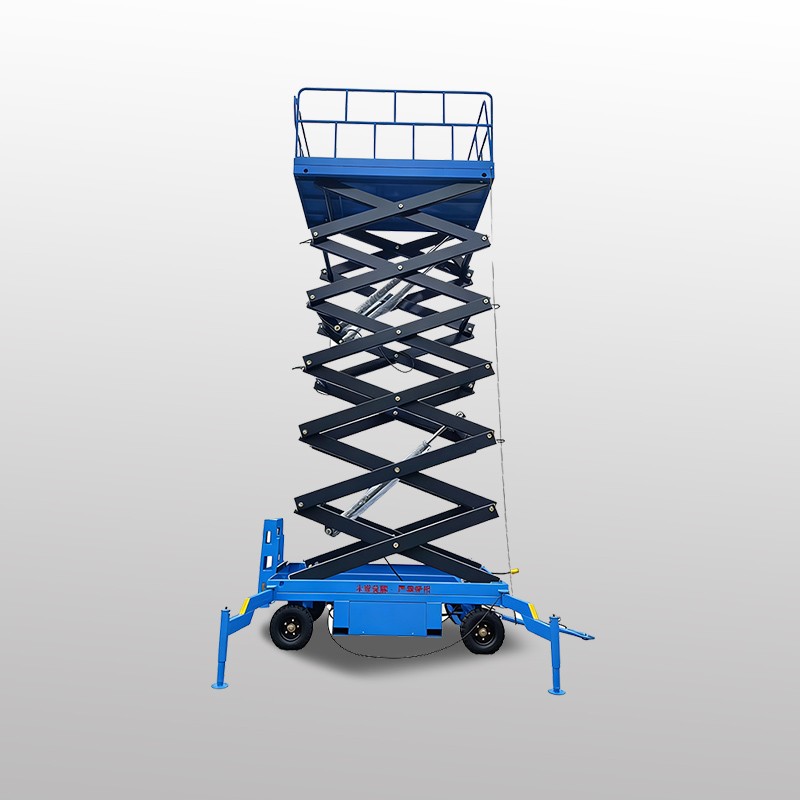

This is the SJY0.5-12 scissor lift operation platform of the ZG brand. It is a mobile aerial work device with a telescopic scissor arm structure, matched with a blue working platform and black scissor arms. The overall design is simple and practical, suitable for various aerial work scenarios.

Product Features

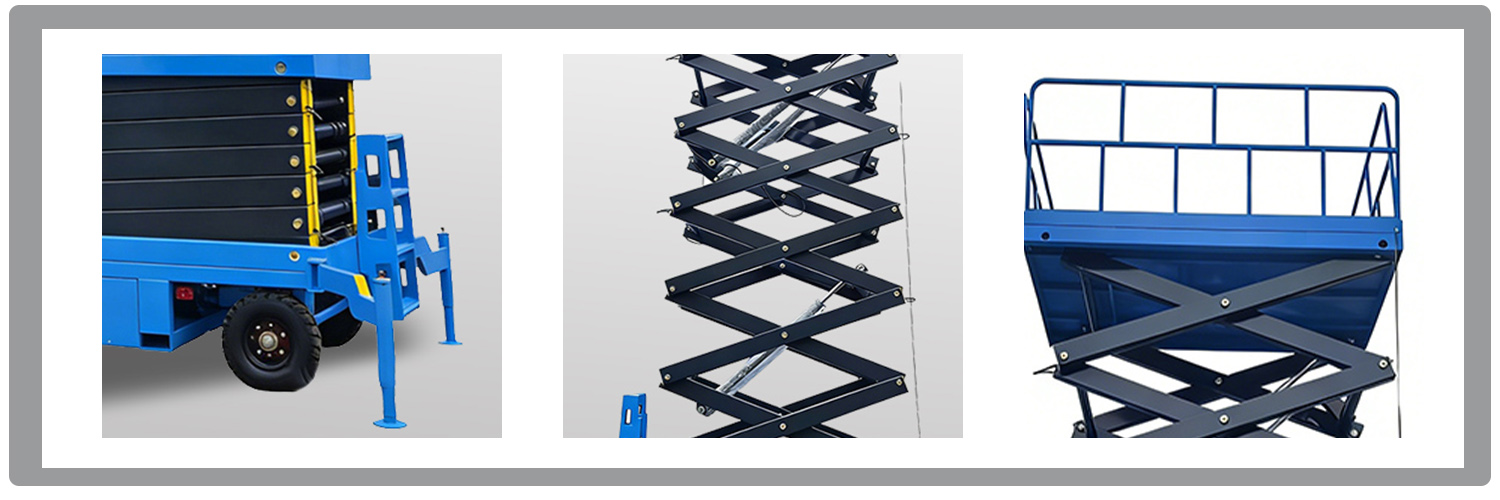

Stable Structure: The scissor arm and base frame are made of 160803.75mm material; the working platform is bent from 3mm flat plate, and the guide rail is bent from 5mm flat plate, ensuring the equipment strength;

Flexible Lifting: Equipped with 4 HSG80/50 oil cylinders, the lifting speed is 4-6m/min, the lowering speed is adjustable, and the maximum lifting height reaches 12m;

Easy Mobility: Adopts 500-8.4 inflatable tires and a traction structure, which can flexibly transfer the working site;

Safety Protection: Equipped with 120*50*3.75mm outriggers, which can stably support the equipment during operation to avoid tipping.

Product Advantages

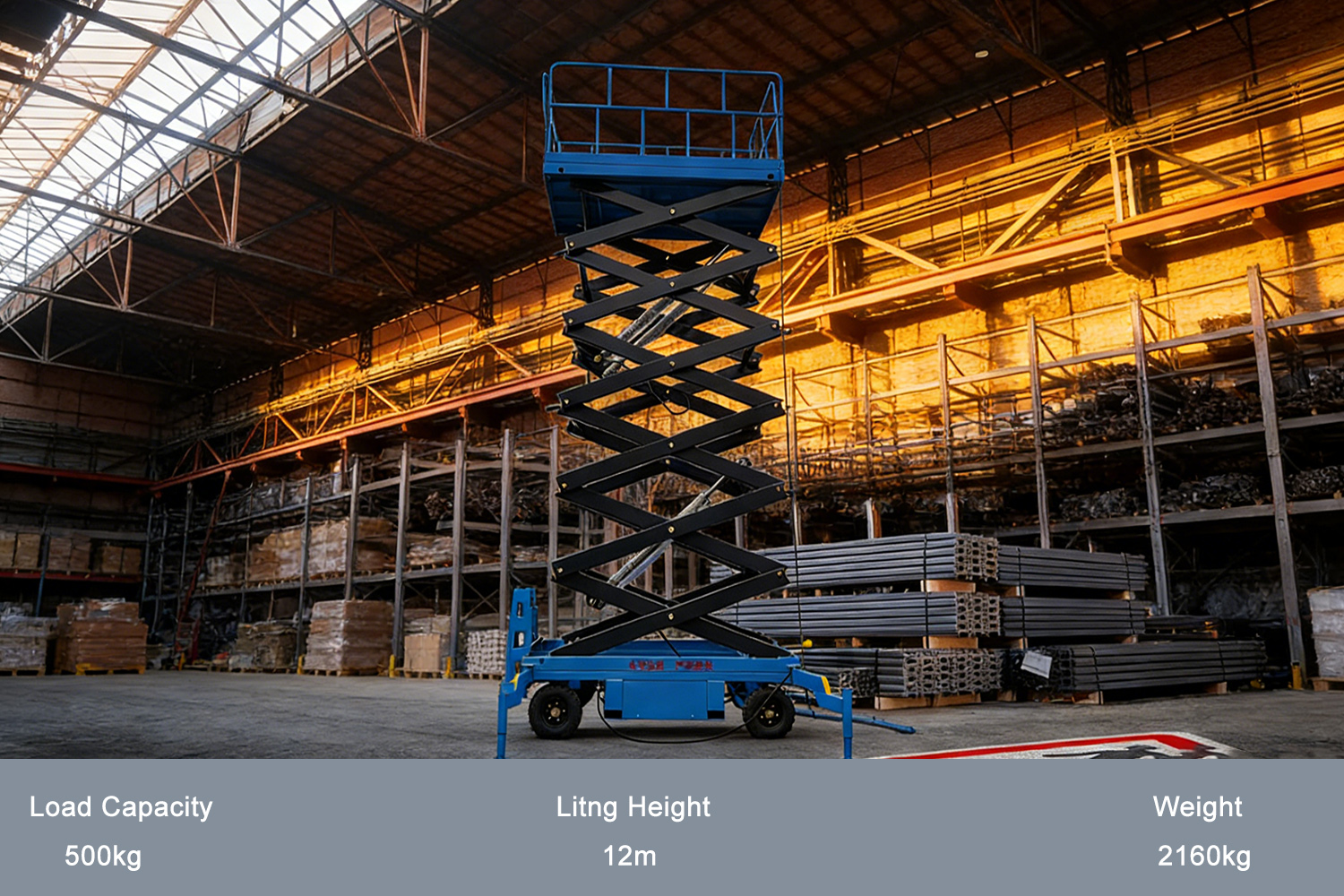

Reliable Load Capacity: The rated load is 500kg, which meets the needs of multiple people or tools working at the same time;

Stable Power: 3kW/380V power configuration, combined with 2-10/43MPa hydraulic oil pipe and 32# hydraulic oil, ensures the efficient operation of the lifting system;

Strong Adaptability: The overall dimension is 2796*1670*1750mm, and the weight is about 2160kg, which can adapt to narrow sites and is easy to transport;

High Durability: The axle pin is made of 45# steel, and key components are made of high-spec materials, which prolongs the service life of the equipment.

Core Parameters

Application Scenarios

It is suitable for aerial work within 12m, such as workshop maintenance, building exterior wall construction, warehouse cargo stacking, venue equipment inspection, municipal street lamp maintenance, etc. It is especially suitable for working conditions that require frequent transfer of working locations.

After-sales Service

Provide equipment installation guidance and operation training;

Core components enjoy warranty service (please consult customer service for specific duration);

Support remote fault diagnosis and provide spare parts supply service;

You can consult at any time via WhatsApp/WeChat (+8613176910558) or email (myloader@vip.163.com).

Packing Instructions

The equipment is an integrated structure (including scissor arm, working platform, base), no need to split and pack, and can be directly transported by flatbed truck; the outriggers and tires need to be fixed during transportation to avoid shaking.
