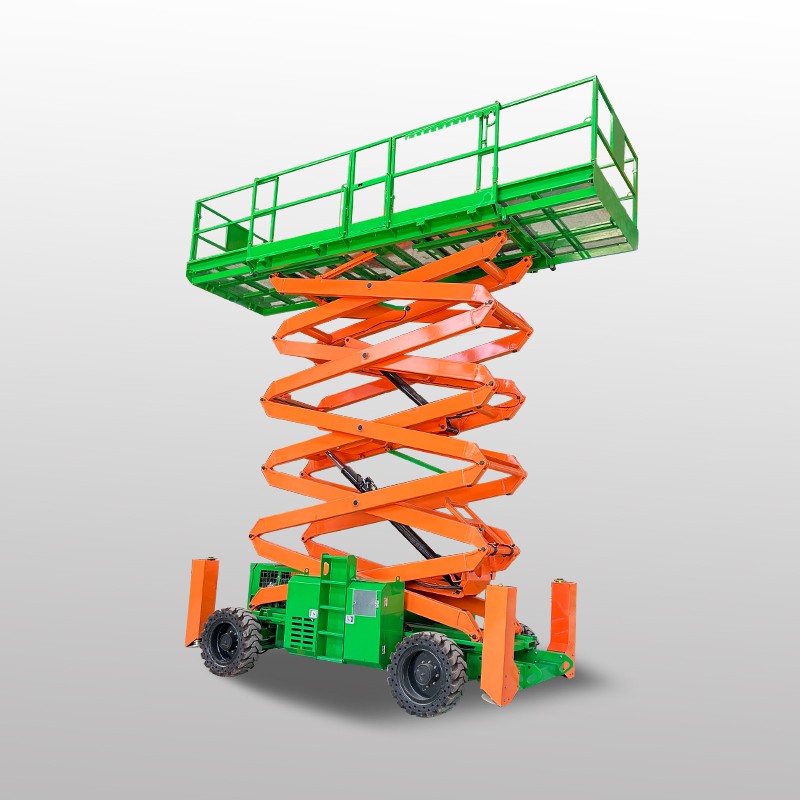

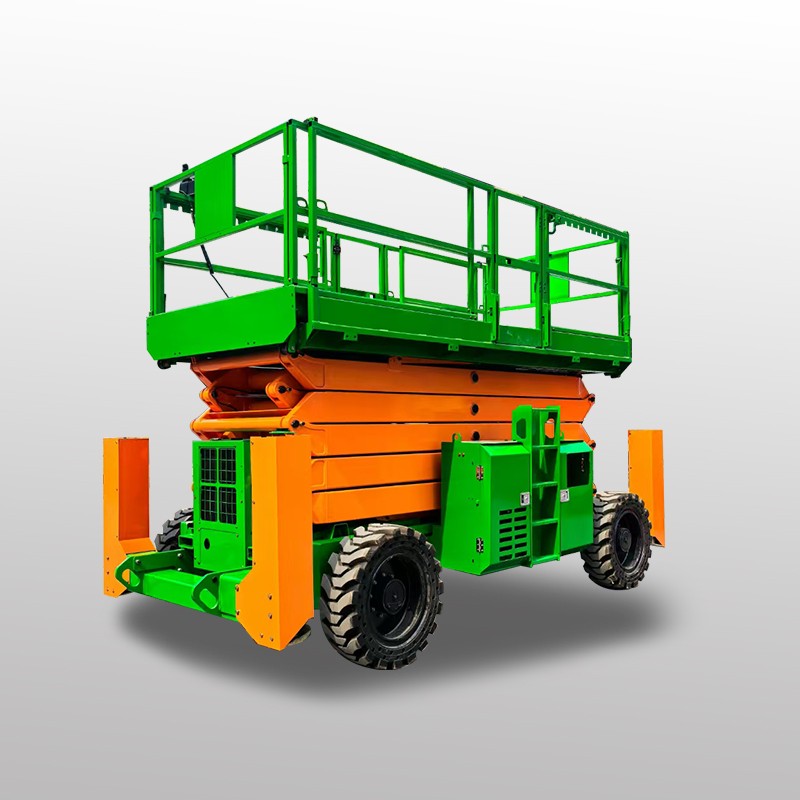

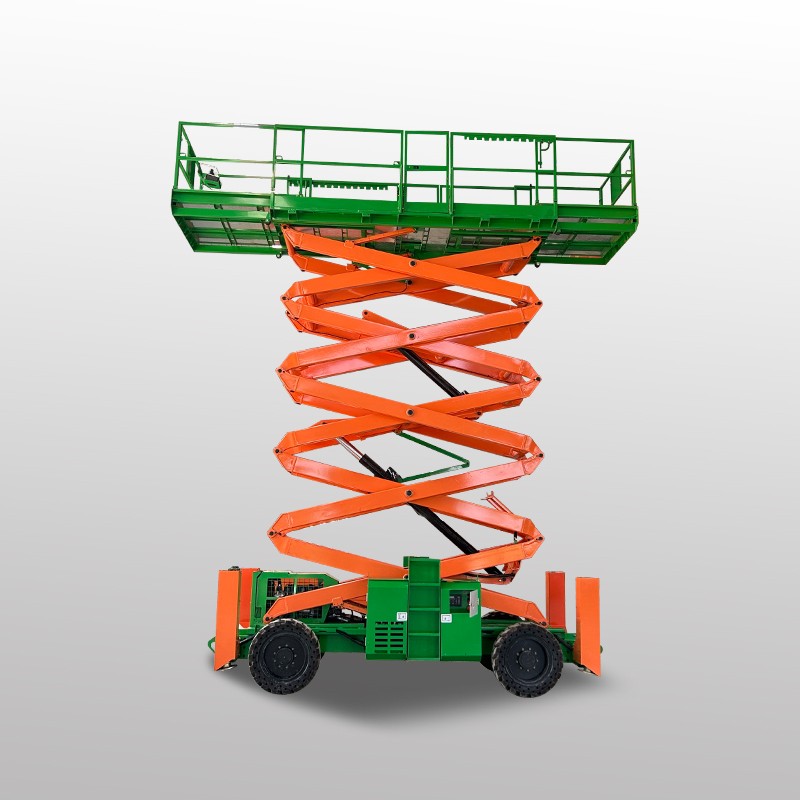

ZG-YY-12-16M Off-road scissor lift platform

Product Description

This is the SDZG ZG-YY-12-16M off-road scissor lift platform, covering maximum working heights of 12-18.2m. It adopts 4WD off-road drive + diesel power design, paired with orange-green scissor arms and working platform, and is a "high-load, strong passability" aerial work equipment tailored for complex road conditions.

Product Features

Off-road Configuration: Equipped with 4WD (four-wheel drive) + 2WS (two-wheel steering), with a maximum gradeability of 50%, adapting to muddy, bumpy and other unpaved roads;

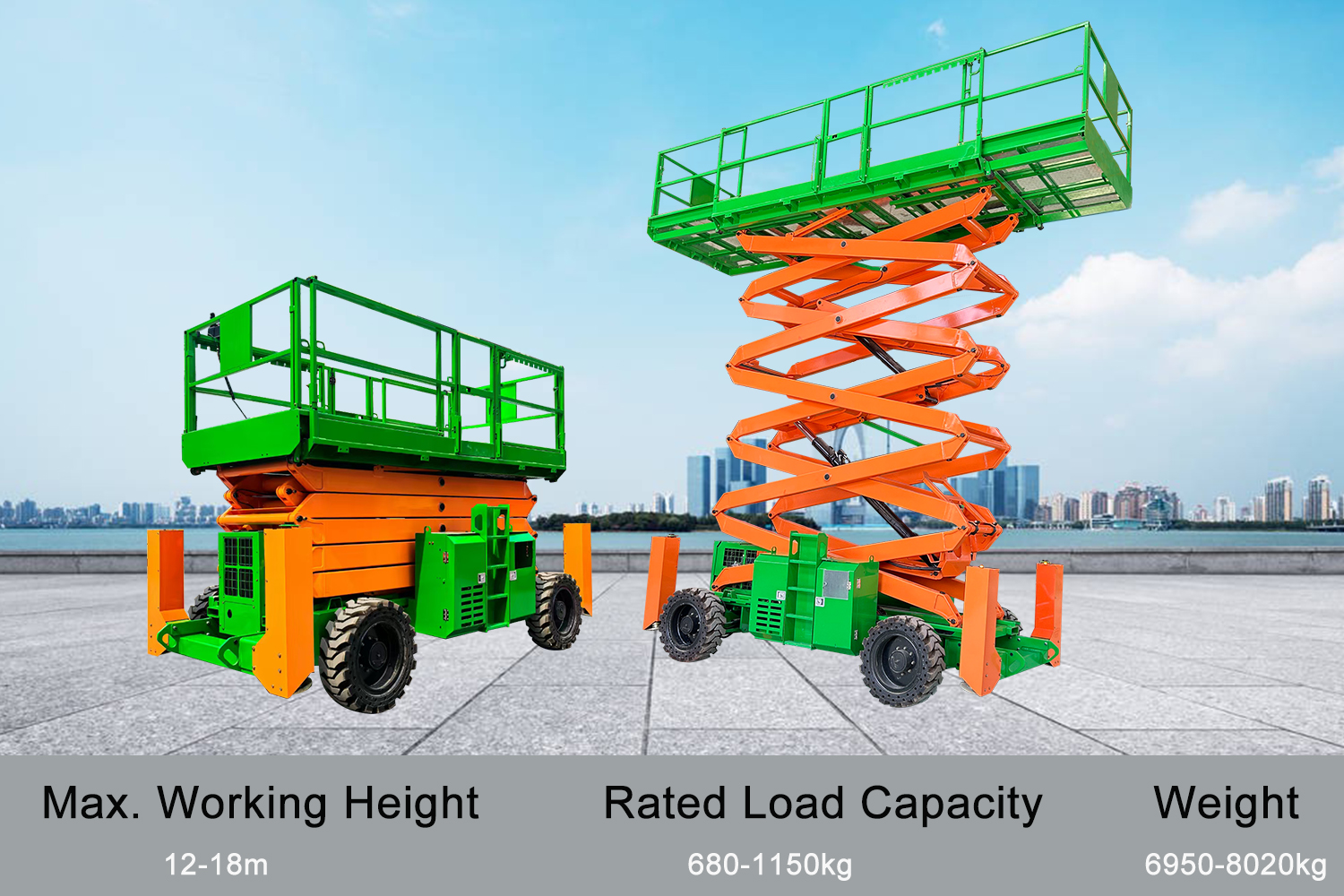

Multi-height Coverage: Offers 12-18.2m maximum working heights; the platform size is uniformly 3.98×1.83m and supports extension, ensuring working space;

Dual-state Walking: Supports walking in both stowed and lifted states (up to 6.1km/h), meeting the needs of moving and adjusting positions during operation;

High-load Design: The maximum rated load is 1150kg, which can accommodate 7 people working at the same time, suitable for high-altitude transfer of heavy tools/materials.

Product Advantages

Strong Passability: Off-road drive + large-size tires, easily handling complex road conditions such as construction sites and mining areas, breaking the scene limitations of ordinary lift platforms;

Efficient Operation: Fast lifting speed (up to 50/35s for lift/lower), high-load + multi-person operation design, greatly improving team work efficiency;

Stable Power: Uses Kubota D29L diesel engine (36KW), with sufficient power and unlimited endurance, supporting long-term outdoor operations;

Safe & Reliable: Uniform minimum turning radius (5.33m) + stable scissor structure, ensuring operation safety in complex environments.

Core Parameters

Application Scenarios

Suitable for 12-18.2m aerial work under complex road conditions, such as outdoor construction site work, mining area equipment maintenance, high-altitude maintenance of large venues (e.g., stadiums), municipal road (e.g., viaduct) repair, etc. It is especially suitable for working conditions requiring heavy load and multi-person collaboration.

After-sales Service

Provide special operation and maintenance training for off-road working conditions;

Core power and drive components enjoy warranty service (consult customer service for specific duration);

Support on-site fault maintenance (regional scope needs to be negotiated) and supply original spare parts;

You can consult at any time via WhatsApp/WeChat (+8613176910558) or email (myloader@vip.163.com).

Packing Instructions

The equipment is a large integrated structure, packaged with bare loading + key component protection, and transported by flatbed trailer; before transportation, the platform needs to be stowed and the scissor arms fixed to avoid component damage caused by road bumps.
