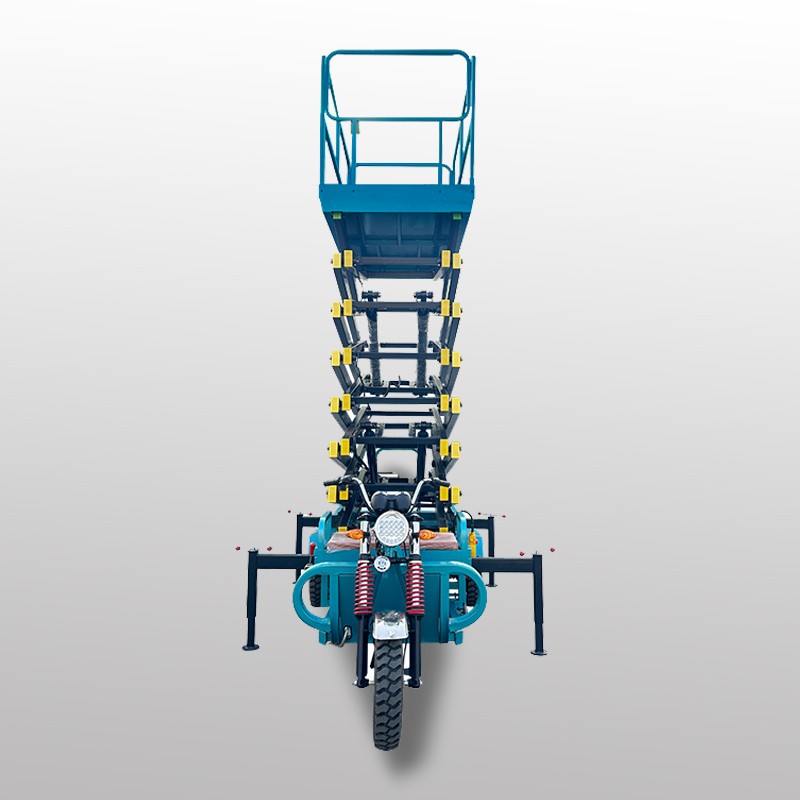

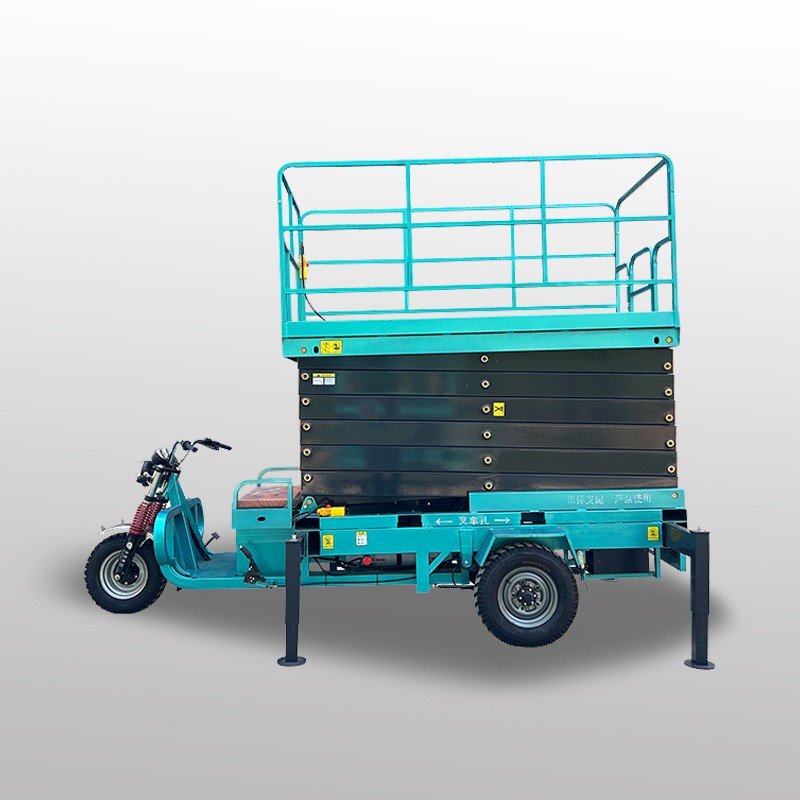

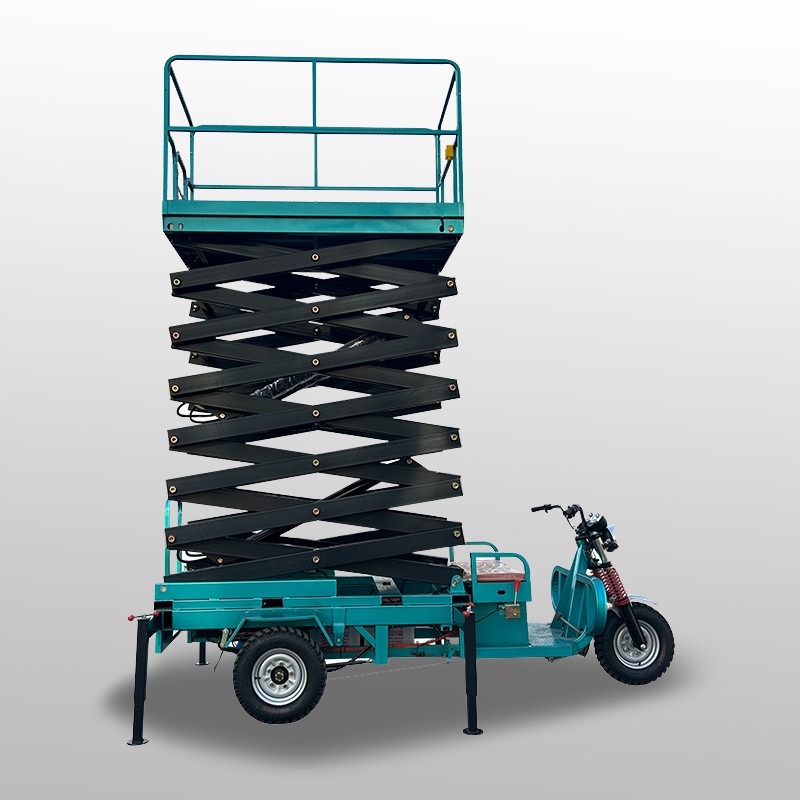

ZG-DDC4-12M Vehicle-mounted three-wheel scissor lift platform

ZG-DDC4-12M Vehicle-mounted three-wheel scissor lift platform

Product Item : ZG-DDC4-12M
Category： Aerial Platforms
Load Capacity：500kg
Lifting Height:4-12m
Battery:12v/85AH (4pcs)
INQUIRY EMAIL

Product Description

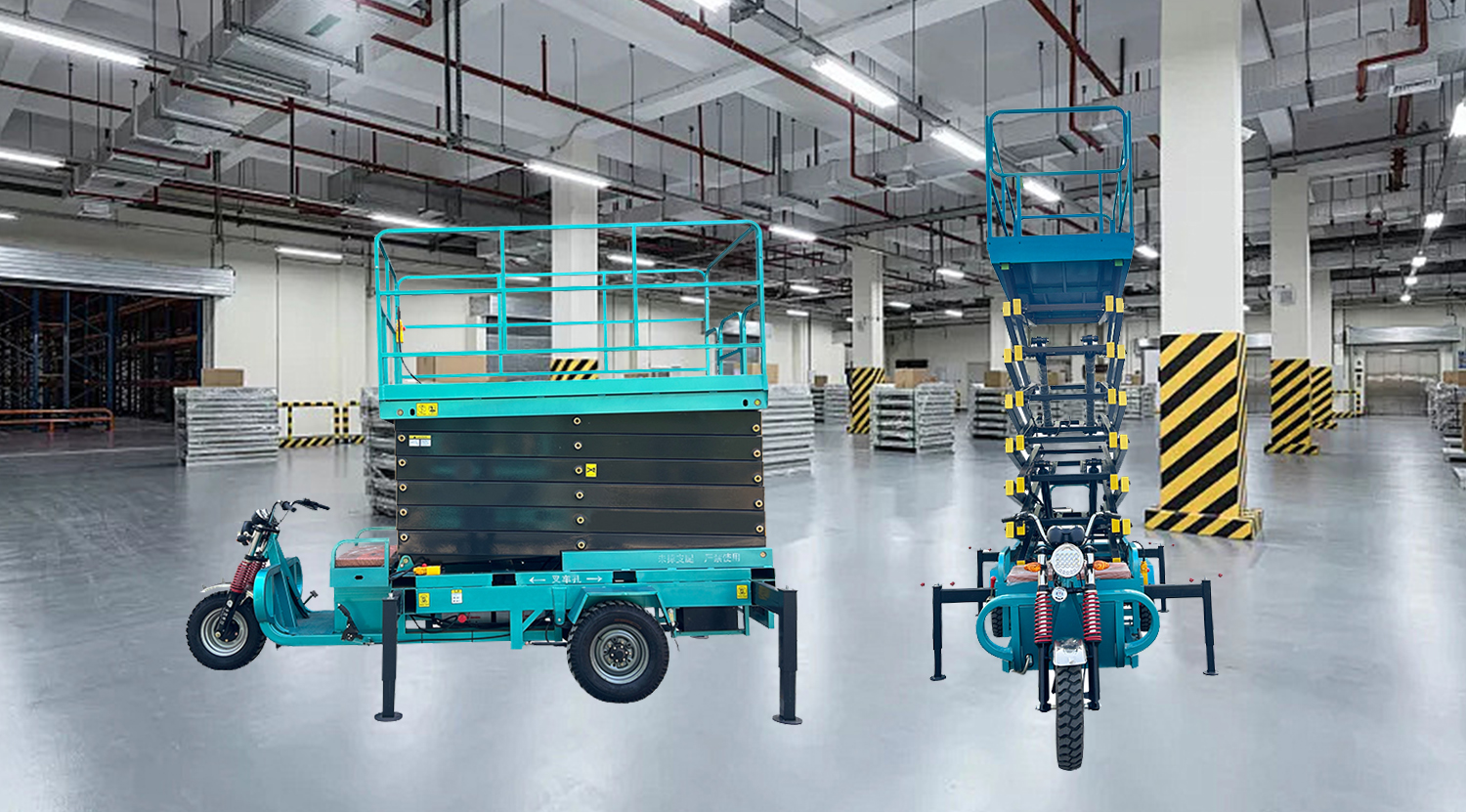

The ZG-DDC 4-12M is a vehicle-mounted three-wheel scissor lift platform integrated with an electric tricycle chassis. It is designed for aerial operations (e.g., exterior wall maintenance, equipment installation, warehouse cargo handling) and features a lightweight yet high-strength structure. With excellent maneuverability, it can navigate narrow spaces, making it an efficient tool for aerial tasks in small-to-medium-sized workplaces.

Product Features

Multi-spec Adaptability: Available in 5 lifting heights (4m/6m/8m/10m/12m), all with a 500kg load capacity, covering diverse operation needs;

High-strength Structure: Core components (platform frame, scissor arm) are made of 2mm/3mm steel plates and rectangular steel tubes (bent and welded), ensuring long-term durability;

Flexible Mobility: Three-wheel steering + electric tricycle chassis enable a small turning radius, suitable for narrow lanes, residential areas, etc.;

Stable Operation: Equipped with 8108 travel switches, adjustable lifting/lowering speed (4-6m/min), ensuring safe and controllable operation.

Product Advantages

Cost-effective: Lower cost than large-scale lift trucks, while maintaining equivalent load and lifting capabilities;

Strong Site Compatibility: Compact overall size (minimum 330012001720mm) fits restricted spaces like narrow alleys and communities;

Easy Maintenance: Standardized parts for hydraulic and electrical components reduce later repair costs;

Safety Guarantee: 1.1m-high guardrails and multi-layer steel mesh hydraulic hoses minimize operational risks.

Core Technical Parameters

Model &Dimensions	Model	DDC-0.5-4	DDC-0.5-6	DDC-0.5-8	DDC-0.5-10	DDC-0.5-12
	Load Capacity (kg)	500	500	500	500	500
	lifting Height (m)	4	6	8	10	12
	Ovrall Dimension(mm)	330012001270	330012001370	330012001470	353015001650	400016501980
	Weight (kg)	1010	1110	1210	1600	2430
Liting Structure	Platform Frame	2mm fat plate bending	2mm fat plate bending	2mm flat plate bending	2mm flat plate bending	2mm flat plate bending
	Upper Rail	3mm steel plate bending	2mm steel plate bending	3mm steel plate bending	3mm steel plate bending	3mm steel plate bending
	Scissor Arm	100503.75mm rectangular tube	100503.75mm rectangular tube	100503.75mm rectangula tube	120603.75mm rectangular tube	160803.75mm rectangula tube
Hydraulic Structure	Power Unit	1.6Kw DC48V50Hz	1.6KW DC48V 50Hz	1.6KW DC48V 50Hz	2.2kw DC60V 50Hz	3Kw 50Hz
	Hydraulic Hose	2-10-53MPa(2-layer steel mesh)	2-ayer steel mesh high- pressure hose	2-10-53MPa(2-layer steel mesh)	2-10-53MPa (2-layer steel mesh)	2-10-53MPa(2-layer steel mesh)
	OilTank	8L	8L	16L	25L	53L
Electrical Control	Travel Switch	8108	8108	8108	8108	8108
Tricycle Travel System	Steering	Tricycle steering	Tricycle steenng	Tricycle steering	Ticycle stering	Tricycle steering
	Rear Ale	Electric wehicde rear axle	Electric wehicle rear axle	Electic wehicle rear axle	Datong electic vehicle reari axle	Datong electric vehicle rear axle
	Motor	1.5KW	1.5KW	1.5KW	2.2kw	3KW
	Battery	12v/85AH (4pcs)	12v/85AH (4pcs)	12v/85AH(4 pcs)	60V/80ah	12v/85AH (6pes)
	Tire	450-12 pneumatic tire	450-12 pneumatic tire	450-12 pneumatic tire	00-12 pneumatic tire	550-13 pneumatic tire
Other &Safety	Lifting Speed	Lifting:4-6m/min,lowering adjustable	Lifting:4-6m/min,loweing adjustable	Lifting:4-6m/min,lowering djustabe	Lifting:4-6m/min,lowering adjustable	Lifting 4-6m/min,lowering adjustable
Other &Safety	Guardrail	30*30 square tube,1.1m high	30*30 square tube,1.1m high	30*30 square tube,1.1m high	30*30 square tube,1.1m high	30*30 square tube,1.1m high

Product Services

After-sales Support: Provide equipment installation guidance and operation training;

Warranty Service: Core parts (motor, hydraulic pump) are under warranty, with replacement parts available;

Communication Channels: Real-time consultation via WhatsApp/WeChat (+8613176910558) or email (myloader@vip.163.com).

Packaging Instructions

The whole machine is delivered fully assembled (no disassembly required) and can be transported directly by logistics (note to protect the exterior appearance during shipping).
