ZG-QB16 Articulating Boom Lift

Product Description

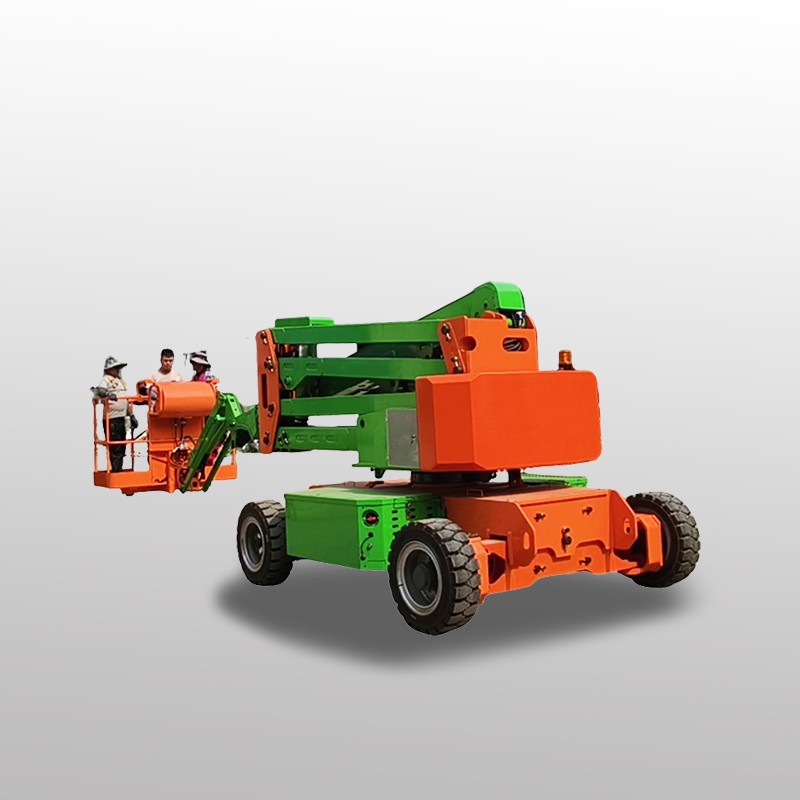

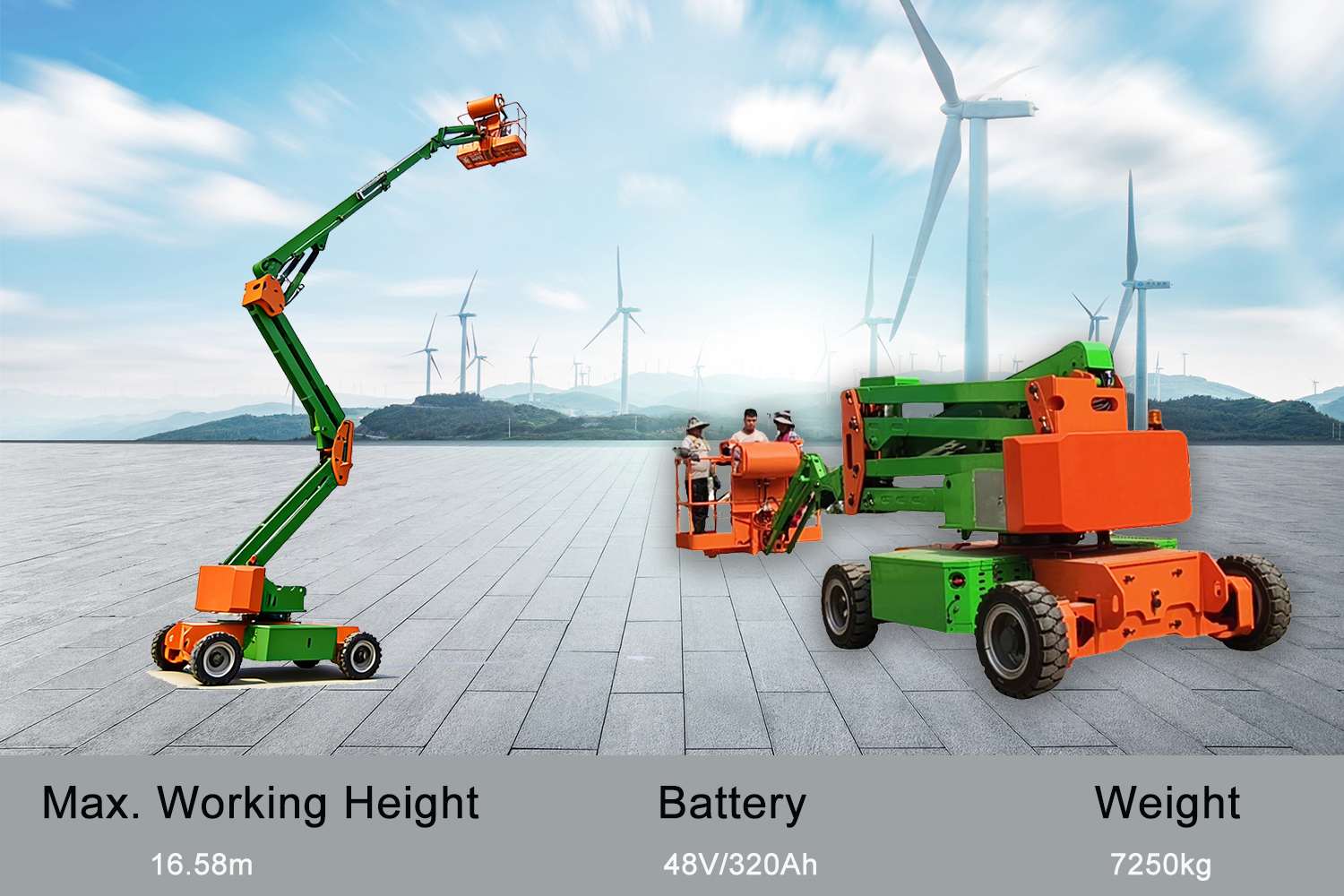

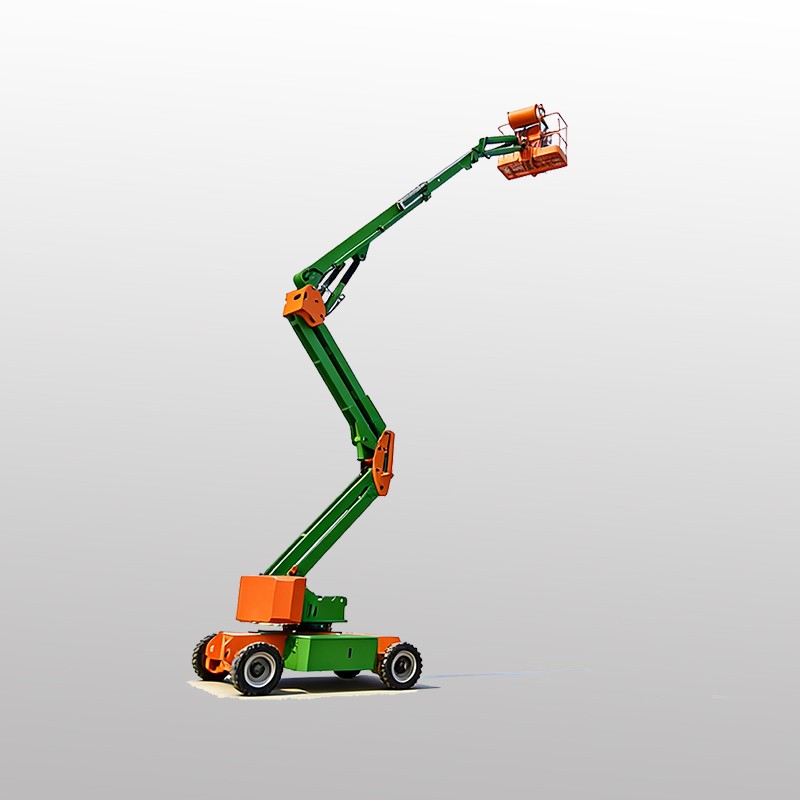

The ZG-QB16 is a self-propelled articulating boom lift engineered for aerial operations (e.g., building maintenance, outdoor equipment installation, venue decoration). Its flexible articulated arm structure enables over-obstacle access, making it ideal for complex work environments. With a maximum working height of 16.58m, it accommodates 2-3 operators and heavy-load tasks, delivering efficient, flexible solutions for aerial work.

Product Features

Flexible Reach: Articulated boom design supports "up-and-over" access (max clearance 7.86m) and a wide working radius (8.6m), adapting to complex spatial layouts;

Dual-Load Capacity: Offers 256kg/350kg dual load configurations, suitable for both personnel and equipment operations;

Precise Rotation: Platform (±80°) and turntable (355°) rotation functions allow flexible adjustment of working positions;

Stable Mobility: 2×2 steering system, 30% gradeability, and 4.7m turning radius ensure smooth movement on uneven terrain.

Product Advantages

Strong Adaptability: Articulated arm + large working radius resolve the challenge of operating over obstacles (e.g., building eaves, equipment barriers);

Safety Compliance: Complies with EN280/GB 25849 standards, equipped with a tilt sensor (activated at 5°) to prevent rollover risks;

Efficient Operation: Self-propelled design (0-5.2km/h stowed speed) reduces site transfer time;

Durable Performance: 7250kg heavy-duty chassis + 7kW pump motor ensure stable operation under high-load conditions.

Core Technical Parameters

Product Services

Pre-sales Support: Provide customized operation solutions based on site requirements;

After-sales Service: Offer free installation guidance, operation training, and warranty for core components (motor, battery);

Communication Channels: 24/7 consultation via WhatsApp/WeChat (+8613176910558) or email (myloader@vip.163.com).

Packaging Instructions

The lift is delivered in split packaging (chassis, boom, platform disassembled). All components are protected with waterproof film and secured on wooden pallets to prevent damage during transportation.

About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.

MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
