Brownfield Automation 2026: Rear-Swing Forklifts for Temporary Expansion Yards

Published: October 24, 2026

HTML Meta Description: Rear-swing rough-terrain forklift planning for brownfield automation projects, temporary expansion yards, swing control and live-site commissioning.

Keywords: rear-swing forklift, brownfield automation, temporary expansion yard, rough-terrain handling, warehouse retrofit, live-site commissioning, swing exclusion zone, ZGFORKLIFT, MYZG, material handling 2026

Warehouse automation investment is increasingly moving into occupied brownfield buildings where new conveyors, mezzanine beams, dock shelters and power cabinets must cross unfinished surfaces. Rear-swing rough-terrain forklifts can support temporary expansion yards when the counterweight arc is treated as a controlled hazard and every movement is coordinated with the live operation.

Start with a documented task and route survey. Record the narrowest aisle and turn, doorway and gate width, overhead clearance, maximum gradient, dock edges and the worst surface condition. Measure real loads at their actual load centers, including long, offset or irregular items. Nameplate capacity is only a starting point; residual capacity at the required height and with the selected attachment determines practical application fit.

Why this topic matters now

Current material-handling practice favors proven modular technology that can be added without rebuilding the entire site. The physical interface between construction, commissioning and daily distribution therefore deserves the same discipline as the automated system.

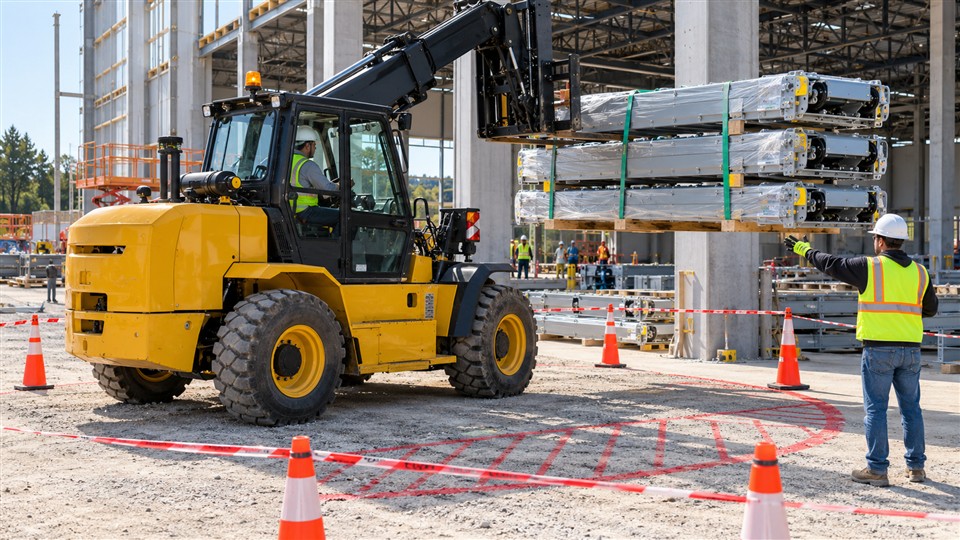

Review the B28 off-road forklift as the first product reference, then confirm current specifications with the manufacturer.

Configuration priorities

Survey temporary roads, drainage, gradients, doorway clearance, overhead services and the complete rear-swing envelope. Match fork length, tyres, mast geometry and residual capacity to long conveyor sections and dense cabinets.

Visibility and control deserve the same attention as capacity. Review the mast, carriage, tyres or wheels, lighting, mirrors or cameras, restraint, warning devices and speed management as one system. Dust, cold, heat, moisture and corrosion may require extra protection and shorter inspection intervals. Operators must see the travel path and place the load without leaving the protected operating position.

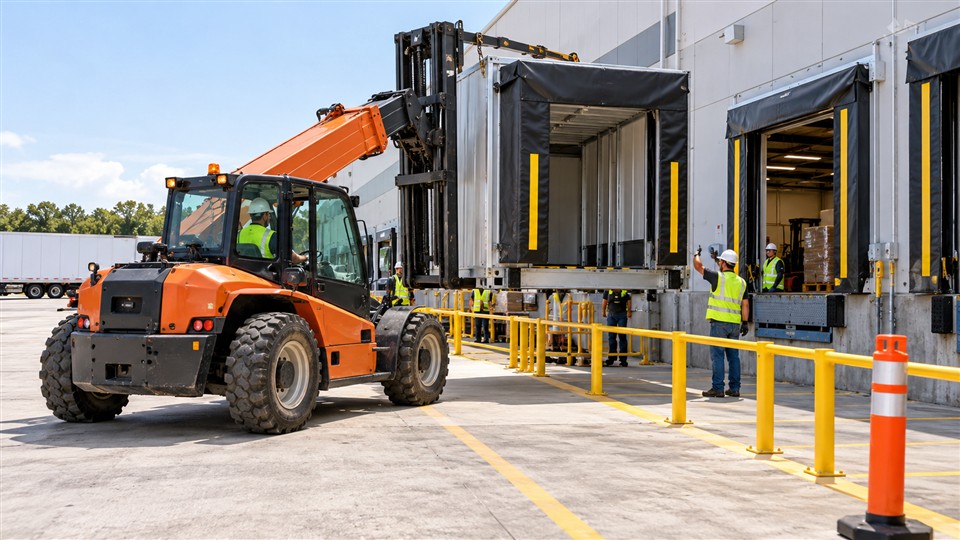

Compare the 7-ton off-road forklift for a second view of capacity, manoeuvrability, energy and service access.

Safety and daily control

Separate construction traffic from warehouse employees, barrier the swing arc and use one qualified signaler. Stop whenever route status, load identity or access control differs from the approved plan.

Create a written operating envelope for every approved route: maximum load and lift height, travel direction, pedestrian exclusion points, slope rules and stop-work conditions. Complete a pre-shift inspection of tyres or wheels, forks, chains, hoses, brakes, steering, alarms and the energy or fuel system. Isolate defects affecting stability, braking or visibility until corrected.

Supervisors should observe real work, record near misses, harsh braking, overload attempts, impacts and recurring service issues, then improve layout, traffic separation and coaching. Build the business case around productive hours rather than purchase price alone. Include operator time, maintenance, energy or fuel, infrastructure, transport, downtime risk and resale value.

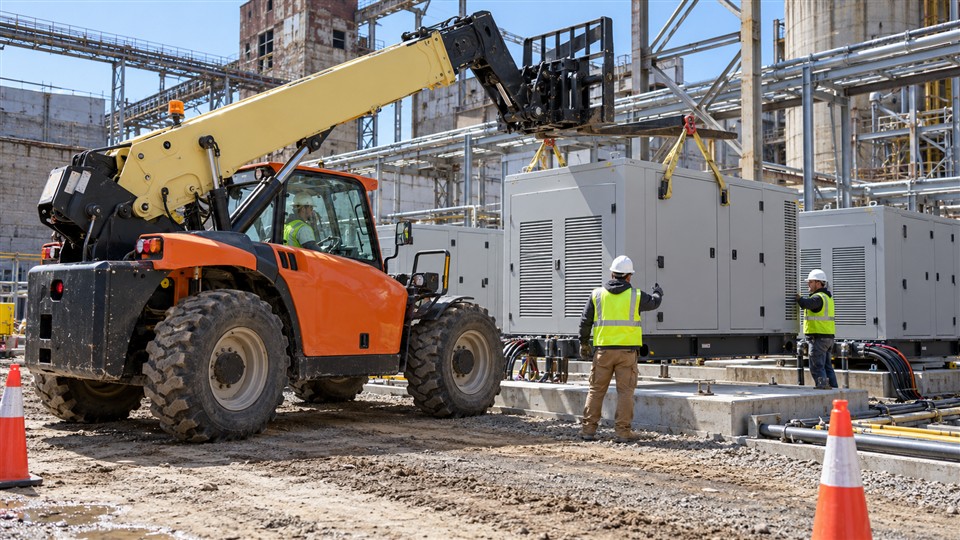

The B29 off-road forklift is the third internal product reference for application comparison.

Fleet planning and total cost

Measure rehandles, contractor waiting, production interruption, tyre wear, route repair and commissioning delay. The preferred setup protects live throughput while keeping recovery options open.

A staged trial is the strongest way to validate a configuration. Select a representative route, define success measures, brief operators and compare throughput, energy use, handling accuracy and maintenance observations. Review results with operations, safety and finance before fleet-wide deployment. This evidence turns a current industry headline into a defensible material-handling plan.

Implementation checklist

• Document load weight, dimensions, load center and attachment requirements.
• Survey aisle width, turns, gradients, surface condition and overhead limits.
• Confirm residual capacity at the required lift height.
• Plan pedestrian separation, speed zones and emergency procedures.
• Match service intervals and spare-parts support to the duty cycle.
• Train and authorize operators for the specific machine and workplace.
• Record trial data and total cost before scaling the fleet.

ZGFORKLIFT and MYZG can tailor the final specification after reviewing the application. Product availability varies by market; confirm the latest technical data and comply with local regulations before purchase or operation.

Contact ZGFORKLIFT / MYZG

Contact Shandong Zhuogong Machinery equipment Co.,Ltd. Email: vip@mingyuforklift.com. Tel: +86-0535-2090977. WhatsApp: +86 131 8160 2336. Address: Xiaqiu Town, Laizhou, Yantai City, Shandong Province, China.

Send the maximum load, load-center distance, aisle width, gradient, surface condition, daily duty hours and climate so MYZG engineers can recommend a practical configuration instead of a generic catalogue answer.
