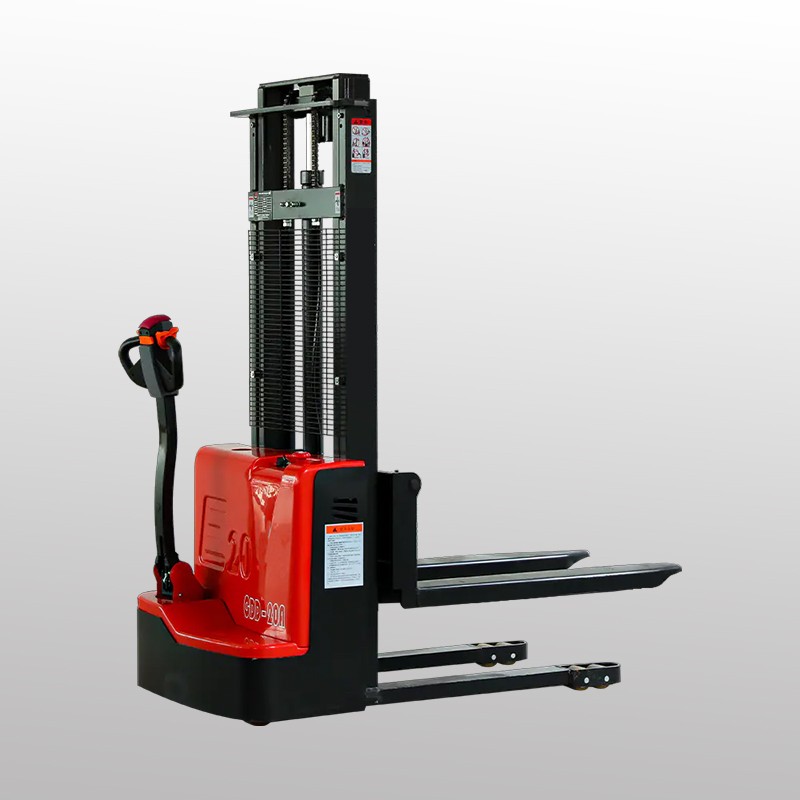

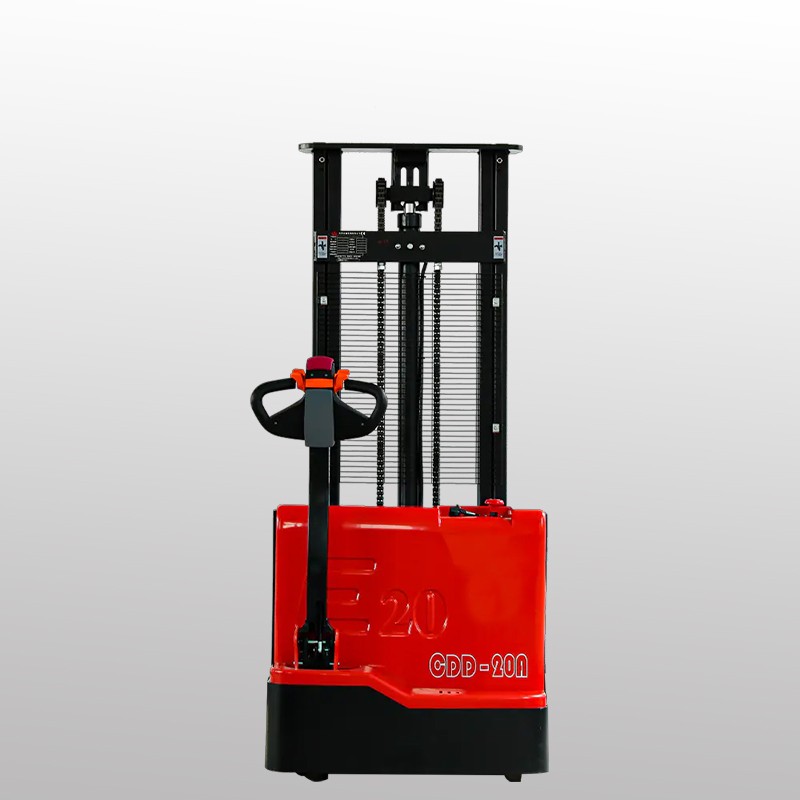

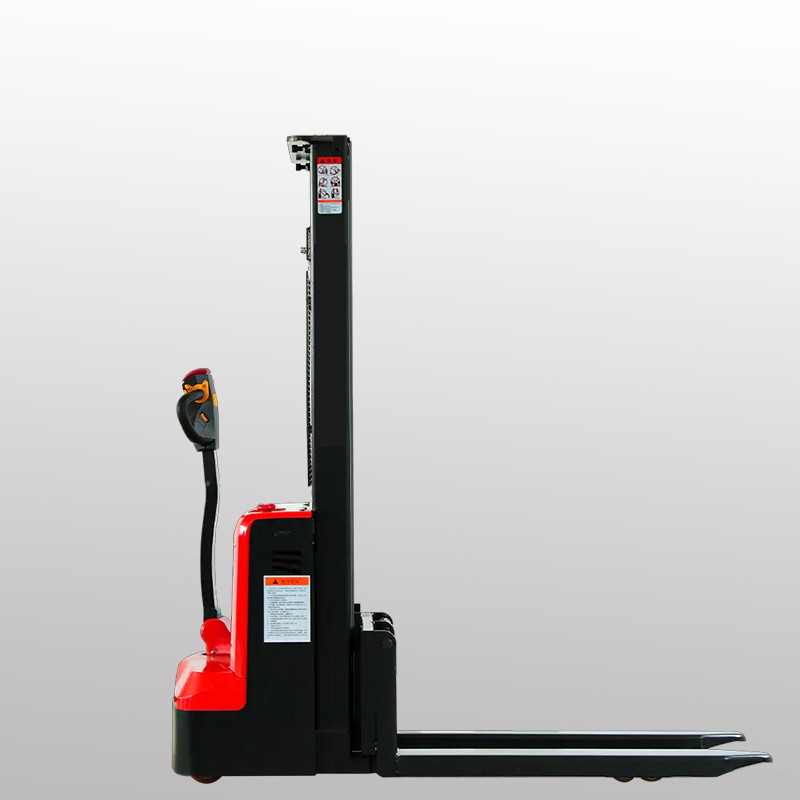

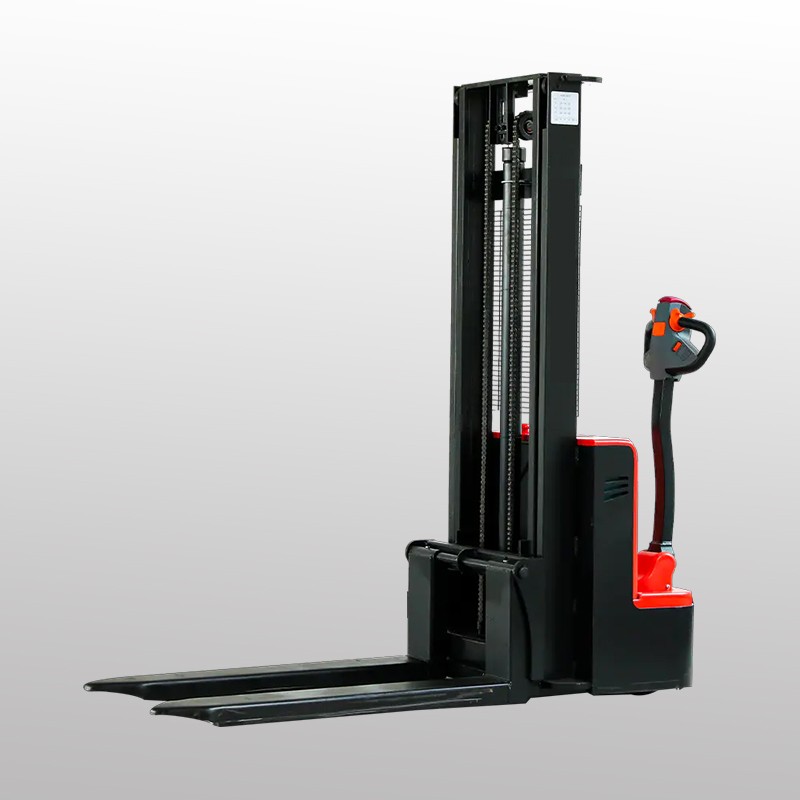

CDD-A Walkie Electric Pallet Stacker for Medical-Supply Warehousing

The CDD-A walkie electric pallet stacker application for medical-supply warehousing is based on the verified CDD15/16 family, covering 1,500 kg and 1,600 kg nominal classes subject to final configuration. It is intended for receiving, reserve storage, replenishment and dispatch of palletized cartons and supplies where compact pedestrian control is valuable. ZGFORKLIFT / MYZG reviews load, pallet, lift height, aisle, hygiene, temperature, battery duty and service support together.

Define the medical-supply handling task

Record the maximum gross pallet weight, dimensions, load center, packaging stability, pallet entry, lift height, rack depth, aisle width, doorway clearance and number of cycles per shift. Include mixed cartons, returned goods and quarantine locations. Residual capacity varies with mast, lift height, load center and fork configuration; obtain written confirmation for the ordered machine.

Medical and healthcare logistics may require controlled access, traceability and clean handling. Define where the stacker may enter, park and charge, and how it will be cleaned without exposing electrical components to unsuitable chemicals or water. If temperature-controlled areas are involved, provide the temperature range and transition frequency before configuration.

Compare the correct stacker family

Review the electric pallet stacker range and the original MYCDD-A walkie electric stacker reference. A walkie design can suit short-to-moderate routes and controlled pedestrian operation. Longer travel, closed pallets, steep gradients or trailer work may require a different format.

Procurement checklist

Pallet and load: provide pallet drawings, fork openings, load dimensions, weight and center of gravity. Test non-standard packaging before approval.

Mast and rack: state required lift height, free-lift need, lowest door and overhead obstructions. Confirm residual capacity for the exact mast.

Aisle and people: measure the narrowest operating point and identify picking stations, fire doors and pedestrian crossings.

Battery and charger: give peak shift hours, travel distance, lift cycles, breaks, charging window, temperature and electrical supply.

Hygiene, traffic and safe operation

Separate pedestrians and powered equipment wherever practical. Mark crossing priorities and limit speed near picking and packing work. Operators should keep the load correctly lowered during travel, approach racks squarely and stop when packaging, visibility or route condition is uncertain. Only trained and authorized personnel should operate the stacker under the manual and workplace rules.

Use the electric stacker safety guide as a planning reference. The article explaining walkie stacker operation may help procurement teams. Neither resource replaces the delivered instructions, local rules or site-specific risk assessment.

Maintenance and traceability

Pre-shift checks should cover forks, carriage, chains, mast, hoses, wheels, brakes, steering, tiller controls, horn, emergency reverse, battery restraint and connectors. Record impacts, leaks, abnormal noise and warning indications. Isolate equipment when a defect affects braking, steering, lifting, stability or electrical safety.

Plan cleaning, lubrication, chain and fork inspection, wheel replacement and battery care. Service records should identify the machine, date, work performed and released condition. The parts and dealer support page can assist planning; provide identification, configuration and photographs when requesting parts.

Dealer and export review

Dealers should inspect representative pallets, rack locations and cleaning requirements before quoting. Handover should cover approved tasks, maximum loads, traffic rules, charging, parking, emergency controls and defect reporting. A controlled trial should measure moves, product damage, operator travel, charging and service observations.

Where CE documentation is required, request documents for the exact supplied configuration. EPA engine-emissions certification is generally not relevant to an electric stacker, though destination requirements still need importer review. No unsupported certificate, medical compliance claim, customer case or performance guarantee is made.

Request a medical-supply configuration review

Compare alternatives through All Products. Send load and pallet data, rack and route measurements, temperature and hygiene conditions, peak cycles, charging window and destination. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. at vip@mingyuforklift.com or +86-0535-2090977, or use the contact page. Reference “CDD-A medical-supply warehousing.”
