INTRA-LOG Expo South America 2026: Rear-Swing Rough-Terrain Forklifts for Live Test-Drive Yards

Published: September 12, 2026

HTML Meta Description: Rear-swing rough-terrain forklift planning for live material-handling demonstrations, changing surfaces, swing clearance and safe test-drive yards.

Keywords: rear-swing forklift, INTRA-LOG EXPO 2026, rough terrain forklift, test drive yard, swing clearance, material handling demo, São Paulo logistics, ZGFORKLIFT, MYZG, 2026 intralogistics

INTRA-LOG EXPO South America opens in São Paulo on September 15 with live demonstrations, test drives, warehouse automation and material-handling technology. Rear-swing rough-terrain forklifts can demonstrate practical yard-to-warehouse movement across changing surfaces, but the counterweight arc, visitors and temporary layouts require disciplined control.

Start with a documented task and route survey. Record the narrowest aisle and turn, doorway and gate width, overhead clearance, maximum gradient, dock edges and the worst surface condition. Measure real loads at their actual load centers, including long, offset or irregular items. Nameplate capacity is only a starting point; residual capacity at the required height and with the selected attachment determines practical application fit.

Why this topic matters now

A live demonstration compresses real operating variables into a public space. Equipment, observers, temporary stands and delivery pallets move frequently, so the traffic plan must be reviewed before every session.

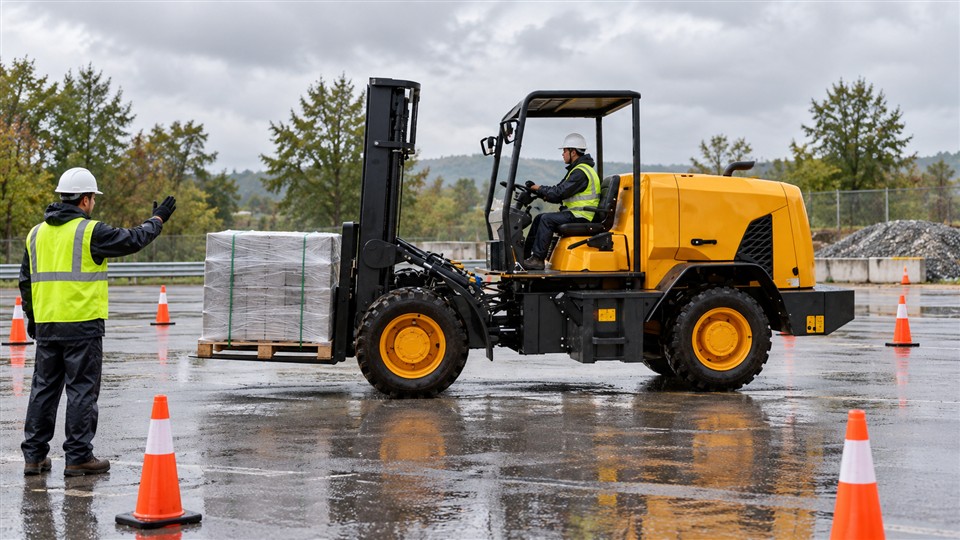

Review the 936 3-ton off-road forklift as the first product reference, then confirm current specifications with the manufacturer.

Configuration priorities

Map the complete rear swing envelope, tyre traction, ground clearance, load center, residual capacity and mast visibility. Check the route from outdoor test lane to warehouse doorway with the actual pallet and attachment.

Visibility and control deserve the same attention as capacity. Review the mast, carriage, tyres or wheels, lighting, mirrors or cameras, restraint, warning devices and speed management as one system. Dust, cold, heat, moisture and corrosion may require extra protection and shorter inspection intervals. Operators must see the travel path and place the load without leaving the protected operating position.

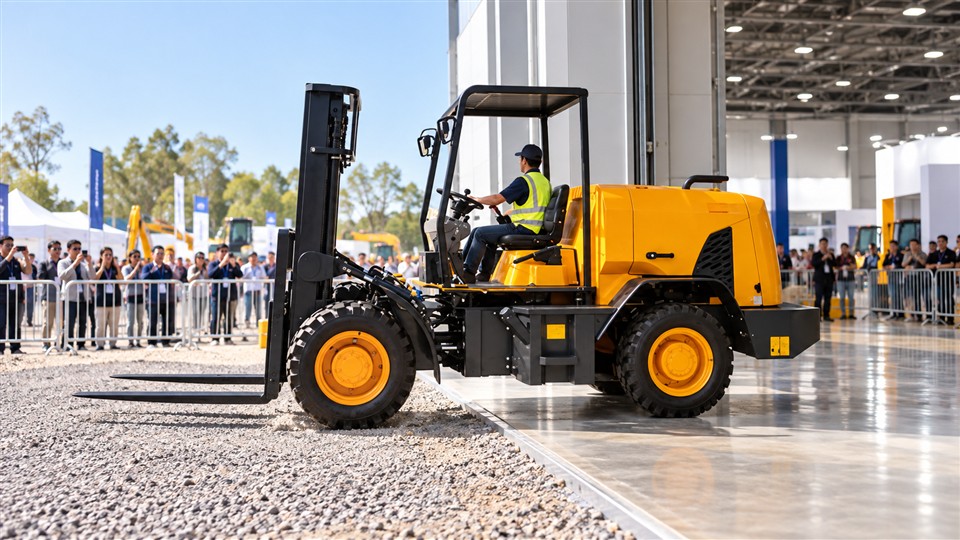

Compare the 5-ton off-road forklift for a second view of capacity, manoeuvrability, energy and service access.

Safety and daily control

Keep spectators behind rigid barriers, use a trained spotter and stop when the swing zone or travel path is not fully clear. Wet surfaces, temporary cables and changing booth layouts require immediate reassessment.

Create a written operating envelope for every approved route: maximum load and lift height, travel direction, pedestrian exclusion points, slope rules and stop-work conditions. Complete a pre-shift inspection of tyres or wheels, forks, chains, hoses, brakes, steering, alarms and the energy or fuel system. Isolate defects affecting stability, braking or visibility until corrected.

Supervisors should observe real work, record near misses, harsh braking, overload attempts, impacts and recurring service issues, then improve layout, traffic separation and coaching. Build the business case around productive hours rather than purchase price alone. Include operator time, maintenance, energy or fuel, infrastructure, transport, downtime risk and resale value.

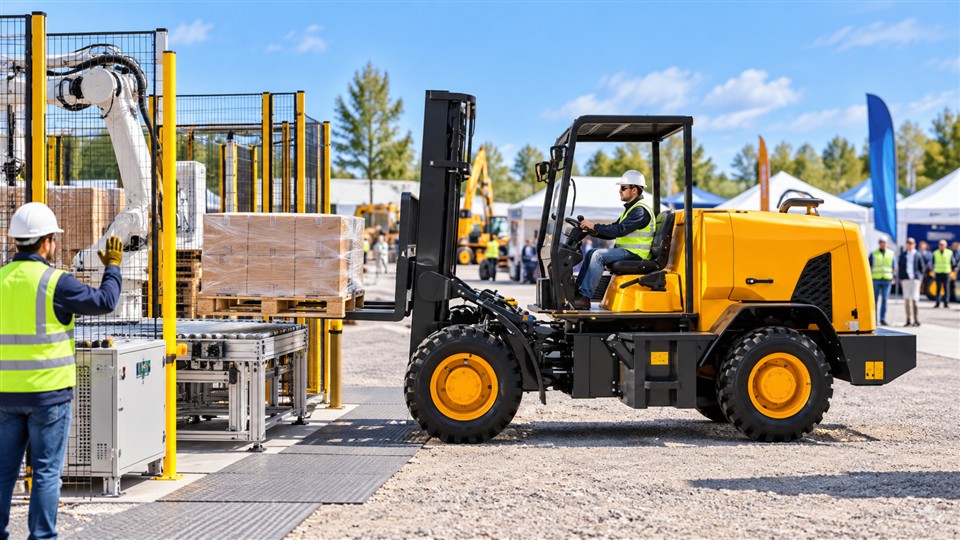

The CPC30SY off-road forklift is the third internal product reference for application comparison.

Fleet planning and total cost

Measure cycle time, setup, rehandles, tyre wear, demonstration downtime and surface damage. Useful trials should produce evidence for the real customer route rather than a perfect empty-yard performance.

A staged trial is the strongest way to validate a configuration. Select a representative route, define success measures, brief operators and compare throughput, energy use, handling accuracy and maintenance observations. Review results with operations, safety and finance before fleet-wide deployment. This evidence turns a current industry headline into a defensible material-handling plan.

Implementation checklist

• Document load weight, dimensions, load center and attachment requirements.
• Survey aisle width, turns, gradients, surface condition and overhead limits.
• Confirm residual capacity at the required lift height.
• Plan pedestrian separation, speed zones and emergency procedures.
• Match service intervals and spare-parts support to the duty cycle.
• Train and authorize operators for the specific machine and workplace.
• Record trial data and total cost before scaling the fleet.

ZGFORKLIFT and MYZG can tailor the final specification after reviewing the application. Product availability varies by market; confirm the latest technical data and comply with local regulations before purchase or operation.

Contact ZGFORKLIFT / MYZG

Contact Shandong Zhuogong Machinery equipment Co.,Ltd. Email: vip@mingyuforklift.com. Tel: +86-0535-2090977. WhatsApp: +86 131 8160 2336. Address: Xiaqiu Town, Laizhou, Yantai City, Shandong Province, China.

Send the maximum load, load-center distance, aisle width, gradient, surface condition, daily duty hours and climate so MYZG engineers can recommend a practical configuration instead of a generic catalogue answer.
