SBD20 2 Ton Semi-Electric Straddle Stacker for Hardware and Fastener Warehouses

The SBD20 2.0 ton semi-electric straddle pallet stacker is presented for metal hardware, fastener and industrial consumables warehouses. ZGFORKLIFT / MYZG recommends selecting a pallet stacker from measured loads, pallets, rack geometry, route, floor or ground condition, duty cycle and service capability. This application page supports procurement research but does not replace the quotation, capacity plate, mast chart, instruction manual, site assessment or local rules.

Customer need and material-flow solution

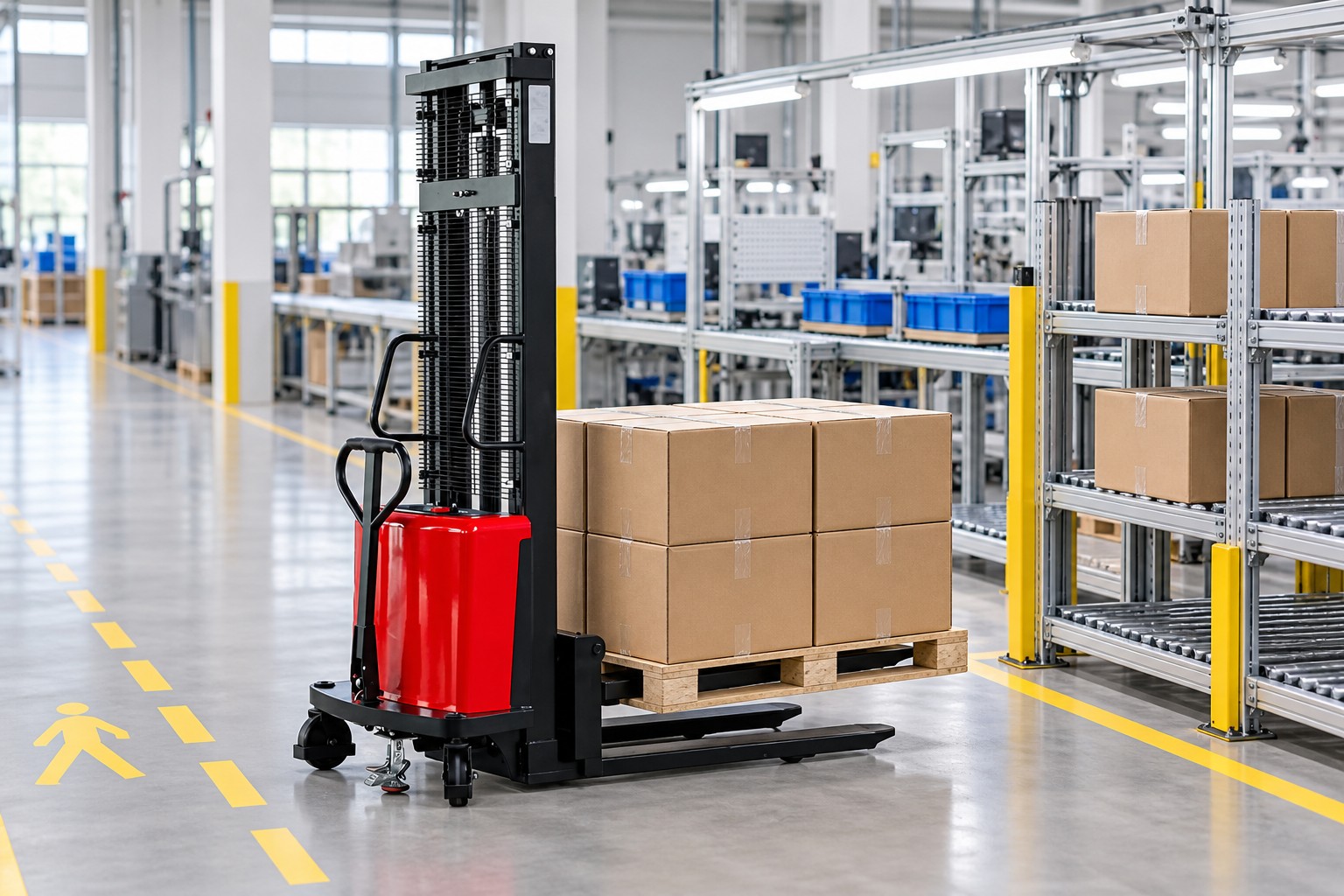

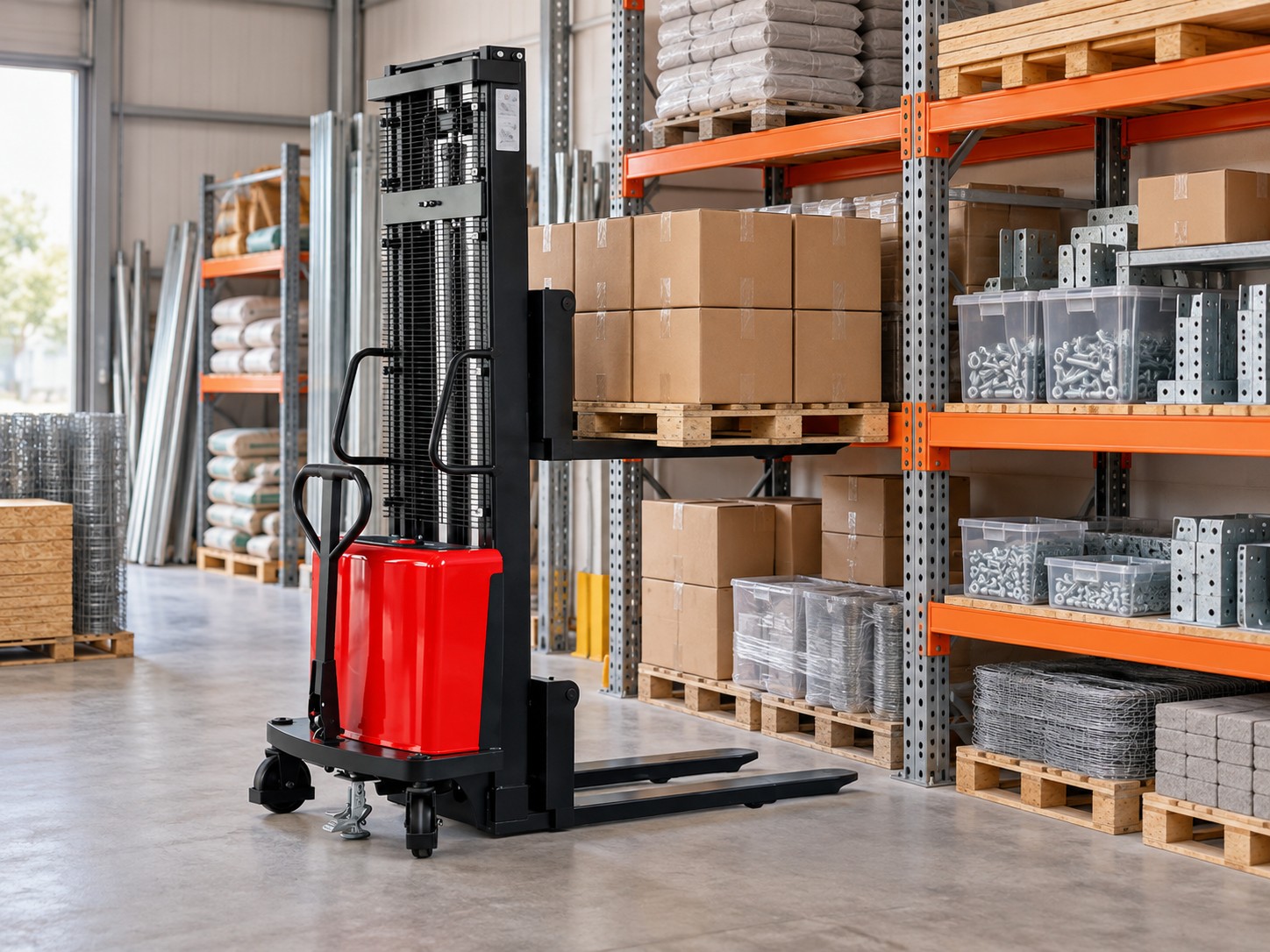

Hardware distributors move dense cartons of fasteners, tools, fittings and industrial consumables between receiving, reserve storage and order assembly. A semi-electric straddle stacker can provide powered lifting with controlled manual travel where pallet openings, straddle clearance, floors and route length suit the machine. Small but dense products require accurate load weights and stable pallet construction.

Map the complete material flow from unloading through storage, replenishment and dispatch. Record every pallet type, unusual load, rack opening, doorway, ramp, crossing, pedestrian interface and charging location. Peak duty and the most difficult turn often determine the correct stacker more than the average pallet or straight aisle.

Confirmed product-family context

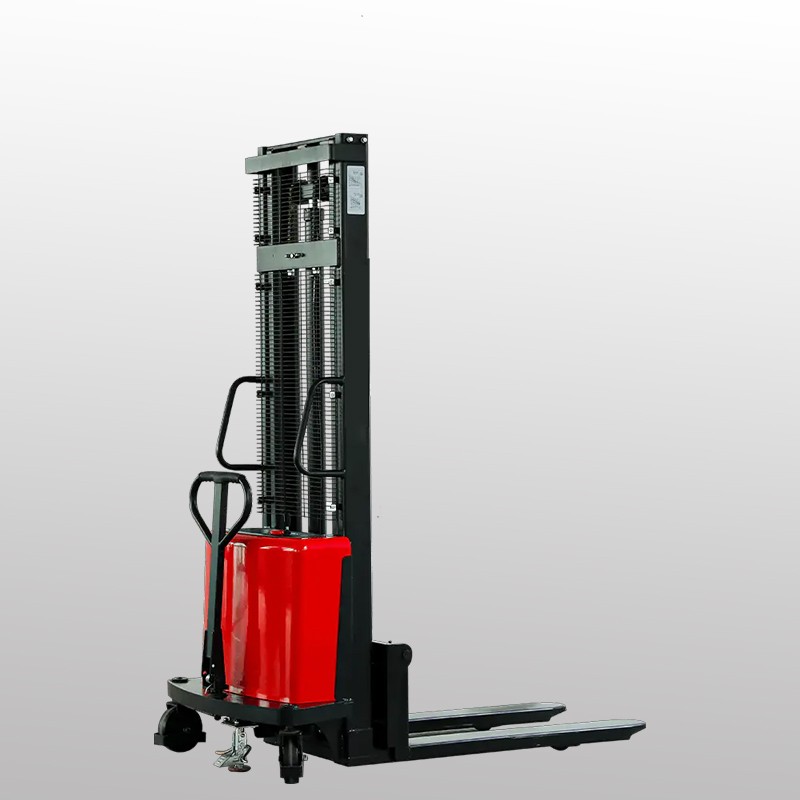

The existing SBD20 source page identifies a 2 ton semi-electric straddle pallet-stacker configuration with powered lift and manual travel. Nominal capacity does not replace the residual-capacity review at the required height and load center. Confirm mast, forks, adjustable straddle-leg range, battery, charger, wheels, brakes and operating limits on the quotation and delivered manual.

Review the stacker product category, the All Products catalog, and the SBD20 source product page. The source identifies the real website product family; exact specifications, optional equipment and compliance documents remain order-specific.

Purchasing guide: load and pallet data

Load: record the heaviest real pallet, load center, dimensions, packaging, stability and any offset or overhang. Nominal capacity alone is not enough. Residual capacity can change with mast height, load center, fork position, attachment, battery and configuration, so request the correct capacity information for the quoted unit.

Pallet: provide pallet length, width, height, underside clearance, board arrangement, entry direction and condition. Confirm that forks, base legs or straddle arrangement fit the pallet and rack. Closed-bottom pallets, damaged boards and unusual skids may require another configuration.

Lift and mast: measure the highest fork level, top load height, rack-beam clearance, ceiling and door height. Separate lift height from overall raised mast height. Confirm lowered mast height, free lift and overhead clearance along the complete route.

Aisle and turning: measure between the real rack faces and include guards, columns, stored goods and pedestrian barriers. A supplier calculation should use the actual pallet and machine configuration. Demonstrate the most difficult turn under controlled conditions before fleet rollout.

Duty and energy: provide pallets per hour, travel distance, gradients, shift length, breaks, cold or hot conditions and charging opportunities. Match battery and charger to the peak duty, destination power supply and battery-area controls rather than relying on a generic operating-hour claim.

Select a stacker instead of assuming a forklift

The guide explaining what a pallet stacker is introduces the basic equipment class, while the forklift and stacker comparison helps buyers distinguish compact stacker work from counterbalanced forklift applications. A stacker may suit controlled pallet storage and shorter routes; a forklift may be necessary for longer travel, docks, uneven ground, trailers or loads that the stacker chassis cannot safely handle.

Compare nominal and residual capacity, load center, mast and fork geometry, base legs, aisle requirement, travel distance, gradient, wheel or tire type, braking, operator position, visibility, battery endurance, charger, service access and emergency controls. Select the smallest suitable configuration that completes the measured task without creating hidden route or capacity risks.

Traffic management and safe operation

Separate stacker routes from pedestrians using barriers, marked crossings, speed controls and clear right-of-way rules. Protect rack ends, doors, chargers, columns and dock edges. Define parking and key-control arrangements. Operators must maintain visibility; where the load obstructs the travel direction, follow the approved travel method and site procedure.

Before each shift, inspect forks, fork heels, carriage, mast channels, rollers, chains, load backrest, straddle legs and locks, wheels and casters, parking brake, steering handle, lift and lowering controls, hydraulic hoses and cylinder, battery connector, charger, emergency stop and visible structure. Remove spilled fasteners, wire and strapping from the route.

Use the electric-stacker safe-operation guide as supplementary planning material. Operators must follow the delivered manual, training and site rules. Travel with the load in the approved lowered position, avoid turning on gradients, never carry passengers, never stand beneath elevated forks and never exceed the capacity shown for the actual height and load center.

Rack, floor and load-interface controls

Have a competent person confirm rack capacity, beam level, pallet support and clearances. Damaged racking, leaning loads, broken pallets or obstructed flues require corrective action before placement. Do not push or drag loads with the mast, lift people on forks or improvised platforms, or use forks as a work stand.

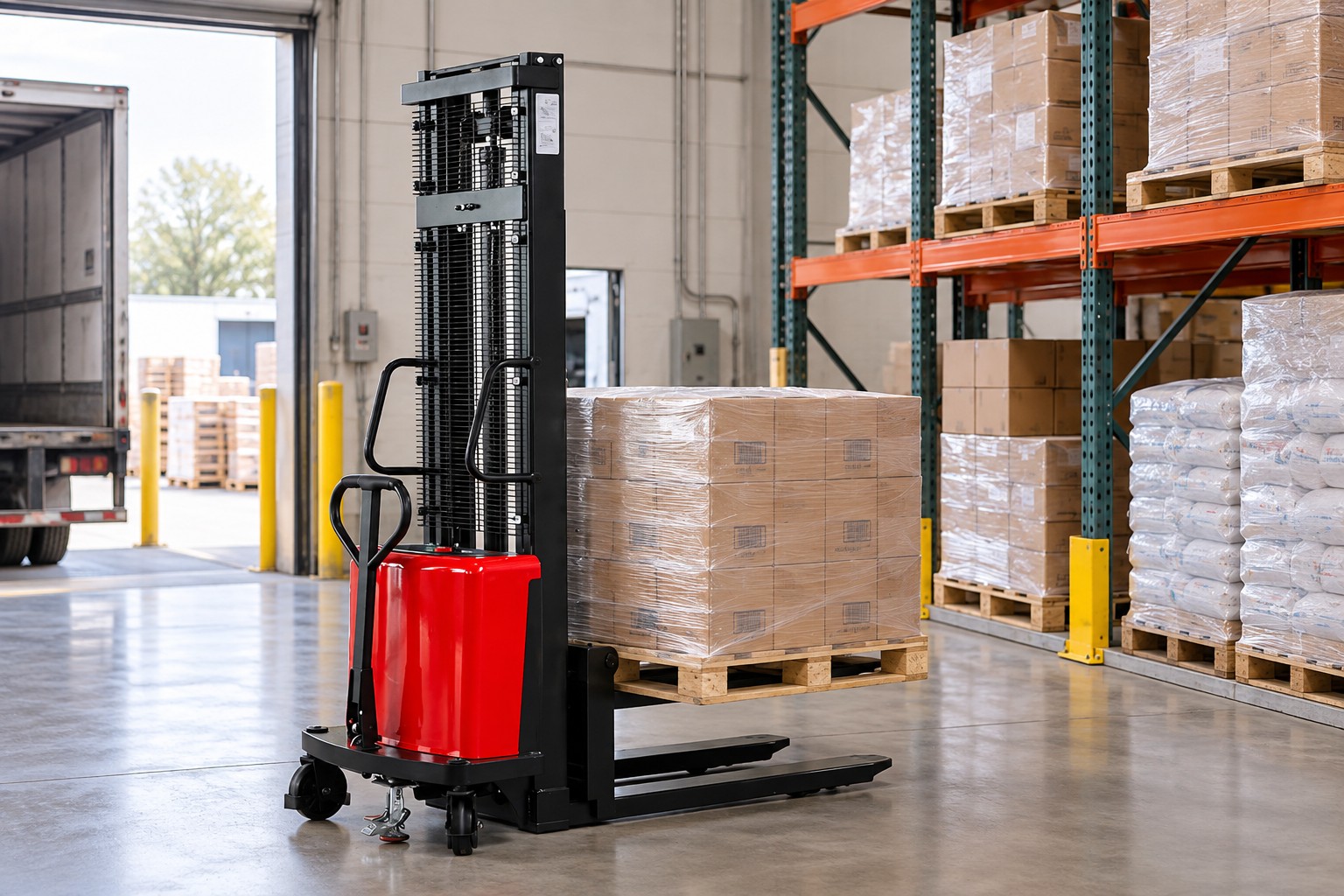

Inspect floors for holes, plates, joints, debris, wet areas and gradients. Confirm floor capacity where the machine works on mezzanines or older slabs. At docks and truck interfaces, use edge protection, restraint and a separate procedure; a warehouse stacker should not enter trailers or cross dock plates unless the exact machine, plate and trailer arrangement are approved.

Maintenance and lifecycle planning

Metal filings, loose fasteners, wire and packaging straps can damage wheels and moving parts. Clean using approved methods and inspect mast chains, rollers, forks, straddle-leg locks, wheels, casters, parking brake, hydraulics, battery connections and charger. Use magnets or other approved collection methods where appropriate without exposing electrical components to conductive debris.

Maintain a service record with machine and battery identification, date, operating hours where available, reported fault, diagnosis, parts used, inspection result and return-to-service authorization. Defects affecting forks, mast, chains, brakes, steering, hydraulics, controls, warning devices or structure must remove the machine from service until qualified repair and release.

Dealers and fleet owners should plan wear items and diagnostic support around local duty and lead time. Review the parts and dealer support page and include the model, serial number, mast, battery, charger, configuration, fault history and clear photographs in every parts or technical request.

Dealer operations and customer qualification

Dealers can qualify inquiries with one repeatable form covering load, pallet, lift height, rack, aisle, route, gradients, duty, charging, environment, destination and service capability. A controlled demonstration should reproduce the real pallet and tightest approved route. Document the offered configuration, limitations and acceptance checks before order confirmation.

For rental or multi-site fleets, standardize pre-delivery inspection, battery condition records, damage reporting and return checks. Track impacts, overload attempts, charger faults, wheel wear and recurring operator concerns. Cooperation cases should be discussed only when customer permission and verifiable details are available; this page does not invent customer names, volumes or performance results.

Export procurement, CE and EPA considerations

For export orders, confirm machine and mast configuration, battery chemistry and capacity, charger input, plug, labels, manuals, packing, shipping dimensions, dangerous-goods information where applicable and destination requirements before contract. Agree spare-parts and commissioning plans with the importer or dealer before shipment.

Where CE documentation is required, request and verify the declaration and supporting documents for the exact supplied machine and destination. EPA engine-emissions certification is generally not applicable to a fully electric pallet stacker without a combustion engine, but the actual power configuration must be confirmed. Electrical, machinery, battery-transport, workplace and import requirements may still apply. No unverified certificate, test result, export volume, delivery record or customer case is claimed here.

Support from ZGFORKLIFT / MYZG

Shandong Zhuogong Machinery Equipment Co., Ltd. can review buyer-provided application data, discuss available configurations and coordinate product, documentation, packing, commissioning and parts questions for the proposed order. Final capacity, dimensions, options, compliance documents, warranty scope, lead time and commercial terms must be confirmed in the quotation or technical agreement.

Request a SBD20 application review

Send pallet dimensions, maximum hardware load and load center, required lift height, rack and packing layout, straddle-leg clearance, aisle and turning measurements, floor gradients, travel distance, daily cycles, charging supply, destination and service expectations. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. at vip@mingyuforklift.com or +86-0535-2090977, or use the contact and inquiry page. Include “SBD20 2.0 ton semi-electric straddle pallet stacker” so the complete application can be reviewed together.
