3 Must-Do Steps Before Stacker Repair: Power Off, Remove Jewelry, Secure with Stands

The Anatomy of a Preventable Disaster

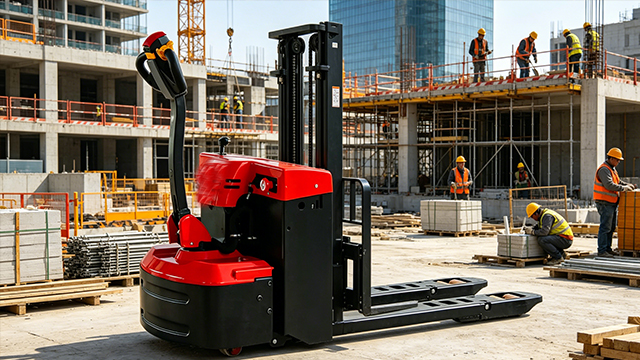

Every year, industrial maintenance logs record thousands of stacker-related injuries that share a disturbing commonality: they were entirely preventable. Electric stackers—those compact, maneuverable lifting machines that dominate warehouse aisles and loading docks—may appear less threatening than their full-sized forklift cousins, but they harbor the same lethal potential. A 2,000-pound capacity walkie stacker can crush a technician's hand just as effectively as a 10,000-pound counterbalance truck can pin a body against a racking column. The difference between a routine repair and a life-altering accident often comes down to three deceptively simple preparatory steps that too many technicians treat as optional suggestions rather than non-negotiable protocols.

The question mark in the title is intentional. It reflects the dangerous ambiguity that pervades maintenance culture. Should you power off? Remove jewelry? Secure with stands? For too many operators and technicians, these steps exist in a gray zone of "probably a good idea" rather than "mandatory prerequisite." This article dismantles that ambiguity with technical precision, exploring not just what to do, but why each step matters, how to execute it correctly, and what happens when corners get cut.

Step 1: Power Off—Beyond the Obvious

At first glance, "power off" seems insultingly basic. Flip a switch. Disconnect a connector. Move on. But in the context of electric stackers, power isolation is a multi-layered technical procedure that demands far more rigor than most technicians apply.

Understanding Stacker Electrical Architecture

Modern electric stackers operate on DC voltage systems ranging from 24V to 48V, with some heavy-duty models pushing 80V. While these voltages might seem modest compared to industrial AC systems, they deliver lethal current through low-resistance paths. A fully charged 48V lead-acid battery pack can source hundreds of amperes instantaneously—more than enough to cause severe burns, cardiac arrhythmia, or fatal electrocution if a technician bridges terminals with a conductive tool or body part.

But the danger isn't merely the battery. Stacker electrical systems incorporate motor controllers, DC-DC converters, contactors, and increasingly, CAN bus communication modules. When a technician powers down a stacker by turning the key switch to "off," they may believe the system is de-energized. In reality, many controllers maintain "live" circuits for memory retention, hour-meter logging, and auxiliary functions. The key switch interrupts the control circuit, not necessarily the power circuit.

The Lockout/Tagout Imperative

Proper power isolation requires a formal Lockout/Tagout (LOTO) procedure compliant with OSHA 1910.147 or equivalent international standards. For electric stackers, this means:

Battery Disconnection: Physically disconnect the battery connector or remove the main fuse/link. Key switches can fail. Contactors can weld shut. Only physical separation of the power source guarantees zero energy state. The battery connector should be locked in the disconnected position with a hasp and padlock, with the key retained by the technician performing the work.

Capacitor Discharge: Motor controllers and DC-DC converters contain large electrolytic capacitors that retain lethal charge for minutes after power removal. Technicians must verify discharge using a properly rated voltmeter across controller input terminals before touching any electrical components. Some manufacturers specify a mandatory 5-minute waiting period after battery disconnection before commencing work.

Hydraulic System Depressurization: Electric stackers integrate electro-hydraulic lift and tilt systems. Even with electrical power removed, pressurized hydraulic fluid in accumulators or cylinder lines can cause unexpected mast movement. Technicians must lower all lift mechanisms to their mechanical stops, activate manual lowering valves if equipped, and verify zero pressure at test ports before working on hydraulics.

Documentation and Verification: LOTO isn't complete until documented. The technician must complete an energy isolation verification checklist, confirming each potential energy source—electrical, hydraulic, gravitational, kinetic—has been identified and neutralized.

The Consequences of Half-Measures

Technicians who rely solely on the key switch have experienced catastrophic outcomes. Documented incidents include technicians whose wedding rings welded to battery terminals when the ring contacted both poles simultaneously. Others have had fingers amputated when a supposedly "off" stacker suddenly powered its traction motor during controller replacement, because a faulty contactor closed under vibration. The key switch is a convenience feature for operators, not a safety device for technicians.

Step 2: Remove Jewelry—Conductive Hazards in a Conductive Environment

The jewelry prohibition in industrial maintenance often gets dismissed as bureaucratic overreach. Technicians argue they've worn rings and watches for years without incident. This survivorship bias obscures a genuine electromechanical hazard that jewelry transforms from negligible to catastrophic.

The Physics of Arc Flash and Short Circuits

Jewelry—gold, silver, platinum, and even stainless steel—represents an excellent electrical conductor with melting points far below the temperatures generated by electrical faults. When a metal ring bridges a 48V battery terminal to ground, or contacts both poles of a capacitor bank, several phenomena occur simultaneously:

Ohmic Heating: Current passing through the ring generates heat according to I²R principles. A 100-ampere fault current through a gold ring with 0.01 ohm resistance produces 100 watts of thermal energy—concentrated in a few grams of metal in direct contact with skin. Within seconds, the ring reaches temperatures exceeding 1,000°C, causing third-degree burns and often requiring finger amputation.

Arc Flash: If the ring doesn't make solid contact but instead approaches close enough to ionize the air gap, an arc flash develops. At 48V DC, arc flash is less dramatic than high-voltage AC events, but still produces temperatures of 3,000-5,000°C, ultraviolet radiation, and molten metal spray. A ring vaporizes explosively, injecting superheated metal into surrounding tissue.

Mechanical Entanglement: Beyond electrical hazards, jewelry creates mechanical risks. A necklace chain caught in a mast roller, a bracelet snagged on a hydraulic hose fitting, or a ring hooked on a fastener can pull a technician's hand or body into pinch points before reflexes can respond. Stackers contain numerous rotating, reciprocating, and translating components that present entanglement hazards during repair.

Comprehensive Personal Conduct Policy

Effective jewelry removal extends beyond the obvious rings and watches:

Metallic Items: Belt buckles, steel-toe boots with exposed metal, piercings, body jewelry, and even conductive eyewear frames must be evaluated. Some facilities require technicians to change into non-conductive footwear and remove all piercings before electrical work.

Non-Metallic Jewelry: Even non-conductive materials like silicone rings or plastic watches present mechanical entanglement risks. The safest policy prohibits all jewelry below the elbows during mechanical work.

Pocket Contents: Coins, keys, and metal tools in pockets can fall into electrical compartments or become projectiles during arc events. Technicians should empty pockets or wear clothing without loose storage.

Hair and Clothing: Long hair must be tied back and contained. Loose sleeves, dangling drawstrings, and unsecured ID badges present identical entanglement risks to jewelry.

The Cultural Challenge

Jewelry removal faces cultural resistance, particularly regarding wedding bands. Some technicians refuse, citing personal significance or superstition. Facilities must address this through education—showing medical photographs of degloving injuries and electrical burns—and accommodation, such as providing silicone non-conductive bands for wear during work hours, or secure storage lockers for valuable items. The alternative is accepting liability for preventable injuries.

Step 3: Secure with Stands—Defeating Gravity

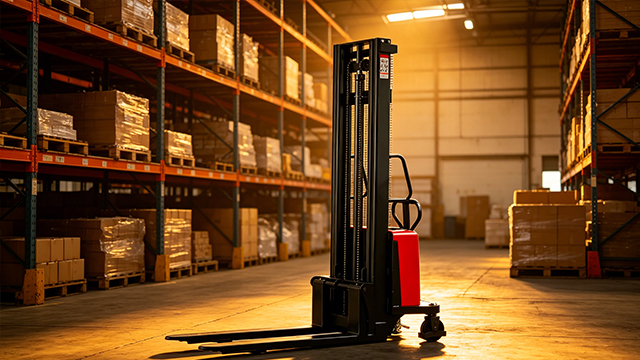

Gravity never sleeps. A stacker's mast, carriage, and forks represent thousands of pounds of steel suspended by hydraulic cylinders, chains, and pulleys. When a technician crawls beneath a raised mast to replace a hose, adjust a chain, or inspect a roller, they are literally placing their life in the hands of hydraulic seals and mechanical fasteners that may be worn, damaged, or improperly installed.

The Mechanics of Hydraulic Failure

Hydraulic systems in stackers operate at pressures typically ranging from 1,500 to 3,000 PSI. At these pressures, a pinhole leak can inject fluid through skin at velocities sufficient to cause severe tissue damage and require emergency surgery. But the greater danger is catastrophic failure—a blown hose, ruptured cylinder seal, or cracked fitting that causes instantaneous loss of pressure and uncontrolled descent of the load.

Hydraulic oil is nearly incompressible, making it an excellent power transmission medium. However, the system depends on absolute seal integrity. Over time, heat cycling, contamination, and mechanical wear degrade O-rings, rod seals, and piston cups. A seal that holds pressure during normal operation may fail under the static load of a raised mast, particularly if the technician's work introduces vibration or movement.

Mechanical Stands: The Non-Negotiable Standard

Proper mechanical securing requires purpose-built jack stands or approved blocking devices rated for the specific stacker model's weight and geometry. Critical requirements include:

Load Rating: Stands must be rated for at least 150% of the anticipated load. A technician working beneath a 3,000-pound mast assembly needs stands rated for 4,500 pounds minimum. Using automotive jack stands rated for passenger vehicles on industrial equipment constitutes a willful safety violation.

Placement Geometry: Stands must contact structural members designed to bear load—not hydraulic cylinders, hoses, electrical conduits, or thin sheet metal covers. Manufacturer service manuals specify approved jacking points and stand placement locations. Improvised placement can crush components or allow stands to slip.

Redundancy: A single stand represents a single point of failure. Best practice employs multiple stands, creating a redundant load path. If one stand fails, others prevent descent. Some facilities require both mechanical stands and hydraulic system depressurization with the lift cylinder mechanically locked.

Ground Conditions: Stands placed on uneven, oily, or debris-covered floors can tilt or sink. The work area must be clean, level, and capable of supporting concentrated loads. On mezzanines or elevated platforms, structural load limits must be verified before positioning heavy equipment.

Chain and Mast-Specific Considerations

Stacker masts use roller chains or leaf chains to transmit lifting force. These chains wear, elongate, and occasionally break. When a technician replaces a chain, they must secure not just the carriage, but the chain itself. A released chain under tension can whip with lethal force. Chain holders, come-alongs, or temporary mechanical locks must restrain chains during removal and installation.

Mast sections telescope, creating pinch points between inner and outer channels. Even with the carriage lowered, intermediate mast sections may be partially extended. Technicians must fully collapse all mast sections and verify mechanical stops are engaged before entering the mast envelope.

The Intersection of Steps: Where Protocols Compound

The three steps don't exist in isolation. Their interaction creates the safety envelope within which repair work becomes manageable risk rather than Russian roulette.

Consider a technician replacing a lift cylinder on a walkie stacker. They disconnect the battery (Step 1), removing electrical hazard. They remove their ring and watch (Step 2), eliminating conductive and entanglement risks while handling the heavy cylinder. They raise the mast slightly, position rated jack stands beneath the carriage, lower the mast onto the stands, and depressurize the hydraulic system (Step 3). Only then do they disconnect hydraulic lines.

Skip Step 1, and a shorted wire could energize a solenoid, pressurizing the system unexpectedly. Skip Step 2, and the cylinder could contact their ring during removal, creating a short circuit. Skip Step 3, and a failed stand drops the carriage during line disconnection. Each step addresses a distinct hazard domain; together, they create a controlled environment.

Common Rationalizations and Their Fatal Flaws

Technicians who bypass these steps invariably offer justifications that collapse under technical scrutiny:

"It's just a quick adjustment.": The duration of exposure has no correlation with accident probability. A 30-second task beneath an unsecured load carries identical risk to a 30-minute task. Gravity doesn't check your schedule.

"I've done it a hundred times.": This is the definition of normalization of deviance. Each successful shortcut reinforces hazardous behavior until probability catches up. Statistics are patient; they always collect.

"The battery is low/dead anyway.": A "dead" battery may still hold sufficient charge to operate control circuits, energize contactors, or power auxiliary systems. Only physical disconnection guarantees safety.

"My ring is insulated/plastic.": Mechanical entanglement remains. Additionally, many "non-conductive" rings contain metal cores or conductive fillers. The only safe ring is a removed ring.

"The hydraulics look fine.": Hydraulic failure is often non-visual. Internal seal degradation, microscopic cracks in hoses, and contaminated fluid present no external warning signs until failure occurs.

Advanced Safety Architecture

For facilities seeking to institutionalize these principles, several advanced practices elevate safety culture:

Pre-Work Briefings (Toolbox Talks): Before any stacker repair, the lead technician should conduct a 5-minute briefing identifying specific hazards, confirming LOTO points, verifying PPE, and assigning stand placement responsibilities. This prevents assumptions and ensures collective awareness.

Permit-to-Work Systems: For high-risk repairs—those involving entry into mast envelopes, electrical cabinet work, or hydraulic system overhaul—facilities should implement formal permits requiring supervisor authorization, hazard identification, and post-work verification.

Digital Checklists: Mobile applications can enforce step-by-step completion, requiring photographic verification of disconnected batteries, removed jewelry, and positioned stands before allowing work order progression. This introduces accountability and documentation.

Technician Certification: Stacker-specific safety training should be mandatory, not optional. Technicians must demonstrate competency in LOTO procedures, hydraulic depressurization, and stand placement on their specific equipment models before unsupervised repair authorization.

Near-Miss Reporting: Establishing a blame-free near-miss reporting culture captures the thousand minor incidents that precede a major accident. A technician who almost dropped a carriage because they forgot a stand should report it, triggering refresher training for the entire team.

Regulatory and Liability Context

From a legal and regulatory standpoint, these three steps aren't merely best practices—they're baseline compliance requirements. OSHA's Control of Hazardous Energy standard (1910.147) mandates LOTO for servicing equipment where unexpected energization could cause injury. The General Duty Clause requires employers to address recognized hazards, including unsecured elevated loads and conductive jewelry near electrical systems. Failure to enforce these protocols exposes organizations to willful violation citations, civil liability, and criminal prosecution in fatality cases.

Insurance underwriters increasingly scrutinize maintenance safety programs. Facilities with documented jewelry policies, LOTO enforcement, and mechanical securing requirements receive favorable rates. Those with injury histories rooted in skipped preparatory steps face exclusions, surcharges, or coverage denial.

Conclusion

The three steps before stacker repair—power off, remove jewelry, secure with stands—are not suggestions wrapped in a question mark. They are the foundational pillars of technician safety, each addressing a distinct and lethal hazard domain. Power isolation defeats electricity. Jewelry removal eliminates conductive and mechanical entanglement pathways. Mechanical stands neutralize gravitational potential energy.

The question mark in the title belongs to the technician who asks, "Do I really need to do all this?" The answer, grounded in electrochemistry, physics, and decades of accident investigation, is unequivocal: yes. Every shortcut is a wager against probability, and probability always wins eventually. The stacker doesn't care about your experience, your hurry, or your wedding band's sentimental value. It responds only to physics. Respect the protocol, survive the repair, and return home with all your fingers intact. That is the only acceptable outcome.
