Product Overview: 2.5-ton Diesel Forklift (CPC25)

Product Overview: 2.5-ton Diesel Forklift (CPC25)

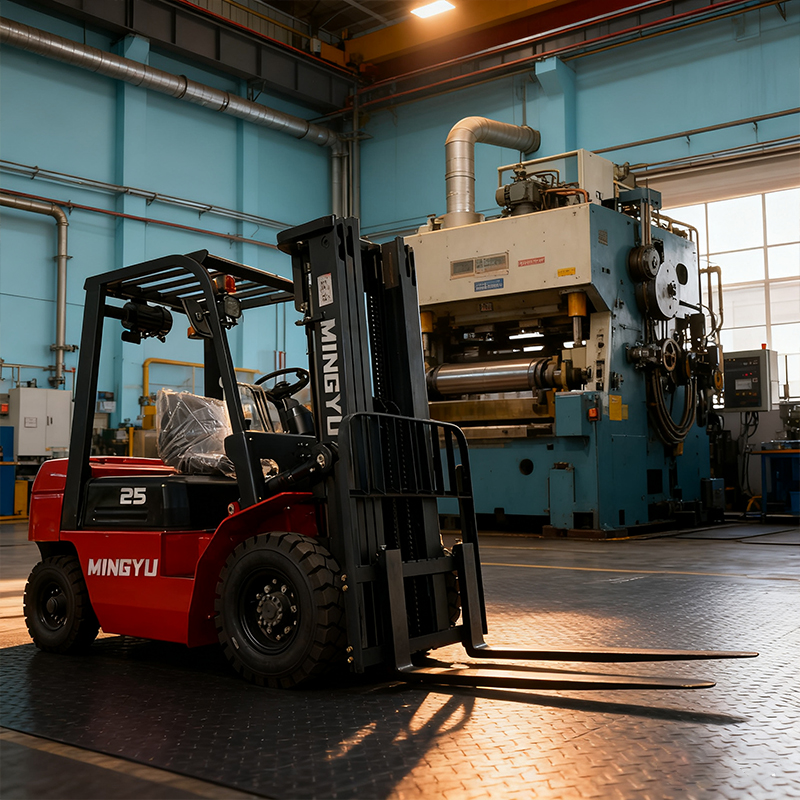

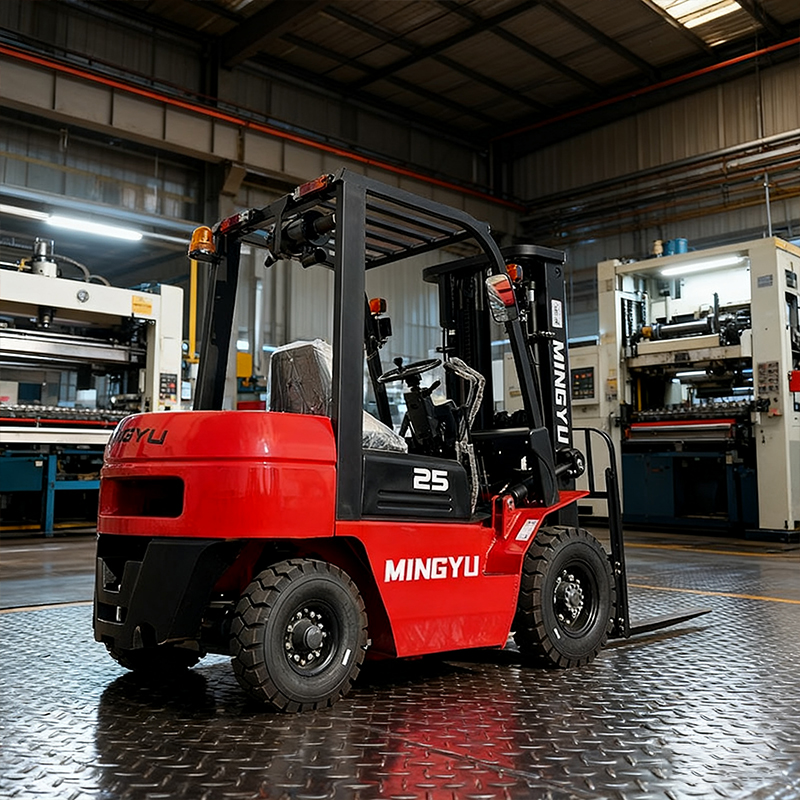

The CPC25 is a robust, diesel-powered forklift truck designed for heavy-duty material handling. With a load capacity of 2500 kg (2.5 tons), it is primarily used for lifting, lowering, and transporting palletized goods and other heavy materials in warehouses, logistics centers, ports, and construction sites.

Key Features and Performance

Functionality

Lifting: The forklift can lift loads up to 2500 kg. The maximum lifting height of the fork (with stopper shelf) is 4220 mm, and the standard lifting height is 3000 mm. It features zero (0) free lifting height, meaning the mast or overhead guard height begins to increase as soon as the forks are raised.

Driving: It has a max driving speed of 19 km/h and a max climbing capacity of 20%, indicating solid performance on slight inclines.

Traction: The max drawbar pull is 18 kW, providing significant power for towing or moving heavy loads.

Maneuverability: A min turning radius of 2240 mm suggests good maneuverability for its size. The mast features a tilt angle of $6^\circ$ (front) / $12^\circ$ (rear) for secure load handling and placement.

Engine and Power

Power Type: Diesel.

Engine Model: xinchai4D27G31.

Rated Power: $36.8 \text{ kW}$ at $2500 \text{ rpm}$.

Rated Torque: $156 \text{ Nm}$ in the range of $1700\text{-}1900 \text{ rpm}$.

Displacement: $2.54 \text{ L}$ with 4 cylinders.

Fuel Tank Capacity: $60 \text{ L}$.

�� Dimensions and Materials

Dimensions (Overall and Critical)

Materials

Body/Frame: Likely constructed from heavy-duty steel (common for industrial machinery) to withstand the weight and operational stresses.

Tyres:

Front: 7.00-12-12PR (Pneumatic or solid tires, 12-ply rating).

Rear: 6.00-9-10PR (Pneumatic or solid tires, 10-ply rating).

Note: "PR" stands for Ply Rating, indicating the tire's load-carrying capacity and material strength.

Weight

Weight (without load): 3880 kg.

�� Packaging and Shipping

Packaging

Given the machine's substantial weight (3880 kg) and dimensions, the CPC25 forklift is typically not packaged in a traditional sense. For protection during transit, it is secured:

Securing: Strapped down to a flat rack or a heavy-duty skid/platform using chains or heavy straps.

Protection: Vulnerable parts may be covered or wrapped, and protective wooden blocks may be used to prevent movement.

Shipping

Method: Due to its size and weight, it is generally shipped via Ro-Ro (Roll-on/Roll-off) vessel or secured on a flat rack container (20-foot or 40-foot) for international shipping.

Classification: It is considered Heavy Machinery or Self-Propelled Cargo. The overall length of 3650 mm and height of 2160 mm must be factored into the shipping container selection.
