product description
Self-propned Teclescophic Boom AerialWork Platform,maximum flaring height11.2m, load capacity 200kg,equipped with all-terrrialtires andelectric drive system,345°rotatingboom enhancesoperational flexibility,suitable for high-allhad work scenarios, asconstruction and municipal engineering, supportscustomized services.

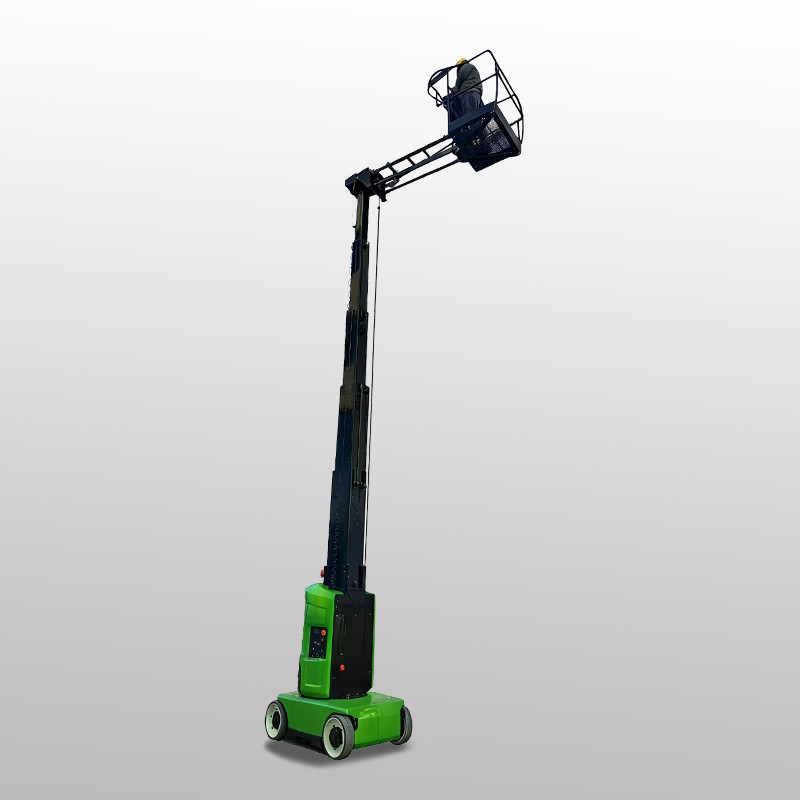

ZG-TT1011 is a flexible and efficient self-propelled telescopic aerial work platform, designed for various high-altitude operation scenarios:
-
All-terrain Adaptation: Equipped with large-size wear-resistant tires, it can adapt to multiple outdoor sites such as parks and building surroundings. It can also turn flexibly in narrow spaces (minimum turning radius is only 0.23m).
-
Safety & Stability: The guardrail height reaches 1.1m, the platform load capacity is 200kg (supports 2 workers operating simultaneously); the maximum working slope is only 2.5°, ensuring more stable operation.
-

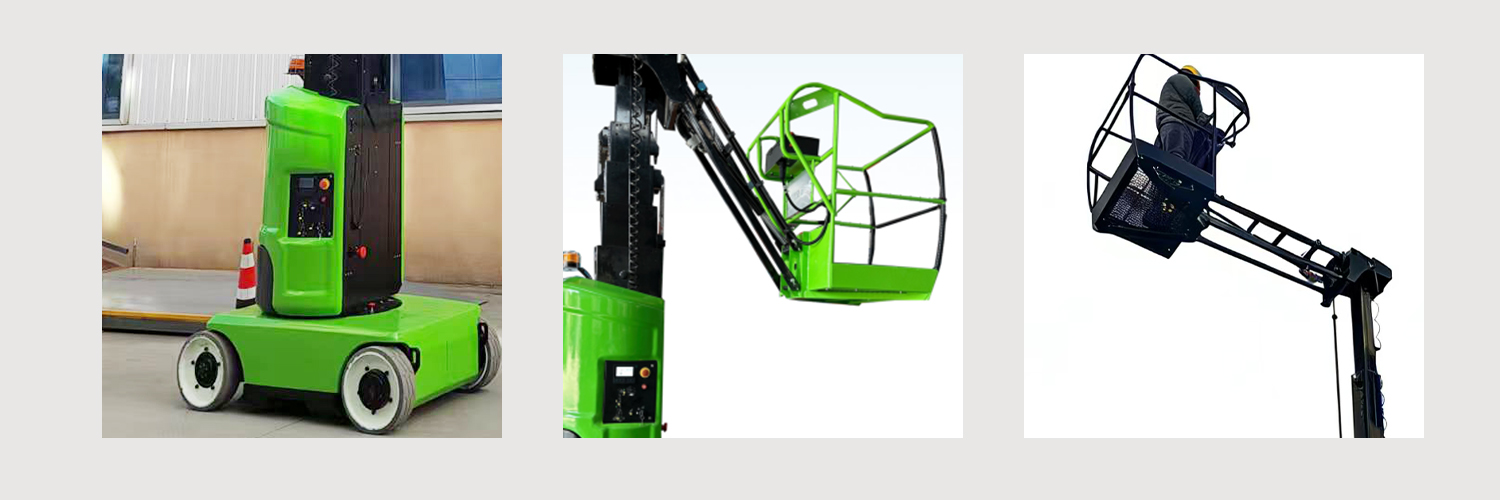

Easy Operation: Supports multi-dimensional movements such as lifting, telescoping, and rotating (the jib rotates 345° and the boom extends 130°). The lifting speed is efficient, and it can quickly transfer in the folded state.
This aerial work platform is widely applicable to scenarios like building maintenance, equipment installation, and municipal engineering:
-
High-altitude Operation: With a maximum working height of 11.2m, platform height of 9.2m, and 3m horizontal reach, it can easily cover operation areas such as high-rise exterior walls and building tops.
-
Flexible Operation: The compact body size (2.9m×0.99m) in the folded state allows it to pass through narrow passages; the jib can be adjusted at multiple angles to adapt to complex working environments.
-
Electric Drive: Powered by a 24V battery, it has no exhaust pollution and can be used in both indoor and outdoor scenarios, with low noise during driving and lifting operations.
|
|
|
|

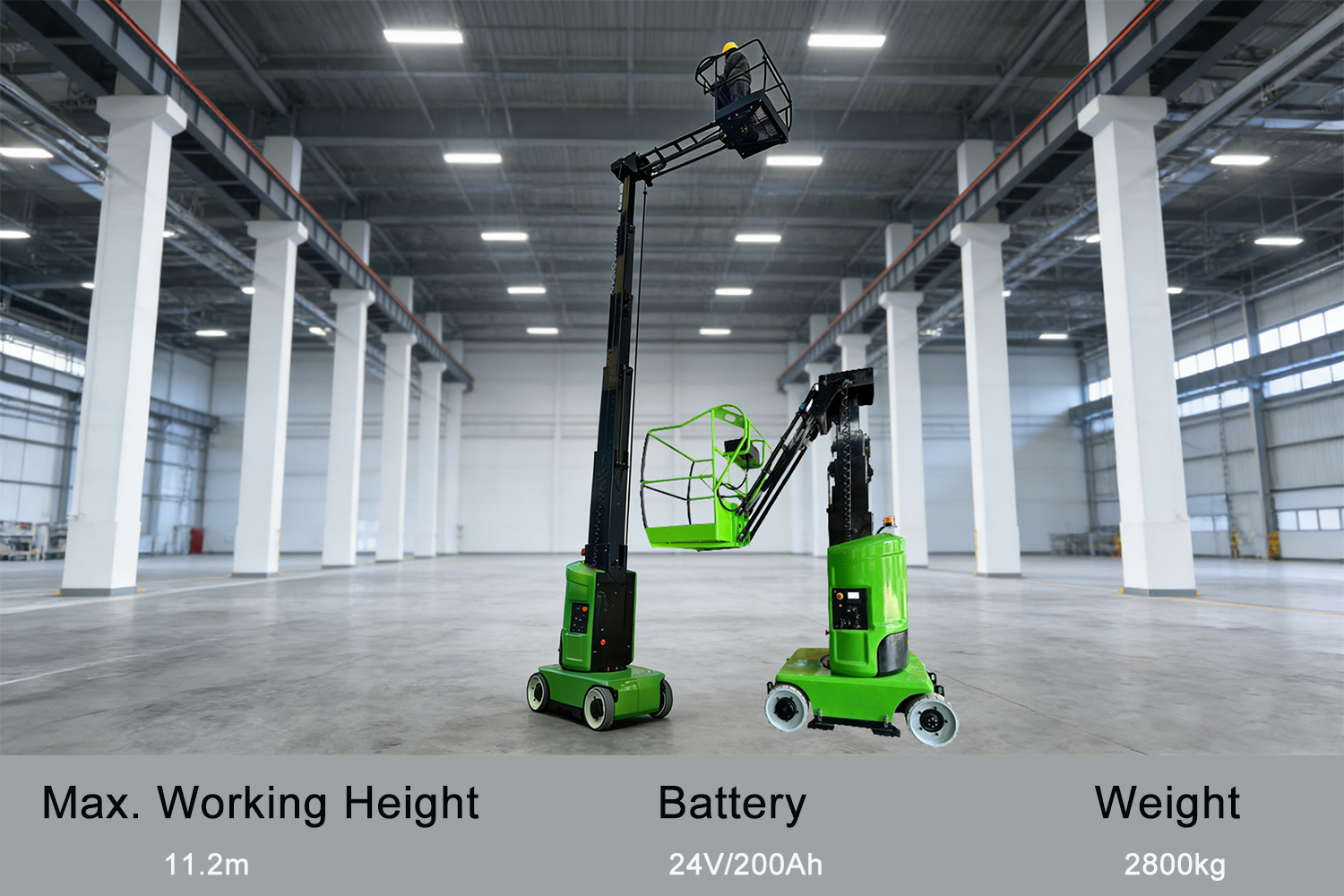

Max. Working Height
|
11.2m
|
|
Max. Platform Height
|
9.2m
|
|
Max. Horizontal Reach
|
3m
|
|
Up and Over Height
|
7.89m
|
|
Guardrail Height
|
1.1m
|
|
Overall Length
|
2.9m
|
|
Overall Width
|
0.99m
|
|
Overall Height (stowed)
|
2.05m
|
|
Platform Dimension
|
0.9×0.73m
|
|
Working Bucket Ground Clearance
|
0.5m
|
|
Base Ground Clearance
|
65mm
|
|
Wheelbase
|
1.2m
|
|
Loading Capacity
|
200kg
|
|
Max. Occupants
|
2
|
|
Turning Radius (Inside/Outside)
|
0.23/1.65m
|
|
Turret Rotation
|
345°
|
|
Jib Movement
|
130°
|
|
Travel Speed (Stowed)
|
4.5km/h
|
|
Travel Speed (Raised)
|
0.5km/h
|
|
Up/Down Speed
|
42/38 s
|
|
Max. Working Slope
|
X-2.5°, Y-2.5°
|
|
Tyres
|
Φ 381×127mm
|
|
Driving Motor
|
24V/0.9kW
|
|
Lifting Motor
|
24V/3kW
|
|
Battery
|
24V/200Ah
|
|
Charger
|
24V/30A
|
|
Weight
|
2800kg
|
|
Service Guarantee
-
After-sales Support: Provide professional installation guidance, operation training, and warranty services for core components of the equipment.
-
Customization Service: Adapt different accessories (such as work bucket extensions) according to the needs of the operation scenario.
-
Quick Response: Support consultation via WhatsApp/Skype/WeChat, and respond to technical issues within 24 hours.
-
