CDD-A Walkie Electric Pallet Stacker for Spare-Parts Supermarkets

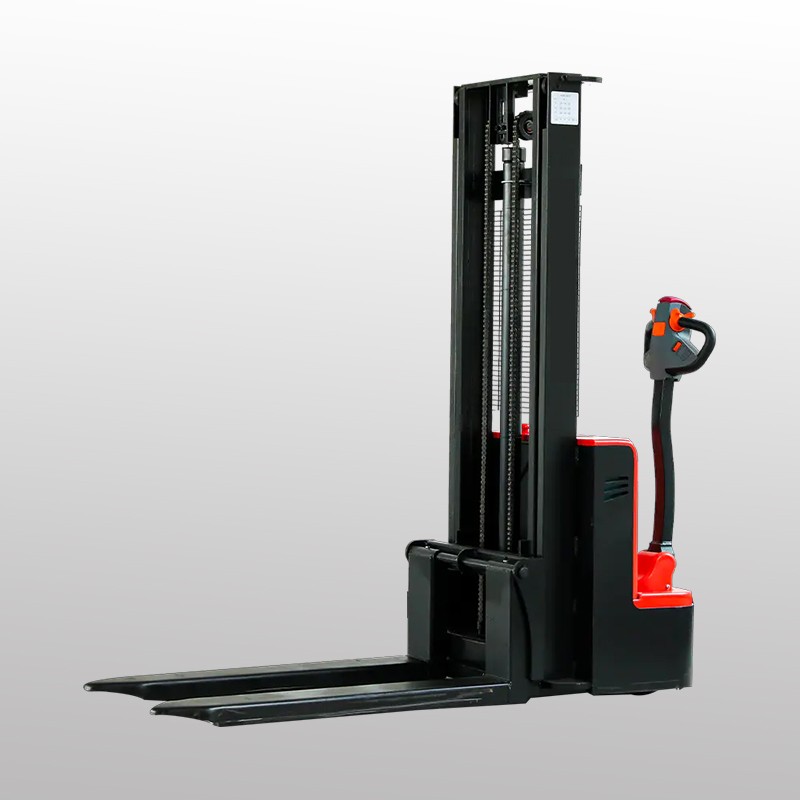

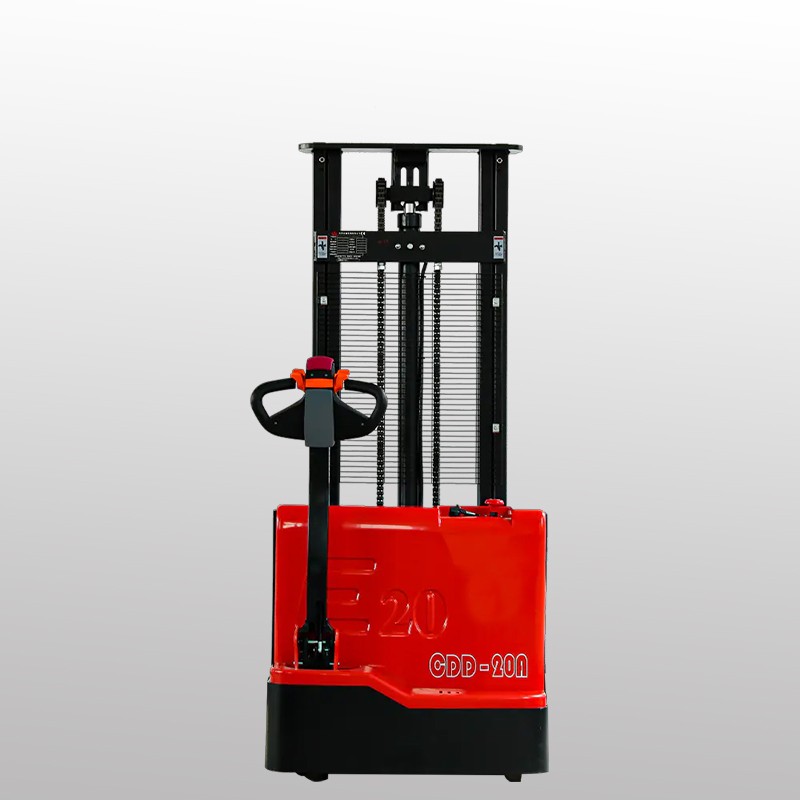

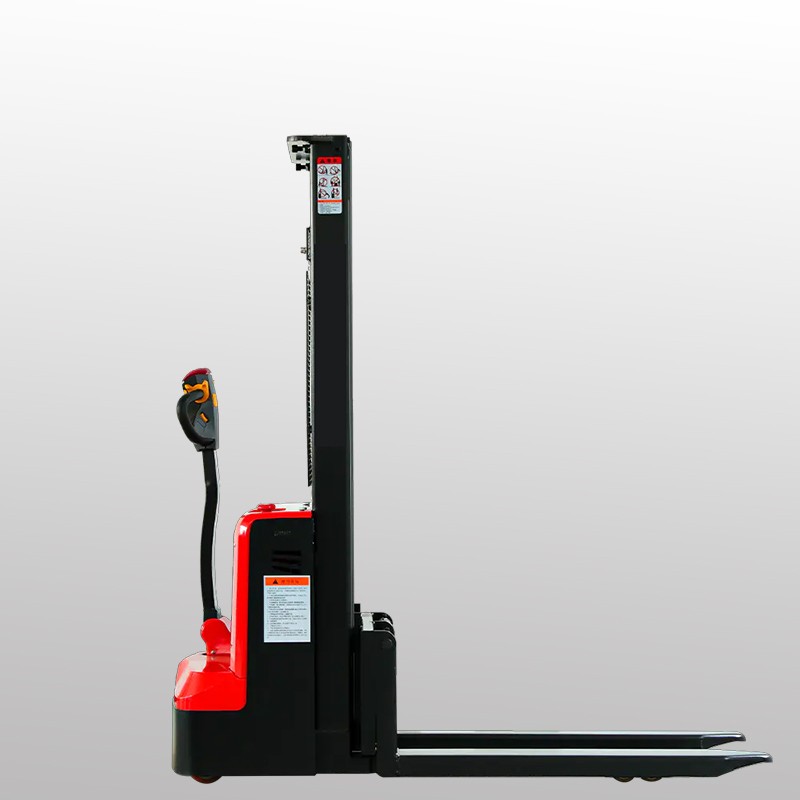

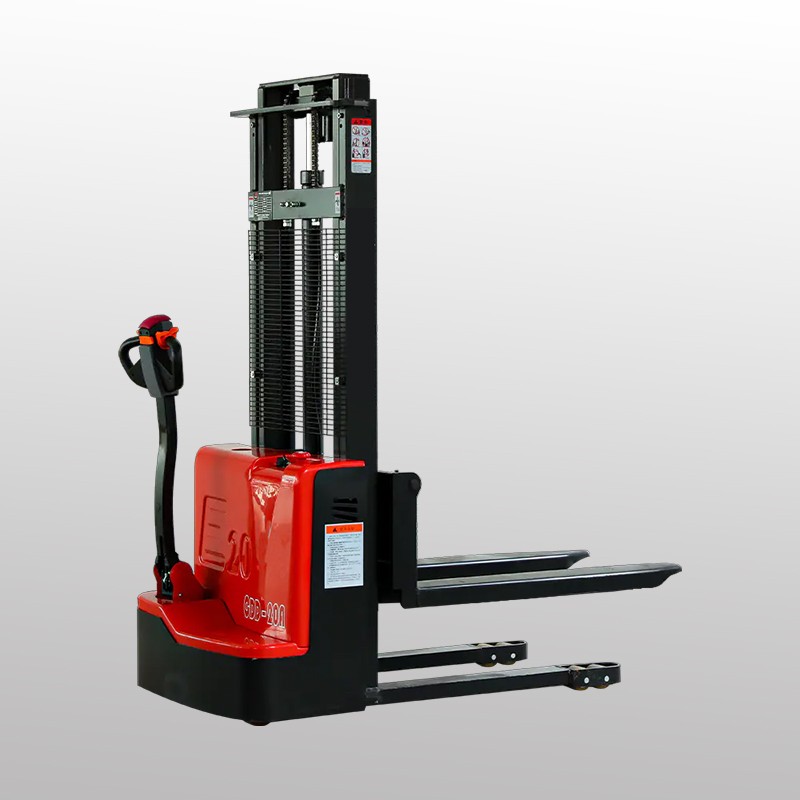

The CDD-A walkie electric pallet stacker application for spare-parts supermarkets and maintenance stores is based on the verified CDD15/16 family, covering 1,500 kg and 1,600 kg nominal classes subject to final configuration. It can move palletized parts between receiving, reserve racks, kitting zones and workshop issue points. ZGFORKLIFT / MYZG evaluates load density, pallet compatibility, aisle, rack height, floor, operator exposure, battery duty and service planning together.

Identify dense and irregular parts loads

Parts pallets can contain dense metal components, long cartons, drums or mixed containers. Record maximum gross weight, dimensions, load center, center of gravity, pallet openings and packaging restraint. Do not estimate from pallet size. Long or offset goods and attachments can reduce residual capacity, especially at higher lift positions.

Map receiving, inspection, reserve storage, kitting, tool crib and workshop delivery. Include narrow gates, machine aisles, oily areas, floor joints, ramps and pedestrian workstations. A walkie stacker should have enough space for the truck, load and operator without pushing the operator into racks or production traffic.

Compare equipment formats

Review the pallet stacker range and the source MYCDD-A walkie electric stacker. Pedestrian control may suit short routes and moderate frequency. A standing or counterbalanced machine may be more suitable for long travel, closed pallets, ramps or unsupported loads.

Parts-store selection checklist

Capacity: weigh representative heavy pallets and document load centers. Confirm residual capacity with the final mast and forks.

Pallets: inspect reusable pallets, bins and stillages for underside clearance and fork entry. Test non-standard containers.

Aisles: measure with bins, carts and staged parts in realistic positions. Identify blind corners and workshop crossings.

Battery: calculate peak travel and lift cycles, breaks and charging access. Keep charging separate from combustible storage and uncontrolled traffic.

Safe handling around workshops

Define powered-equipment routes, pedestrian-only areas, speed limits and stop conditions. Keep floors free of oil, metal offcuts, wrap and debris. Operators should travel with loads correctly lowered, slow before workshop doors and stop when a tall or irregular load blocks visibility. Damaged pallets and unstable bins must be corrected before movement.

The electric stacker safety procedures provide general guidance. The article on forklift versus stacker selection can help procurement teams. Follow the delivered manual and workplace rules.

Maintenance and parts availability

Pre-shift checks should cover forks, carriage, chains, mast, hoses, wheels, brakes, tiller controls, emergency reverse, horn, battery restraint and connectors. Inspect for contamination, impacts and abnormal noise. Isolate the machine when a defect affects control, stability, lifting or electrical safety.

Maintenance stores can use their own inventory discipline for stacker spares: define critical items from duty, wear history and lead time. Keep service records and machine identification linked. Review the parts and dealer support page; provide configuration, identification, clear photographs and part location with every request.

Dealer, distributor and export planning

Dealers should inspect representative dense loads, routes and containers before quoting. Handover should cover approved loads, traffic, parking, charging, daily inspection and emergency response. A trial should measure moves, aisle clearance, damage, energy use and service observations rather than relying on generic performance claims.

For export orders, verify electrical supply, labeling, language and destination documents. Request the applicable CE documentation for the exact supplied configuration when required. EPA engine-emissions certification is normally not applicable to electric stackers. No unsupported certificate, export count, customer case or delivery promise is made.

Request a spare-parts logistics review

Compare alternatives through All Products. Send load and container data, rack heights, route dimensions, floor conditions, peak cycles, charging window and destination. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. at vip@mingyuforklift.com or +86-0535-2090977, or use the contact page. Reference “CDD-A spare-parts supermarket.”
