CDD-E / CQDA Electric Stacker Selection for Appliance Component Warehouses

The CDD-E / CQDA electric stacker selection for appliance component warehouses focuses on bulky cartons, palletized compressors, motors, sheet-metal parts, packaging materials and finished-goods buffers. ZGFORKLIFT / MYZG compares the CDD-E high-configuration standing electric stacker and the CQDA electric reach pallet stacker as two different handling geometries. Their source families include 1,500 kg and 2,000 kg nominal classes, but the approved machine depends on real load center, mast, lift height, pallet and route conditions.

Map component and finished-goods flows

Record the maximum gross weight and dimensions of each load family, not only the average production pallet. Appliance operations may combine dense compressors with tall lightweight cartons, returnable metal racks and easily damaged painted panels. Note overhang, offset centers of gravity, fork pockets, wrapping stability and whether the load blocks forward visibility. Map receiving, quality hold, reserve storage, line supply, finished-goods staging and outbound consolidation.

Measure the narrowest loaded turn, rack beam and depth, doorway, ceiling service, lift height, floor joints and gradient. Determine whether the machine will travel long distances or mainly stack near one rack zone. A standing configuration can reduce walking on repeated routes, while a reach mechanism can support certain rack interfaces; neither feature substitutes for measured clearance or a capacity check.

Match machine geometry to storage design

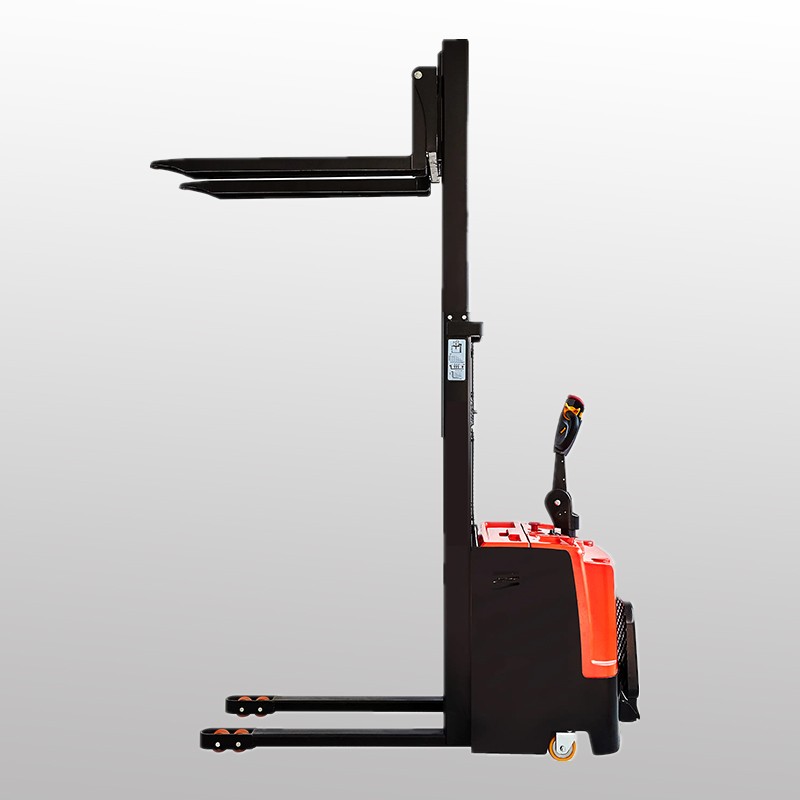

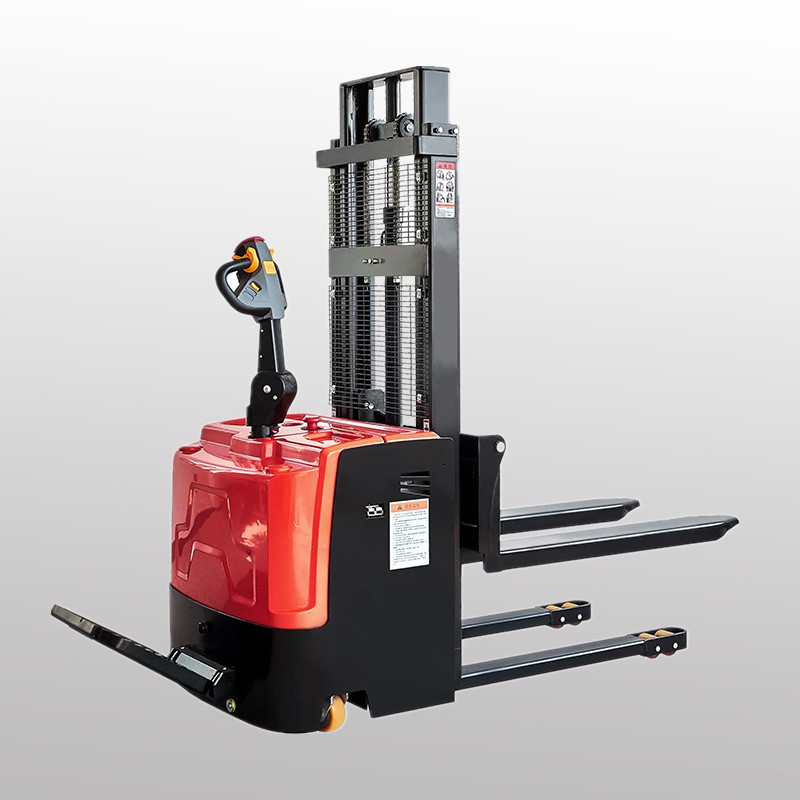

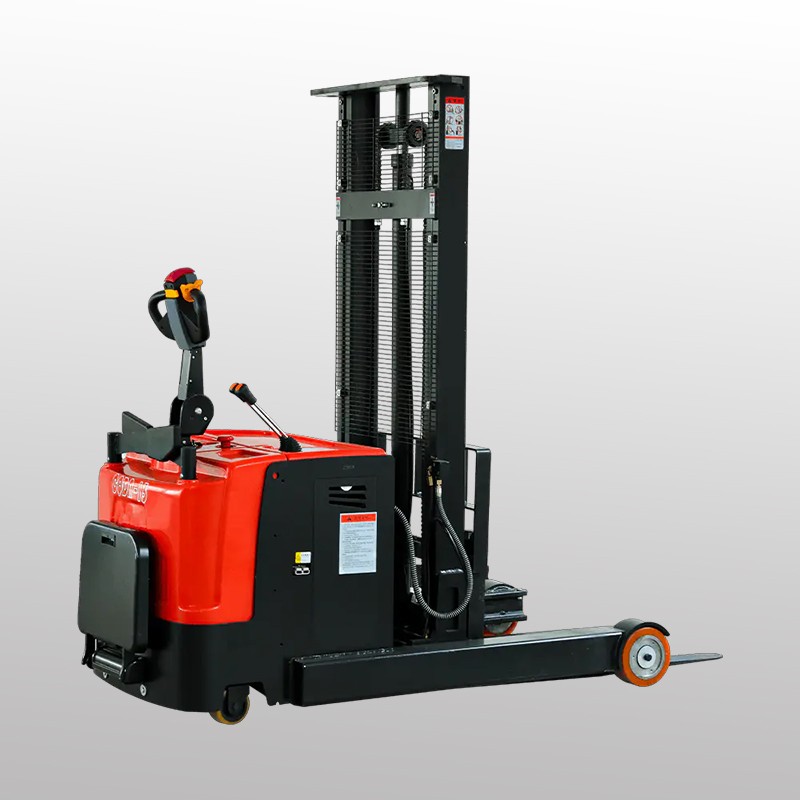

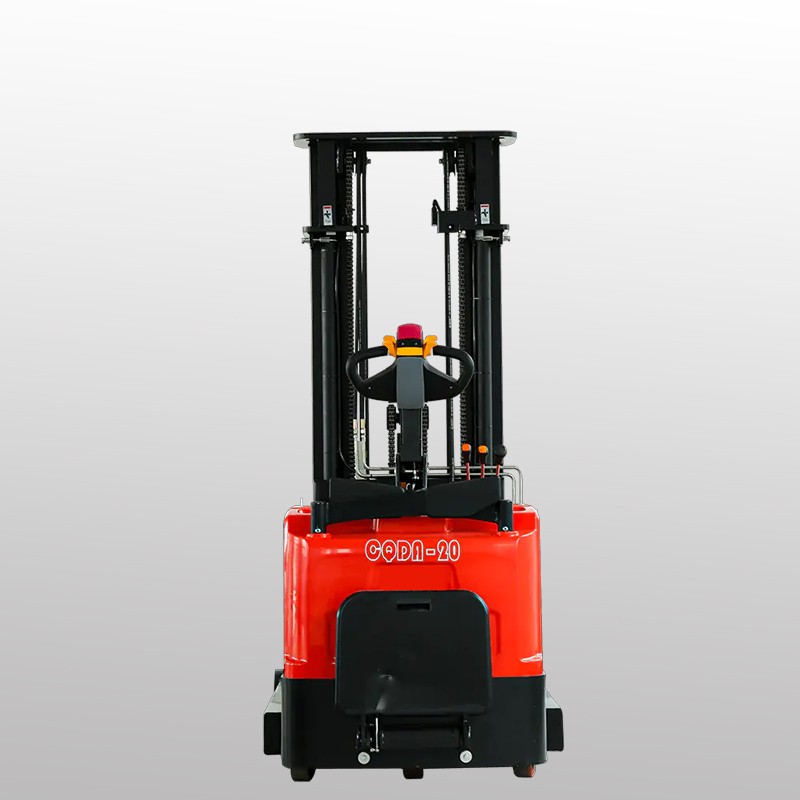

CDD-E is a standing electric stacker family intended for controlled pallet travel and shelf stacking. Review the MYCDDE source product and confirm the selected mast, fork layout and battery against the application. CQDA uses a movable mast that reaches toward the rack and retracts for travel; its verified structure is summarized on the MYCQDA reach stacker page.

CDD-E may suit open production supermarkets and direct pallet stacking where compatible open-bottom pallets are used. CQDA may suit rack layouts that benefit from forward reach or adjustable fork positioning, subject to technical confirmation. Compare both with the complete stacker product category. If the route includes loading docks, broken outdoor pavement or severe gradients, another truck type may be safer.

Protect bulky and sensitive loads

Tall cartons and wrapped appliances can obscure the travel path. Set travel-direction rules, use a spotter where the risk assessment requires one and keep intersections visible. Fork length and spacing must support the pallet without puncturing cartons or bending deck boards. Confirm that any rack, stillage or special pallet is compatible with support legs and reach movement before ordering.

Residual capacity is more important than the headline capacity when the pallet is elevated. Ask for the load chart for the exact mast and actual load center. Long or offset loads, high lift positions and optional equipment can reduce usable capacity. Receiving teams should isolate damaged pallets, leaning cartons and loads with uncertain weight before handling.

Battery and throughput planning

Both source families use 24 V electric systems; final battery capacity and charger must be confirmed for the order. Build a duty-cycle worksheet using loaded and empty travel, lift and reach cycles, shift length, peak production windows, breaks, ambient temperature and planned charging. Do not size energy around a quiet average day when seasonal or promotion-driven production is the real constraint.

Locate charging away from production traffic and combustible packaging, provide the electrical supply specified for the charger and protect cables and connectors. Follow the supplied battery instructions. Stop use and obtain qualified service if operators find abnormal heat, odor, swelling, leakage, damaged cables or repeated alarms.

Safety and commissioning

Create separated pedestrian routes, protected crossings, speed limits and parking rules. Keep docks, conveyors, robot cells and emergency exits clear. Only trained and authorized operators should use the machine. The safe-operation reference for electric stackers can support site planning, but the delivered manual, capacity plate and local regulations govern actual use.

Commission with representative loads on the intended route. Test steering, braking, lift, lowering, emergency controls, warning devices, mast reach and retraction where fitted, fork alignment, visibility and charger compatibility. Confirm clearance at the highest rack position and document any prohibited zones or loads.

Maintenance and dealer readiness

Daily inspection should cover forks, carriage, mast, chains, rollers, hydraulic hoses, support legs, load wheels, drive wheel, steering, brakes, controls, warning devices, battery connector and wiring. Inspect CQDA reach rails and movement in accordance with the manual. Record defects, isolate unsafe equipment and source confirmed components through the parts business and service channel.

Dealers can improve customer retention by keeping the delivered machine configuration, serial details, charger information and recommended wear parts on file. Provide a handover checklist covering inspection, charging, route rules and service contacts. Use All Products to compare counterbalance forklifts, walkie stackers and pallet trucks when the appliance workflow includes different load stages.

Compliance, export and documented trust

Where CE documentation is required, request the declaration and supporting scope for the exact ordered configuration. Fully electric CDD-E and CQDA machines do not use a combustion engine, so engine-exhaust EPA certification is generally not the relevant path. Battery, charger, machinery, transport, recycling and workplace rules still vary by destination and must be checked. This page does not invent certificate numbers, named customer cases, test results, export volumes or logos.

Send destination voltage, plug type, language, labeling, packing, battery transport, spare-parts and import requirements before order confirmation. Shandong Zhuogong Machinery Equipment Co., Ltd. can coordinate confirmed documents and service scope for the selected configuration.

Request an appliance-warehouse selection review

Provide load photographs and drawings, weight, load center, pallet entry, rack plan, lift height, aisle and door dimensions, floor details, daily cycles, charging windows and destination. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. through the contact page, email vip@mingyuforklift.com, telephone +86-0535-2090977 or WhatsApp +86 131 8160 2336. Quote “CDD-E / CQDA appliance component warehouse” for a comparison of mast, reach, fork, battery, residual capacity and service planning.
