CDD-E / CQDA Electric Stacker Selection for Printing and Paper Warehouses

The CDD-E / CQDA electric stacker selection for printing and paper-converting warehouses addresses palletized paper, cartons, labels, packaging blanks, inks in approved containers and finished printed goods. ZGFORKLIFT / MYZG compares the CDD-E high-configuration standing electric stacker with the CQDA electric reach pallet stacker to match movement, rack and pallet needs. Both verified source families include 1,500 kg and 2,000 kg classes, while usable capacity depends on the ordered mast, actual load center and lift height.

Understand paper and packaging load behavior

Paper and board can be dense even when the pallet footprint looks ordinary. Record the heaviest reel-related accessory pallet, sheet stock, carton blank or finished-goods load, including packaging and pallet weight. Measure dimensions, overhang, center of gravity, pallet entry and wrapping stability. Identify moisture-sensitive zones, dust, floor debris and any load that can shift or crush under poor support.

Map receiving, quarantine, raw-material storage, press or converting line supply, work-in-process buffers, finished-goods racking and dispatch. Note aisle width, rack depth, beam height, doorway, columns, floor joints, gradients, daily travel and shift peaks. Separate standard pallet work from rolls, reels or clamps; special attachments and non-pallet loads require separate engineering approval and are not assumed on this page.

Compare CDD-E standing and CQDA reach layouts

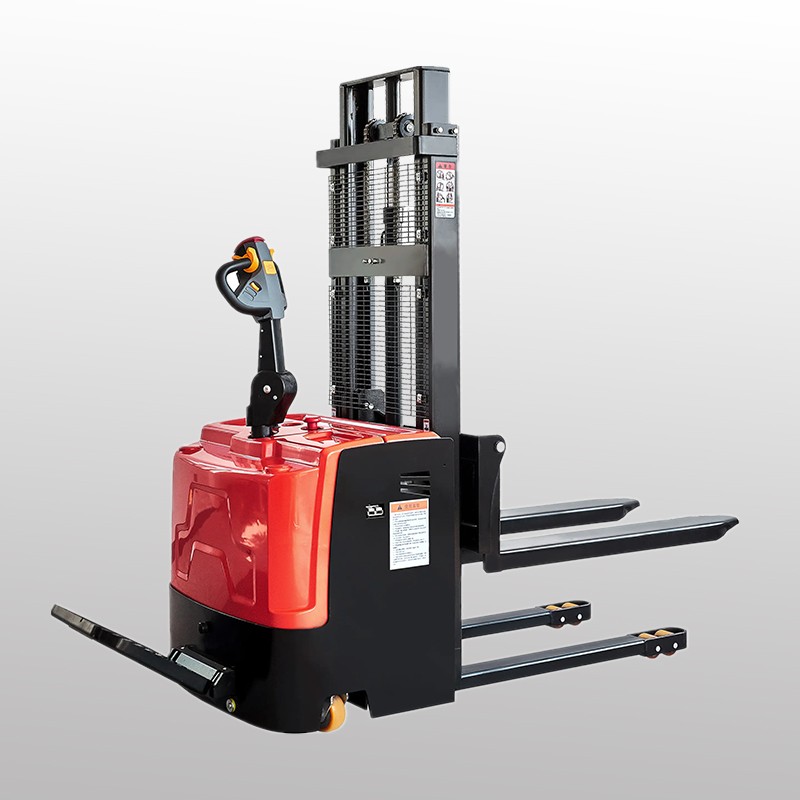

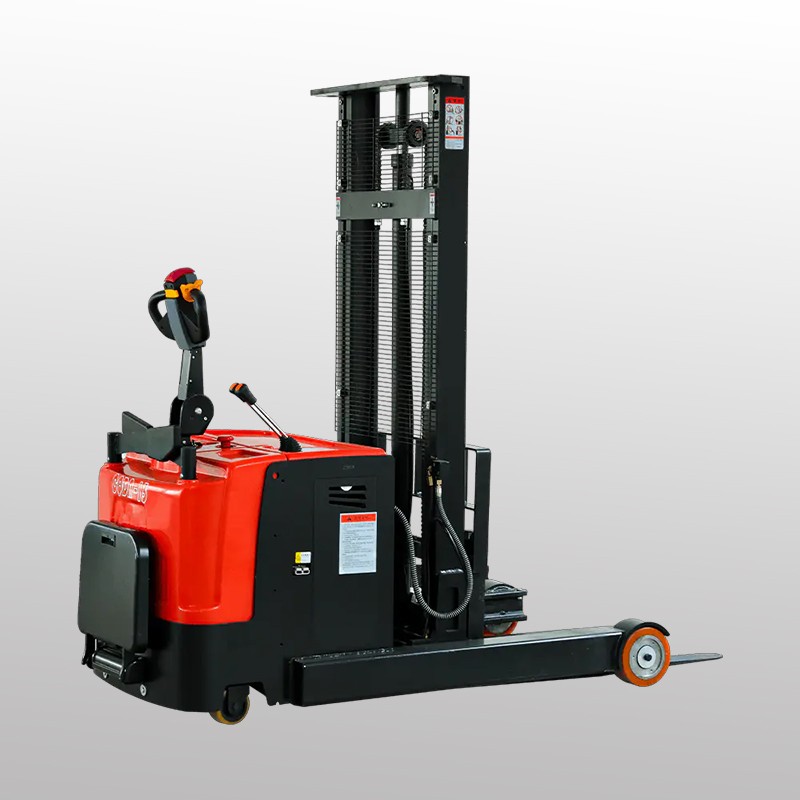

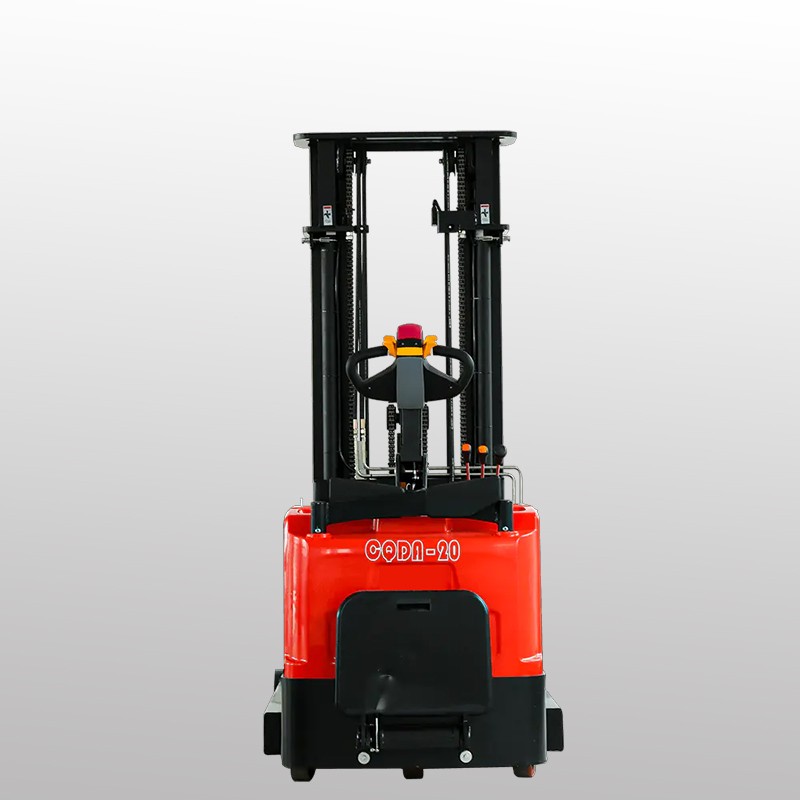

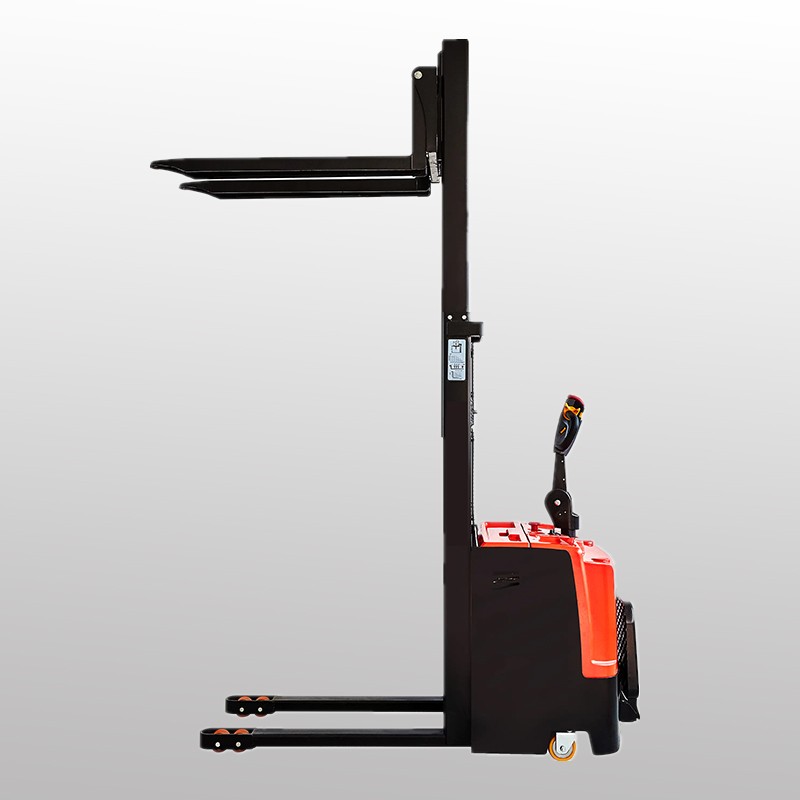

CDD-E supports standing electric travel and high-level pallet stacking on suitable firm floors. The MYCDDE product reference describes the established family and its configuration-dependent options. CQDA uses a mast that moves forward and backward, combining pallet-stacker support legs with reach-style placement; review the MYCQDA source page for the verified base machine.

CDD-E can be considered for regular pallet routes, production buffers and compatible shelf stacking. CQDA can be considered when rack depth or pallet placement benefits from controlled forward reach. Measure support-leg clearance, fork entry, reach distance and right-angle stacking aisle before deciding. Buyers should also compare the broader stacker category because pedestrian, straddle or counterbalanced equipment may suit a different section of the workflow.

Rack and residual-capacity checks

Nominal 1.5 or 2.0 ton capacity is not permission to lift every load to every height. Supply the maximum weight, actual load-center distance and required top beam height, then request written residual-capacity confirmation for the ordered mast and fork arrangement. Taller masts can change closed height, visibility, stability, service weight and usable capacity.

Inspect pallets before entry. Moisture-damaged boards, protruding nails, broken stringers, soft corrugated bases and unstable wrapping can cause handling failures. Define quarantine and repacking procedures. Fork length and spacing should support the load without piercing packaged paper or striking the rack. Keep clearance from sprinklers, lighting and building services.

Energy and environmental planning

The source CDD-E and CQDA families use 24 V electric systems; final battery capacity, chemistry where offered, charger and duty rating must be confirmed. Estimate loaded and empty travel, lift and reach cycles, shift hours, idle time, peak dispatch periods, breaks, temperature and realistic charging windows. Dust and paper fibers increase the importance of housekeeping and inspection around cooling and moving components.

Place the charging area outside normal pallet traffic and protect it from impacts. Keep cables, connectors and ventilation paths in the specified condition and follow the supplied battery instructions. Charging practices must reflect the battery type and local electrical rules. Abnormal heat, odor, swelling, leakage or damaged wiring requires immediate isolation and qualified support.

Safe workflow and acceptance testing

Use marked routes, protected pedestrian crossings, mirrors at blind corners and controlled access near presses, cutters, conveyors and docks. Travel with loads low and the mast retracted where applicable. Avoid sudden turns with high-center or loosely wrapped loads. Teams can consult the electric stacker operation guide when writing site rules; trained operators, the supplied manual and capacity plate remain essential.

Acceptance should use representative paper and packaging pallets on the actual route. Check steering, brakes, emergency controls, warning devices, lift and lowering, fork alignment, visibility, mast reach and retraction where fitted, charger compatibility and rack clearance. Record the approved load families, heights and routes before production use.

Maintenance and service continuity

Pre-shift inspection should include forks, carriage, mast, chains, rollers, hoses, support legs, wheels, steering, brakes, controls, warning devices, battery connector and wiring. On CQDA, inspect the reach mechanism according to the manual. Remove fiber and debris using approved methods and never bypass guards. Confirm wear parts and support through the parts and service page.

Dealers should retain the final data sheet, machine identity, mast, controller, battery and charger details. A practical spare-parts plan considers wheels, rollers and routine service items without inventing compatibility. When a pallet truck, counterbalance forklift or another stacker layout is more suitable, compare options through All Products.

Compliance and export preparation

Request CE documentation only for the exact configuration and destination where it is applicable. Since these are electric machines without combustion engines, engine-emission EPA certification is generally not the relevant requirement; electrical, battery, charger, transport, labeling, recycling and workplace rules may still apply. No unsupported certificate number, named cooperation case, export volume, performance record or logo is claimed.

Export planning should confirm voltage and frequency, plug, manuals, language, labels, packing, moisture protection, battery transport documents, spare-parts scope and local import responsibility. Shandong Zhuogong Machinery Equipment Co., Ltd. can confirm available documentation and service arrangements during quotation.

Request a printing-warehouse review

Send representative load photographs, pallet specifications, maximum weight, load center, lift height, rack and aisle drawings, floor condition, shift cycles, charging supply, environment and destination. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. using the official inquiry page, email vip@mingyuforklift.com, call +86-0535-2090977 or WhatsApp +86 131 8160 2336. Include “CDD-E / CQDA printing and paper-converting warehouse” so configuration, residual capacity, service and export needs can be reviewed together.
