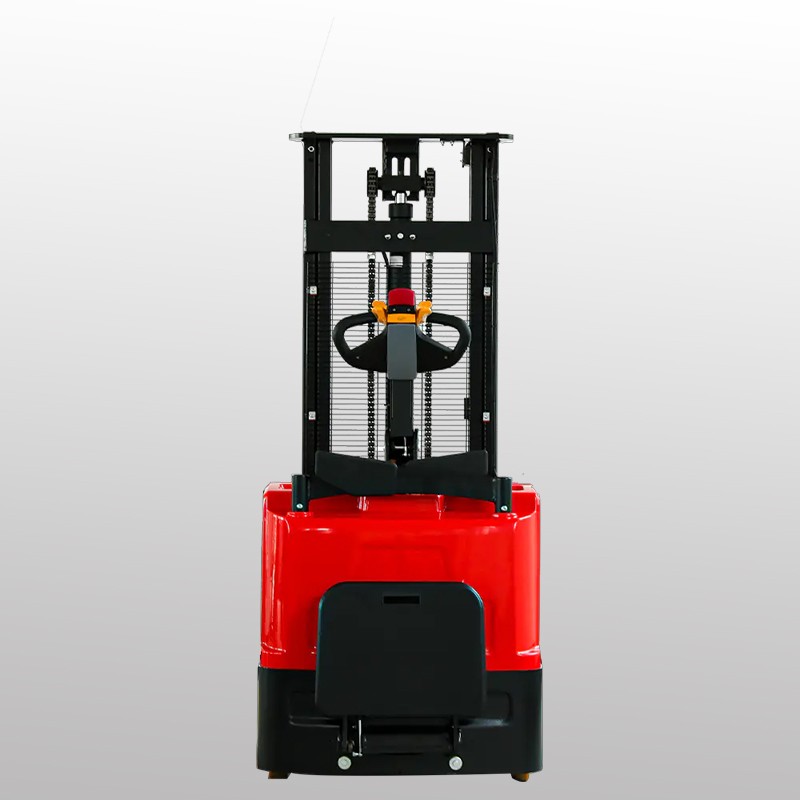

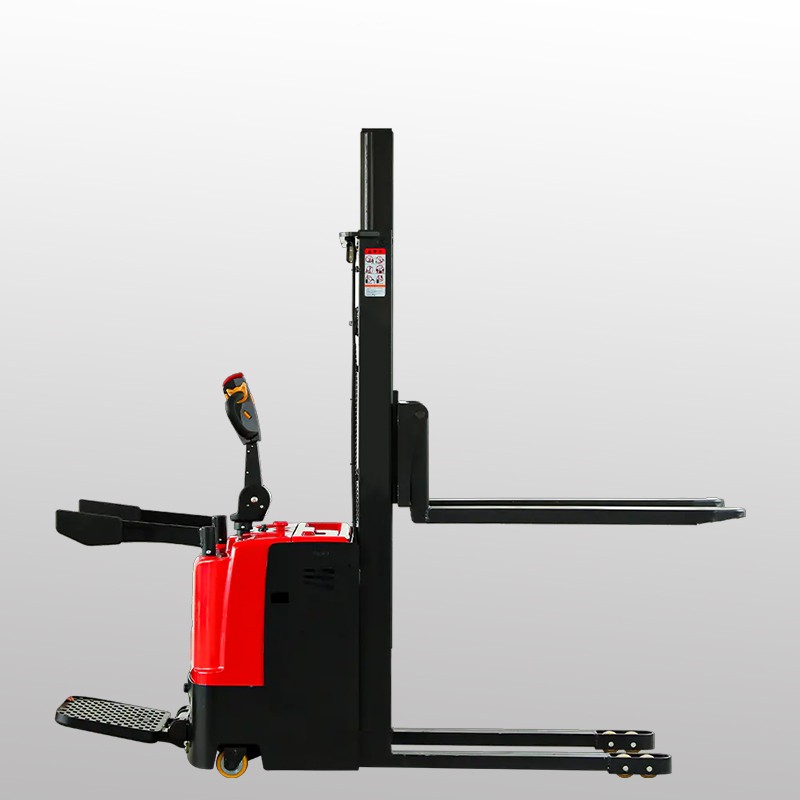

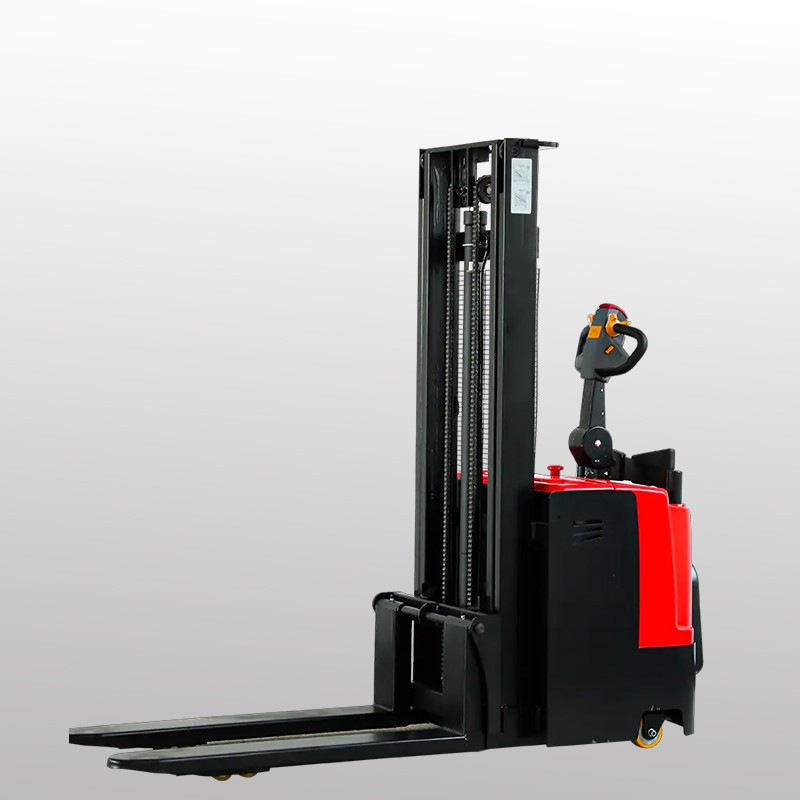

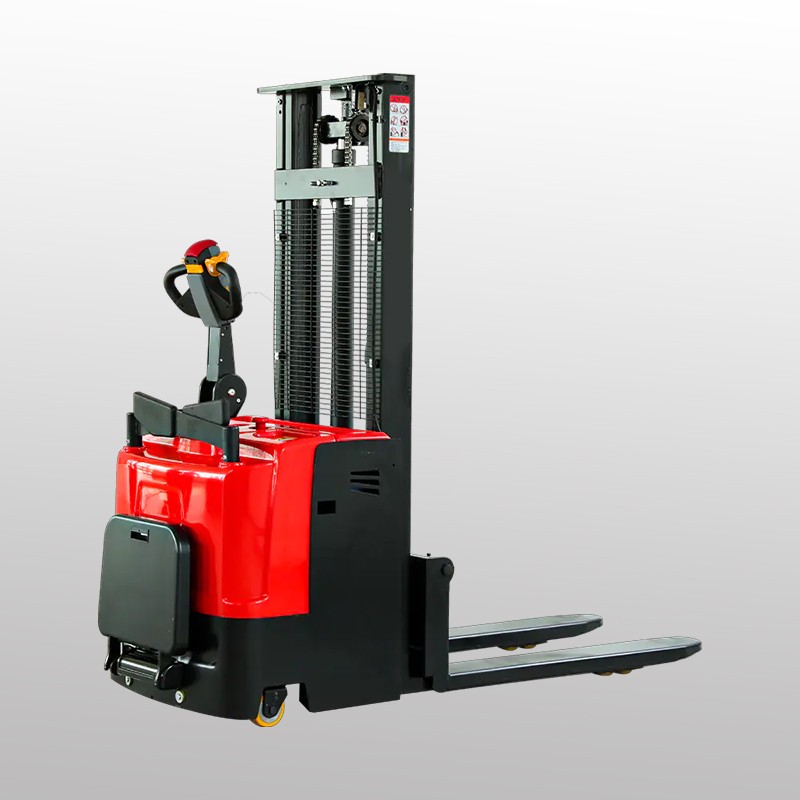

CDD15D 1.5 Ton Stand-On Electric Pallet Stacker for Distribution and Production

The CDD15D 1.5 ton stand-on electric pallet stacker is designed for customers who need efficient pallet movement between receiving, storage, production and dispatch areas. Its standing operator position is relevant when routes and work cycles are longer than typical walkie-only applications, while the compact electric platform supports controlled maneuvering in indoor logistics. ZGFORKLIFT / MYZG treats the machine as one part of a complete operating system: load, pallet, aisle, rack, operator, battery, charger and service plan must work together.

Define the application before choosing the stacker

A request for a “1.5 ton electric stacker” is not enough to approve a configuration. Buyers should document maximum load weight, dimensions and load center; pallet entry and underside clearances; required stacking height; closed-mast limit; aisle width; doorway and dock dimensions; gradients; floor condition; daily shifts; lift cycles; travel distance and charging opportunities. Offset or unusually long loads, high lifts and optional fork arrangements can reduce residual capacity. Always request capacity confirmation for the exact ordered mast and load.

The CDD15D is based on the website's CDD-D standing electric stacker family. The source family includes 1,500 kg and 2,000 kg classes, but this page describes the 1,500 kg selection. Final dimensions, battery, mast, fork width, lift height and performance remain configuration-dependent and must be recorded in the commercial offer, machine data plate and delivered manual.

Application scenario: regional distribution centers

Distribution operations often combine unloading peaks, reserve-rack replenishment and outbound staging. A stand-on electric pallet stacker can reduce operator walking on repeated internal routes, but productivity depends on layout discipline. Mark travel lanes and crossing points, separate pedestrians, remove damaged pallets and set speed rules for blind corners. Confirm that the turning envelope fits the narrowest loaded turn, not only an empty demonstration.

For mixed inbound pallets, create a receiving check that covers pallet damage, unstable cartons, overhang and unknown weight. Loads that do not meet the accepted standard should be isolated or repacked before stacking. The solution is a controlled flow from receipt to rack, not simply a machine with a higher travel-speed figure.

Application scenario: manufacturing and line-side supply

Light manufacturing plants can use the CDD15D for palletized components, work-in-process and packaging materials. The equipment selection should follow the real material route from receiving through supermarket storage to the production buffer. Check that forks match pallets and stillages, that loads remain visible, and that the operator can enter and leave the standing area safely. Plan stops so the stacker does not obstruct emergency aisles or production access.

Where delicate components are handled, controlled acceleration, braking and lift movements matter more than headline speed. Standardize pallet condition, load containment and rack approach. Measure cycle time during a supervised trial and record near misses, visibility restrictions and unnecessary travel before deciding fleet quantity.

Buying guide for CDD15D configuration

Capacity and mast: confirm the heaviest real load and its load center, then request residual capacity at the required height. State the lowest doorway, ceiling services and whether free lift is needed. A higher mast changes overall height, visibility and residual capacity, so nominal capacity alone is not an approval.

Pallet and forks: record fork length, outside width, lowered height and pallet wheel openings. Fixed and adjustable arrangements serve different load bases. Any nonstandard attachment or modification requires written technical approval for the exact truck.

Travel and floor: map the longest loaded route, gradients, thresholds, expansion joints and damaged areas. Wheel type affects traction, vibration, noise and wear. Standing operation may suit repeated travel, but the platform, guards and traffic plan must match the workplace.

Procurement teams can review the complete ZGFORKLIFT product range, compare machines in the electric stacker category and browse the All Products index. These pages support research; the approved order specification remains the controlling reference.

Battery, charger and shift planning

The source CDD-D family uses a 24 V electric architecture, with battery capacity selected for the configuration. A practical energy study records loaded travel, empty travel, lift cycles, gradients, idle time, shift length, breaks and ambient temperature. Undersizing creates interruptions and excessive charging pressure, while unnecessary capacity adds weight and cost. Confirm local voltage, frequency, plug, circuit protection and charger location before shipment.

Treat the battery, connector and charger as a matched system. Follow the supplied charging procedure and battery-chemistry instructions. Protect the charging area from impacts and unauthorized access, and keep airflow clear where required. Operators should report damaged cables, repeated alarms, abnormal heat, odor, swelling or leakage immediately. Battery inspection and repair belong to qualified personnel.

Safety and acceptance checks

Only trained and authorized operators should use the stacker under applicable workplace rules. Before travel, center and stabilize the load, keep forks low, maintain visibility and slow before turns. Never carry passengers or allow anyone below raised forks. Use extra care near docks, ramps, rack ends and pedestrian crossings. The delivered data plate and manual govern limits and operating procedures.

Acceptance testing should use representative pallets on the intended route. Check steering, braking, emergency controls, warning devices, lift and lowering, mast operation, platform condition, visibility, charger compatibility and documents. Record the accepted configuration and photograph identifying plates. Buyers can use the forklift FAQ and service guide to prepare questions, while relying on the delivered manual for actual operation.

Maintenance and uptime planning

A pre-shift inspection should cover forks, carriage, mast, chains, rollers, hydraulic hoses, load wheels, drive wheel, steering controls, platform, guards, emergency controls, horn, brakes and visible wiring. Look for leaks, damage, loose components and abnormal noise. Record defects and isolate the machine when a safety-related fault is found. Service intervals should reflect duty cycle, dust, moisture, temperature and floor condition.

Fleet managers should stock routine service items and high-use wear parts according to the delivered configuration. Machine identity, serial details, mast, battery and control information should accompany each parts enquiry. ZGFORKLIFT / MYZG buyers can discuss lifecycle planning through the parts business and support page.

Dealer and rental-fleet business model

Dealers should qualify leads with a repeatable site questionnaire, conduct controlled demonstrations and document the agreed mast, forks, wheels, battery, charger and options. Plan commissioning, operator familiarization, service territory, routine stock and escalation contacts before delivery. Rental fleets may benefit from standardized configurations, while project sales should preserve a clear record of every site-specific choice.

Total cost includes electricity, charging infrastructure, scheduled service, wheels, battery planning, transport, training and downtime risk. A suitable truck with reliable support can create more value than the lowest initial quote. Company and service background is available on the Shandong Zhuogong Machinery Equipment Co., Ltd. profile.

CE, EPA and export-document review

Compliance claims must match the exact machine and destination. Where CE conformity requirements apply, request the relevant declaration, labels and manuals for the ordered configuration. Because CDD15D is electric and has no combustion engine, engine-exhaust EPA requirements generally do not apply in the same way as they do to diesel or gasoline trucks. Destination rules may still address electrical equipment, batteries, chargers, transport, recycling and workplace use.

Export planning should cover packing, charger supply, manuals, warning labels, battery transport documents, spare parts and responsibility for import or registration. Shandong Zhuogong Machinery Equipment Co., Ltd. can coordinate the confirmed commercial scope, but this page does not invent certificate numbers, named cooperation cases, performance results or approvals. References should be supplied only when available and permitted.

Request an application review

Send load and pallet data, working height, aisle and doorway measurements, route photographs, gradients, shift hours, charging windows, ambient conditions, destination country and required options. This information allows the technical team to compare the CDD15D with walkie, reach and counterbalance alternatives and explain the trade-offs before order confirmation.

Contact Shandong Zhuogong Machinery Equipment Co., Ltd. for selection, configuration and export support. Visit the contact page, email vip@mingyuforklift.com, call +86-0535-2090977 or use WhatsApp +86 131 8160 2336. Address: Xiaqiu Town, Laizhou, Yantai City, Shandong Province, China.
