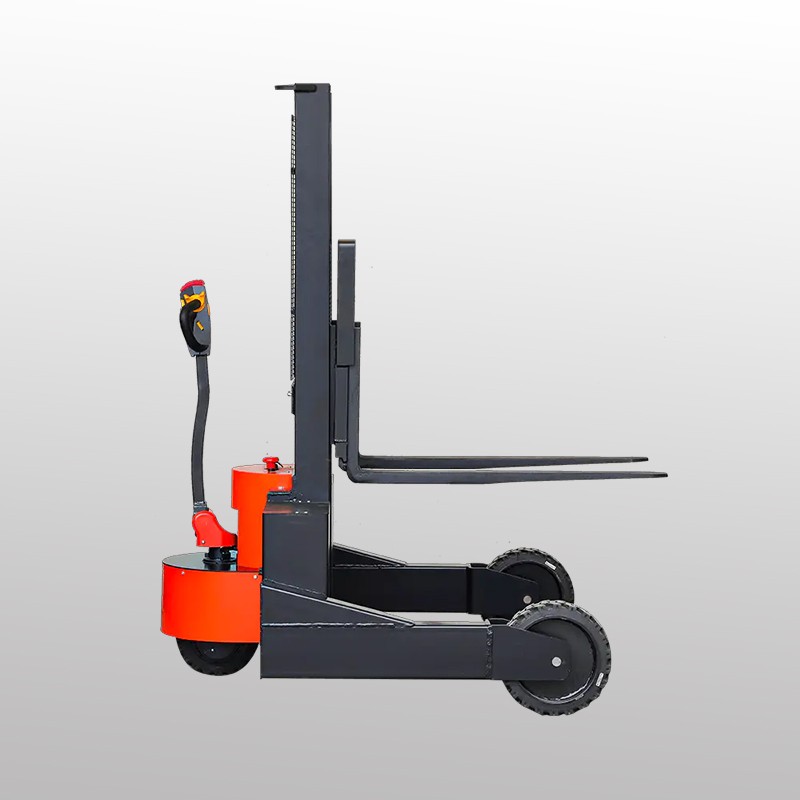

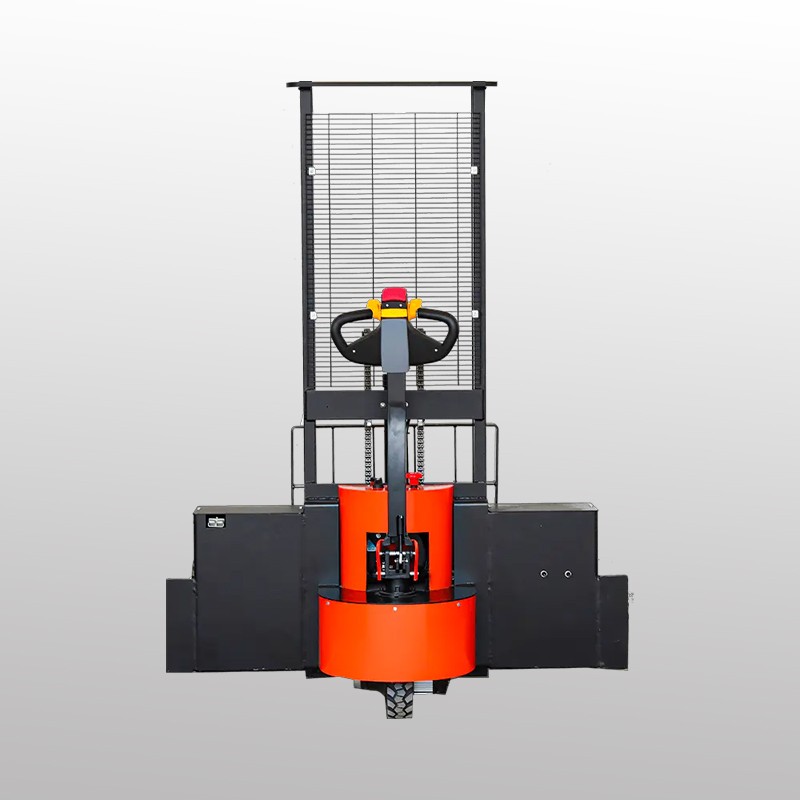

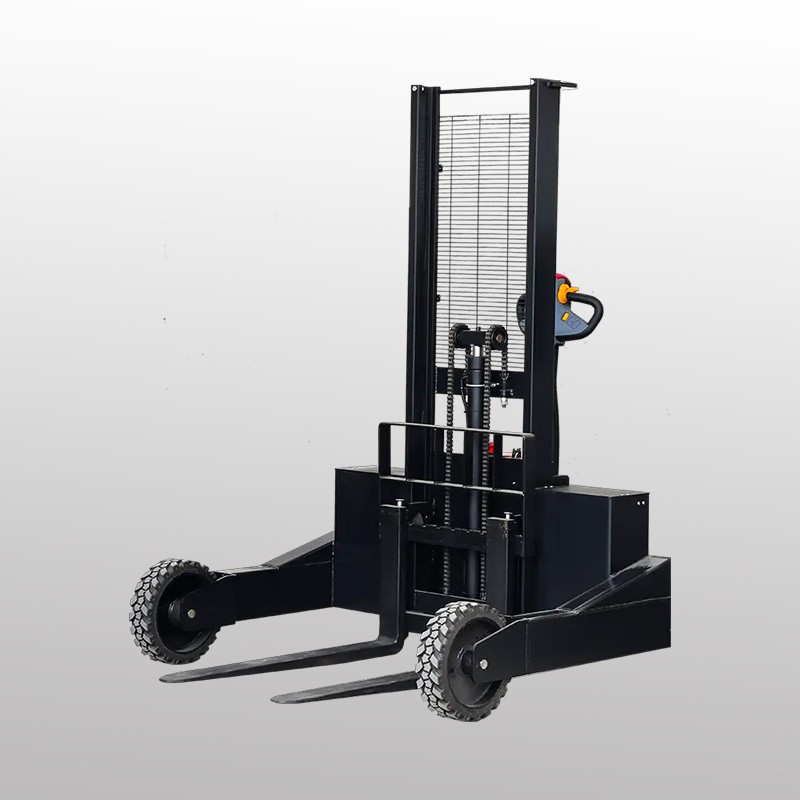

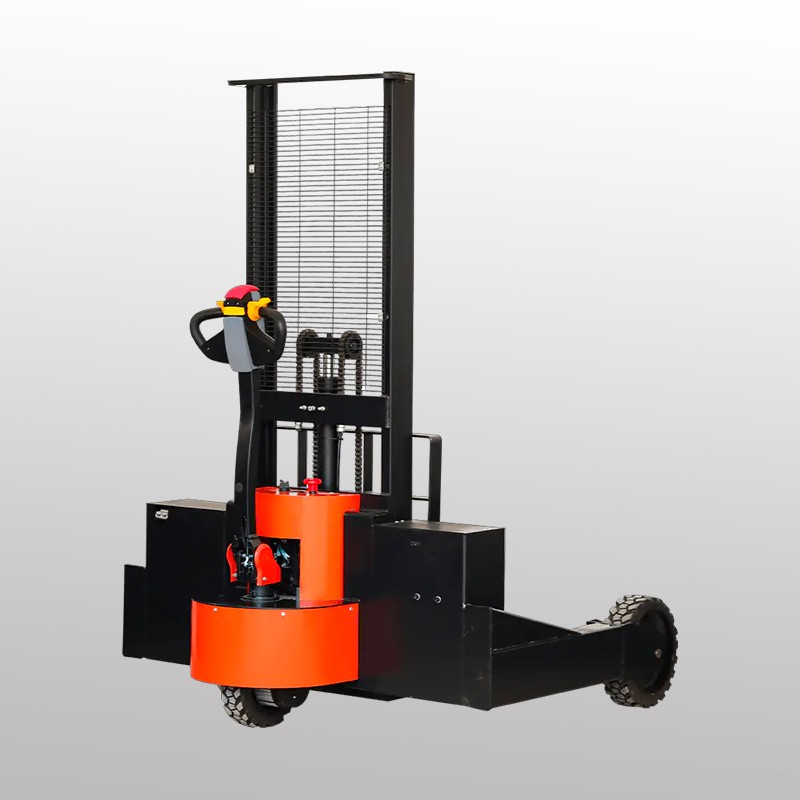

CDD20H 2.0 Ton All-Terrain Electric Pallet Stacker for Outdoor Yards

The CDD20H 2.0 ton all-terrain electric pallet stacker is an application-led solution for buyers who move palletized materials across firm outdoor yards, uneven paved routes and transitions between buildings. Its wide support layout and outdoor-oriented wheels distinguish it from a conventional indoor stacker, while electric drive avoids engine exhaust at the point of use. ZGFORKLIFT / MYZG treats the truck, load, route, surface, operator, battery and service plan as one working system.

Define the application before choosing the stacker

A request for a “2 ton rough-terrain stacker” is not enough to approve a configuration. Buyers should document maximum load weight, dimensions and load center; pallet entry and underside clearances; required stacking height; doorway limits; route width; gradients; cross-slope; loose material; drainage; potholes; daily cycles and charging opportunities. Offset loads, high lifts, soft ground and optional fork arrangements can reduce stability or usable capacity. Always request capacity confirmation for the exact ordered mast and load.

The CDD20H is based on the website's CDD-H all-terrain electric stacker family. The source family includes 1,500 kg and 2,000 kg classes, and this page describes the 2,000 kg selection. Final dimensions, battery, mast, fork spacing, lift height and performance remain configuration-dependent and must be recorded in the commercial offer, machine data plate and delivered manual.

Application scenario: building-material and equipment yards

Building-material distributors may move bagged products, boxed fittings, tiles and other palletized goods between covered storage and outdoor loading points. The route must be firm enough to support the loaded stacker, reasonably level at the lifting point and free of holes, loose rubble and unstable edges. Mark pedestrian areas, control reversing space and keep loads protected from rain or wind where packaging can be affected.

Equipment and agricultural dealers can use an outdoor electric pallet stacker for palletized parts, packaged consumables and supplies on assessed yard routes. Create a receiving check for pallet damage, unstable bags, overhang and unknown weight. Loads that do not meet the accepted standard should be isolated or repacked before stacking.

Application scenario: construction logistics and mixed indoor-outdoor routes

Project stores and light construction logistics can use the CDD20H to transfer suitable palletized supplies where the surface and weather stay within the approved envelope. The equipment is not a license to work on any mud, steep slope or uncompacted ground. Survey the route after rain, identify soft shoulders and drainage channels, and establish a firm, level stacking area. Check that forks match the pallet and that the load remains visible.

Manufacturing sites with detached stores can also use the stacker for transitions between paved yards and indoor receiving areas. Controlled acceleration, braking and lift movements matter more than headline speed. Inspect thresholds and floor transitions, standardize pallet condition and measure actual cycle time during a supervised trial before deciding fleet quantity.

Buying guide for CDD20H configuration

Capacity and mast: confirm the heaviest real load and its load center, then request residual capacity at the required height. State the lowest doorway, ceiling services and whether free lift is needed. A higher mast changes overall height, visibility and residual capacity, so nominal capacity alone is not an approval.

Pallet and forks: record fork length, outside width, lowered height and pallet wheel openings. Fixed and adjustable arrangements serve different load bases. Any nonstandard attachment or modification requires written technical approval for the exact truck.

Travel and ground: map the longest loaded route, gradients, cross-fall, thresholds, drainage channels and damaged areas. Wheel type affects traction, vibration and wear. Confirm ground pressure, minimum clearance and turning space against the worst regular condition. A controlled trial with the real load is more useful than an unloaded demonstration on perfect concrete.

Procurement teams can review the complete ZGFORKLIFT product range, compare machines in the electric stacker category and browse the All Products index. These pages support research; the approved order specification remains the controlling reference.

Battery, charger and shift planning

The source CDD-H family lists a 24 V electric architecture, with battery capacity selected for the configuration. A practical energy study records loaded travel, empty travel, lift cycles, gradients, surface resistance, idle time, shift length, breaks and ambient temperature. Cold, heat and uneven routes can change energy demand. Confirm local voltage, frequency, plug, circuit protection and a weather-protected charger location before shipment.

Treat the battery, connector and charger as a matched system. Follow the supplied charging procedure and battery-chemistry instructions. Protect the charging area from impacts and unauthorized access, and keep airflow clear where required. Operators should report damaged cables, repeated alarms, abnormal heat, odor, swelling or leakage immediately. Battery inspection and repair belong to qualified personnel.

Safety and acceptance checks

Only trained and authorized operators should use the stacker under applicable workplace rules. Before travel, center and stabilize the load, keep forks low, maintain visibility and slow before turns. Never carry passengers or allow anyone below raised forks. Do not lift on soft, sloping or unstable ground. Use extra care near yard edges, ramps, vehicles and pedestrian crossings. The delivered data plate and manual govern limits and procedures.

Acceptance testing should use representative pallets on the intended route. Check steering, braking, emergency controls, warning devices, lift and lowering, mast operation, platform condition, visibility, charger compatibility and documents. Record the accepted configuration and photograph identifying plates. Buyers can use the forklift FAQ and service guide to prepare questions, while relying on the delivered manual for actual operation.

Maintenance and uptime planning

A pre-shift inspection should cover forks, carriage, mast, chains, rollers, hydraulic hoses, outdoor wheels, steering controls, guards, emergency controls, horn, brakes and visible wiring. Look for embedded debris, cuts, leaks, damage, loose components and abnormal noise. Clean mud and dust without directing water into electrical components. Record defects and isolate the machine when a safety-related fault is found.

Fleet managers should stock routine service items and high-use wear parts according to the delivered configuration. Machine identity, serial details, mast, battery and control information should accompany each parts enquiry. ZGFORKLIFT / MYZG buyers can discuss lifecycle planning through the parts business and support page.

Dealer and rental-fleet business model

Dealers should qualify leads with a repeatable site questionnaire, conduct controlled demonstrations and document the agreed mast, forks, wheels, battery, charger and options. Plan commissioning, operator familiarization, service territory, routine stock and escalation contacts before delivery. Rental fleets may benefit from standardized configurations, while project sales should preserve a clear record of every site-specific choice.

Total cost includes electricity, charging infrastructure, scheduled service, outdoor wheel wear, battery planning, transport, training and downtime risk. Dealers should explain where an all-terrain stacker is appropriate and where a forklift or different platform is safer. Company and service background is available on the Shandong Zhuogong Machinery Equipment Co., Ltd. profile.

CE, EPA and export-document review

Compliance claims must match the exact machine and destination. Where CE conformity requirements apply, request the relevant declaration, labels and manuals for the ordered configuration. Because CDD20H is electric and has no combustion engine, engine-exhaust EPA requirements generally do not apply in the same way as they do to diesel or gasoline trucks. Destination rules may still address electrical equipment, batteries, chargers, transport, recycling and workplace use.

Export planning should cover packing, charger supply, manuals, warning labels, battery transport documents, spare parts and responsibility for import or registration. Shandong Zhuogong Machinery Equipment Co., Ltd. can coordinate the confirmed commercial scope, but this page does not invent certificate numbers, named cooperation cases, performance results or approvals. References should be supplied only when available and permitted.

Request an application review

Send load and pallet data, working height, yard and doorway measurements, route photographs after dry and wet weather, gradients, surface details, shift hours, charging windows, ambient conditions, destination country and required options. This information allows the technical team to compare the CDD20H with indoor stacker, reach and counterbalance alternatives before order confirmation.

Contact Shandong Zhuogong Machinery Equipment Co., Ltd. for selection, configuration and export support. Visit the contact page, email vip@mingyuforklift.com, call +86-0535-2090977 or use WhatsApp +86 131 8160 2336. Address: Xiaqiu Town, Laizhou, Yantai City, Shandong Province, China.
