Introduction: The Interface Between Operator and Machine

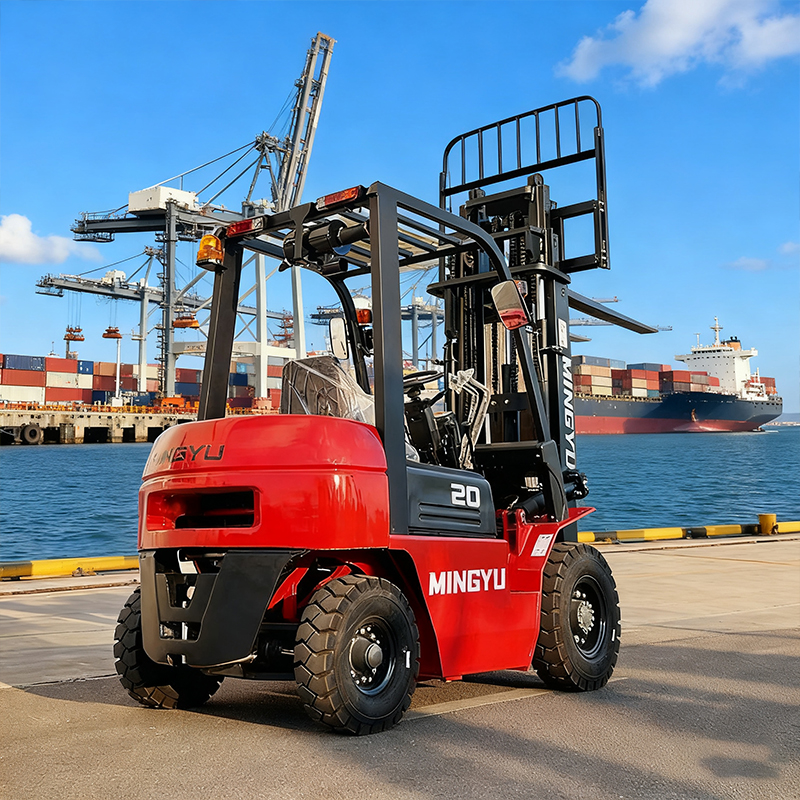

The forklift, or Powered Industrial Truck (PIT), is a sophisticated machine designed to safely leverage the principles of balance and hydraulics to move massive loads. The safe and efficient operation of a forklift hinges entirely on the operator's precise control of its various mechanical, hydraulic, and electrical systems. Unlike an automobile, a forklift's controls must manage not just speed and direction, but also a dynamic center of gravity (CG) that shifts with every movement of the load.

This technical article provides an in-depth analysis of the control mechanisms found primarily on the most common type of PIT: the Sit-Down Counterbalanced Forklift (Classes I, IV, and V). We will dissect the three major control groups—Propulsion, Steering, and Hydraulics—and explain the technical function and operational best practices for each, emphasizing the criticality of controlled, deliberate input.

I. The Propulsion Control System: Power and Precision

Propulsion controls manage the acceleration, braking, and directional movement of the forklift. In both Internal Combustion (IC) and Electric models, these controls are engineered to provide maximum torque control and minimum inertial shift.

A. Directional Selector (Forward/Reverse)

The directional selector, typically a lever mounted to the steering column or on the dash, is the gateway to motion.

Function: This lever engages the forward or reverse gear in the transmission (IC) or reverses the polarity and direction of the electric drive motor (Electric).

Technical Note: Unlike a passenger vehicle, a forklift operator must come to a complete stop before shifting the directional selector. Shifting from forward to reverse while moving (plugging) uses the drivetrain and motor to brake the machine, causing massive mechanical stress, excessive tire wear, and a severe risk of load instability and tip-over.

B. Accelerator Pedal (Throttle)

This pedal controls the engine RPM (IC) or the current sent to the drive motor (Electric).

Operational Mandate: All acceleration must be gradual and smooth. Rapid acceleration is prohibited because the instantaneous torque can overcome the friction of the load on the forks, causing it to shift forward, drastically changing the load center, or potentially resulting in a rear-axle lift.

C. Braking Systems and Pedals

Forklifts often employ a combination of braking mechanisms critical for safety and precision.

Service Brake (Foot Brake): The primary pedal for stopping. On IC trucks, this is a hydraulic system similar to a car. On electric trucks, releasing the accelerator often initiates Regenerative Braking, where the drive motor acts as a generator to slow the truck and return energy to the battery, before the mechanical brake pads engage.

Parking Brake: A hand lever or foot pedal that mechanically locks the wheels. It must be engaged whenever the operator leaves the seat, or whenever the truck is idling and not actively being driven.

Inching Pedal (Clutch/Brake Combination - Primarily on IC Trucks): This is a unique and critical control, often the leftmost pedal.

Technical Function: The inching pedal acts as a clutch or brake to decouple the transmission from the engine's power output. It allows the operator to keep the engine RPM high (necessary to maintain hydraulic pressure for lifting/tilting) while simultaneously moving the truck very slowly or stopping completely.

Application: It is used extensively during the final approach to a load or rack, enabling precise mast movement (hydraulic control) without forward momentum (propulsion control). Depressing it fully is equivalent to engaging the service brake.

II. The Steering System: Precision Rear-Wheel Direction

A fundamental difference between a forklift and an automobile is its steering mechanism. Forklifts utilize Rear-Wheel Steering, which requires a completely different approach to turning and maneuvering.

A. The Steering Wheel and Knob

The steering wheel controls the single steer axle at the rear of the truck (or dual wheels pivoting as a unit).

Operational Principle: Because the steer axle is at the rear, the pivot point of the turn is the front drive axle. This means the rear of the truck swings out widely in the direction opposite the turn.

Technical Implication: Operators must constantly monitor the tail swing to avoid striking racks, other vehicles, or personnel. This is the reason for the steering wheel knob—it allows the operator to execute many-to-one turns (large changes in wheel angle with small truck movement) quickly and precisely using only one hand, keeping the other hand free for hydraulic controls.

B. The Turning Mandate

Turning speed must be drastically reduced, particularly when carrying a load. High-speed turns introduce centrifugal force that shifts the combined CG laterally, quickly moving it outside the stability triangle and creating a severe risk of a lateral tip-over.

III. The Hydraulic Control System: Manipulating the Load

The hydraulic controls manage the mast and load handling functions. These are typically controlled by a set of robust levers positioned to the operator's right. The system uses pressurized hydraulic fluid, driven by an engine- or motor-driven pump, to actuate cylinders that control movement.

A. Lift/Lower Control Lever (Vertical Movement)

This lever controls the flow of hydraulic fluid into and out of the primary lift cylinders, controlling the vertical movement of the mast carriage and forks.

Lifting: Pulling the lever back directs fluid to the lift cylinders, extending the inner mast stages via a pulley and chain system.

Lowering: Pushing the lever forward releases fluid pressure, allowing gravity to lower the load.

Operational Control: Lift and lower must be executed smoothly and slowly, especially when a load is elevated. Rapid lowering can generate excessive momentum, damaging the load or floor, while rapid lifting can destabilize a loosely stacked pallet.

B. Tilt Control Lever (Longitudinal Stability Adjustment)

This lever controls the tilt cylinders, which pivot the entire mast assembly forward and backward relative to the chassis. This is arguably the most important control for longitudinal stability.

Backward Tilt (Rake Back): Pulling the lever back tilts the mast toward the forklift chassis. This action pulls the load's center of gravity closer to the front axle, moving the combined CG rearward and maximizing stability during travel. The load should be tilted fully back immediately after lifting and before any movement.

Forward Tilt (Rake Forward): Pushing the lever forward tilts the mast away from the chassis. This moves the load's CG forward. Forward tilt is only permitted when the forks are fully inserted into the load and when the load is at the point of placement (e.g., stacking or retrieving). Tilting forward while traveling or with an elevated load is a critical safety violation.

C. Auxiliary Control Levers (Attachments and Side-Shift)

Most modern forklifts are equipped with a third, or even fourth, control lever to manage auxiliary hydraulic functions.

Side-Shift: The most common auxiliary function. This allows the operator to shift the fork carriage laterally (left or right) without repositioning the entire truck. Technical Benefit: Side-shift allows for precise load alignment when stacking, minimizing the need for small, risk-prone micro-movements of the entire truck.

Clamping/Rotation: On specialized trucks (e.g., paper roll clamps, carton clamps), these levers operate additional hydraulic cylinders that close, open, or rotate the attachment. Using these controls alters the load center, and the operator must refer to the truck’s de-rated capacity chart specific to that attachment.

IV. Safety Interlocks and Operational Indicators

Modern forklifts integrate various controls and sensors to enforce safe operation.

A. Seatbelt and Operator Presence System (OPS)

Many sit-down forklifts include a sensor under the seat. If the operator rises from the seat or unbuckles the seatbelt while the machine is in motion or the forks are raised, the Operator Presence System (OPS) may engage to:

Disable travel (propulsion).

Lock the hydraulic lift and tilt functions.

B. Instrument Panel and Gauges

The operator's dash provides continuous feedback on the truck's operational status:

Hour Meter: Tracks total operating hours for maintenance scheduling.

Fuel/Battery Indicator: Critical for uninterrupted operation.

Warning Lights: Including engine temperature, oil pressure, or hydraulic system faults.

Overload/Stability Indicators (Advanced Systems): Some high-capacity or telehandler models feature electronic systems that actively monitor the load moment and CG, providing visual and audible warnings if the safe operating limits are approached.

C. Warning and Alert Controls

Horn: A critical safety device used to alert pedestrians and other operators, especially when approaching blind corners or intersections.

Lights/Strobe: Headlights and a highly visible strobe light (required to be active when the truck is running) enhance visibility.

V. Operational Synthesis: The Controlled Movement

Mastering forklift controls is not about speed, but about the seamless, simultaneous operation of all three control groups.

Load Engagement: Requires simultaneous use of the Inching Pedal (to creep forward) and Hydraulic Levers (to adjust height and tilt) while holding the Steering Wheel steady for final alignment.

Traveling: Requires smooth input on the Accelerator and precise counter-steering with the Steering Wheel while ensuring the load is fully tilted back and carried at the lowest practical height (typically 4–6 inches off the floor).

Placing a Load: Requires smooth braking via the Service Brake (or regenerative braking), engaging the Inching Pedal to maintain hydraulic pressure, bringing the mast to a vertical tilt, and using the Lift/Lower and Side-Shift controls for final, millimeter-precise placement.

The technical operation of forklift controls is a learned skill rooted in applied physics. The skilled operator's movements are slow, deliberate, and smooth, reflecting a constant awareness of the dynamic relationship between the controls, the load, and the ever-shifting center of gravity.
