The Technical Analysis of Forklift Lifting Height: Beyond the Specification

Introduction: The Misleading Simplicity of "Maximum Height"

The seemingly simple question, "What is the maximum lifting height of this forklift?" is one of the most critical—and misunderstood—concepts in material handling and warehousing. While every forklift, or Powered Industrial Truck (PIT), comes with a published maximum fork height (often expressed as Maximum Fork Height, or MFH), this number represents an idealized structural limit, not a universally safe operating ceiling.

In reality, the maximum safe and functional height for any given lift is a dynamic variable governed by a complex interplay of physics, engineering design, operational environment, and regulatory compliance. This 2000-word technical analysis will dissect the primary factors—from mast geometry and hydraulic systems to the critical principles of stability and load moment—that define and often limit a forklift's practical lifting capability.

I. Defining the Vertical Limit: Equipment and Design Factors

The maximum physical height a forklift can achieve is fundamentally determined by its engineered components, particularly the mast assembly.

A. Forklift Classification and Nominal Heights

Different classes of forklifts are engineered for vastly different height capabilities:

Class I/IV/V (Counterbalanced Trucks - Sit-Down): Standard warehouse or pneumatic-tire trucks typically feature maximum lift heights ranging from 150 to 240 inches (12.5 to 20 feet). Their design prioritizes capacity and travel speed over extreme height.

Class II (Narrow Aisle Trucks - Reach Trucks/Order Pickers): These are specialized for high-density storage. Reach trucks commonly achieve heights from 300 to 480 inches (25 to 40 feet). Advanced VNA (Very Narrow Aisle) Turret Trucks or Man-Up Order Pickers can exceed 500 inches (over 42 feet), reaching the limits of modern warehouse construction.

Class VII (Rough Terrain/Telehandlers): These non-traditional mast designs use telescopic booms. While not standard forklifts, their maximum reach is often measured horizontally and vertically, with some models exceeding 50 to 60 feet.

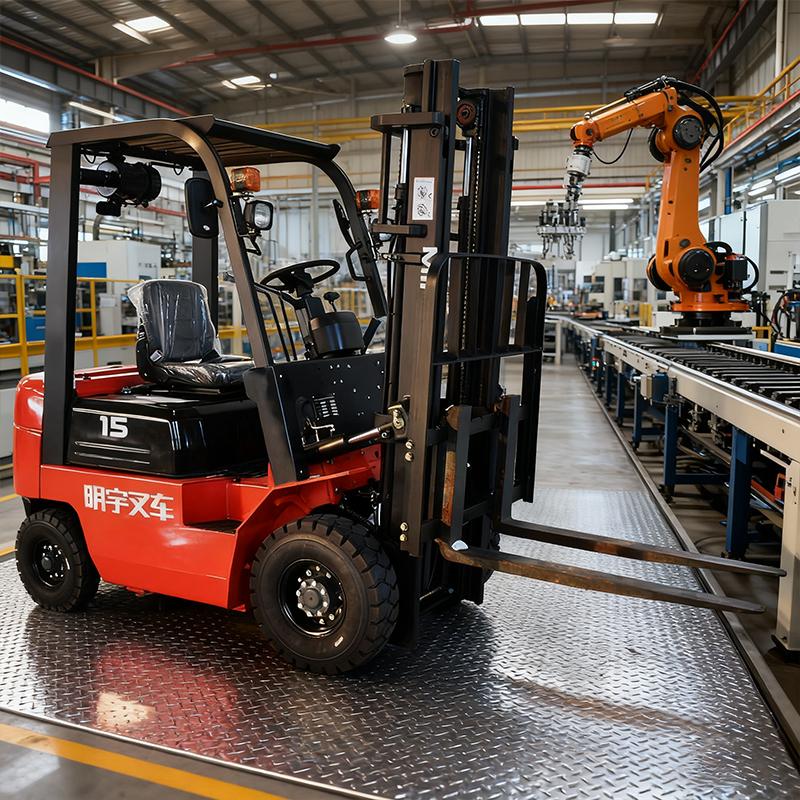

B. The Engineering of the Mast System

The mast is the primary determinant of lift height, with its configuration directly impacting stability, visibility, and capacity.

Mast Stages: The mast consists of interlocking channels (stages) that extend hydraulically.

2-Stage (Duplex): Two rails; often lower lift height but good visibility.

3-Stage (Triplex): Three rails; the most common warehouse choice, providing high lift and often "Full Free Lift" (the ability to raise the forks several feet before the inner mast begins to extend, crucial for stacking inside trailers or under mezzanines).

4-Stage (Quad): Four rails; used for specialized, ultra-high lift requirements, offering the highest vertical reach at the expense of reduced visibility and capacity.

Hydraulic System Pressure: The lifting capacity and speed at extreme heights rely on the hydraulic system's efficiency. Maximum lift height is the point at which the final stage of the mast reaches its fully extended mechanical stop, driven by the pressure of the lift cylinder(s).

Residual Capacity vs. Height: A key engineering specification is the residual capacity chart. While a forklift might be rated for 5,000 lbs at 10 feet, the capacity may de-rate significantly to 3,000 lbs at 25 feet, and potentially less than 2,000 lbs near the maximum physical height. The higher the lift, the lower the safe load.

II. The Physics of Stability: The Limiting Factors

The maximum safe lifting height is not simply a matter of the mast extending, but of maintaining the stability of the entire system (forklift, load, and operator) against the forces of gravity and motion.

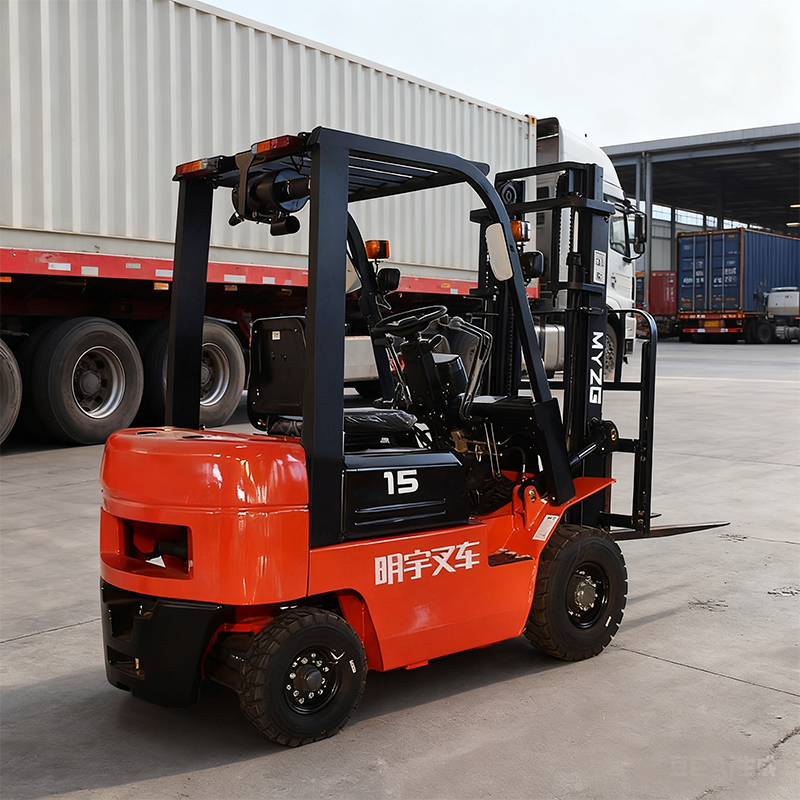

A. The Stability Triangle (Longitudinal Stability)

All counterbalanced forklifts operate based on the Stability Triangle, a three-point area on the ground defined by the two front wheels and the midpoint of the rear axle. Tipping occurs when the combined Center of Gravity (CG) of the forklift and the load shifts outside this triangle.

The moment the load is lifted:

Load Moment=Load Weight×Horizontal Distance (Load Center)

As the load is raised vertically, the combined CG of the system also rises. A high CG dramatically reduces the margin of stability, requiring only a small lateral shift or forward tilt to exceed the longitudinal tipping fulcrum (the front axle). Maximum lift height is often limited by the point where the residual capacity is deemed too low for practical, safe operation.

B. Lateral Stability (Side-to-Side)

Lateral stability is the system's resistance to tipping sideways. This is acutely important at maximum height.

Mast Sway: At 30+ feet, even heavy-duty masts will experience a noticeable sway or deflection. This movement causes the load’s CG to shift laterally, rapidly decreasing stability.

Turning: The maximum height is drastically reduced when the machine is in motion or turning. OSHA and manufacturers mandate extremely slow speeds and gentle movements when the load is elevated, as centrifugal force during a turn can cause an immediate lateral tip-over. No travel should occur with a load at maximum height outside of the final, slow placement maneuver.

C. Load Center (The Horizontal Lever)

The Load Center (LC) is the horizontal distance from the front face of the forks to the center of gravity of the load. Most forklifts are rated at a standard 24-inch LC.

If an operator lifts a pallet with an LC of 36 inches (e.g., handling an oversized container), the actual lifting capacity is immediately and drastically reduced, which translates to a lower safe maximum lift height, regardless of the mast's physical limit.

The data plate, or the accompanying capacity chart, will detail the corresponding load limits for various lift heights and load centers

III. The Role of the Data Plate and Regulatory Compliance

The definitive answer to "What is the maximum lifting height of this forklift?" is found not in a brochure, but on the vehicle's Data Plate (Nameplate). This document is a legal and technical specification required by regulatory bodies (e.g., OSHA in the U.S.).

A. Interpreting the Data Plate

The Data Plate is the final authority on a forklift's safe limits. It must include:

Rated Capacity: The maximum weight the truck can lift at a specified load center and lift height (e.g., 5,000 lbs @ 24 in. LC @ 180 in. MFH).

Load Center (LC): The horizontal distance used for the capacity rating.

Maximum Fork Height (MFH): The physical maximum height of the forks.

Critically, for high-lift trucks, the nameplate or an attached chart will display a De-Rating Graph or Table. This graph illustrates the Inverse Relationship between Height and Capacity: as the fork height increases, the maximum safe lifting capacity drops exponentially. A conscientious operator will always consult this chart before attempting a high-level lift.

B. The Impact of Attachments

Any attachment added to the fork carriage—such as a side-shifter, drum clamp, fork extensions, or carpet pole—changes the forklift's physics.

Weight: The attachment's weight must be subtracted from the truck's rated capacity.

Load Center Shift: The attachment moves the effective load center farther forward, significantly increasing the load moment and, therefore, dramatically reducing the maximum safe lift height and capacity. When attachments are installed, a new, revised data plate must be created by the manufacturer or a certified engineer.

C. Regulatory Mandates

OSHA and equivalent international standards strictly prohibit operating a forklift outside the parameters specified on the data plate. The maximum lifting height is not a goal to be tested, but a boundary to be respected for safety and compliance. Ignoring the de-rating requirements is considered reckless operation and a severe safety violation.

IV. Environmental and Operational Constraints

Even if the forklift's design allows for a certain lift height, the working environment often imposes stricter practical limits.

A. Warehouse Ceiling and Overhead Clearance

The actual maximum lift height is fundamentally capped by the structure itself. The operator must account for:

Ceiling Beams and Trussing.

Sprinkler Systems, Ductwork, and Lighting Fixtures.

Overhead Door Tracks and Power Lines (if applicable).

The Overall Raised Height (ORH)—the height from the floor to the absolute highest point of the mast when fully extended—must be checked against the lowest overhead obstruction, ensuring a safety margin of at least a few inches.

B. Floor and Surface Conditions

Uneven or damaged floors dramatically reduce the maximum safe lifting height by compromising stability.

Uneven Surfaces: A deviation of even a few degrees from level ground can cause the load's CG to shift dangerously close to or outside the lateral stability line, especially when the load is high.

Ramps and Grades: When lifting, the forklift must be on a level surface. Travel on ramps with a raised load is strictly prohibited. The safe height for travel is always the lowest possible position (typically 4–6 inches off the ground).

C. Wind and Weather (Outdoor Operations)

For large outdoor forklifts or telehandlers, strong winds can exert significant force on the load, creating an aerodynamic moment that acts similarly to an increase in load center distance. The maximum safe height may need to be lowered drastically during inclement weather to mitigate the risk of tip-over.

V. Operational Best Practices: Safe Height Management

The most effective way to address the question of maximum lift height is through disciplined operational procedures.

Pre-Shift Inspection: Verify the mast channels are clean, the lift chains are properly tensioned and lubricated, and there are no signs of hydraulic leaks, all of which affect the smooth, safe operation at height.

Slow and Steady: All movements (lifting, lowering, tilting, and reaching) must be slow, smooth, and deliberate when the load is above the truck's overhead guard.

Visual Verification: Before engaging the lift control, the operator must verify adequate overhead and side clearance. Many modern high-reach trucks utilize height-sensing technology or pre-set height indicators to assist the operator in positioning the forks safely.

Load Integrity: Ensure the load itself is stable, securely wrapped, and centered on the forks before attempting to lift to the maximum height. An unstable load is the fastest path to a catastrophic tip-over.

Conclusion: The Dynamic Limit

The maximum lifting height of a forklift is not a fixed number but a dynamic, multi-variable limit. While manufacturers provide an engineered maximum height (MFH), the maximum safe operating height for any given lift is determined by the most restrictive factor at that moment: the residual capacity dictated by the load's weight and center, the structural integrity of the mast, the clearance of the building, and the operational skill of the person at the controls.

For any professional in material handling, the correct answer to the question "What is the maximum lifting height?" is always: "The height specified on the data plate's capacity chart for the specific load and load center being handled, provided it is below all overhead obstructions and the truck is on a level surface." This technical understanding is the cornerstone of a safe and efficient warehouse operation.
