The Power Beneath the Lift: A Technical Examination of Forklift Energy Sources

The modern logistics and materials handling sector hinges on the efficient operation of the forklift truck.1 More than just a simple machine for lifting pallets, the forklift is a critical component of supply chains, warehouse management, and manufacturing operations globally.2 Crucial to its functionality, performance, and operational cost is its power source. Far from being a single, simple answer, "What do forklifts run on?" leads to a detailed technical discussion encompassing a range of fuels and battery technologies, each with distinct engineering, environmental, and financial implications.

This article delves into the four primary power sources utilized by contemporary industrial forklifts: Electric (Battery), Liquefied Petroleum Gas (LPG), Diesel Fuel, and Gasoline, providing a technical analysis of their operation, performance metrics, infrastructure requirements, and suitability for various work environments.

---

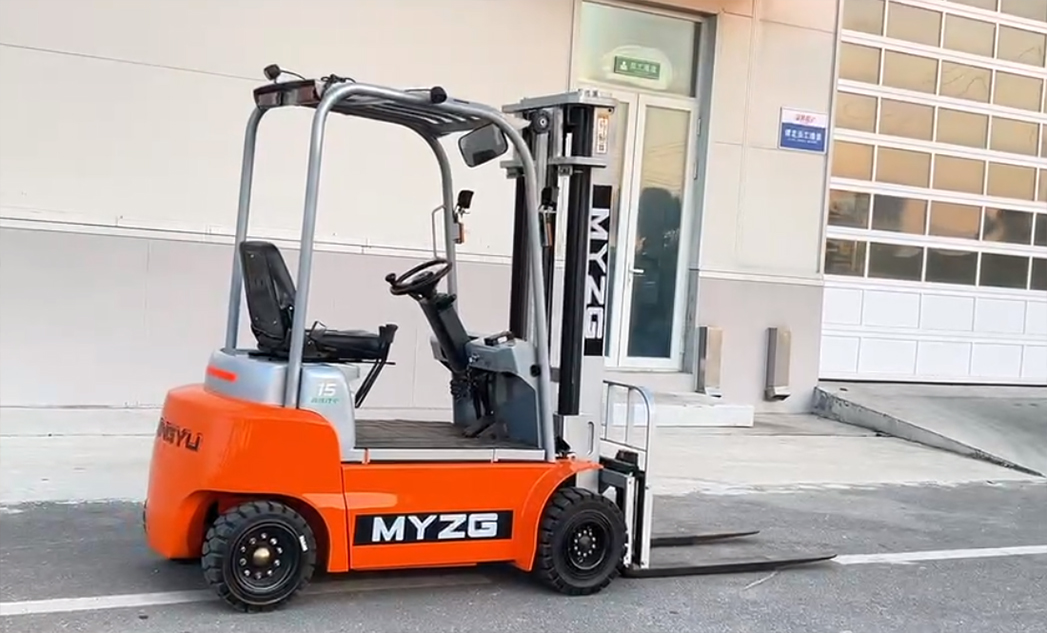

1. Electric Forklifts: The Reign of Battery Power

Electric forklifts represent the largest and fastest-growing segment of the market, particularly in indoor, high-volume operations. Their power is derived from heavy-duty industrial batteries, which serve the dual purpose of energy storage and providing essential counterweight for stability.

1.1 Lead-Acid Batteries

For decades, the flooded lead-acid battery has been the industry standard.

Technical Principles

A lead-acid battery operates on the principle of a reversible chemical reaction between lead (Pb) and lead dioxide (3$\text{PbO}_2$) with sulfuric acid (4$\text{H}_2\text{SO}_4$) as the electrolyte.5

Discharge Reaction (Overall):

$$\text{Pb} + \text{PbO}_2 + 2\text{H}_2\text{SO}_4 \rightarrow 2\text{PbSO}_4 + 2\text{H}_2\text{O}$$

During discharge, the lead plates (negative electrode) and lead dioxide plates (positive electrode) react with the sulfuric acid to form lead sulfate (6$\text{PbSO}_4$) and water.7 This conversion releases electrical energy.

Voltage: A single cell generates approximately 2.0 to 2.2 Volts. Forklift batteries are typically large packs assembled in series (e.g., $36\text{V}$, $48\text{V}$, $72\text{V}$, or $80\text{V}$) to provide the necessary power.

Energy Density and Weight: Lead-acid batteries have a relatively low energy density (typically 8$30-40 \text{ Wh/kg}$), but their substantial weight is an engineering advantage in a forklift, where the battery mass is integrated into the vehicle’s counterbalance system, reducing the need for dead weight.9

Charging and Maintenance

Charging is a critical and complex process involving a dedicated industrial charger. It typically involves three phases: Bulk, Absorption, and Float. During the charging process, electrolysis of water occurs, releasing hydrogen and oxygen gas (a process called gassing).10 This necessitates a dedicated, well-ventilated charging room and routine watering (adding distilled water) to replenish evaporated electrolyte, a major maintenance consideration. The typical life cycle is around 1,500 charging cycles (approximately $5-7$ years with proper maintenance).

1.2 Lithium-Ion (Li-ion) Batteries

The Li-ion power source is rapidly supplanting lead-acid due to significant performance advantages.11

Technical Principles

Li-ion batteries use an intercalation mechanism where lithium ions (12$\text{Li}^+$) move between a positive electrode material (often lithium iron phosphate (13$\text{LiFePO}_4$ or LFP) or lithium nickel manganese cobalt oxide (14$\text{NMC}$)) and a graphite-based negative electrode.15

Higher Energy Density: Li-ion offers a significantly higher energy density (typically 16$100-265 \text{ Wh/kg}$), meaning a lighter battery pack can deliver the same or more power, though external counterweight may be needed to compensate for the weight difference.17

Efficiency: They boast higher charge/discharge efficiency ($\sim95\%$ versus $\sim80\%$ for lead-acid), reducing energy waste and electricity costs.

Opportunity Charging: Li-ion batteries can be opportunity-charged (briefly charged during breaks) without detrimental effects, a major operational advantage for multi-shift operations.18 This eliminates the need for battery change-outs.

Thermal Management and Safety

A key technical consideration for Li-ion is thermal management. The risk of thermal runaway requires a sophisticated Battery Management System (BMS) to monitor cell voltage, temperature, and state-of-charge.19 The BMS is crucial for safety and maximizing the battery's service life, which often exceeds 4,000 cycles.

1.3 Hydrogen Fuel Cells

An emerging technology, the hydrogen fuel cell is an electrochemical device that converts the chemical energy of hydrogen (20$\text{H}_2$) and oxygen (21$\text{O}_2$) directly into electrical energy, with water (22$\text{H}_2\text{O}$) and heat as the only byproducts.23

Operation: Most forklift systems utilize a Proton Exchange Membrane (PEM) fuel cell. Hydrogen gas is fed to the anode, where a catalyst splits the $\text{H}_2$ molecule into $\text{H}^+$ ions and electrons ($\text{e}^-$). The electrons flow through an external circuit (the electric motor), generating current, and the $\text{H}^+$ ions pass through the PEM to the cathode. At the cathode, $\text{H}^+$ and $\text{e}^-$ recombine with oxygen from the air to form water.

Refueling: Refueling is analogous to liquid fuels, taking only minutes, offering a distinct advantage over battery charging in high-throughput operations. The main infrastructure challenge is the initial cost of the hydrogen storage and dispensing station.

---

2. Internal Combustion Engine (ICE) Forklifts: The Liquid and Gaseous Fuels

For heavy-duty, outdoor, or multi-terrain operations, and applications where long run-times and rapid refueling are paramount, ICE-powered forklifts remain the preferred choice. These machines utilize conventional fossil fuels, managed by sophisticated engine control systems to meet stringent emissions standards.

2.1 Liquefied Petroleum Gas (LPG) / Propane

LPG (primarily Propane, $\text{C}_3\text{H}_8$) is the most popular ICE fuel for indoor/outdoor crossover applications due to its relatively clean-burning characteristics compared to gasoline or diesel.

Fuel System and Delivery

LPG is stored as a liquid in pressurized aluminum or steel tanks mounted to the rear of the truck. The fuel system uses a vaporizer/regulator to convert the liquid fuel into a low-pressure gaseous fuel before it is mixed with air and introduced into the engine via a carburetor or a dedicated electronic fuel injection system.

Combustion: Propane's high octane rating allows for higher engine compression ratios and efficient, complete combustion, resulting in lower particulate matter (24$\text{PM}$) and carbon monoxide (25$\text{CO}$) emissions than gasoline.26

Refueling: The main operational advantage is the quick change-out of the spent LPG tank for a full one, minimizing downtime.

Technical Specifications

LPG engines typically feature robust, industrial-grade four-stroke design with electronic ignition systems and catalytic converters to control $\text{NO}_x$ and $\text{CO}$ emissions. They are favored for medium-duty applications and areas where air quality is a concern but electrical charging infrastructure is difficult to implement.

---

3. Diesel Fuel

Diesel-powered forklifts are the workhorses of the heavy-duty segment, especially in demanding outdoor environments like construction sites, lumberyards, and ports.27

Engine and Fuel Characteristics

Diesel engines rely on compression-ignition rather than spark-ignition.28 Air is heavily compressed, raising its temperature high enough to ignite the injected diesel fuel.

Torque and Power: Diesel engines deliver superior low-end torque compared to similarly sized gasoline or LPG engines, which is crucial for moving extremely heavy loads and climbing ramps.29

Fuel Economy: Diesel fuel (a heavier hydrocarbon blend) has a higher energy density than gasoline or LPG, resulting in better fuel economy and longer run times between refueling stops.30

Emissions Control Technology

The major technical challenge for diesel forklifts is managing emissions, particularly $\text{NO}_x$ and $\text{PM}$. Modern industrial diesel engines incorporate complex post-treatment systems:

Diesel Particulate Filters (DPF): Traps soot (PM) from the exhaust stream.31 Regular regeneration (burning off the trapped soot) is necessary.

Selective Catalytic Reduction (SCR): Injects an aqueous urea solution (commonly called Diesel Exhaust Fluid or 32$\text{DEF}$) into the exhaust stream.33 This fluid converts $\text{NO}_x$ into harmless $\text{N}_2$ and $\text{H}_2\text{O}$ over a catalyst.

These systems add cost, complexity, and maintenance requirements, but are essential for meeting Tier 4 Final/Stage V emission standards.

---

4. Gasoline (Petrol)

Gasoline forklifts, though less common than LPG or Diesel in modern fleets, are still utilized, often in lighter-duty applications or regions where gasoline infrastructure is more readily available than LPG.

Operational Characteristics

Gasoline engines use the same spark-ignition principle as LPG engines, but the liquid fuel is stored in an integral tank.

Maintenance: They are often simpler and cheaper to maintain than diesel engines but typically offer less low-end torque and poorer fuel economy than diesel.

Emissions: Gasoline combustion produces significant 34$\text{CO}$ and 35$\text{CO}_2$, and its use is typically restricted to outdoor or extremely well-ventilated areas due to air quality concerns.36 Modern gasoline engines use advanced electronic control and catalytic converters, but they generally cannot meet the strict indoor air quality standards achieved by electric or even modern LPG models.

---

5. Comparative Technical Analysis: The Power Matrix

The selection of a forklift's power source is a complex engineering and financial decision, driven by site-specific factors. The table below summarizes the technical trade-offs.

Characteristic	Electric (Lead-Acid)	Electric (Li-ion)	LPG (Propane)	Diesel
Energy Density	Low ($30-40 \text{ Wh/kg}$)	High ($100-265 \text{ Wh/kg}$)	Medium	High (Highest)
Emissions	Zero Tailpipe	Zero Tailpipe	Low $\text{PM}$, $\text{CO}$	High $\text{NO}_x$, $\text{PM}$ (requires aftertreatment)
Refueling/Recharge Time	$8-12$ hours (Standard Charge)	$1-3$ hours (Opportunity Charge)	Minutes (Tank Change)	Minutes (Liquid Refuel)
Infrastructure	Dedicated Charging Room, Ventilation, Watering	Dedicated Charger, Standard Power Outlet	External Storage/Dispensing Cage	Liquid Fuel Storage/Pump
Low-End Torque	Excellent (Instantaneous)	Excellent (Instantaneous)	Good (Dependent on Engine Size)	Superior (Best for Heavy Lifting)
Noise Level	Low (Quiet Operation)	Low (Quiet Operation)	Medium	High (Loudest)
Typical Application	Indoor, Food/Beverage, Pharmaceuticals, Warehousing	Multi-shift Indoor/Outdoor, Cold Storage	Indoor/Outdoor Crossover, Manufacturing	Heavy-Duty Outdoor, Ports, Construction
Maintenance	High (Battery Watering, Acid Spills)	Low (No Watering, BMS Monitored)	Medium (Standard ICE)	High (Oil changes, DPF/SCR systems)

---

6. The Future of Forklift Power: Energy Independence and Optimization

The trend in forklift power technology is heavily skewed towards electrification, driven by environmental regulations and advances in battery technology.37 The transition from $\text{Lead-Acid}$ to $\text{Li-ion}$ represents a paradigm shift from a process-driven power source (slow, scheduled charging, high maintenance) to an on-demand, agile power source (opportunity charging, zero maintenance).

Future developments will likely focus on:

Further Li-ion Energy Density: Increasing run-time without adding weight, potentially making electrics viable for the heaviest outdoor applications.

Advanced Fuel Cell Infrastructure: As hydrogen production scales and costs decrease, fuel cells will offer a viable alternative to $\text{Li-ion}$ for $24/7$ operations where space for charging infrastructure is limited.

Engine Telematics and Optimization: ICE power will continue to be refined with advanced telemetry and engine control units (ECUs) that dynamically adjust air/fuel mixtures and after-treatment systems for peak efficiency and minimum emissions.

In conclusion, a forklift runs on the most optimized fuel for its specific operating profile. Whether it’s the electrochemical energy of a $48\text{V}$ $\text{Li-ion}$ pack for a high-bay warehouse or the immense $\text{BTU}$ output of high-sulfur diesel for a container port, the power source is the heart of the machine, defining its performance, cost of ownership, and ultimate utility in the relentless world of materials handling.
