What is a narrow aisle forklift truck?

The evolution of warehousing and logistics is fundamentally driven by the need for increased storage density and faster throughput.1 As industrial real estate costs soar, companies are continually pressured to maximize vertical storage and minimize horizontal space consumption. This imperative has led to the specialization of material handling equipment, none more critical to the high-density warehouse than the Narrow Aisle Forklift Truck (NAFT).

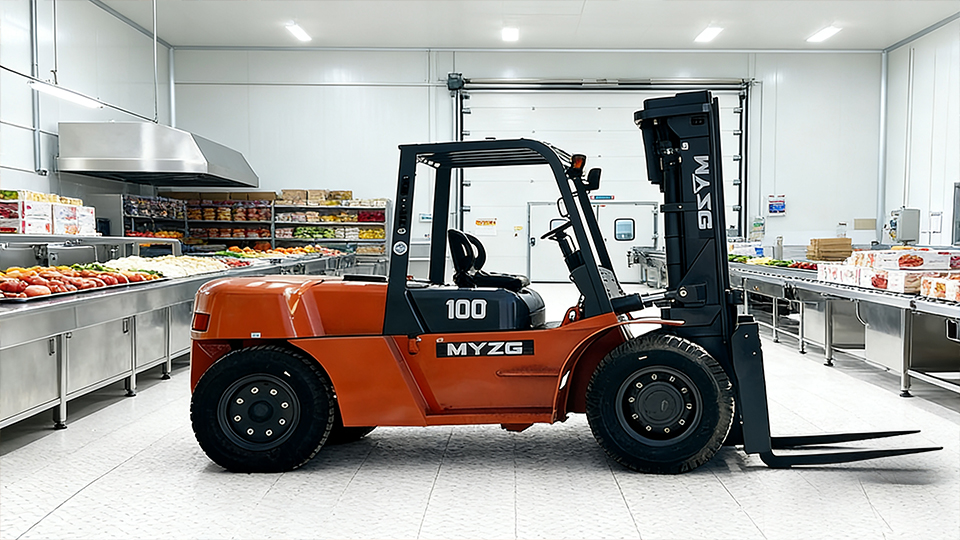

A Narrow Aisle Forklift Truck is a highly specialized class of lift truck designed to operate efficiently within significantly confined spaces, typically aisles ranging from $5.5$ to $10.5$ feet ($1.7$ to $3.2$ meters) wide. This design contrast starkly with conventional Counterbalance Forklift Trucks, which require aisles of $11$ to $13$ feet ($3.3$ to $4.0$ meters). NAFTs achieve this space efficiency through unique mechanical configurations, including chassis design, mast technology, and power systems.2 They are the backbone of modern, high-bay storage facilities, allowing for maximum utilization of floor space and cubic volume.

This technical article will dissect the primary types of Narrow Aisle Forklift Trucks, analyze the engineering principles that enable their spatial efficiency, and examine the operational environments and safety considerations inherent to their deployment.

I. Classification and Core Mechanics of Narrow Aisle Forklifts

Narrow Aisle Forklift Trucks fall primarily into two major categories: Turret Trucks/Very Narrow Aisle (VNA) Trucks and Reach Trucks. Both are exclusively electrically powered to meet indoor air quality standards and benefit from the high torque and smooth control required for precise movements in tight spaces.

A. Reach Trucks

The Reach Truck is arguably the most common and versatile type of NAFT. It is designed specifically for deep-rack storage in aisles as narrow as $8$ to $10.5$ feet ($2.4$ to $3.2$ meters).

1. Unique Mechanical Features:

Reach Mechanism: Unlike a counterbalance truck, which carries the load outside its wheelbase, the reach truck uses scissor mechanisms or pantographs to extend the forks forward beyond the stabilizing legs (or "outriggers"). This allows the truck to place and retrieve pallets from the rack without the entire chassis entering the rack structure.

Stabilizing Legs: The truck's weight is balanced by two frontal legs extending forward.3 The forks are retracted between these legs during transport, keeping the load within the truck’s footprint and stabilizing it.

Mast Type: Reach trucks typically employ a three-stage (triplex) mast to achieve high lift heights (often up to $35$ feet or $10.7$ meters).

Operator Position: Most models feature a standing-only operator position (stand-up reach trucks). This allows the operator to quickly and easily enter and exit the cabin and provides superior visibility when maneuvering, especially when driving in reverse after placing a load.

2. Variants:

Double-Deep Reach Trucks: Equipped with longer pantograph mechanisms, these can place pallets two deep into racking, further increasing storage density, though this requires slightly wider aisles for maneuvering.

Straddle Trucks: A variant where the stabilizing legs are designed to straddle the pallet, which is necessary for certain rack configurations.

B. Turret Trucks / Very Narrow Aisle (VNA) Trucks

Very Narrow Aisle (VNA) Trucks, often referred to as Turret Trucks or Man-Up Trucks, represent the zenith of space-saving technology, operating in the narrowest possible aisles, typically $5.5$ to $7.0$ feet ($1.7$ to $2.1$ meters).

1. Unique Mechanical Features:

Fixed Operation: VNA trucks are often guided by physical means, such as wire guidance systems embedded in the floor or mechanical guide rails on the racks.4 Once they enter the designated aisle, steering is largely unnecessary, enabling the extremely tight tolerance to the racks.

Rotating Forks (Turret Head): The key differentiator is the fork mechanism. VNA trucks do not rotate the entire chassis; instead, the mast head (the turret) can rotate $90^\circ$ to the left or right. This allows the truck to handle loads on either side of the aisle without having to turn the machine itself.

Lift Heights: VNA trucks are engineered for the highest racking, regularly reaching $40$ to $55$ feet ($12.2$ to $16.8$ meters).

Man-Up vs. Man-Down:

Man-Up (Order Picker/High Level VNA): The operator's cab ascends with the load/forks, providing the best possible visibility for placing and retrieving loads at high levels, crucial for case picking or handling small items.5

Man-Down (High Level VNA): The operator remains at ground level while the forks ascend.6 This is simpler and faster for full pallet movements but limits visibility at extreme heights.

C. Order Pickers

While not used for full-pallet transport, the Order Picker is a critical NAFT for modern e-commerce and retail distribution.7 It is a Man-Up machine where the operator travels with the platform to individual case-pick locations in narrow aisles.8

Aisle Width: Similar to VNA trucks, they operate in narrow, guided aisles.9

Function: Their primary function is piece-part retrieval (e.g., box, carton, or single item), rather than full pallet handling, maximizing efficiency for non-bulk fulfillment operations.

II. Engineering for Space Efficiency and Stability

The ability of NAFTs to operate safely and reliably at extreme heights within minimal lateral space is a feat of specialized engineering.

A. Chassis and Stability Principles

Traditional counterbalance trucks rely on a heavy rear counterweight to offset the load.10 NAFTs, particularly Reach and VNA trucks, utilize a different stabilization method:

Load Retention: In a Reach Truck, when the load is retracted (drawn back) between the stabilizing legs, the load’s center of gravity (CG) shifts inward, enhancing stability for movement.

Outriggers: The outriggers (or straddle arms) extend the stabilizing base wider than the chassis itself, counteracting the load’s moment. The weight of the vehicle and the front portion of the load is carried by the outriggers.

Weight Distribution: Due to the lighter, compact design, stability is more dependent on the fixed footprint (distance between the outriggers) than the mere mass of a counterweight.

B. Mast Technology and Deflection Mitigation

Lifting a load to $50$ feet introduces significant forces that must be controlled within a narrow tolerance.

Mast Rigidity: NAFT masts use thicker, high-strength steel (often specialized low-alloy steel) and multi-stage telescoping cylinders designed to minimize deflection (sway or bending) at maximum lift height.

Electronic Control: High-level NAFTs utilize sophisticated electronic control systems, including height sensors, tilt sensors, and weight sensors, to manage mast sway and oscillation. These systems often feature programmed speed reductions for travel and hydraulic movements as the load height increases, adhering to the stability triangle and safety standards (e.g., ASME B56.1).

Load Moment Indicator (LMI): Many VNA trucks are equipped with LMI systems that continuously calculate the load's moment based on weight and extension height, warning the operator if the stability limits are approached.

C. Power System and Control

All NAFTs are electric, predominantly using high-voltage (e.g., $48$V or $80$V) battery systems (lead-acid or lithium-ion).

AC Drive Motors: Modern NAFTs use AC (Alternating Current) drive motors which offer superior performance in material handling:11

High Low-Speed Torque: Essential for precise inching and positioning required in narrow aisles.

Regenerative Braking: Energy recovered during braking and mast lowering is fed back into the battery, increasing operating efficiency and reducing brake component wear.12

Fewer Wear Parts: AC motors lack brushes and commutators, leading to lower maintenance costs and longer operational uptime.13

III. Operational Environments and Efficiency Metrics

The decision to invest in Narrow Aisle Forklift Trucks is primarily an economic calculation based on maximizing warehouse storage efficiency.

A. Maximizing Storage Density

The core value proposition of the NAFT lies in its ability to facilitate a higher number of pallet positions within a given footprint.14

Aisle Reduction: By reducing aisle width from the 15$\sim 12$ feet required by a standard counterbalance truck to 16$\sim 6$ feet for a VNA truck, the facility gains nearly 17$50\%$ of that floor space back for storage racking.18

Cubic Utilization: The higher lift capacity allows storage racks to be built taller, moving the cubic utilization rate of the warehouse closer to $100\%$.

Truck Type	Aisle Width (Approx.)	Pallet Access	Primary Use Case
Counterbalance	$11.5 - 13.0$ ft	Frontal	Dock loading, general transport
Reach Truck	$8.0 - 10.5$ ft	Frontal/Extended	High-density pallet storage
VNA (Turret)	$5.5 - 7.0$ ft	Side (via turret rotation)	Max storage density, high-bay
Order Picker	$5.5 - 7.0$ ft	Side/Direct Access	Case picking, fulfillment

B. Ideal Working Environments

NAFTs thrive in environments characterized by:

High Volume/Low Variety: Facilities that store large quantities of standardized pallets (e.g., bulk goods, standard $40 \times 48$-inch pallets).

High Throughput Density: E-commerce fulfillment centers, third-party logistics (3PL) providers, and pharmaceutical distribution centers where quick, accurate retrieval from height is necessary.

Smooth, Level Floors: Due to their dependence on precise alignment and fixed guidance systems (VNA), NAFTs require high-quality floor surfaces that meet stringent floor flatness and levelness (FF/FL) specifications. Deviations can cause significant operational issues and safety risks at high lift heights.

IV. Operational and Safety Considerations

The specialized nature of NAFTs introduces unique operational protocols and safety requirements that differ from standard forklift operations.19

A. Operator Training and Certification

Operating a lift truck at $40$ feet in an aisle only $5$ feet wide requires intensive, specialized training beyond the general OSHA certification for powered industrial trucks.

Height Acclimation: Operators must be fully comfortable with the physics of high-level lifting and the required speed adjustments.

Guided System Proficiency: Training is required on the proper use of wire guidance or rail systems, including emergency override procedures.

Load Handling at Height: Focus is placed on slow, controlled movements when extending or retracting the load above $20$ feet to prevent pendulum effect (load swing).

B. Infrastructure and Safety Systems

The environment must be engineered to support the technology:

Aisle Access Control: In VNA operations, physical or electronic safety gates are often installed at the aisle entrances.20 These are interlocked with the truck’s guidance system to ensure only one truck can enter an aisle at a time, preventing catastrophic head-on collisions.

Overhead Guard Height: Due to the extreme lift heights, the overhead guard on Man-Up NAFTs is often engineered not only for fall protection but also to incorporate specialized protective caging and harnesses for the operator.

Floor Management: Regular floor maintenance is critical. Cracks, pits, or spills can severely compromise the stability and tracking of VNA trucks.21

V. Economic Implications and TCO

The acquisition cost of a new Narrow Aisle Forklift Truck, particularly a high-end VNA model, is substantially higher than a comparable capacity counterbalance truck. However, the Total Cost of Ownership (TCO) calculation must incorporate the infrastructure benefits.

A. Initial Capital Expenditure (CAPEX) vs. Infrastructure Savings

While the machine CAPEX is high, the savings in real estate and construction costs often justify the investment:

Density Multiplier: The increased storage density translates directly into the ability to store $30\%$ to $50\%$ more product in the same building footprint, delaying the need for costly warehouse expansion or relocation.

Racking Investment: The need for specialized, heavy-duty racking that can handle the precise alignment and potential impact forces of NAFTs is a major cost factor.

B. Operational Expenditure (OPEX)

Maintenance: Maintenance is typically higher than standard forklifts due to the complexity of the telescoping mast, pantograph mechanism, and electronic guidance systems. Specialized vendor maintenance contracts are the norm.

Energy Efficiency: Being electric, the fuel (electricity) costs are low.22 Furthermore, the limited travel speed and optimized motor control contribute to excellent battery life per shift.

Conclusion

The Narrow Aisle Forklift Truck is not merely a different size of forklift; it represents a comprehensive engineering solution to the core logistical problem of maximizing storage density. From the pantograph mechanism of the Reach Truck to the rotating turret head and fixed guidance systems of the VNA Truck, every design element is focused on high-precision operation in minimal space.

Their deployment is mandatory in high-bay, high-throughput modern warehouses where real estate costs dictate a vertical storage strategy. Understanding the technical demands—including floor flatness, specialized training, and the economics of infrastructure trade-offs—is essential for any logistics professional seeking to optimize their material flow within a high-density environment.
