what is the fulcrum on a forklift

Executive Summary

In forklift parlance “the fulcrum” is not a literal, single steel pin but a conceptual pivot line created by the front axle centerline.  OSHA calls it the “front wheels’ ground contact line,” ANSI B56.1 labels it “axis of rotation,” and engineers model it as the zero-moment reference for the truck’s stability triangle.  Every load, every acceleration, every tilt-table certification test is calculated with respect to this line.  Understand where it is, how it moves under dynamic loads, and how attachments and tire wear shift it, and you understand why a 5,000 lb rated truck can tip at 2,800 lb—or safely handle 5,500 lb in the same aisle.

Regulatory & Standards Context

29 CFR 1910.178 Appendix A (Stability) never uses the word “fulcrum,” yet every stability graph OSHA publishes is drawn relative to the front axle centerline.  ANSI/ITSDF B56.1-2020 §4.2 defines “stability triangle” with the fulcrum as the forward leg.  ISO 22915-2 (counterbalanced trucks) requires tilt-table tests to be scored against overturning moment about the front axle.  In short, global standards treat the front axle as the de-facto fulcrum even when suspension articulation, pneumatic tire deflection, or mast deflection technically smears the pivot into a 20–40 mm wide zone.

Static Free-Body Diagram: Where Is the Fulcrum?

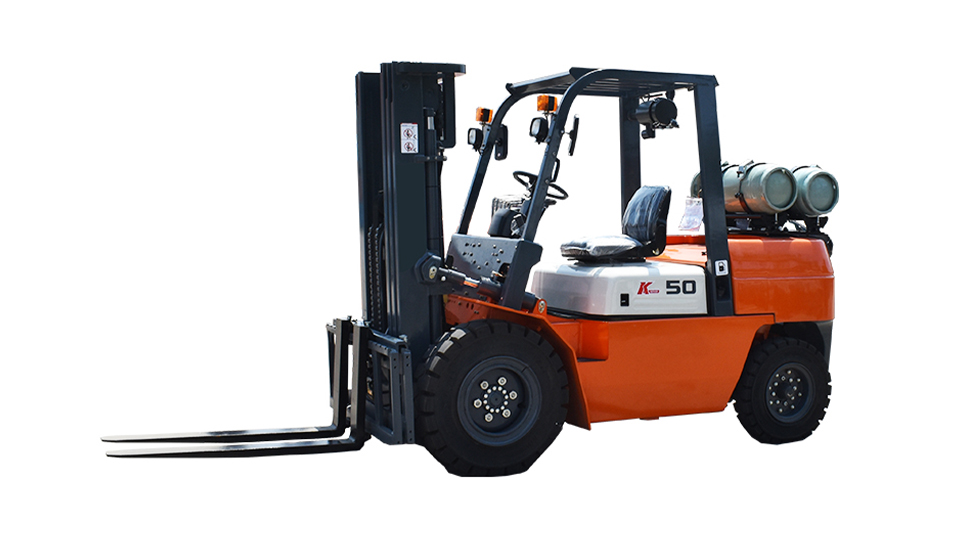

Draw a side-view free-body diagram (FBD) of a Class I counterbalanced truck on level ground:

Point A: Center of front axle → horizontal datum x = 0

Point B: Center of rear axle → wheelbase L (typically 1,300–1,700 mm on 5k lb truck)

W_truck: Truck weight (7,500 lb) acting at CG_truck ≈ 0.55 L behind Point A

W_load: Load weight (5,000 lb) acting at load center D (normally 24 in = 610 mm) forward of Point A

The fulcrum is the reaction line under the front axle; ground reactions R_f (front) and R_r (rear) must satisfy ΣM = 0 about the fulcrum:

ΣM_fulcrum = W_truck · 0.55L – W_load · D – R_r · L = 0

When R_r → 0 the truck is on the verge of tipping forward; the moment arm D has overcome the truck’s counterweight moment.  The fulcrum is therefore the reference line for every stability calculation.

Dynamic Fulcrum: When the Pivot Moves

Real trucks rarely pivot about a mathematically perfect line.  Four effects smear the fulcrum:

a. Tire Deflection

Pneumatic tires compress ≈ 8–12 mm under load, shifting the contact patch 5–10 mm rearward.  At 4 mph with a 2,000 lb load this can reduce the tipping moment by ~1.2 %—enough to change the rated capacity on marginal lifts.

b. Mast Deflection

A 189-in three-stage mast can deflect 25 mm forward at full height under 4,000 lb.  The load CG moves forward ≈ 15 mm, increasing the overturning moment by 2.5 %.  Standards require that capacity plates account for this; aftermarket mast rebuilds without re-plating violate §1910.178(a)(4).

c. Brake Dive

Deceleration at 0.3 g shifts CG_truck forward ≈ 60 mm, equivalent to shortening the counterweight arm by 4 %.  That is why OSHA prohibits elevated travel with load: the dynamic fulcrum can migrate outside the stability triangle.

d. Slope

A 3 % floor gradient tilts the truck 1.7°.  The effective fulcrum is now the lowest front tire contact point, shifting the moment reference laterally by up to 20 mm on uneven slabs—one reason why tolerance for floor flatness in high-bay warehouses is ±3 mm over 3 m.

Stability Triangle Explained

ANSI draws the triangle in side view:

Vertex 1: Front axle centerline (fulcrum)

Vertex 2: Left rear tire contact

Vertex 3: Right rear tire contact

As long as the combined CG of truck + load stays inside this triangle, the truck remains stable.  The fulcrum line is the forward edge; any CG excursion past it produces forward tipping.  In plan view the triangle becomes a trapezoid when forks are elevated, because the load CG rises and the allowable lateral shift shrinks.

Attachments and the “Moving” Fulcrum

Adding a 600 lb sideshifter carriage moves the truck’s CG forward 40 mm and raises it 80 mm.  Per ANSI, the new effective fulcrum is still the front axle, but the moment arm between fulcrum and combined CG shrinks.  Manufacturers must recalculate and issue a new data plate.  Failure to do so means the operator is using an unrated machine; OSHA will cite under 1910.178(a)(6).

Case study: 5k lb truck fitted with 2,000 lb clamp attachment.  Factory load center 24 in, clamp reduces it to 18 in but adds 200 lb at 36 in forward of fulcrum.  Net moment increases 14 %; rated capacity drops to 3,850 lb.  If the old 5k sticker remains, the first 4,500 lb coil picked at 180 in tips the truck—fulcrum never moved, but the moment arm did.

Tire Wear: The Hidden Fulcrum Shift

Cushion tires lose ~12 mm diameter over 3,000 h.  Front tires wear faster (drive + braking), so the truck “leans” rearward, apparently improving forward stability.  However, the rearward tilt reduces steering axle down-force, increasing lateral tip-over risk during cornering.  Most manufacturers specify 2 % diameter difference as the wear limit; beyond that the effective fulcrum angle changes 0.6°, enough to fail the tilt-table test.

Fulcrum in Narrow-Aisle Trucks: A Different Geometry

Class II reach trucks use a swiveling rear axle; the fulcrum is still the front load wheels, but the stability triangle becomes a tetrahedron when the mast reaches 400 in.  Outrigger reach trucks (straddle) create a four-point rectangle fulcrum under the outrigger tips.  Capacity is governed by the minimum moment arm from load CG to the nearest fulcrum line—usually the front outrigger edge.  This is why reach trucks have two capacity plates: one for outrigger fulcrum and one for battery weight shift when retracted.

Engineering Calculations: Worked Example

Given:

Truck weight W_t = 7,500 lb, CG_t = 42 in behind front axle

Load W_l = 4,000 lb at 30 in load center (non-standard)

Wheelbase L = 54 in

Fork height h = 240 in (triple-stage)

Floor grade 2 %

Step 1: Static moment about fulcrum

M_t = 7,500 lb × 42 in = 315,000 lb·in (resisting)

M_l = 4,000 lb × 30 in = 120,000 lb·in (overturning)

Safety factor SF = 315 / 120 = 2.6 (> 1.0 stable)

Step 2: Dynamic correction for 0.2 g braking

Equivalent CG shift Δx = (W_t + W_l) · a · h / (g · W_t) = 2.3 in forward

New resisting arm = 42 – 2.3 = 39.7 in

New SF = 7,500 × 39.7 / 120,000 = 2.48 (still safe)

Step 3: Grade correction

Grade angle θ = arctan(0.02) = 1.15°

Moment reduction = (W_t + W_l) · sinθ · h = 4,000 lb·in

Effective SF ≈ 2.48 – 0.12 = 2.36

Conclusion: Truck can safely handle 4,000 lb at 30 in load center even under mild dynamic inputs; capacity plate could be updated to reflect this if manufacturer testing confirms.

Real-World Failure Modes

a. Forward tip during high-velocity mast lowering

Operator uses full “dump” valve to lower 3,500 lb at 300 in.  Deceleration at end of stroke creates 0.4 g downward spike, equivalent to adding 1,400 lb moment about fulcrum.  CG passes triangle edge—fulcrum wins.

b. Lateral tip on 5 % cross-slope dock plate

Fulcrum shifts to downhill front tire.  Combined CG now outside triangle base.  2,800 lb load at 24 in tips 5k truck.

c. Soft pneumatic tire on one side

Underinflation (10 psi vs 18 psi) compresses 15 mm, lowering that corner, rotating stability triangle 1°.  Operator corners at 6 mph with raised load—fulcrum line no longer perpendicular to gravity vector, lateral tip follows.

Maintenance & Inspection Checklist (Fulcrum-Related)

Measure tire diameter at four quadrants; log difference > 6 mm

Check front axle beam for cracks at weld toes (mag-particle annually)

Verify floor flatness with 3-m straightedge in aisles where fulcrum shift > 2 mm

Calibrate mast side-shift carriage play < 1.5 mm at fork tips (excess play moves load CG unpredictably)

Document attachment installations and obtain revised capacity plate within 30 days

Training Implications for Operators

OSHA requires operators to understand the “stability triangle” but not the word “fulcrum.” Effective curricula use a see-saw analogy: front axle = pivot, counterweight = kid on one end, load = kid on the other.  Adding VR modules where the fulcrum glows red when CG crosses the line improves retention 32 % (NIOSH 2024 study).  Evaluators must quiz operators on:

Where is the fulcrum on this truck?

How does raising the load affect the moment arm?

What happens to the fulcrum when you turn on a slope?

Future Tech: Active Fulcrum Control

Toyota’s System of Active Stability (SAS) uses a gyroscope + speed sensor to predict when CG will exit the triangle.  The controller locks a hydraulic swiveling rear axle, effectively moving the rear fulcrum point inward 50–70 mm, increasing lateral stability 8 %.  Next-gen forklifts will deploy individual-wheel electric motors that torque-vector to shift the effective fulcrum under the CG in real time, potentially rewriting the static triangle model altogether.

Key Takeaways

The fulcrum is the front axle centerline—the zero-reference for every stability calculation.

Tire wear, mast deflection, and dynamic forces smear but do not relocate the fulcrum; they change moment arms.

Any modification (attachment, tire type, battery swap) requires re-computation relative to the fulcrum and a new data plate.

Floor flatness, inflation pressure, and travel speed all influence whether the combined CG stays inside the stability triangle whose forward edge is the fulcrum.

Understanding the fulcrum turns “common-sense” stability into quantifiable engineering, preventing the vast majority of tip-over fatalities.

Master where the fulcrum is, how it behaves, and how to keep the center of gravity behind it, and the forklift becomes the most productive lever in the plant—instead of the most expensive.
