where is the counterweight located on a forklift

Introduction: The Unsung Hero of Forklift Stability

Forklifts are indispensable machines in a multitude of industries, from warehousing and manufacturing to construction and logistics. Their primary function is to lift, move, and stack heavy loads, often in confined spaces or at considerable heights. However, the ability of a forklift to safely handle such substantial weights is not solely dependent on the strength of its mast and forks. A critical, often unseen, component plays a pivotal role in maintaining stability and preventing the machine from tipping over: the counterweight.

While many might intuitively understand that a forklift needs something to balance the load, the precise location, design, and function of this counterweight are often overlooked. This technical article will delve into the specifics of where the counterweight is located on various types of forklifts, exploring its fundamental purpose, the engineering principles behind its design, and its crucial role in ensuring safe and efficient material handling operations. Understanding the counterweight is not just an academic exercise; it is essential for operators, maintenance personnel, and anyone involved in the safe deployment of these powerful machines.

The Fundamental Purpose of the Counterweight: Counteracting the Tipping Moment

To comprehend the counterweight's location, one must first grasp its fundamental purpose. A forklift operates on the principle of a seesaw or a lever. When a load is lifted by the forks, it creates a "tipping moment" (or overturning moment) around the front axle of the forklift. This moment is the product of the load's weight and its distance from the fulcrum (the front axle). Without a counteracting force, the forklift would simply tip forward, potentially causing severe accidents, damage to goods, and injury or fatality to the operator.

The counterweight's job is to generate an opposing "balancing moment" (or restoring moment) that counteracts the tipping moment created by the load. This balancing moment is generated by the weight of the counterweight itself, multiplied by its distance from the front axle. For stable operation, the balancing moment must always be greater than or equal to the tipping moment, especially when the forklift is handling its maximum rated capacity.

This principle is enshrined in the forklift's load capacity chart, which dictates the maximum weight a forklift can safely lift at a given load center (the horizontal distance from the vertical face of the forks to the load's center of gravity). The counterweight is a fixed part of the forklift's design, engineered to provide the necessary stability across its operational envelope.

Location, Location, Location: Where to Find the Counterweight

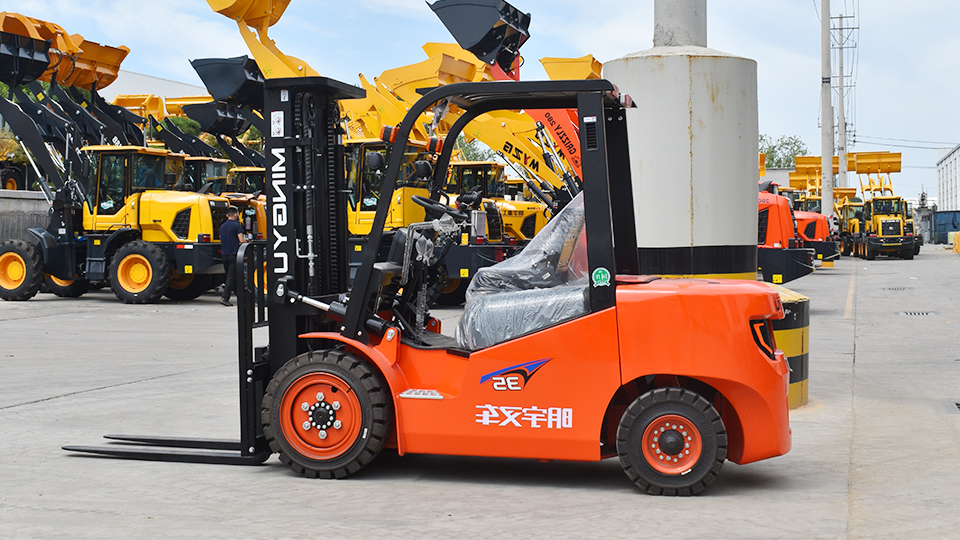

The location of the counterweight is strategically chosen to maximize its effectiveness in generating the balancing moment. For the vast majority of counterbalance forklifts, the counterweight is situated at the very rear of the machine.

Let's break down why this specific location is optimal and how it manifests across different forklift types:

1. Internal Combustion (IC) Counterbalance Forklifts

Primary Location: On IC forklifts (powered by gasoline, diesel, or LPG), the counterweight is typically an integrated cast iron or steel block that forms the rear section of the forklift's chassis. It is often a single, heavy piece of metal, sometimes with additional plates bolted on to achieve the desired weight.

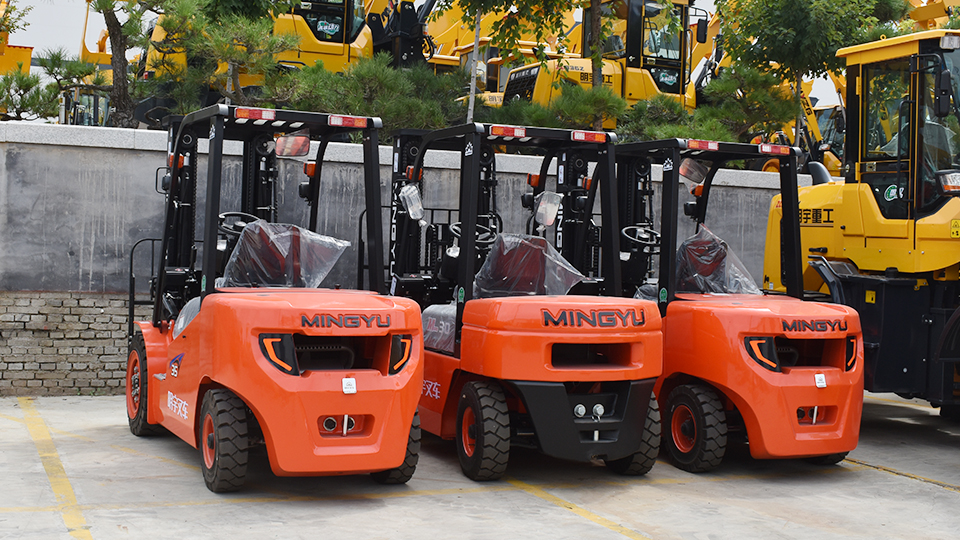

Appearance: This massive block is clearly visible at the back of the forklift. It often incorporates the taillights, rear-view mirrors, and sometimes even the exhaust outlet. Its sheer bulk is immediately apparent, signifying its role in stability.

Integration with Engine Compartment: While it's a separate component, it's designed to fit snugly around or behind the engine compartment, contributing to the overall structural integrity of the machine. The engine, fuel tank, and hydraulic systems are typically located forward of the counterweight or within the main chassis, with the counterweight forming the extreme rear.

Why the Rear? Placing the counterweight at the furthest possible point from the front axle (the fulcrum) maximizes the leverage it provides. A given weight generates a larger balancing moment when it is further away from the pivot point. This allows for a more compact and efficient design compared to distributing the weight closer to the center.

2. Electric Counterbalance Forklifts

Primary Location: Similar to IC forklifts, electric counterbalance forklifts also have their counterweight at the rear. However, the design and integration are often different.

Battery as Part of Counterweight: In many electric forklifts, the heavy lead-acid battery itself serves as a significant portion of the counterweight. These batteries are incredibly dense and can weigh thousands of pounds. They are typically housed in a compartment located towards the rear of the forklift, often beneath the operator's seat or directly behind it.

Additional Cast Iron/Steel: Even with the heavy battery, additional cast iron or steel counterweight blocks are often incorporated into the rear chassis to achieve the required total counterweight for the forklift's rated capacity. These blocks might be integrated into the battery compartment structure or form the very rear bumper of the machine.

Appearance: The rear of an electric forklift will still feature a substantial, heavy-looking section, even if part of that weight is the internal battery. Access panels for battery maintenance are often visible on this rear section.

Why the Rear? The principle remains the same: maximizing the distance from the front axle for optimal leverage. The battery's inherent weight makes it a natural candidate for contributing to the counterweight, simplifying design and reducing the need for separate, dedicated counterweight blocks.

3. Reach Trucks and Other Narrow Aisle Forklifts

Different Design Philosophy: Reach trucks, order pickers, and other narrow-aisle forklifts operate on a different stability principle. They typically do not have a large, external counterweight at the rear in the same way counterbalance forklifts do.

Stability through Outriggers/Load Wheels: Instead, their stability is achieved through outriggers or load wheels that extend forward from the main chassis, effectively widening the stability base underneath the load. When the mast extends forward to "reach" for a load, the load's weight is still largely supported within the footprint of these outriggers.

Internal Weight Distribution: While they don't have a distinct external counterweight, the overall weight distribution of the chassis, battery (for electric models), and components is carefully engineered to maintain stability. The battery, being heavy, still contributes to the overall stability, but it's not positioned as a dedicated "counterweight" in the same manner as on a counterbalance forklift.

Why the Difference? Narrow-aisle forklifts are designed for operation in very tight spaces where a large rear counterweight would be impractical. Their design prioritizes maneuverability and space efficiency over the pure lifting capacity and external counterbalancing of traditional forklifts.

4. Telehandlers (Telescopic Handlers)

Location: Telehandlers, while also lifting machines, are more akin to cranes or loaders with a telescopic boom. They often have a significant counterweight located at the rear of the chassis, similar to counterbalance forklifts.

Variable Counterweight: Some larger telehandlers may even incorporate removable or adjustable counterweights to adapt to different lifting tasks and load configurations, especially when operating with the boom extended to its maximum reach.

Outriggers/Stabilizers: In addition to the counterweight, telehandlers frequently employ deployable outriggers or stabilizers to further enhance stability, particularly when lifting heavy loads at significant heights or reaches. The counterweight works in conjunction with these stabilizers to prevent tipping.

Design and Engineering Considerations

The counterweight is not just a heavy lump of metal; its design is a sophisticated engineering feat that considers several critical factors:

Weight: The most obvious factor is its mass. The counterweight's weight is precisely calculated to ensure the forklift remains stable under its maximum rated load and load center. This calculation takes into account the weight of the forklift's chassis, mast, operator, and all other components.

Density: High-density materials like cast iron or steel are preferred for counterweights. This allows the necessary mass to be packed into a smaller volume, keeping the forklift's overall dimensions manageable.

Shape and Integration: The counterweight is molded or fabricated to fit seamlessly into the forklift's design. It often serves as a protective bumper at the rear, sometimes incorporating tow hitches or attachment points. Its shape also influences the forklift's turning radius and rear visibility.

Center of Gravity: The placement of the counterweight directly impacts the forklift's overall center of gravity. Engineers strive to keep the combined center of gravity of the forklift (without a load) low and within the stability triangle formed by the wheels. When a load is added, the counterweight shifts the overall center of gravity back towards the rear, maintaining stability.

Fixed vs. Removable: While most counterbalance forklifts have fixed counterweights, some specialized heavy-duty models or telehandlers may feature removable or adjustable counterweights. This allows for greater flexibility in adapting the machine's capacity for specific tasks, though it adds complexity to operation and maintenance.

Safety Standards: The design and weight of the counterweight are subject to stringent international and national safety standards (e.g., OSHA in the US, EN standards in Europe). These regulations ensure that forklifts are designed with adequate stability margins to prevent accidents.

The Counterweight and Forklift Stability Triangle

A key concept in forklift stability is the "stability triangle." This is an imaginary three-point support area on which the forklift rests. For a four-wheel forklift, the points are the two front wheels and the center point of the rear axle (or the pivot point of the single steer wheel on some three-wheel models). For a three-wheel forklift, it's the two front wheels and the single rear steer wheel.

The forklift's combined center of gravity (including the forklift itself, the operator, and the load) must always remain within this stability triangle for the machine to be stable. The counterweight, by pulling the center of gravity towards the rear, plays a crucial role in ensuring that even with a heavy load extending forward, the overall center of gravity stays within these safe boundaries.

If the combined center of gravity moves outside the stability triangle (e.g., due to an overloaded condition, an uneven load, or operating on an incline), the forklift will become unstable and tip over. The counterweight is the primary defense against this critical failure.

Maintenance and Operational Considerations

While the counterweight itself requires minimal maintenance (it's essentially a solid block of metal), its integrity is paramount to forklift safety.

Damage Inspection: Operators and maintenance personnel should regularly inspect the counterweight for any signs of damage, such as cracks, severe dents, or missing sections. While highly durable, impacts can compromise its structural integrity.

Cleanliness: Keeping the counterweight clean prevents the accumulation of dirt and debris, which can obscure potential damage or add unnecessary, uneven weight.

No Unauthorized Modifications: It is absolutely critical that no unauthorized modifications are made to the counterweight. Adding or removing weight, drilling holes, or attaching accessories that alter its mass or balance can severely compromise the forklift's stability and lead to catastrophic accidents. Forklift manufacturers precisely engineer the counterweight for a specific capacity, and any alteration voids the safety ratings.

Load Capacity Adherence: Operators must always adhere to the forklift's rated load capacity and load center. Overloading a forklift, even with a perfectly intact counterweight, will overcome the balancing moment and lead to instability. The counterweight is designed for the specified limits, not to compensate for operator negligence.

Operating on Inclines: When operating on inclines, the effective center of gravity shifts. When traveling up an incline with a load, the load should be facing uphill. When traveling down an incline with a load, the load should also be facing uphill. This ensures the counterweight is always positioned to counteract the load's weight relative to the slope, preventing the forklift from tipping backward or forward.

Conclusion: The Silent Guardian of Forklift Safety

In summary, the counterweight on a counterbalance forklift is almost universally located at the very rear of the machine. This strategic placement maximizes its leverage, allowing it to generate the necessary balancing moment to counteract the tipping moment created by a lifted load. Whether it's a solid cast iron block in an IC forklift or a combination of a heavy battery and additional weights in an electric model, its purpose remains the same: to ensure the forklift's stability and prevent it from overturning.

For other types of forklifts, such as reach trucks, the stability mechanism shifts from a large external counterweight to internal weight distribution and the use of outriggers. However, the underlying principle of maintaining the center of gravity within a safe stability zone remains paramount.

The counterweight is a testament to the meticulous engineering that goes into designing these powerful machines. It is the silent guardian, constantly working to keep the forklift upright and its operations safe. Understanding its location, function, and the principles behind its design is not just technical knowledge; it is a fundamental aspect of responsible and safe forklift operation in any industrial setting. Operators and managers alike must respect its critical role and ensure that these vital components are always maintained in optimal condition, free from unauthorized modifications, to guarantee the safety and efficiency of material handling tasks.
