What is the limit on a pallet truck

Abstract

Pallet trucks, indispensable tools in warehousing and logistics, come in a myriad of forms, each designed with specific operational limits. Understanding these limitations is critical for ensuring safety, maximizing efficiency, and prolonging equipment lifespan. This article delves into the various technical and operational limits that define the capabilities of pallet trucks, ranging from load capacity and lift height to environmental constraints and regulatory compliance. We will explore the factors influencing these limits, the consequences of exceeding them, and best practices for safe and effective operation.

1. Introduction

Pallet trucks, often referred to as pallet jacks or pump trucks, are fundamental pieces of material handling equipment used for lifting and moving pallets. Their simplicity, versatility, and cost-effectiveness have made them ubiquitous in industries worldwide. From manual hand pallet trucks to sophisticated electric and rider models, each variant is engineered to perform within a defined set of parameters. Operating outside these parameters can lead to equipment damage, product loss, and, most critically, serious injuries. This article aims to provide a comprehensive technical overview of the limits inherent in pallet truck design and operation.

2. Types of Pallet Trucks and Their Fundamental Differences

Before discussing limits, it's essential to differentiate between the primary types of pallet trucks, as their inherent designs dictate many of their limitations.

2.1. Manual Hand Pallet Trucks

These are the simplest and most widely used. They operate via a hydraulic pump system actuated by manual pumping of the handle.

Key Characteristic: Human power for propulsion and lifting.

Typical Applications: Short-distance transport, light-duty operations, confined spaces.

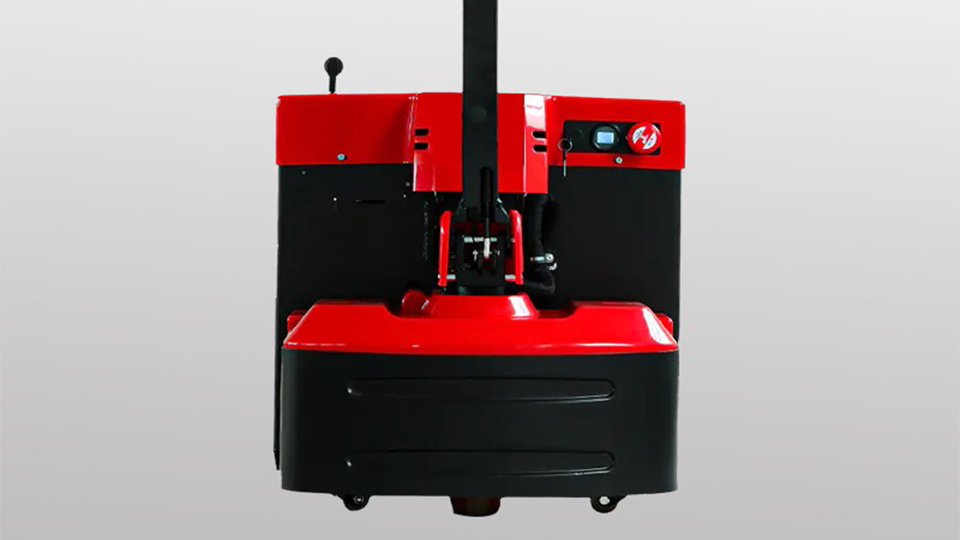

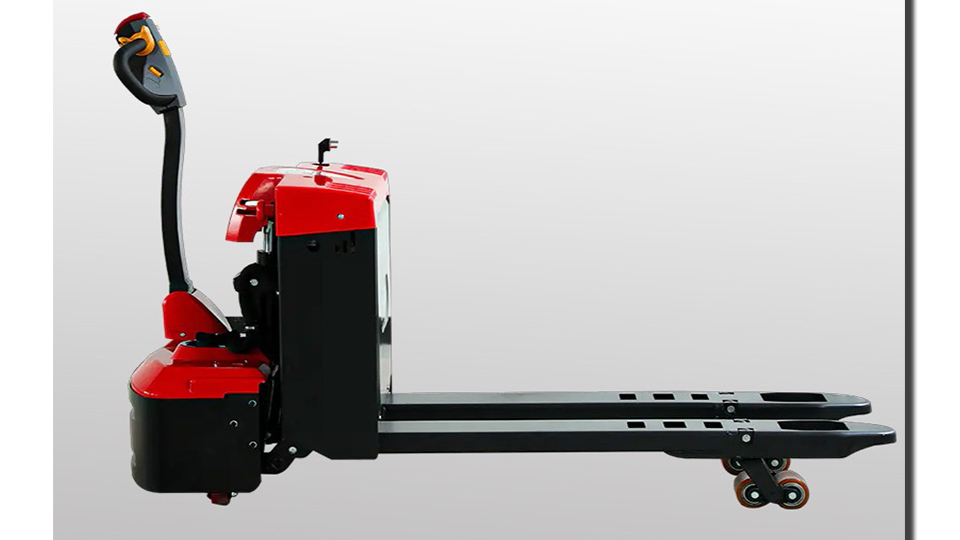

2.2. Electric Pallet Trucks (Walkie Pallet Jacks)

Battery-powered, these trucks feature an electric motor for propulsion and often for powered lift. The operator walks alongside the truck.

Key Characteristic: Electric motor for propulsion, usually also for lift.

Typical Applications: Medium-distance transport, higher frequency use, heavier loads than manual.

2.3. Rider Pallet Trucks

These are similar to electric pallet trucks but include a platform or compartment for the operator to stand or sit on.

Key Characteristic: Operator rides on the truck.

Typical Applications: Long-distance transport, high-throughput operations, large warehouses.

2.4. Reach Trucks

While sometimes categorized separately, reach trucks are a specialized form of electric pallet truck capable of extending their forks forward to pick up and deposit loads at significant heights.

Key Characteristic: Telescopic mast for high-level storage.

Typical Applications: Narrow aisle warehousing, high-density storage.

2.5. Low-Profile and Specialty Pallet Trucks

Designed for specific pallet types (e.g., extremely low clearance pallets) or applications (e.g., stainless steel for sanitary environments, weigh scale integration).

Key Characteristic: Adapted for niche requirements.

3. Load Capacity: The Primary Limit

The most fundamental limit of any pallet truck is its load capacity, also known as its rated capacity or lifting capacity. This is the maximum weight the truck is designed to safely lift and transport.

3.1. Factors Determining Load Capacity

Structural Integrity: The strength of the forks, chassis, and lifting mechanism (hydraulic cylinder, chains, mast).

Hydraulic System Pressure: The maximum pressure the hydraulic pump and cylinders can generate and withstand.

Stability: The design's ability to remain stable with a given load, considering the center of gravity.

Wheel and Tire Rating: The capacity of the wheels and tires to support the weight without deforming or failing.

Power Source (Electric/Rider): The motor's power output and battery capacity influence the ability to move and lift heavy loads efficiently.

3.2. Exceeding Load Capacity

Overloading a pallet truck can lead to:

Structural Failure: Bending or breaking of forks, chassis, or lift components.

Hydraulic System Failure: Leaks, ruptured hoses, or pump damage.

Loss of Stability: Tipping over, especially during turns or on inclines.

Premature Wear: Accelerated wear on wheels, bearings, and other moving parts.

Safety Hazards: Risk of load falling, injuring personnel.

3.3. Rated Capacity vs. Actual Load

Operators must be trained to understand that the stated load capacity is for a specific load center. If the load is poorly distributed or its center of gravity is significantly off-center, the effective safe lifting capacity is reduced.

4. Lift Height: A Critical Vertical Limit

While all pallet trucks lift loads, their maximum lift height varies significantly.

4.1. Manual and Electric Walkie Pallet Trucks

These typically offer limited lift heights, primarily just enough to clear the floor for transport.

Typical Range: 3 to 8 inches (75 to 200 mm).

Purpose: Primarily ground-level transport, not stacking.

4.2. High-Lift Pallet Trucks / Scissor Lift Pallet Trucks

These are specialized manual or electric models designed to lift loads to ergonomic working heights or for loading/unloading vans without a dock.

Typical Range: 12 to 32 inches (300 to 800 mm).

Limitation: Generally not designed for stacking pallets on top of each other in racks. Stability decreases significantly at higher lifts.

4.3. Reach Trucks and Stackers

These are designed for vertical storage and retrieval.

Typical Range: Can range from 10 feet to over 40 feet (3 meters to 12+ meters).

Factors Affecting Limit: Mast design (simplex, duplex, triplex), stability at height, load capacity deration at height, battery capacity, aisle width.

4.4. Load Center and Stability at Height

As lift height increases, the stability of the pallet truck decreases. Manufacturers provide load charts that show the derated capacity at various lift heights. The further the load center is from the mast, the less weight can be safely lifted to a given height.

5. Dimensional and Environmental Limits

Beyond weight and height, several other factors impose limits on pallet truck operation.

5.1. Fork Dimensions

Fork Length: Pallet trucks are designed for specific pallet dimensions (e.g., standard 48x40 inch pallets). Forks that are too short may not adequately support the load, leading to instability or dropped loads. Forks that are too long can be cumbersome in tight spaces.

Fork Width (Overall): The distance between the outer edges of the forks must match the pallet opening.

Lowered Fork Height: Important for accessing very low-profile pallets or navigating ramps with minimal clearance.

5.2. Aisle Width and Turning Radius

Manual and Walkie Trucks: Generally require less aisle space due to their compact size and pedestrian operation.

Rider and Reach Trucks: Require significantly wider aisles to maneuver safely, especially with long loads or at height. The turning radius is a critical specification.

Impact: Determines the layout of the warehouse and the efficiency of material flow.

5.3. Floor Surface and Gradient

Smoothness: Pallet trucks are designed for relatively smooth, level surfaces. Uneven floors, cracks, or potholes can cause damage to wheels, bearings, and the chassis, and increase the risk of tipping.

Gradient (Inclines/Declines): All pallet trucks have a maximum permissible gradient they can safely operate on, both loaded and unloaded. This limit is crucial for preventing runaway loads, tipping, or excessive strain on the drive system (for electric models) or operator (for manual models). Adherence to speed limits on ramps is also critical.

Traction: The type of wheels (polyurethane, nylon, rubber) impacts traction on different surfaces and gradients.

5.4. Environmental Conditions

Temperature: Standard pallet trucks are designed for ambient warehouse temperatures. Extreme cold (e.g., in freezers) or heat can affect battery performance, hydraulic fluid viscosity, and component longevity. Specialty cold-storage models are available.

Humidity/Moisture: High humidity or wet environments can lead to corrosion of components and electrical issues in electric models.

Dust/Debris: Excessive dust can clog moving parts, motor compartments, and reduce visibility.

Hazardous Environments: Standard pallet trucks are not suitable for explosive or flammable atmospheres. explosion-proof (EX-rated) models are required for such applications.

6. Speed Limits and Operator Control

6.1. Manual Pallet Trucks

Speed is dictated by the operator's walking pace and strength. While there's no inherent speed limiter, uncontrolled speed can lead to loss of control, especially with heavy loads or on declines.

6.2. Electric and Rider Pallet Trucks

These have defined maximum travel speeds, typically controlled by the manufacturer's programming.

Factors Influencing Speed: Motor power, gear ratios, and safety settings.

Importance: Excessive speed significantly increases the risk of collisions, tipping, and loss of control, particularly when turning or operating in congested areas. Speed limits are often tied to load presence and lift height for safety.

6.3. Braking Systems

The effectiveness of braking systems is a critical limit. Manual trucks rely on friction and operator control. Electric and rider trucks have electromagnetic brakes, regenerative braking, or hydraulic brakes. The ability to stop safely within a reasonable distance, especially with a full load, is a key performance limit.

7. Power Source Limits (Electric Pallet Trucks)

For electric and rider pallet trucks, the battery and motor are significant limiting factors.

7.1. Battery Capacity and Run Time

Capacity (Ah): Determines how long the truck can operate on a single charge.

Run Time: Directly impacts productivity. Exceeding battery capacity (e.g., by running it until completely drained repeatedly) can shorten battery life.

Charging Time: The time required to fully recharge the battery limits continuous operation. Rapid charging options exist but can impact battery longevity.

7.2. Motor Power

The electric motor's horsepower and torque determine the truck's ability to accelerate, climb gradients, and handle heavy loads efficiently. An undersized motor will struggle, leading to overheating and premature failure.

8. Maintenance and Service Life Limits

Even with proper operation, pallet trucks have a finite service life, influenced by maintenance.

8.1. Wear and Tear

Components like wheels, bearings, hydraulic seals, and electrical contacts are subject to wear. Neglecting maintenance accelerates wear and can lead to operational failures.

8.2. Preventative Maintenance Schedules

Manufacturers provide recommended maintenance schedules. Adhering to these schedules helps identify and address potential issues before they become critical failures, thereby extending the truck's operational life within its design limits.

8.3. Component Life Expectancy

Each component, from hydraulic cylinders to control boards, has an expected lifespan. While parts can be replaced, there comes a point where the cost of repairs outweighs the value of the truck.

9. Regulatory and Safety Limits

Operation of pallet trucks is governed by various safety standards and regulations.

9.1. OSHA (Occupational Safety and Health Administration)

In the US, OSHA outlines requirements for powered industrial trucks, including training, safe operation practices, maintenance, and vehicle inspection. Non-compliance can result in fines and accidents.

9.2. ANSI (American National Standards Institute)

Standards such as ANSI/ITSDF B56.1 (Safety Standard for Low Lift and High Lift Powered Industrial Trucks) provide detailed design and operational safety requirements.

9.3. Operator Training and Certification

A critical "human limit" is the operator's skill and knowledge. Untrained operators are more likely to exceed operational limits, leading to accidents. Many regulations mandate formal training and certification for powered pallet truck operators.

10. Best Practices for Adhering to Pallet Truck Limits

Know Your Truck: Understand the specific model's rated capacity, lift height, and other specifications.

Load Assessment: Always verify the weight and stability of the load before attempting to move it. Do not guess.

Pre-Operation Checks: Conduct daily inspections (e.g., brakes, wheels, hydraulics, battery) to identify potential issues before operation.

Proper Loading: Center the load, ensure it's stable, and forks are fully inserted.

Clear Travel Paths: Ensure aisles are clear of obstructions, debris, and pedestrians.

Controlled Speed: Operate at a safe speed, especially when turning, on inclines, or in congested areas.

Awareness: Maintain situational awareness of surroundings, other personnel, and equipment.

Regular Maintenance: Adhere to manufacturer-recommended preventative maintenance schedules.

Operator Training: Ensure all operators are properly trained, certified, and understand the truck's limitations and safe operating procedures.

Report Damage: Any damage or malfunction should be reported immediately and the truck taken out of service until repaired.

11. Conclusion

Pallet trucks are robust and reliable pieces of equipment when operated within their designed limits. These limits, encompassing load capacity, lift height, environmental conditions, operational speed, and maintenance, are not arbitrary. They are meticulously engineered and rigorously tested to ensure safety, efficiency, and longevity. Exceeding any of these limits carries significant risks, ranging from equipment damage and operational downtime to severe personal injury. By understanding and respecting these technical boundaries, and by implementing stringent training and maintenance protocols, businesses can maximize the utility of their pallet trucks while fostering a safe and productive working environment. As technology continues to evolve, pallet trucks will likely incorporate more advanced sensors and control systems, further enhancing their capabilities while also providing more precise feedback on their operational limits, making informed usage even more critical.
