What are the major parts of a forklift

Forklifts, also known as lift trucks, fork trucks, or powered industrial trucks, are indispensable pieces of equipment in countless industries. From warehouses and distribution centers to construction sites and manufacturing plants, they are responsible for lifting, moving, and stacking heavy loads with remarkable efficiency. While their overall appearance can vary significantly depending on their class and intended use, all forklifts share a core set of major components that enable their essential functions. Understanding these parts is crucial for safe operation, effective maintenance, and informed purchasing decisions. This 2000-word technical article will delve into the primary components of a typical forklift, explaining their functions, variations, and significance.

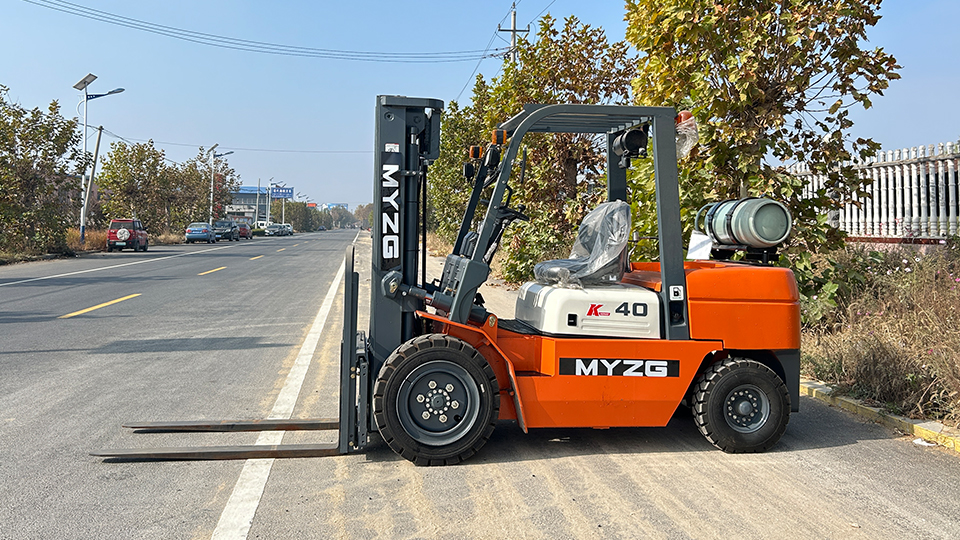

I. The Chassis and Frame: The Foundation

The chassis and frame form the robust backbone of the forklift, providing the structural integrity to withstand heavy loads and the stresses of operation.

1. Frame:

The frame is the main structural component to which all other parts are attached. It's typically constructed from heavy-gauge steel and is designed for extreme rigidity and durability.

Function: It supports the engine (or battery compartment), counterweight, mast, axles, and operator’s compartment. The frame must be strong enough to absorb shocks from uneven terrain and the dynamic forces of lifting and lowering loads.

Variations: Frames vary significantly in size and strength based on the forklift's capacity. Heavy-duty forklifts for outdoor use will have much more substantial frames than lighter, indoor electric models.

2. Counterweight:

The counterweight is a crucial safety component, especially for counterbalance forklifts, which are the most common type.

Function: Positioned at the rear of the forklift, the counterweight balances the load lifted by the forks. Its weight is carefully calculated by the manufacturer to prevent the forklift from tipping forward when carrying its rated load at its maximum lift height. The heavier the load capacity of the forklift, the heavier its counterweight will be.

Material: Usually made of cast iron or steel.

Placement: Integrated directly into the rear of the frame, often serving as the rear bodywork of the forklift.

II. The Power System: Driving and Lifting

The power system of a forklift is responsible for both propelling the machine and providing the hydraulic power for lifting and tilting. This system varies significantly between internal combustion (IC) and electric forklifts.

A. For Internal Combustion (IC) Forklifts:

1. Engine:

Function: The heart of an IC forklift, the engine generates the power to drive the wheels and operate the hydraulic pump.

Types:

Diesel Engines: Known for high torque, fuel efficiency for heavy loads, and robust performance in outdoor, demanding environments. They typically have higher emissions and noise levels.

LPG (Liquefied Petroleum Gas) Engines: Offer cleaner emissions than diesel, making them suitable for indoor/outdoor use with proper ventilation. They are powered by replaceable gas cylinders.

Gasoline Engines: Less common today for heavy-duty forklifts, but found in some older or smaller models. High emissions.

CNG (Compressed Natural Gas) Engines: A cleaner alternative to LPG, but requires specific fueling infrastructure.

Components: Includes fuel system, ignition system, exhaust system, cooling system, and lubrication system.

2. Fuel Tank/LPG Cylinder:

Function: Stores the fuel for the engine.

Distinction: Diesel and gasoline forklifts have integrated fuel tanks. LPG forklifts utilize removable, pressurized cylinders, allowing for quick "refueling" by swapping an empty cylinder for a full one.

3. Transmission:

Function: Transfers power from the engine to the drive wheels, allowing for speed control and directional changes (forward/reverse).

Types: Most forklifts use hydrostatic or conventional automatic transmissions, providing smooth acceleration and directional changes.

B. For Electric Forklifts:

1. Battery:

Function: The primary power source for electric forklifts, supplying electricity to the drive motors and hydraulic pump.

Types:

Lead-Acid Batteries: The traditional choice, known for reliability and lower initial cost. Require regular watering, specific charging procedures, and dedicated charging areas.

Lithium-Ion (Li-ion) Batteries: Increasingly popular due to rapid charging (opportunity charging), longer lifespan, maintenance-free operation, and consistent power delivery throughout discharge. Higher upfront cost.

2. Electric Motors:

Function: Electric forklifts typically have two main types of motors:

Drive Motor(s): Powers the drive wheels for propulsion.

Hydraulic Pump Motor: Powers the hydraulic pump for lifting, tilting, and attachments.

Types: Modern electric forklifts often use AC (Alternating Current) motors, which are more efficient, require less maintenance, and offer better speed control than older DC (Direct Current) motors.

3. Controller/Inverter:

Function: Manages the flow of electricity from the battery to the motors, controlling speed, direction, and hydraulic functions. In AC systems, an inverter converts DC power from the battery to AC power for the motors.

Importance: Sophisticated controllers enable precise control, regenerative braking (recovering energy during deceleration), and diagnostic capabilities.

4. Charger (External):

Function: Used to replenish the battery's charge.

Types: Vary based on battery type (lead-acid vs. Li-ion) and voltage. Opportunity chargers for Li-ion batteries allow for shorter, more frequent charges.

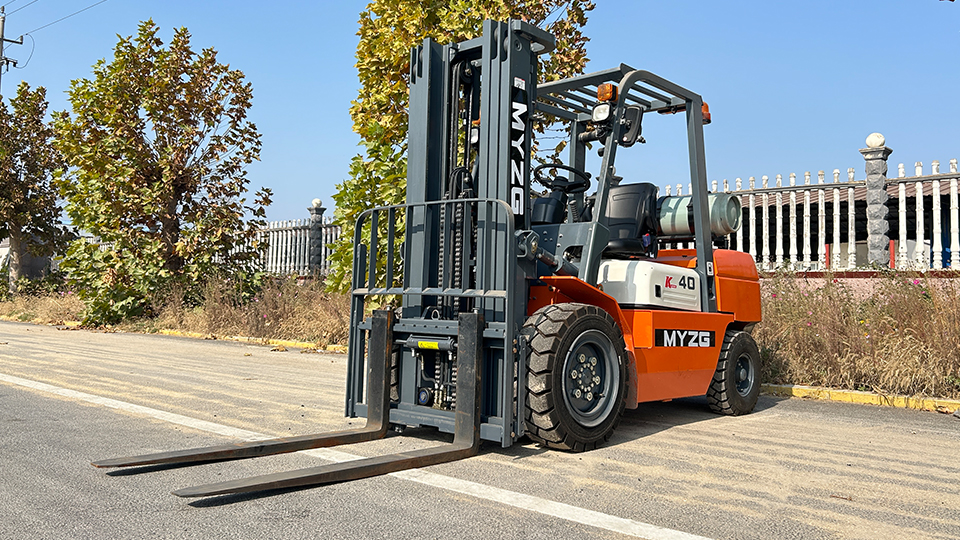

III. The Lifting Mechanism: Mast and Forks

This is the most recognizable part of a forklift, responsible for physically engaging and manipulating loads.

1. Mast (Upright):

Function: The vertical assembly that handles the lifting and lowering of loads. It consists of interlocking channels that allow the forks to extend vertically.

Types:

Simplex (Single Stage): One channel, limited lift height.

Duplex (Two Stage): Two channels, offers free lift (forks lift without increasing mast height, useful in low-clearance areas).

Triplex (Three Stage): Three channels, common for high-reach applications, offers significant free lift.

Quad (Four Stage): Four channels, provides the highest lift heights.

Components:

Inner and Outer Rails: The telescoping channels that slide within each other.

Lift Chains: Heavy-duty chains that run over sprockets and are connected to the fork carriage and hydraulic lift cylinders, converting hydraulic power into vertical motion.

Lift Cylinders: Hydraulic cylinders (single or multiple) that extend to raise the mast.

2. Fork Carriage:

Function: The component that slides up and down the mast, to which the forks and any attachments are mounted.

Types: Typically a metal plate with a series of slots or a shaft to which the forks attach. Standardized carriage types (e.g., ITA Class II, III, IV) ensure compatibility with a wide range of forks and attachments.

3. Forks:

Function: The "arms" that directly engage and support the load, typically by sliding into pallets or under items.

Material: Usually made of forged steel for immense strength and durability.

Variations: Come in various lengths, widths, and thicknesses to suit different load types and capacities. Specialized forks (e.g., tapered, extended, coil rams) exist for specific applications.

Adjustability: Forks can be manually adjusted (moved side-to-side) on the carriage to accommodate different pallet or load widths. Some forklifts have hydraulic fork positioners for automated adjustment.

4. Load Backrest:

Function: A vertical extension on the fork carriage that prevents the load from shifting backward towards the mast during lifting and transport, especially when handling tall or unstable loads. It acts as a safety barrier.

5. Tilt Cylinders:

Function: Hydraulic cylinders mounted on the frame that allow the mast to tilt forward or backward.

Purpose:

Backward Tilt: Stabilizes the load against the load backrest during transport.

Forward Tilt: Assists in loading/unloading by angling the forks for easier entry into or exit from pallets.

IV. The Operator's Compartment: Control and Comfort

The area where the operator sits or stands, housing all the controls and providing visibility.

1. Operator Seat/Platform:

Function: Provides a comfortable and safe position for the operator.

Features: Often adjustable for height and reach, with suspension for operator comfort and reduced fatigue, especially on rough terrain. Some forklifts have standing platforms for operators.

2. Steering Wheel and Column:

Function: Controls the direction of the forklift. In most forklifts, the rear wheels steer, allowing for tight turning radii.

Column: Houses wiring and sometimes the hydraulic lines for steering.

3. Control Levers/Joysticks:

Function: Operate the hydraulic functions of the forklift.

Types:

Lift Lever: Raises and lowers the forks.

Tilt Lever: Tilts the mast forward and backward.

Auxiliary Levers (Optional): Control optional attachments like side shifters, fork positioners, or clamp attachments.

Joysticks: Some modern forklifts use integrated joysticks that combine multiple functions for ergonomic operation.

4. Accelerator and Brake Pedals:

Function: Standard automotive-style pedals for controlling forward motion and stopping. Electric forklifts often use regenerative braking, where the electric motor acts as a generator to slow the forklift and recharge the battery.

5. Directional Control Lever:

Function: Selects forward, neutral, or reverse travel. Can be a separate lever, a button, or integrated into the main control lever.

6. Instrument Panel/Display:

Function: Provides the operator with critical information about the forklift's status.

Indicators: Speedometer, hour meter, fuel gauge (or battery charge indicator), warning lights (oil pressure, engine temperature, battery fault, etc.), diagnostic codes. Modern forklifts often feature digital displays with more advanced telematics.

7. Overhead Guard:

Function: A robust metal cage or frame positioned above the operator's head. It protects the operator from falling objects during lifting operations.

Safety Critical: Essential for operator safety and a mandatory feature on almost all forklifts.

8. Operator Restraint System:

Function: Typically a seat belt, designed to keep the operator securely in the compartment in the event of a tip-over or sudden stop, preventing them from being crushed by the overhead guard or other parts of the forklift.

V. The Running Gear: Mobility

These components facilitate the forklift's movement.

1. Tires:

Function: Support the forklift's weight and provide traction.

Types:

Cushion Tires: Solid rubber tires, best suited for smooth, indoor surfaces. Offer a smoother ride and smaller turning radius.

Pneumatic Tires: Air-filled tires (like car tires) with deep treads, ideal for outdoor use on uneven or rough terrain. Provide better shock absorption.

Solid Pneumatic Tires: A hybrid, solid rubber tires with a pneumatic tire shape, offering durability of cushion and some traction of pneumatic, without punctures.

2. Drive Axle:

Function: The axle to which the drive wheels are attached. In most forklifts, the drive axle is at the front (under the mast) to handle the load's weight effectively.

Components: Contains the differential and axles shafts that transmit power to the wheels.

3. Steer Axle:

Function: The axle to which the steering wheels are attached, almost always at the rear of the forklift. Rear-wheel steering provides the tight maneuverability essential for warehouse operations.

Components: Includes the steering cylinder, kingpins, and tie rods.

4. Wheels and Hubs:

Function: Support the tires and allow them to rotate. Hubs connect the wheels to the axles.

VI. The Hydraulic System: Powering the Lifts

The hydraulic system is the powerhouse behind the forklift's lifting, tilting, and attachment functions.

1. Hydraulic Pump:

Function: Driven by the engine or electric motor, the pump pressurizes hydraulic fluid (oil) throughout the system.

Types: Typically gear pumps or piston pumps.

2. Hydraulic Fluid Reservoir:

Function: Stores the hydraulic fluid used by the system.

3. Control Valve:

Function: Directs the pressurized hydraulic fluid to the appropriate hydraulic cylinders (lift, tilt, auxiliary) based on the operator's input from the control levers.

4. Hydraulic Hoses and Lines:

Function: Carry the hydraulic fluid between the pump, control valve, and cylinders. Designed to withstand high pressures.

VII. Safety and Auxiliary Components

Beyond the core functional parts, several other components contribute to safety, visibility, and operational efficiency.

1. Lights:

Function: Headlights for illumination, taillights, brake lights, and sometimes strobe lights or blue safety lights (spotting pedestrians).

2. Horn:

Function: An audible warning device.

3. Mirrors:

Function: Provide the operator with enhanced rear and side visibility, especially when reversing or maneuvering in confined spaces.

4. Seat Belt/Operator Restraint System:

Function: Crucial for operator safety in case of tip-over or sudden stops.

5. Alarms:

Function: Reversing alarms to warn pedestrians when the forklift is backing up.

6. Attachments (Optional):

Function: Specialized devices that can be mounted to the fork carriage to handle specific types of loads more efficiently.

Examples: Side shifters (move the load left or right), fork positioners (hydraulically adjust fork width), paper roll clamps, carton clamps, rotators, push/pull attachments, carpet poles, etc. These require additional hydraulic lines and controls.

Conclusion

A forklift, regardless of its power source or specific design, is a sophisticated machine built from a meticulously engineered combination of parts. From the rigid strength of its frame and counterweight to the precision of its hydraulic system and the intuitive controls of its operator's compartment, each component plays a vital role in its ability to safely and efficiently handle heavy loads.

Understanding these major parts is not merely an academic exercise. For operators, it fosters a deeper appreciation for the machine and promotes safer practices. For maintenance personnel, it's foundational knowledge for effective troubleshooting and repair. For fleet managers and purchasing agents, it enables informed decisions about machine selection, feature requirements, and total cost of ownership. The continuous evolution of forklift technology, particularly in electrification and automation, means that while the fundamental functions remain, the sophistication and integration of these major parts will continue to advance, further solidifying the forklift's indispensable role in modern industry.
