What is a fork lift truck?

The Indispensable Workhorse: Deconstructing the Fork Lift Truck

The fork lift truck, often simply referred to as a forklift, is an ubiquitous and indispensable piece of equipment in a vast array of industries, from warehousing and logistics to construction and manufacturing. This powerful yet versatile machine has revolutionized material handling, enabling the efficient and safe movement of heavy and bulky goods over short distances. While its basic function – lifting and transporting loads – seems straightforward, the engineering and operational principles behind the fork lift truck are surprisingly complex and have evolved significantly over time. This technical article delves deep into the anatomy, operational mechanics, diverse types, power sources, crucial safety considerations, and the ongoing technological advancements that define this essential workhorse of modern industry.

Anatomy of the Fork Lift Truck: Deconstructing the Machine

A fork lift truck, in its fundamental form, comprises several key components working in concert:

Mast: The vertical assembly at the front of the truck is the mast. It provides the vertical lift capability and consists of interlocking rails that allow the forks and load to be raised and lowered. Masts can be single-stage (simplex), two-stage (duplex), three-stage (triplex), or even four-stage (quad), with each configuration offering different maximum lift heights and collapsed heights.

Forks: These are the load-carrying tines that extend from the front of the truck. Typically made of high-strength steel, forks are designed to engage with pallets or other specialized attachments to lift and transport goods. They can often be adjusted laterally to accommodate different load widths.

Carriage: The carriage is the structure that supports the forks and moves up and down the mast. It provides a mounting point for the forks and often incorporates features like sideshift (lateral movement of the carriage and forks) and fork positioners (hydraulic adjustment of fork width).

Counterweight: Located at the rear of the truck, the counterweight is a heavy mass (typically cast iron or steel) that provides stability by offsetting the weight of the load being lifted. The size and weight of the counterweight are carefully calculated based on the truck's lifting capacity.

Power Source: Fork lift trucks are powered by various sources, including internal combustion (IC) engines (fueled by propane, diesel, or gasoline) or electric motors (powered by batteries). The choice of power source significantly impacts the truck's suitability for different operating environments.

Transmission: IC engine forklifts utilize transmissions (automatic or manual) to transfer power from the engine to the drive wheels, allowing for forward and reverse movement and speed control. Electric forklifts typically use electric motors directly connected to the drive wheels, with speed and direction controlled electronically.

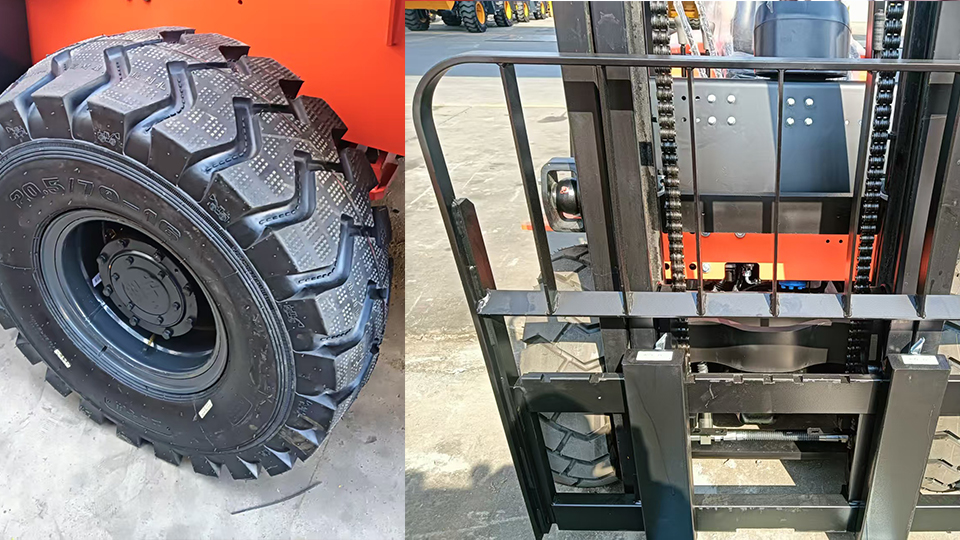

Drive Axle and Wheels: The drive axle transmits power to the wheels, enabling the truck to move. Forklifts typically have two drive wheels at the front and steerable wheels at the rear. Tire types vary depending on the application and can include pneumatic (air-filled), solid pneumatic (rubber tires with air pockets), cushion (solid rubber), or polyurethane (for smooth indoor surfaces).

Steering System: Most forklifts employ rear-wheel steering, which provides a tight turning radius and excellent maneuverability in confined spaces. Hydraulic power steering is common to reduce operator effort.

Braking System: Forklifts are equipped with service brakes (typically hydraulic) for stopping during operation and a parking brake (mechanical) to secure the truck when stationary. Regenerative braking is also common in electric forklifts, using the motor to slow down the truck and recover energy.

Hydraulic System: A hydraulic system, powered by a pump driven by the engine or an electric motor, provides the force to raise and lower the mast, tilt the forks, and operate any hydraulic attachments.

Operator Compartment: This area houses the controls necessary for operating the forklift, including the steering wheel, pedals (accelerator, brake, inching), hydraulic levers, and instrument panel displaying vital information like speed, fuel/battery level, and warning lights. An overhead guard is a crucial safety feature protecting the operator from falling objects.

Operational Mechanics: The Art of Lifting and Moving

Operating a fork lift truck involves a coordinated sequence of actions leveraging its various systems:

Approach and Engagement: The operator maneuvers the truck towards the load, aligning the forks with the openings in the pallet or the attachment points of the material.

Insertion: The forks are carefully inserted fully beneath the load.

Lifting: The hydraulic system is activated to raise the mast and carriage, lifting the load to the desired height. The operator must be mindful of the forklift's load capacity and the load center to maintain stability.

Transport: Once the load is lifted, the operator drives the forklift to the destination, adhering to safe operating speeds and being aware of potential hazards.

Lowering and Placement: At the destination, the hydraulic system is used to carefully lower the load. The operator ensures precise alignment before fully lowering the forks and disengaging from the load.

Maneuvering: The rear-wheel steering allows for tight turns and precise positioning in confined spaces, a key advantage in warehouse environments.

Diverse Types of Fork Lift Trucks: Tailored for Specific Needs

The term "fork lift truck" encompasses a wide range of specialized machines designed for various applications and environments:

Counterbalance Forklifts: The most common type, characterized by the counterweight at the rear that balances the load carried on the front forks. They offer versatility for a wide range of indoor and outdoor applications.

Internal Combustion (IC) Counterbalance: Powered by propane, diesel, or gasoline engines, suitable for outdoor or well-ventilated indoor use, offering high power and longer run times.

Electric Counterbalance: Powered by batteries, ideal for indoor use due to zero emissions and quieter operation, offering increasing power and run times with advancements in battery technology.

Reach Trucks: Designed specifically for narrow aisle warehouses, reach trucks have stabilizing outrigger legs and a mechanism that allows the forks to "reach" forward, enabling access to loads in high racking without the need for wide aisles.

Rough Terrain Forklifts: Built with large pneumatic tires and robust construction, these forklifts are designed for outdoor use on uneven and challenging terrain, commonly found in construction sites and lumberyards.

Telescopic Handlers (Telehandlers): While not strictly traditional forklifts, telehandlers feature a telescopic boom with forks or other attachments, offering significant reach and lifting height capabilities for construction, agriculture, and other applications.

Walkie Stackers and Pallet Jacks: These are pedestrian-operated machines for moving and stacking pallets at lower heights, suitable for confined spaces and shorter distances.

Order Pickers: Designed for retrieving individual items from storage locations, order pickers lift the operator to the required height for efficient order fulfillment.

Side Loaders: These forklifts carry long loads (like lumber or pipes) parallel to their direction of travel, allowing them to navigate narrow aisles and load/unload from the side.

Power Sources: Fueling the Workhorse

The choice of power source is a critical factor determining a forklift's suitability for a particular application:

Internal Combustion (IC) Engines:

Propane (LPG): A common fuel for indoor/outdoor use, offering relatively clean emissions and quick refueling.

Diesel: Primarily used for heavy-duty outdoor applications, providing high power and long run times.

Gasoline: Less common in industrial forklifts, similar to propane in terms of versatility but may have higher emissions.

Electric Motors (Battery Powered):

Lead-Acid Batteries: The traditional and more cost-effective option, requiring regular maintenance (watering) and longer recharge times.

Lithium-Ion Batteries: A newer technology offering faster charging, longer run times, minimal maintenance, and a longer lifespan, though with a higher initial cost.

Crucial Safety Considerations: Operating with Responsibility

Operating a fork lift truck inherently involves risks, making stringent safety practices paramount:

Operator Training and Certification: Only properly trained and certified personnel should operate forklifts, adhering to OSHA (in the US) or equivalent regulations.

Pre-Shift Inspections: Thorough daily inspections of the forklift before operation are essential to identify any potential mechanical issues.

Load Capacity Awareness: Never exceed the forklift's rated load capacity, which is clearly marked on the data plate. Understand how load center affects stability.

Safe Operating Speeds: Operate at safe speeds appropriate for the environment and load.

Pedestrian Safety: Be constantly aware of pedestrians in the vicinity and yield the right of way. Use horns and warning devices as necessary.

Proper Load Handling: Ensure loads are stable, evenly distributed, and securely engaged with the forks or attachments.

Awareness of Surroundings: Be mindful of overhead obstructions, doorways, and other potential hazards.

No Stunt Driving or Horseplay: Forklifts are powerful machines and should be operated responsibly.

Maintenance and Repairs: Regular maintenance and timely repairs are crucial for safe operation.

Fueling/Charging Procedures: Follow proper procedures for refueling IC forklifts or charging electric forklift batteries, ensuring adequate ventilation and safety precautions.

Use of Personal Protective Equipment (PPE): Operators may be required to wear safety shoes, high-visibility vests, and other PPE as dictated by workplace regulations.

Technological Advancements: Shaping the Future of Forklifts

The fork lift truck continues to evolve with technological advancements aimed at improving efficiency, safety, and sustainability:

Telematics and Fleet Management Systems: These systems provide real-time data on forklift usage, battery performance, maintenance needs, and operator behavior, enabling better fleet management and cost optimization.

Advanced Safety Features: Innovations like proximity sensors, anti-tip systems, and operator assistance systems are enhancing workplace safety.

Automation and AGVs (Automated Guided Vehicles): Driverless forklifts are becoming increasingly sophisticated, offering potential for increased efficiency and reduced labor costs in specific applications.

Improved Battery Technology: Ongoing advancements in lithium-ion batteries are leading to longer run times, faster charging, and increased adoption of electric forklifts.

Ergonomic Design: Manufacturers are focusing on designing operator compartments with improved comfort and reduced strain, leading to increased productivity and reduced operator fatigue.

Alternative Power Sources: Research and development into alternative power sources like hydrogen fuel cells are ongoing, offering the potential for zero-emission operation with rapid refueling.

Conclusion: The Enduring Power of the Fork Lift Truck

The fork lift truck, in its various forms and power configurations, remains an indispensable workhorse across numerous industries. Its ability to efficiently lift, transport, and stack heavy materials has fundamentally transformed logistics and material handling processes. Understanding its intricate anatomy, operational principles, diverse types, power sources, and critical safety considerations is paramount for both operators and businesses that rely on this essential equipment. As technology continues to advance, the fork lift truck will undoubtedly evolve further, becoming even more efficient, safe, and environmentally sustainable, solidifying its role as a cornerstone of modern industrial operations for years to come.
