why do forklifts produce so much noise

1. The Engine and Powertrain

The primary source of noise in a forklift, particularly internal combustion (IC) models, is the engine. Unlike the engines in passenger cars, forklift engines are often optimized for torque and durability rather than for quiet operation.

a. Internal Combustion (IC) Engines

IC forklifts use gasoline, liquid petroleum gas (LPG), or diesel fuel. These engines operate on the principle of a series of controlled explosions. The rapid combustion of fuel in cylinders creates significant pressure waves that manifest as noise.

Engine Noise: The loudest component is the engine itself. The engine's operating speed, which can vary wildly during a shift, directly affects the frequency and intensity of the noise. Forklift engines are often small but powerful, and they are usually not as acoustically insulated as car engines.

Exhaust System: The exhaust system is a major contributor to noise. While most forklifts have a muffler, it is often smaller and less sophisticated than those found in automobiles. A less restrictive muffler is sometimes used to improve engine performance by reducing backpressure, but this comes at the cost of increased noise. Worn-out or damaged mufflers and exhaust pipes can also amplify the sound.

b. Hydraulic Systems

Whether the forklift is IC or electric, the hydraulic system is a fundamental source of noise. This system is responsible for lifting, tilting, and moving the forks and mast.

Hydraulic Pump: The hydraulic pump, powered by the engine or an electric motor, draws fluid from a reservoir and pushes it through the system under high pressure. This process is inherently noisy. The meshing of gears or the action of the pistons inside the pump creates a high-pitched whine or a distinct mechanical hum. The noise is often a function of the pump's rotational speed, increasing in volume as the operator lifts a heavier load.

Fluid Flow: The high-pressure hydraulic fluid flowing through hoses, valves, and cylinders produces turbulence. This turbulence, especially as the fluid changes direction or passes through constrictions, generates audible noise. A sudden activation of the lift lever can cause a rush of fluid and a sudden surge in sound.

Relief Valves: Hydraulic systems are equipped with relief valves to prevent over-pressurization. When a load exceeds the system's capacity, or when the operator attempts to lift a load beyond the maximum height, the relief valve opens to vent excess pressure. This process is often accompanied by a loud, hissing sound as the fluid is bypassed back to the reservoir.

2. The Drivetrain and Transmission

Unlike a car with multiple gears to match engine speed to road speed, a forklift’s transmission is designed for low-speed, high-torque operations.

Fixed-Gear or Single-Speed Transmissions: Many forklifts, particularly electric models, use fixed-gear or single-speed transmissions. This design simplifies operation but often requires the motor or engine to work harder and at higher RPMs to achieve the necessary torque, which can increase noise.

Gears and Chains: The gears, chains, and sprockets in the drivetrain are in constant motion. The meshing of metal teeth, the clanking of a chain, and the friction between moving parts all contribute to a significant amount of mechanical noise. Over time, as these components wear, the clearances between them can increase, leading to a louder, more jarring sound.

3. The Forks, Mast, and Load

The core function of a forklift—lifting and moving heavy loads—is a major source of noise.

Mast and Carriage: The mast is the vertical assembly that lifts the forks. It consists of multiple nested rails, chains, and rollers. As the operator raises or lowers the forks, the rollers travel along the mast's channels. The movement of the rollers and the tension in the chains produce a distinct rattling and clanking sound. Heavier loads put more stress on the mast, amplifying this noise.

Load Noise: The load itself can be a source of noise. Pallets may be old, warped, or contain loose boards that rattle and creak as they are lifted. Items stacked on the pallet can shift and clatter against each other. The forks themselves can vibrate against the pallet.

Abrupt Movements: When an operator abruptly lifts a load or lowers it too quickly, the sudden release of hydraulic pressure and the rapid movement of the mast and forks produce a loud, sharp sound.

4. Tires, Brakes, and Ground Interaction

The interaction between the forklift and the ground is another significant source of noise.

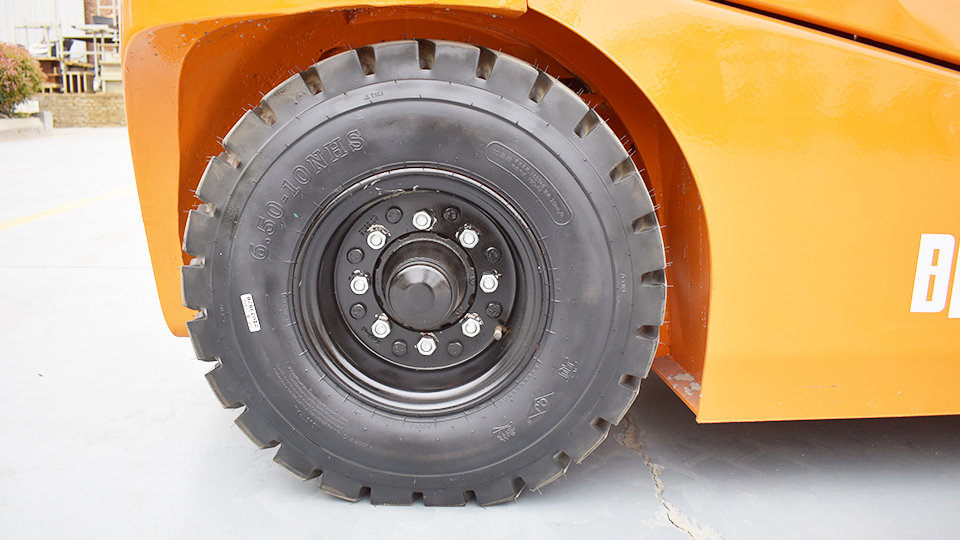

Solid vs. Pneumatic Tires: Many forklifts use solid rubber tires, which provide stability and are puncture-proof. However, these tires offer very little cushioning. Unlike pneumatic tires that absorb vibrations, solid tires transfer every bump and crack in the floor directly into the chassis. This vibration can cause various components to rattle and resonate.

Surface Resonance: The hard rubber tires on a smooth concrete warehouse floor can generate a high-pitched squeal, particularly during tight turns. The concrete floor itself can act as a soundboard, amplifying the noise and reflecting it throughout the space.

Braking: The braking system, particularly the drum brakes commonly used in forklifts, can produce a loud squeal or grinding sound. This can be caused by worn brake pads, uneven braking surfaces, or the presence of dirt and dust.

5. Acoustic Challenges and Solutions

The high noise output of forklifts is a serious occupational health issue. Prolonged exposure to noise levels above 85 decibels (dBA) can cause permanent hearing damage.

Occupational Health Standards: Regulatory bodies like the Occupational Safety and Health Administration (OSHA) and the National Institute for Occupational Safety and Health (NIOSH) set standards for noise exposure in the workplace. Many forklifts, particularly older models, can exceed these limits.

Noise Reduction Strategies:

Electric Forklifts: The simplest solution is the use of electric forklifts, which have no IC engine. The primary sources of noise in an electric model are the electric motor, the hydraulic pump, and the mechanical components of the mast. While not silent, they are significantly quieter than their IC counterparts.

Improved Acoustics: Modern forklifts are designed with better acoustic insulation in the engine compartment and more advanced mufflers.

Maintenance: Regular maintenance is crucial. Lubricating chains and rollers, replacing worn hydraulic pumps and gears, and ensuring brakes are in good condition can significantly reduce noise levels.

Operational Practices: Training operators to avoid abrupt starts, stops, and lifts can also mitigate noise.

Conclusion

The noise produced by forklifts is a complex issue stemming from the very nature of their design and function. From the explosive power of an internal combustion engine to the high-pressure hydraulics and the mechanical rattling of the mast, every component contributes to the overall noise level. While technological advancements in electric forklifts and better acoustic engineering are making newer models quieter, the inherent demands of lifting heavy loads will always mean that forklifts will generate a significant amount of operational noise. Addressing this issue is not just about comfort; it's a critical component of ensuring a safer and healthier working environment for millions of people worldwide.
