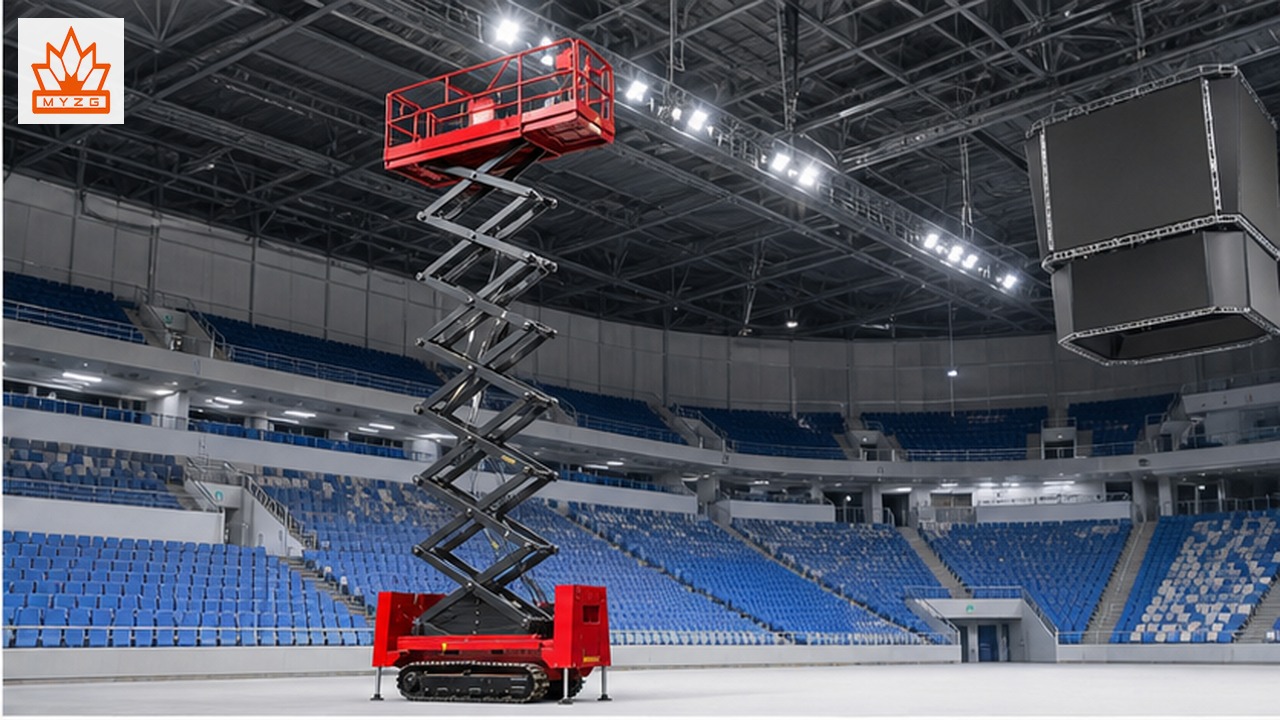

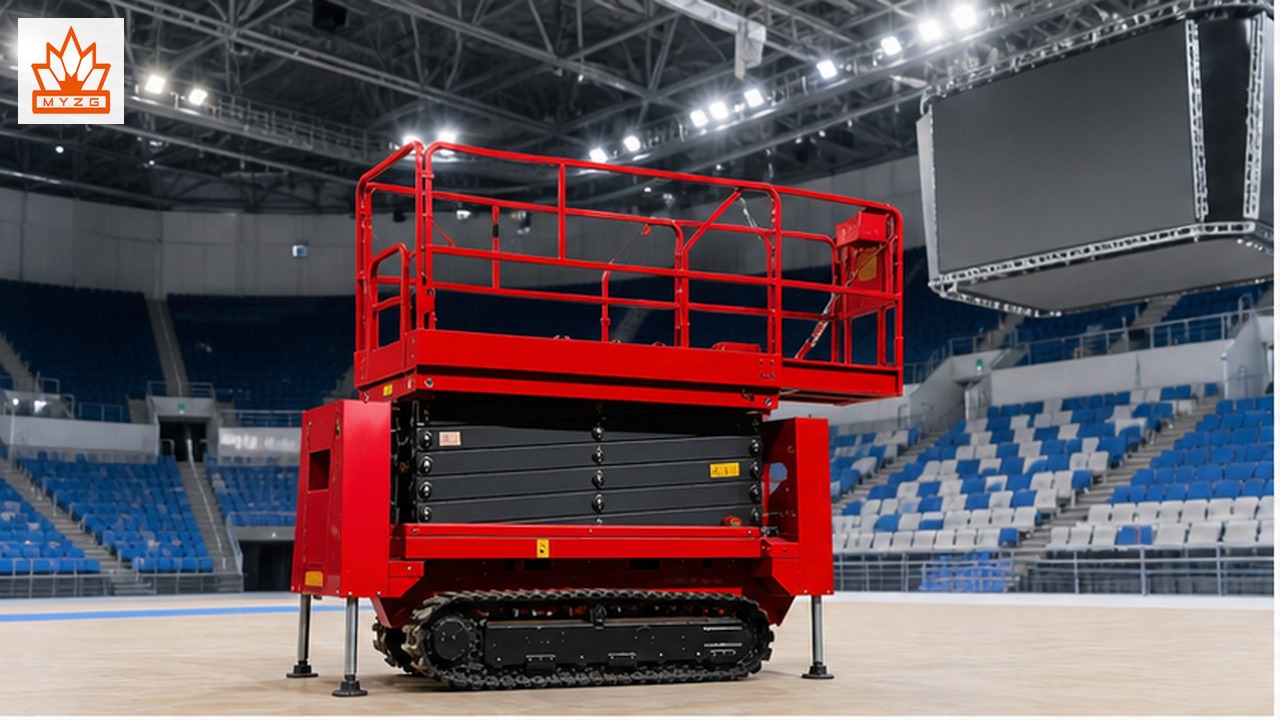

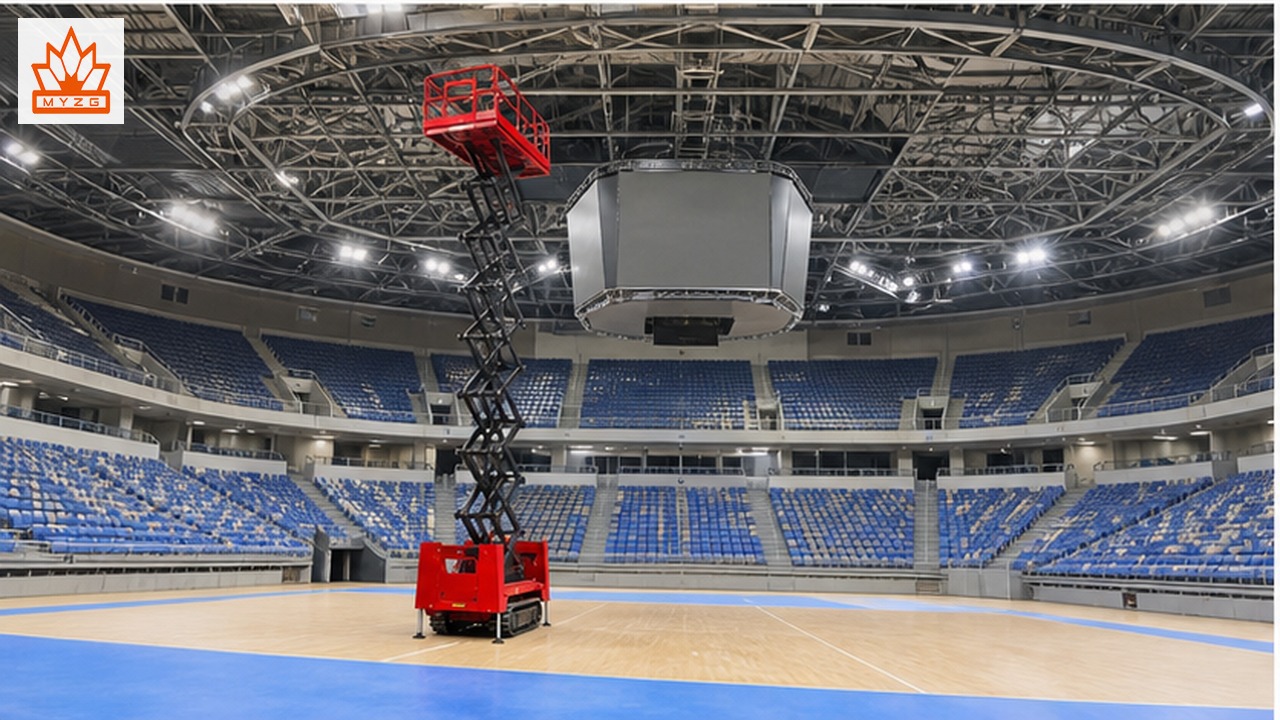

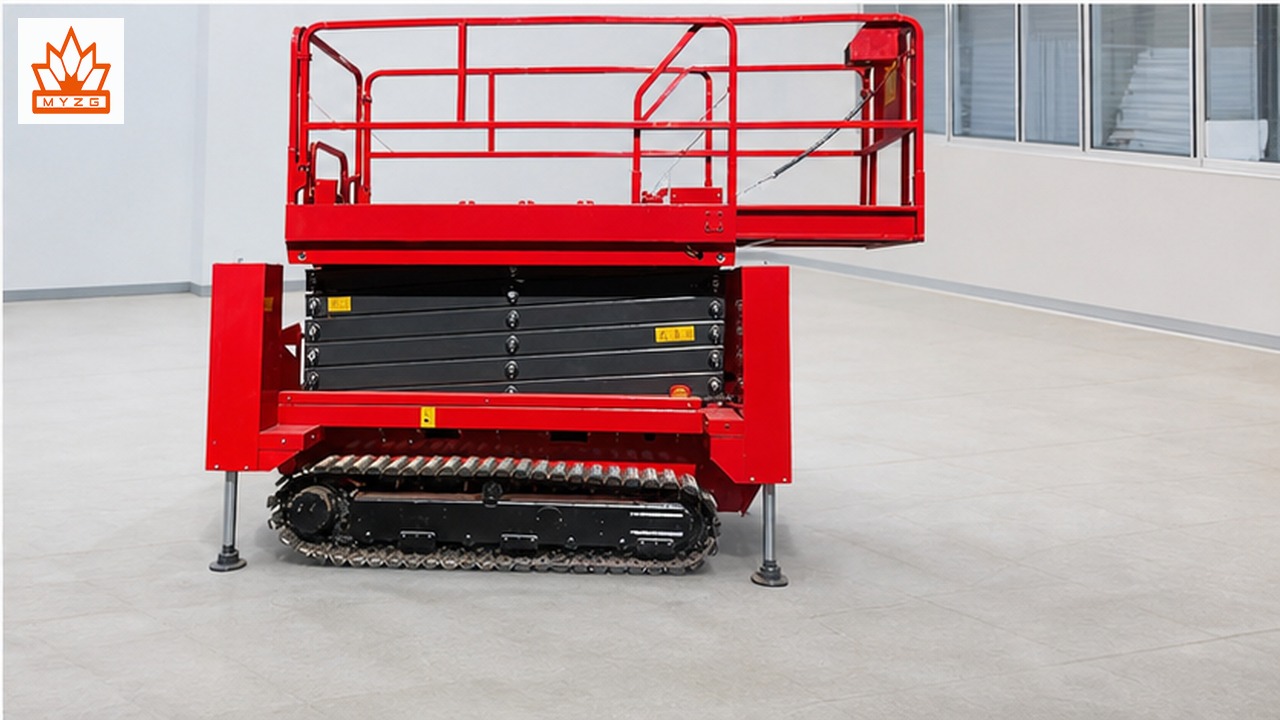

GTJZ3812E-X Electric Scissor Lift for Data Center and Warehouse Sensor Maintenance

The GTJZ3812E-X electric self-propelled scissor lift is presented for data-center and automated-warehouse sensor maintenance. ZGFORKLIFT / MYZG recommends selecting the machine from a documented task, access-route, surface, power, environment and rescue review. This application page supports purchasing decisions without replacing the quotation, data plate, instruction manual, site risk assessment or local work-at-height requirements.

Customer need and application solution

Connected facilities need controlled access to cameras, network points, lighting, fire systems, cable trays and high-bay sensors without disrupting automated traffic or critical operations. An electric scissor lift can support precise indoor positioning on approved floors, but the route, floor loading, entrapment points, energy isolation and rescue plan must be designed before work begins.

The buyer should map the complete job rather than selecting only by a headline working height. Record the task point, operator reach, carried tools, route restrictions, floor or ground condition, nearby traffic, overhead hazards, allowable shutdown window and method for emergency lowering. This turns a general product inquiry into a configuration that purchasing, safety, operations and maintenance teams can review together.

Confirmed product-family context

The existing GTJZ3812E-X source page identifies an electric scissor-lift model and provides application-led selection context. This new page does not copy unsupported numerical claims from other configurations. Platform height, working height, rated load, extension-deck capacity, dimensions, turning space, machine weight, battery, charger, tire type and travel rules must be confirmed for the exact ordered machine.

Review the Aerial Platforms category, the All Products catalog, and the GTJZ3812E-X source product page. The source page is used only to identify the real website product family; final specifications and compliance documentation remain order-specific.

Procurement guide: define measurable requirements

Height and work envelope: separate platform height, working height and building height. Include ceilings, beams, racks, pipes, sprinklers, signs and other obstructions. Choose a platform that places the task within a normal working position without ladders, boxes or rail climbing.

Useful platform load: total every occupant, tool, replacement part, test device and consumable. Confirm the main-deck and extension-deck limits separately where an extension is fitted. Do not treat an access platform as a crane or allow suspended, side or rail loads unless an approved configuration and procedure expressly permit them.

Route and setup: measure unloading space, gates, doors, elevators, ramps, turns, floor transitions and the narrowest point. Record the stowed-height restriction and any overhead entrapment point. A lift that reaches the task but cannot safely travel to or set up at the work point is not the correct selection.

Surface and environment: verify floor loading, levelness, traction, drainage, edges, covers and hidden voids. Record temperature, moisture, dust, corrosion, wind exposure and cleaning rules. Obtain competent engineering review where the supporting surface is uncertain.

Energy and duty cycle: provide travel distance, lift cycles, shift length, charging window, ambient temperature and destination power supply. Battery, charger, cable and plug configuration must be confirmed for the ordered unit instead of inferred from a different model or market.

Compare platform types before ordering

Compare the electric scissor lift platform for firm-floor vertical access and the ZG-YY rough-terrain scissor lift family for a different outdoor duty profile. A boom lift may be more suitable when horizontal outreach or obstacle clearance is essential, while a mast lift can be more compact for controlled point access. Selection must follow the real route and task rather than product appearance.

Compare working and platform height, rated capacity, extension-deck rating, stowed dimensions, total machine mass, point loading, gradeability, turning method, tire or caster type, stabilizer procedure, wind limits, battery endurance, transport requirements, emergency controls and service access. The best value is the smallest suitable machine that safely completes the documented duty, not automatically the largest platform.

Worksite planning, traffic control and rescue

Create an exclusion zone around the machine and below the elevated work area. Separate the lift from forklifts, trucks, robots, conveyors, doors and pedestrians. Identify overhead conductors, energized equipment, fragile ceilings, openings and moving machinery. A trained ground person must understand communication, emergency stop, emergency lowering and the site rescue plan before elevation begins.

Before each shift, inspect tires, wheel fasteners, drive and brake functions, chassis, scissor arms, pins, wear pads, hydraulic hoses and cylinders, guardrails, gate, extension deck, controls, alarms, emergency stop, emergency lowering, battery connections and visible structural damage. Test functions in a clear area at low height before entering a robot or conveyor zone.

Keep occupants inside the guardrails with both feet on the deck. Secure tools and materials, respect the approved occupant and load limits, and follow the delivered rules for travel or repositioning. Stop work when surface condition, traffic, visibility, weather, temperature, alarms or machine behavior moves outside the approved operating envelope.

Industry application planning

For data-center and automated-warehouse sensor maintenance, schedule elevated work around people, production and vehicle movement. Mark the approach route, setup point, exclusion boundary and emergency-control access. Coordinate isolation of nearby energy sources and equipment before the platform enters the zone, then restore the area only after tools, barriers and the machine are removed.

The article on pre-winter facility checks and lift-platform access provides additional seasonal and facility-planning ideas. It is supporting information only; the exact machine manual, site assessment, trained supervision and applicable local regulations remain controlling.

Maintenance and lifecycle management

Keep wheels, sensors, controls and electrical enclosures free of dust, cable ties and packaging film. Inspect scissor pivots, platform rollers, drive wheels, brakes, hydraulic lines, battery restraints, charger connections and control cables at the intervals stated in the delivered manual. Coordinate service with facility change control so that access equipment does not introduce unapproved materials or interfere with critical infrastructure.

Maintain a service record with machine identification, date, operating hours or cycles where available, reported fault, diagnosis, parts used, inspection result and return-to-service approval. Isolate any fault affecting stability, control, braking, lifting, lowering, guarding or emergency functions until qualified repair and release.

Dealers and fleet owners should plan common wear items, charging components and diagnostic support around local duty and lead time. Review the parts and dealer support page and include the model, serial information, configuration, fault history and photographs with every technical or parts request.

Dealer business, demonstrations and fleet support

Dealers should qualify each inquiry with a standard application questionnaire, then record the offered configuration and exclusions in writing. A controlled demonstration should reproduce the representative route, doorway, turning point, floor and work height without exposing visitors or production. Handover should cover inspection, controls, emergency lowering, charging, parking, defect reporting and the boundaries of the selected configuration.

Rental fleets should track utilization, battery condition, impacts, alarms, hydraulic leaks, repeated faults and customer duty. Standardized inspection forms and serial-number records make equipment rotation and parts planning more reliable. Cooperation cases should be discussed only when customer permission and verifiable details are available; this page does not invent customers, project volumes or performance results.

Export procurement, CE and EPA considerations

For export orders, confirm the exact configuration, power system, battery and charger or supply connection, labels, manuals, packing method, shipping dimensions, destination voltage and import rules before contract. Request written packing and document lists so that the consignee, customs broker, dealer and service team are aligned before shipment.

Where CE documentation is required, request and verify the declaration and supporting documents for the exact supplied machine and destination. EPA engine-emissions certification is generally not applicable to an electrically powered lift without a combustion engine, but the actual power configuration must be confirmed. Electrical, machinery, workplace, battery-transport and import requirements may still apply. No unverified certificate, test result, export volume, delivery record or customer case is claimed here.

Support from ZGFORKLIFT / MYZG

Shandong Zhuogong Machinery Equipment Co., Ltd. can review buyer-provided application data, discuss the available configuration and coordinate product, documentation, packing, commissioning and parts questions for the proposed order. Final specifications, optional equipment, compliance documents, warranty scope, lead time and commercial terms must be confirmed in the quotation or technical agreement.

Request a GTJZ3812E-X application review

Send the required platform and working height, total platform load, number of occupants, aisle and doorway measurements, turning space, floor loading, autonomous-vehicle interfaces, overhead obstructions, shift hours, charging supply, destination and service expectations. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. at vip@mingyuforklift.com or +86-0535-2090977, or use the contact and inquiry page. Include “GTJZ3812E-X electric self-propelled scissor lift” so the complete application can be reviewed together.
