SaudiFood Manufacturing 2026: Diesel Forklifts at Automated Pallet-Line Yard Interfaces

Published: September 28, 2026

HTML Meta Description: Diesel forklift planning for food-manufacturing yards, automated pallet lines, outdoor loads, controlled handoffs and service continuity.

Keywords: diesel forklift, SaudiFood Manufacturing 2026, food factory logistics, automated pallet line, yard interface, outdoor forklift, pallet conveyor handoff, ZGFORKLIFT, MYZG, industrial logistics

SaudiFood Manufacturing runs September 27-29, 2026, as food plants examine conveyors, AGVs and AMRs that can reduce forklift traffic inside controlled production areas. Diesel forklifts still have a defined role at the outdoor edge, where trucks, uneven aprons and heavy process equipment must connect safely to a forklift-free automated pallet line.

Start with a documented task and route survey. Record the narrowest aisle and turn, doorway and gate width, overhead clearance, maximum gradient, dock edges and the worst surface condition. Measure real loads at their actual load centers, including long, offset or irregular items. Nameplate capacity is only a starting point; residual capacity at the required height and with the selected attachment determines practical application fit.

Why this topic matters now

Automation can remove repetitive indoor travel, but the yard remains exposed to heat, dust, trailer variation and irregular loads. The interface should make the boundary explicit so a diesel forklift never enters a protected automated zone without authorization.

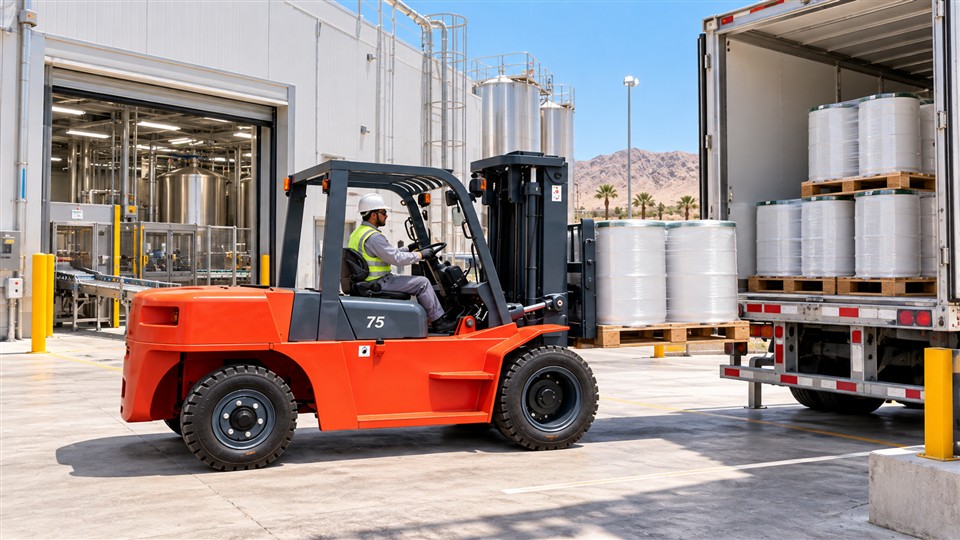

Review the CPCD30K 3-ton diesel forklift as the first product reference, then confirm current specifications with the manufacturer.

Configuration priorities

Measure load center, attachment weight, residual capacity, gradients, apron strength, cooling demand, turning room and mast clearance. Define a stable pallet-transfer position that matches conveyor height and guarding.

Visibility and control deserve the same attention as capacity. Review the mast, carriage, tyres or wheels, lighting, mirrors or cameras, restraint, warning devices and speed management as one system. Dust, cold, heat, moisture and corrosion may require extra protection and shorter inspection intervals. Operators must see the travel path and place the load without leaving the protected operating position.

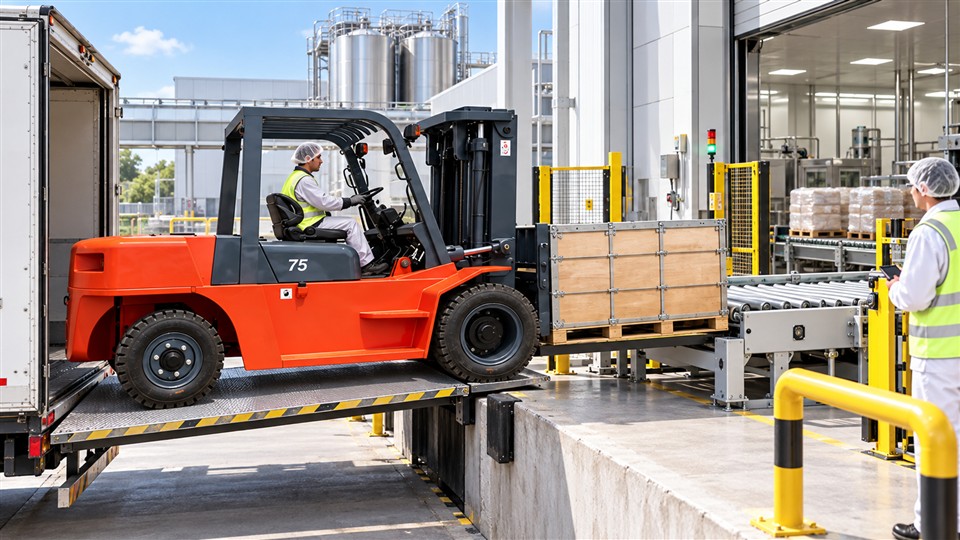

Compare the CPCD50K 5-ton diesel forklift for a second view of capacity, manoeuvrability, energy and service access.

Safety and daily control

Separate pedestrians, use spotters for blind loads, inspect tyres and brakes and refuel only in an approved area. Interlock or physically protect the conveyor transfer point and stop when a pallet is damaged or misaligned.

Create a written operating envelope for every approved route: maximum load and lift height, travel direction, pedestrian exclusion points, slope rules and stop-work conditions. Complete a pre-shift inspection of tyres or wheels, forks, chains, hoses, brakes, steering, alarms and the energy or fuel system. Isolate defects affecting stability, braking or visibility until corrected.

Supervisors should observe real work, record near misses, harsh braking, overload attempts, impacts and recurring service issues, then improve layout, traffic separation and coaching. Build the business case around productive hours rather than purchase price alone. Include operator time, maintenance, energy or fuel, infrastructure, transport, downtime risk and resale value.

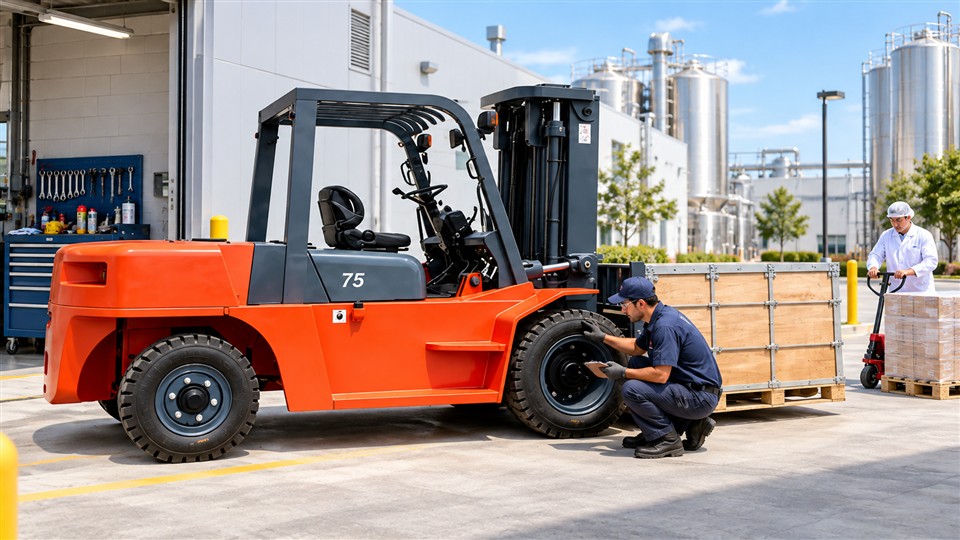

The CPC190-X diesel forklift is the third internal product reference for application comparison.

Fleet planning and total cost

Track fuel, idling, tyre wear, service travel, rehandles, damage and truck delay. Right-sizing the outdoor unit and holding critical parts can be more valuable than excess nominal capacity.

A staged trial is the strongest way to validate a configuration. Select a representative route, define success measures, brief operators and compare throughput, energy use, handling accuracy and maintenance observations. Review results with operations, safety and finance before fleet-wide deployment. This evidence turns a current industry headline into a defensible material-handling plan.

Implementation checklist

• Document load weight, dimensions, load center and attachment requirements.
• Survey aisle width, turns, gradients, surface condition and overhead limits.
• Confirm residual capacity at the required lift height.
• Plan pedestrian separation, speed zones and emergency procedures.
• Match service intervals and spare-parts support to the duty cycle.
• Train and authorize operators for the specific machine and workplace.
• Record trial data and total cost before scaling the fleet.

ZGFORKLIFT and MYZG can tailor the final specification after reviewing the application. Product availability varies by market; confirm the latest technical data and comply with local regulations before purchase or operation.

Contact ZGFORKLIFT / MYZG

Contact Shandong Zhuogong Machinery equipment Co.,Ltd. Email: vip@mingyuforklift.com. Tel: +86-0535-2090977. WhatsApp: +86 131 8160 2336. Address: Xiaqiu Town, Laizhou, Yantai City, Shandong Province, China.

Send the maximum load, load-center distance, aisle width, gradient, surface condition, daily duty hours and climate so MYZG engineers can recommend a practical configuration instead of a generic catalogue answer.
