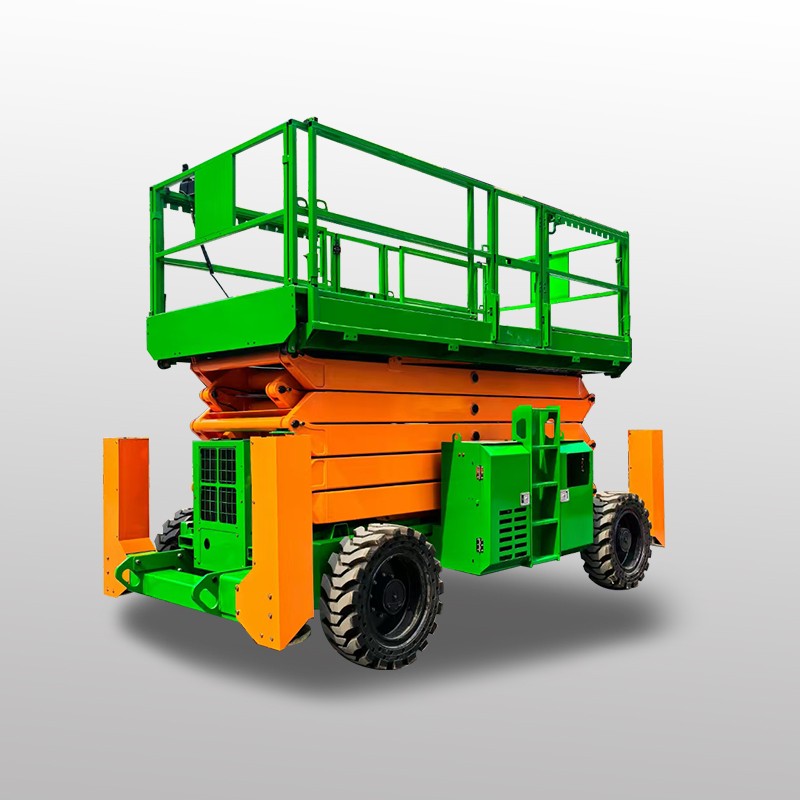

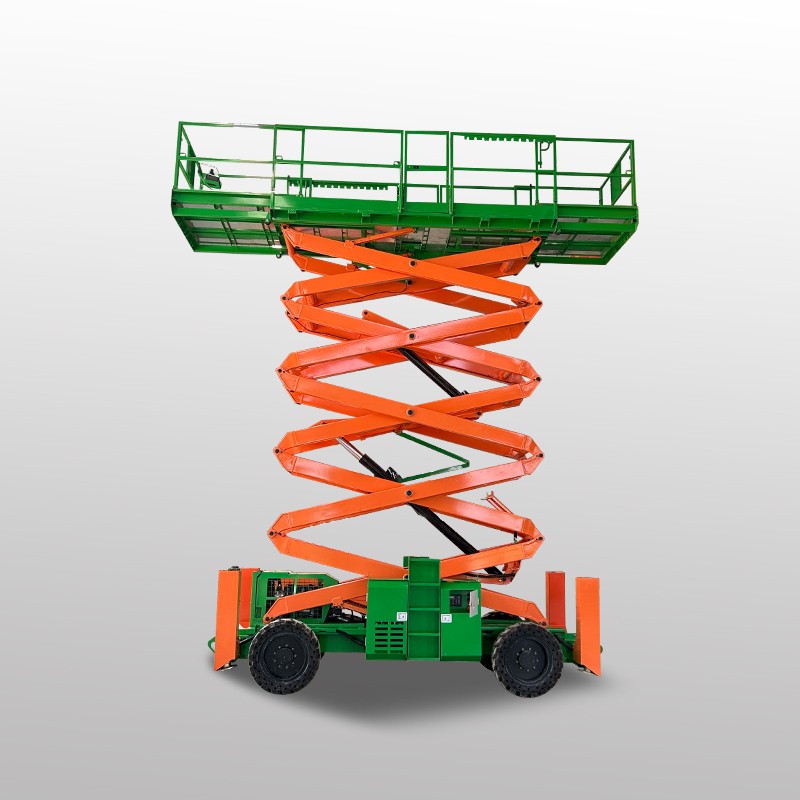

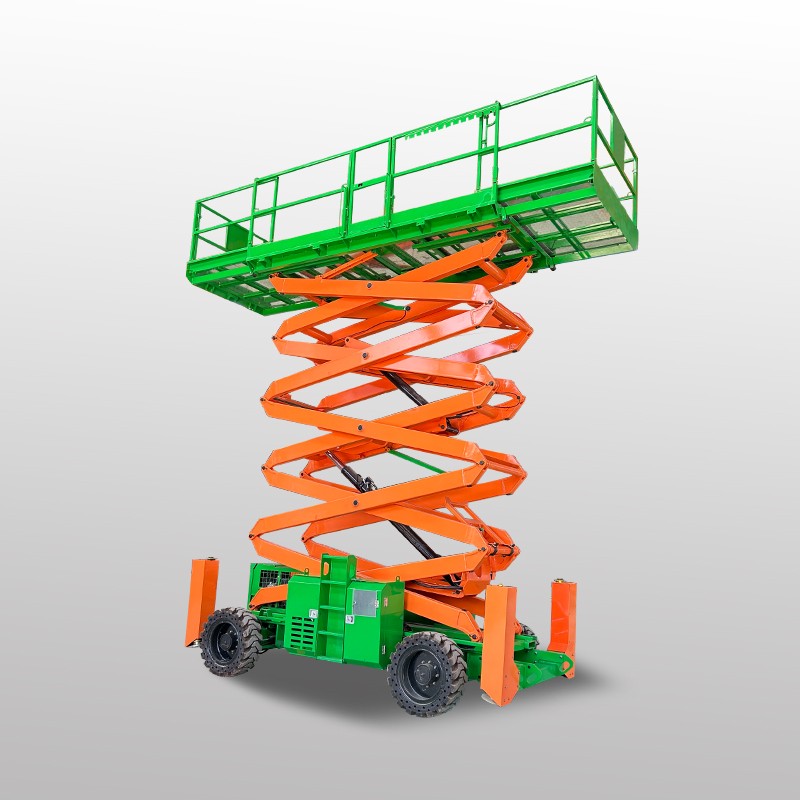

ZG-YY-18.2M Rough-Terrain Scissor Lift for Large Construction and Energy Projects

The ZG-YY-18.2M diesel rough-terrain scissor lift is presented for large construction, precast-installation and energy-project site access. ZGFORKLIFT / MYZG recommends selecting the machine from a documented task, access-route, surface, power, environment and rescue review. This application page supports purchasing decisions without replacing the quotation, data plate, instruction manual, site risk assessment or local work-at-height requirements.

Customer need and application solution

Large outdoor projects need elevated access for structural inspection, mechanical installation, cladding, cable routes and plant maintenance over demanding site surfaces. A rough-terrain scissor lift can provide a large vertical work platform where the assessed ground, access route, wind conditions and transport plan suit the machine, but it must not be selected only by maximum height or tire size.

The buyer should map the complete job rather than selecting only by a headline working height. Record the task point, operator reach, carried tools, route restrictions, floor or ground condition, nearby traffic, overhead hazards, allowable shutdown window and method for emergency lowering. This turns a general product inquiry into a configuration that purchasing, safety, operations and maintenance teams can review together.

Confirmed product-family context

The official ZG-YY family page lists an 18.2 m maximum working-height configuration with a 16.2 m maximum platform-height reference, 4WD and 2WS family drive context, and a 680 kg rated-load reference for the listed high configurations. These values must be confirmed for the exact ordered ZG-YY-18.2M machine together with dimensions, weight, engine, emissions documentation, platform extension, gradeability, wind rating and travel rules.

Review the Aerial Platforms category, the All Products catalog, the broader equipment range, and the ZG-YY rough-terrain scissor lift family page. The source page is used only to identify the real website product family; final specifications and compliance documentation remain order-specific.

Procurement guide: define measurable requirements

Height and work envelope: separate platform height, working height and building height. Include ceilings, beams, racks, pipes, sprinklers, signs and other obstructions. Choose a platform that places the task within a normal working position without ladders, boxes or rail climbing.

Useful platform load: total every occupant, tool, replacement part, test device and consumable. Confirm the main-deck and extension-deck limits separately where an extension is fitted. Do not treat an access platform as a crane or allow suspended, side or rail loads unless an approved configuration and procedure expressly permit them.

Route and setup: measure unloading space, gates, doors, elevators, ramps, turns, floor transitions and the narrowest point. Record the stowed-height restriction and any overhead entrapment point. A lift that reaches the task but cannot safely travel to or set up at the work point is not the correct selection.

Surface and environment: verify floor loading, levelness, traction, drainage, edges, covers and hidden voids. Record temperature, moisture, dust, corrosion, wind exposure and cleaning rules. Obtain competent engineering review where the supporting surface is uncertain.

Energy and duty cycle: provide travel distance, lift cycles, shift length, charging window, ambient temperature and destination power supply. Battery, charger, cable and plug configuration must be confirmed for the ordered unit instead of inferred from a different model or market.

Compare platform types before ordering

Compare the electric scissor lift platform for firm-floor vertical access and the ZG-YY rough-terrain scissor lift family for a different outdoor duty profile. A boom lift may be more suitable when horizontal outreach or obstacle clearance is essential, while a mast lift can be more compact for controlled point access. Selection must follow the real route and task rather than product appearance.

Compare working and platform height, rated capacity, extension-deck rating, stowed dimensions, total machine mass, point loading, gradeability, turning method, tire or caster type, stabilizer procedure, wind limits, battery endurance, transport requirements, emergency controls and service access. The best value is the smallest suitable machine that safely completes the documented duty, not automatically the largest platform.

Worksite planning, traffic control and rescue

Create an exclusion zone around the machine and below the elevated work area. Separate the lift from forklifts, trucks, robots, conveyors, doors and pedestrians. Identify overhead conductors, energized equipment, fragile ceilings, openings and moving machinery. A trained ground person must understand communication, emergency stop, emergency lowering and the site rescue plan before elevation begins.

Before each shift, inspect rough-terrain tires, wheel fasteners, steering, drive and brake functions, chassis, axle or oscillation system where fitted, scissor arms, pins, fasteners, hydraulic hoses and cylinders, guardrails, gate, extension deck, controls, alarms, emergency stop, emergency lowering, engine compartment and visible structural damage. Test functions in a clear controlled area before entering the work zone.

Keep occupants inside the guardrails with both feet on the deck. Secure tools and materials, respect the approved occupant and load limits, and follow the delivered rules for travel or repositioning. Stop work when surface condition, traffic, visibility, weather, temperature, alarms or machine behavior moves outside the approved operating envelope.

Industry application planning

For large construction, precast-installation and energy-project site access, schedule elevated work around people, production and vehicle movement. Mark the approach route, setup point, exclusion boundary and emergency-control access. Coordinate isolation of nearby energy sources and equipment before the platform enters the zone, then restore the area only after tools, barriers and the machine are removed.

The article on pre-winter facility checks and lift-platform access provides additional seasonal and facility-planning ideas. It is supporting information only; the exact machine manual, site assessment, trained supervision and applicable local regulations remain controlling.

Maintenance and lifecycle management

Clean mud, aggregate, concrete residue and site debris without forcing water into electrical or engine components. Inspect tires, steering joints, drive system, brakes, scissor pivots, platform rollers, hydraulic lines, filters, cooling system, fuel system, extension mechanisms and control cables at the intervals stated in the delivered manual. Track engine hours, operating cycles and site severity when planning service.

Maintain a service record with machine identification, date, operating hours or cycles where available, reported fault, diagnosis, parts used, inspection result and return-to-service approval. Isolate any fault affecting stability, control, braking, lifting, lowering, guarding or emergency functions until qualified repair and release.

Dealers and fleet owners should plan common wear items, charging components and diagnostic support around local duty and lead time. Review the parts and dealer support page and include the model, serial information, configuration, fault history and photographs with every technical or parts request.

Dealer business, demonstrations and fleet support

Dealers should qualify each inquiry with a standard application questionnaire, then record the offered configuration and exclusions in writing. A controlled demonstration should reproduce the representative route, doorway, turning point, floor and work height without exposing visitors or production. Handover should cover inspection, controls, emergency lowering, charging, parking, defect reporting and the boundaries of the selected configuration.

Rental fleets should track utilization, battery condition, impacts, alarms, hydraulic leaks, repeated faults and customer duty. Standardized inspection forms and serial-number records make equipment rotation and parts planning more reliable. Cooperation cases should be discussed only when customer permission and verifiable details are available; this page does not invent customers, project volumes or performance results.

Export procurement, CE and EPA considerations

For export orders, confirm the exact configuration, power system, battery and charger or supply connection, labels, manuals, packing method, shipping dimensions, destination voltage and import rules before contract. Request written packing and document lists so that the consignee, customs broker, dealer and service team are aligned before shipment.

Where CE documentation is required, request and verify the declaration and supporting documents for the exact supplied machine and destination. EPA engine-emissions certification is generally not applicable to an electrically powered lift without a combustion engine, but the actual power configuration must be confirmed. Electrical, machinery, workplace, battery-transport and import requirements may still apply. No unverified certificate, test result, export volume, delivery record or customer case is claimed here.

Support from ZGFORKLIFT / MYZG

Shandong Zhuogong Machinery Equipment Co., Ltd. can review buyer-provided application data, discuss the available configuration and coordinate product, documentation, packing, commissioning and parts questions for the proposed order. Final specifications, optional equipment, compliance documents, warranty scope, lead time and commercial terms must be confirmed in the quotation or technical agreement.

Request a ZG-YY-18.2M application review

Send the required 18.2 m working-height application data, total platform load, occupants, ground and route photographs, bearing-capacity assessment, slopes, wind exposure, transport restrictions, engine and destination-emissions requirements, work hours and service expectations. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. at vip@mingyuforklift.com or +86-0535-2090977, or use the contact and inquiry page. Include “ZG-YY-18.2M diesel rough-terrain scissor lift” so the complete application can be reviewed together.
