��️ The Powered Industrial Truck: A Technical Deep Dive into the Forklift

I. Introduction: Defining the Workhorse of Modern Logistics

II. The forklift truck, or Powered Industrial Truck (PIT) as it is formally known, is an indispensable piece of material handling equipment that forms the backbone of global logistics, warehousing, and manufacturing.1 Far more than a simple lifting mechanism, the modern forklift is a complex, engineered machine designed to lift, move, and stack heavy, palletized, or unpalletized loads over short distances.2 Its invention fundamentally changed material flow, dramatically increasing storage density and operational efficiency in industrial environments.

Technically, a forklift is defined as a self-propelled machine featuring a power-operated fork or platform capable of raising and lowering loads.3 Its primary function is based on the principle of a first-class lever, where a substantial counterweight balances the load placed on the forks (the resistance) across a fulcrum point (the front axle).4

The spectrum of forklifts is vast, ranging from pedestrian-controlled electric pallet jacks to massive, internal combustion-powered container handlers.5 However, all share a common engineering lineage focused on two critical parameters: load capacity and stability. Every design detail, from the rear-wheel steering for maneuverability to the hydraulic mast system for precision, is optimized to safely manage the dynamic forces inherent in lifting and transporting heavy objects. This article will dissect the essential components, explore the various classifications, and explain the core physics that govern the safe operation of this omnipresent industrial vehicle.

II. Anatomy of the Forklift Truck: Key Technical Components (Approx. 400 words)

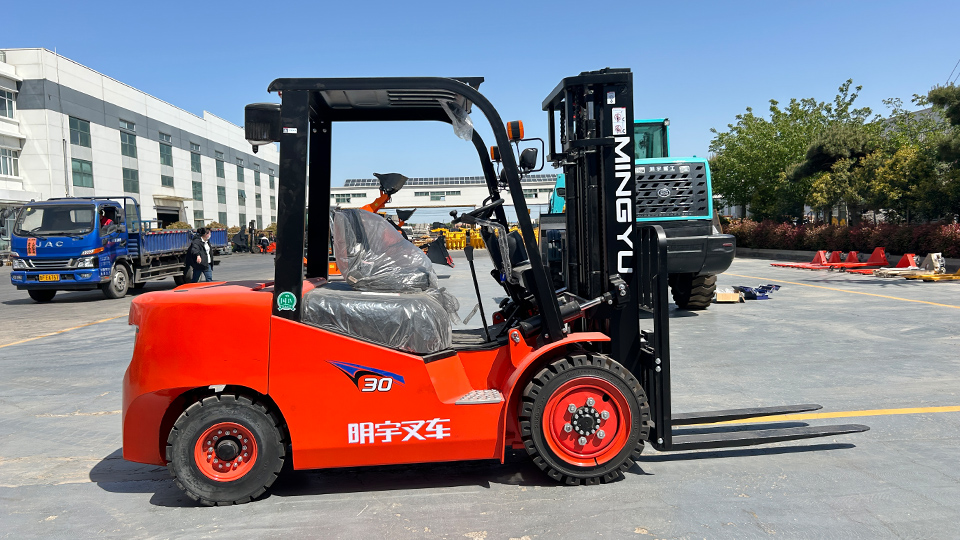

A standard counterbalanced forklift is a highly integrated machine composed of three primary structural systems: the Chassis/Frame, the Power System, and the Load-Handling System (Mast Assembly).6

A. The Chassis and Frame

The Truck Frame is the core structural integrity of the machine, analogous to a vehicle’s chassis.7 It houses the engine/battery, the axles, and provides the mounting points for all other major assemblies.

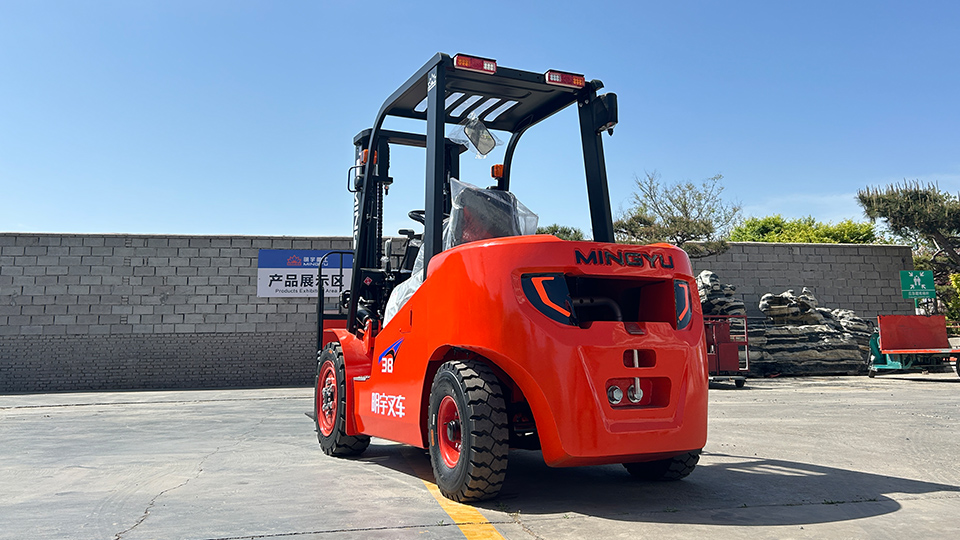

Counterweight: This is a heavy, integrated mass (often cast iron or, in electric models, the battery itself) attached to the rear of the frame.8 Its sole, critical purpose is to counteract the moment generated by the load being carried forward of the front axle.9

Overhead Guard (FOPS): The Falling Object Protective Structure is a robust metal cage roof supported by posts, mandated by regulatory bodies like OSHA, to protect the operator from falling debris during stacking operations.10

Operator Cab: Contains all the essential controls, including the steering wheel (typically controlling the rear axle), accelerator/brake pedals, and hydraulic levers for lift/tilt/side-shift functions.11

B. The Power System

Forklifts are predominantly powered by two main types of systems, each suited for different environments:

Internal Combustion (IC) Engine: Used for heavier-duty and outdoor applications. These engines run on Diesel, Gasoline, or more commonly, Liquid Propane Gas (LPG) or Compressed Natural Gas (CNG).12 They provide high power output and rapid refueling but produce exhaust emissions.

Electric Motor & Battery: Preferred for indoor, warehouse, and cold-storage environments due to zero tailpipe emissions, quiet operation, and lower maintenance costs.13 They rely on high-capacity lead-acid or modern lithium-ion batteries, which often contribute significantly to the counterweight mass.14 Propulsion and hydraulics are typically powered by high-efficiency AC (Alternating Current) or DC (Direct Current) motors managed by complex electronic controllers.

C. The Load-Handling System (Mast Assembly)

This is the complex hydraulic system responsible for engaging, lifting, and stabilizing the load.15

Mast: The vertical assembly made of interlocking steel channels (rails).16

Simplex, Duplex, Triplex, and Quadplex Masts: These terms denote the number of telescoping stages.17 A Triplex mast, for instance, uses three stages to achieve maximum lift height while maintaining a lower overall collapsed height (crucial for passing through doors).18

Hydraulic Cylinders:

Lift Cylinder: A primary, often multi-stage, hydraulic cylinder driven by pressurized fluid from the pump, responsible for the vertical movement of the carriage and forks via roller chains.19

Tilt Cylinders: Smaller cylinders that pivot the entire mast assembly forward (for pickup/deposit) and backward (mast back-tilt) to stabilize the load during travel.20

Carriage: The platform mounted to the mast rails that moves vertically.21 Forks are attached to the carriage.22

Forks (Tines): The L-shaped steel blades that slide beneath the load or pallet.23 They are adjustable laterally to accommodate various load widths.24

Load Backrest: A rack-like extension of the carriage that prevents the load from shifting backward toward the mast when the load is elevated.25

III. Operational Physics: The Stability Triangle (Approx. 450 words)

The single most critical technical principle governing a forklift’s design and safe operation is the Stability Triangle. Unlike an automobile, which is generally a static-stable four-point platform, a forklift’s operation involves dynamic shifting of the vehicle's center of gravity (CG).

A. The Stability Triangle Defined

The stability of a counterbalanced forklift is maintained by keeping the combined Center of Gravity (CG) of the forklift and the load within the boundaries of a three-point area on the ground, known as the Stability Triangle.26

For 4-Wheel Forklifts: The triangle’s base is a line connecting the centers of the two front (drive) wheels. The apex is the center point of the rear (steer) axle.

For 3-Wheel Forklifts: The base remains the line between the two front wheels, and the apex is the center of the single rear steering wheel.

B. The Center of Gravity and Load Moment

When the forklift is unladen, its CG is low and close to the center of the chassis. However, once a load is lifted:

The CG of the combined unit (Forklift + Load) shifts dramatically forward and upward toward the front axle.27

The Load Moment is the rotational force created by the weight of the load multiplied by the horizontal distance from the load’s center to the front axle (the fulcrum). This moment must be counteracted by the Counterweight Moment (the weight of the machine's rear section multiplied by its distance to the fulcrum).

C. The Load Capacity Plate (Nameplate)

The Data Plate is the most crucial technical document on the machine. It is legally required and dictates the absolute limits of the forklift's stable operation.

Rated Capacity (Q): The maximum weight the forklift can safely lift.

Load Center Distance (c): The horizontal distance from the vertical face of the forks to the center of gravity of the load. Standard capacity ratings are typically based on a 24-inch (600mm) load center.

The inherent danger lies in exceeding the safe Load Moment. If the load is heavier than rated, or if the load's center is extended further out (increasing the Load Center Distance), the combined CG shifts outside the Stability Triangle, resulting in a longitudinal tip-over (tipping forward). Similarly, turning too quickly with an elevated load can cause the CG to shift laterally outside the triangle, resulting in a lateral tip-over. Safe operation is a constant, dynamic application of these immutable principles of physics.

IV. Classification and Types of Forklift Trucks (Approx. 600 words)

The Occupational Safety and Health Administration (OSHA) and the Industrial Truck Standards Development Foundation (ITSDF) classify Powered Industrial Trucks into seven distinct classes based on their fuel source, environment, and intended application.

A. Classes I & II: Electric Power, Narrow Aisles, and Indoor Use

Class I: Electric Motor Rider Trucks (Counterbalance): The standard "warehouse forklift."28 They are sit-down, four-wheeled, or three-wheeled units powered by a high-capacity electric battery.

Application: Loading/unloading trucks, stacking pallets in general warehousing, manufacturing.29

Technical Feature: Battery acts as part of the counterweight; quiet, zero-emission operation.30

Class II: Electric Motor Narrow Aisle Trucks (Reach/Order Pickers): Engineered for high-density storage facilities to maximize floor space.31

Reach Truck: Uses hydraulic "pantograph" arms or a sliding mast to reach into racking.32 Excellent for high vertical storage.

Order Picker: Lifts the operator (in a cage/platform) to the level of the desired inventory, allowing individual items or cartons to be picked from racking.33

Technical Feature: Extremely tight turning radius, optimized for aisle widths as narrow as 8 feet.

B. Classes III, IV, & V: IC Engines and General Applications

Class III: Electric Motor Hand Trucks (Pallet Jacks & Stackers): These are pedestrian-controlled, often walk-behind units.34

Walkie Pallet Jack: Used for horizontal movement of pallets over short distances; lifts loads just enough to clear the floor.35

Walkie Stacker: A powered lift truck with a mast for stacking pallets, though with less capacity and height than a rider truck.36

Application: Retail stock rooms, short moves, and loading docks.37

Class IV: Internal Combustion Engine Trucks (Cushion Tires): IC-powered sit-down riders equipped with Cushion Tires (solid, smooth rubber).38

Application: Best suited for indoor use on smooth, prepared surfaces (concrete floors) where their maneuverability and power are beneficial.39

Class V: Internal Combustion Engine Trucks (Pneumatic Tires): IC-powered sit-down riders equipped with Pneumatic Tires (air-filled, thicker, with treads).40

Application: Outdoor yards, construction sites, and uneven terrain where better traction and shock absorption are required.41

C. Classes VI & VII: Specialty and Heavy-Duty Applications

Class VI: Electric and IC Engine Tow Tractors: These units are designed primarily for towing and pulling material (like in airports or factory assembly lines) rather than lifting.42

Class VII: Rough Terrain Forklift Trucks (Telehandlers):43 Specialized, heavy-duty machines often featuring large, tractor-style pneumatic tires and a stabilizing chassis.44

Telescopic Handler (Telehandler): Characterized by a boom (telescopic arm) that can extend diagonally and vertically to reach loads high up or far forward from the machine's base.45

Application: Construction, agriculture, and other environments with extreme uneven ground and a need for forward reach.46

V. Advanced Systems and Operational Technology (Approx. 300 words)

Modern forklift engineering integrates advanced electronic and hydraulic systems for safety, efficiency, and operator comfort.

A. Hydraulic and Drive Control

Advanced electric forklifts utilize AC Drive Motors (or Permanent Magnet Synchronous Motors) coupled with sophisticated MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) or IGBT (Insulated Gate Bipolar Transistor) controllers.47 These systems provide precise speed control and feature Regenerative Braking, where the drive motor acts as a generator during deceleration, returning charge to the battery and increasing energy efficiency.

The hydraulic system for lifting and tilting is managed by Control Valves which direct high-pressure hydraulic fluid (48$>2,500\text{ psi}$) from the pump to the lift and tilt cylinders.49 Many modern units incorporate:

Integrated Side-Shifters: A hydraulic attachment that allows the operator to laterally move the carriage and load a few inches left or right without repositioning the entire truck, increasing stacking precision.50

Fork Positioners: Hydraulically controlled systems that allow the operator to adjust the distance between the forks from the cab.51

B. Safety and Telematics

Safety features have evolved from simple physical guards to integrated electronic systems:

Dynamic Stability Systems: Utilize sensors (e.g., load sensors, height sensors, angle sensors) and software to monitor the current load moment and automatically limit hydraulic functions (like lift speed or tilt angle) if a tip-over risk is detected.

Operator Presence Sensing (OPS): A system that locks out driving and hydraulic functions if the operator is not correctly seated or positioned (e.g., using a sensor in the seat).

Fleet Telematics: Modern forklifts often include integrated GPS and cellular communication modules that track utilization hours, impact events, maintenance schedules, and provide digital pre-shift inspection checklists, maximizing uptime and ensuring compliance.

VI. Conclusion

The forklift truck, a technical marvel of mechanical and hydraulic engineering, remains the linchpin of the global supply chain. Its core operational principles—leveraging counterweight against load moment and maintaining stability within the defined triangle—have remained consistent since its inception. However, continuous advancements in electric propulsion, electronic control systems, and integrated safety technologies ensure that the next generation of PITs will be even more efficient, ergonomic, and capable of navigating the increasingly complex demands of modern material handling. The forklift is not just a lifter of loads; it is a precisely engineered dynamic machine that embodies the technical efficiency of modern industry.
