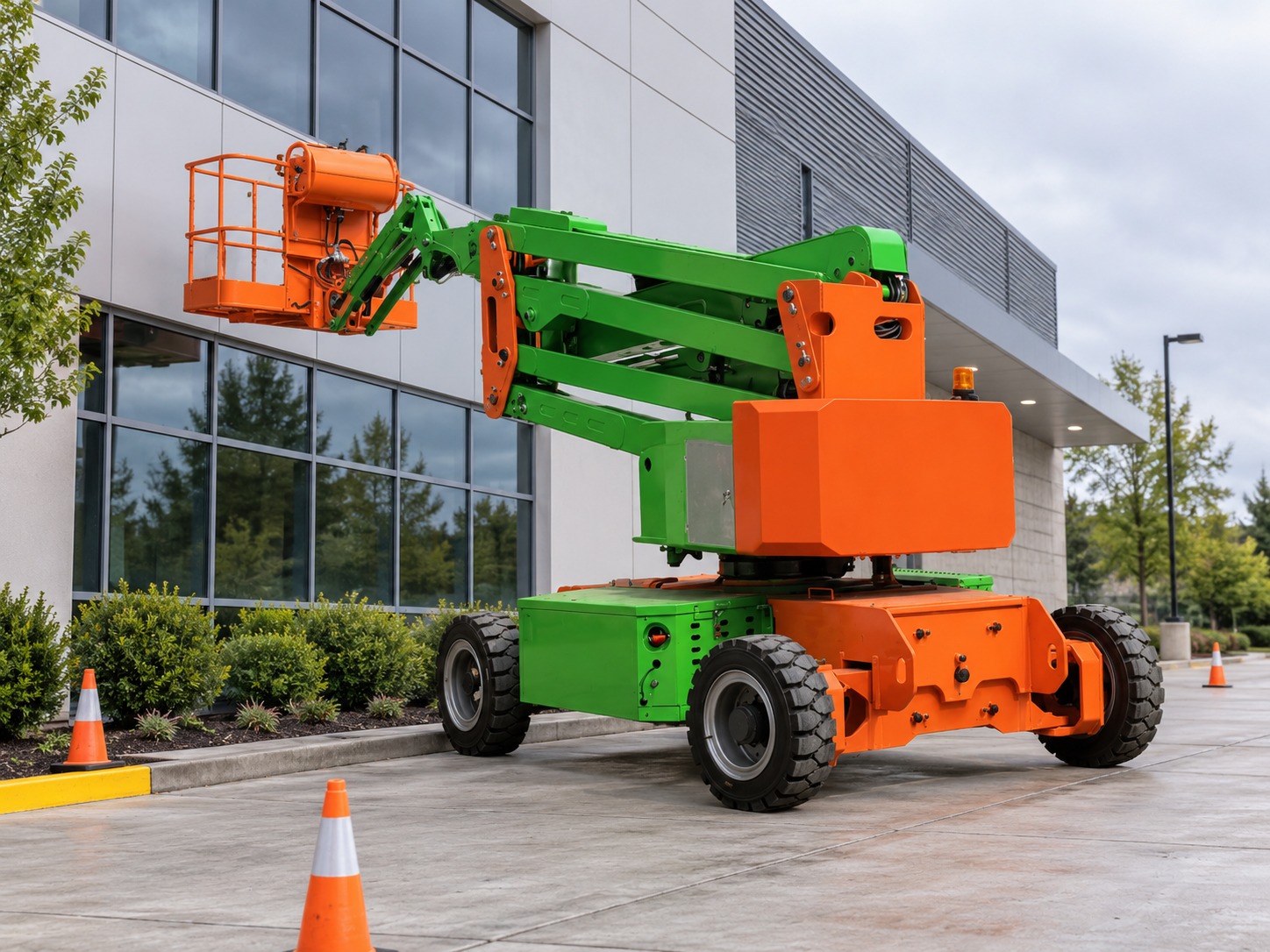

ZG-QB16 Articulating Boom Lift for Commercial Facade and Venue Maintenance

The ZG-QB16 articulating boom lift is intended for commercial facade service, venue maintenance, equipment installation and inspection tasks that require vertical access plus controlled outreach over obstacles. The source product page identifies a maximum working height of 16.58 m and platform-height reference of 14.58 m, but the quotation, data plate and delivered manual must control the final configuration. ZGFORKLIFT / MYZG recommends selecting the machine from a documented task and route survey because outreach, platform load, ground bearing capacity, access width, slope, weather and rescue planning all affect the safe solution.

Customer need: access above and around obstacles

Commercial buildings, arenas, factories and outdoor equipment areas often place work points behind canopies, structures or installed machinery. A slab scissor lift provides mainly vertical access, while the articulated boom can reach up and over approved obstacles when the job requires horizontal positioning. Buyers must map the complete work envelope and check tail swing, chassis clearance and exclusion-zone requirements rather than choosing from working height alone.

Typical work includes facade inspection, lighting and signage service, roof-edge access, venue equipment maintenance and installation around fixed plant. Self-propelled mobility does not make every surface acceptable. Soft fill, voids, trenches, drain covers, uncompacted shoulders, cross slopes and drop-offs can still cause instability. The work zone must be evaluated before unloading and whenever weather or site activity changes the ground.

Confirmed family context

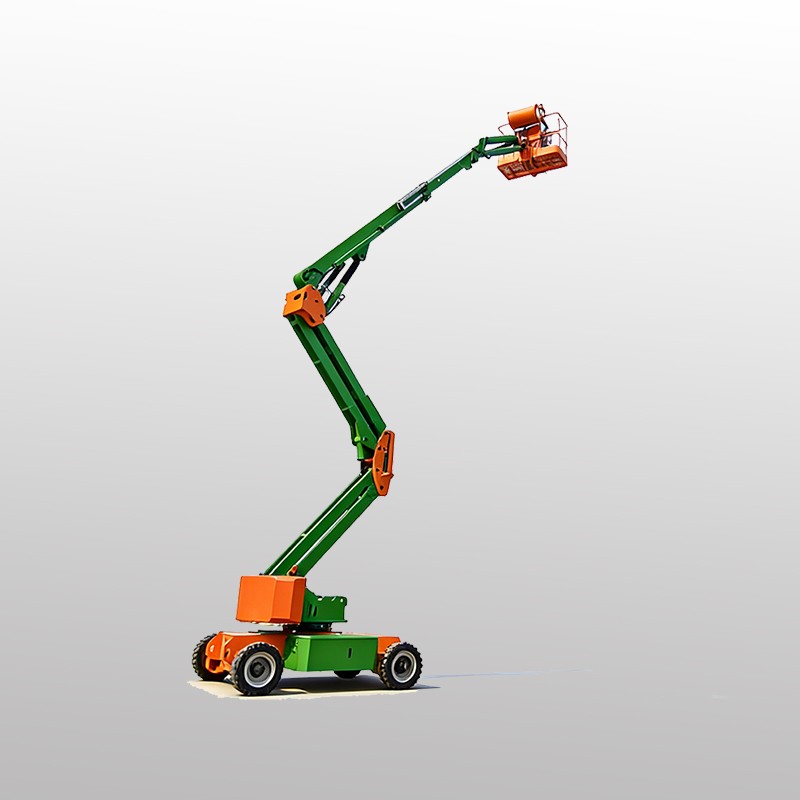

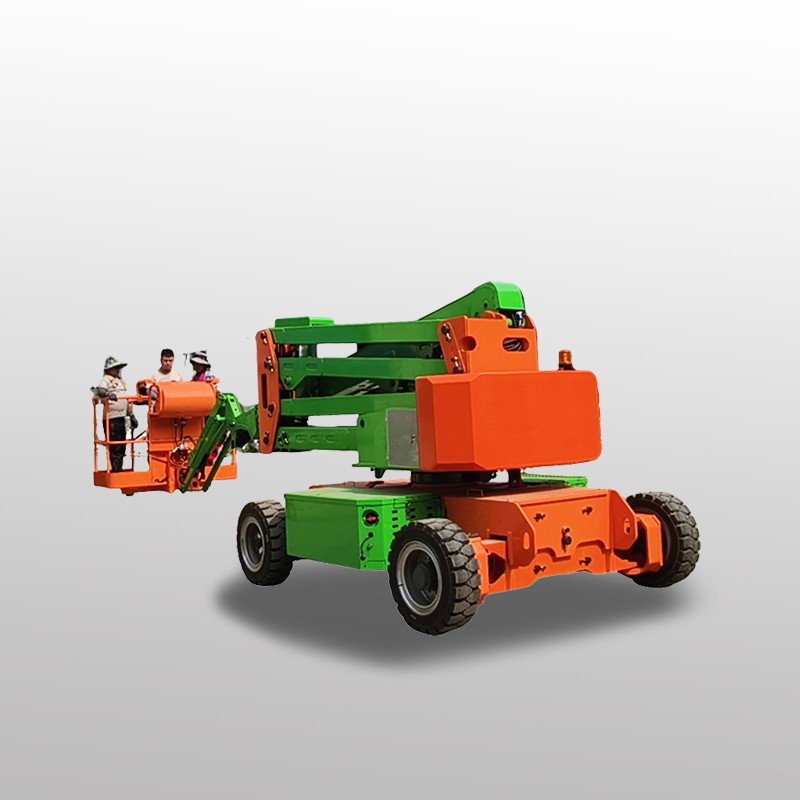

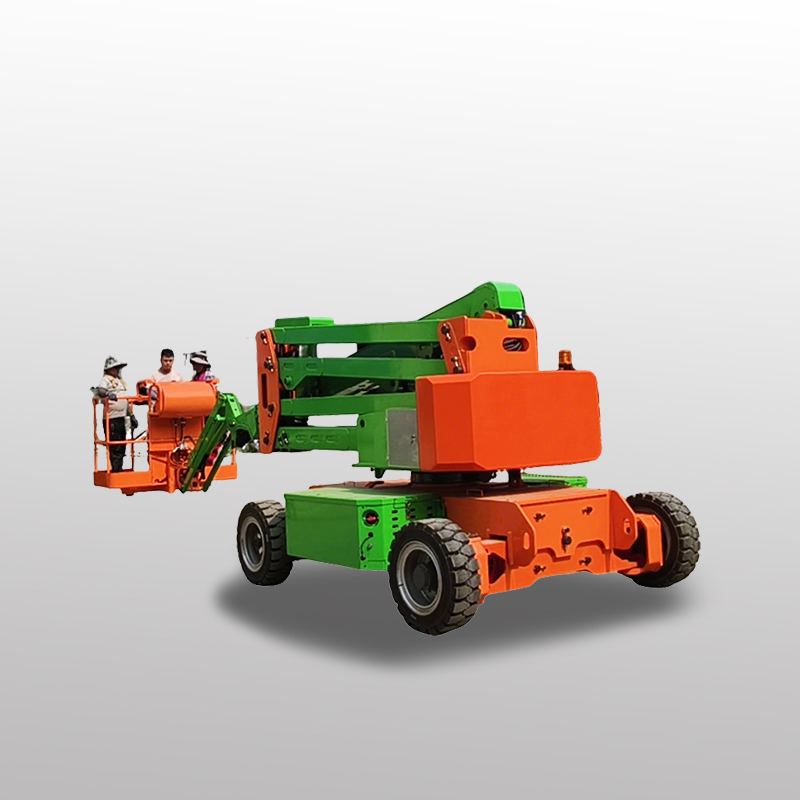

The official ZG-QB16 source page presents the articulating boom geometry, platform and turntable rotation, battery-electric drive and stated platform-load options. Values for working height, outreach, machine weight, battery, gradeability and platform capacity must be confirmed together for the ordered configuration. Buyers should not combine headline values from different configurations or treat general website content as the delivered capacity plate.

Start with the Aerial Platforms category and the full All Products catalog. The existing ZG-QB16 source product page provides the confirmed family context. This page focuses on application selection for commercial facade and venue maintenance.

Purchasing guide: define the work envelope

Height: measure the platform height needed to place the operator at the task. Do not confuse platform height with working height, building height or maximum reach. Include overhead beams, pipes and cable trays in the drawing.

Load: total every occupant, tool, component and material carried on the platform. Confirm the main deck and extension-deck ratings separately. No load should rest on or project through the rails unless an approved accessory and procedure allow it.

Route: measure unloading space, gates, doorways, turns, gradients, curb transitions and the narrowest point. Check overhead clearance in the stowed travel condition. A platform that reaches the task but cannot safely reach the setup point is not the correct selection.

Ground: identify soil type, compaction, paving, drainage, underground services, edges and recent excavation. Obtain engineering review when surface capacity is uncertain. Stabilizers, if fitted and required for the delivered configuration, must bear on approved areas and be deployed exactly as instructed.

Energy: provide daily travel distance, lift cycles, shift hours, charging windows, ambient temperature and site power. Confirm battery and charger configuration for the destination supply rather than relying on a generic family value.

Compare boom, slab and rough-terrain platforms

Articulating boom lifts can suit constrained construction and maintenance routes where ground contact and low-speed positioning are priorities. A compact wheeled slab platform can be more efficient on finished indoor floors and frequent long travel. A large rough-terrain platform may be needed when high travel speed, heavy platform load or demanding outdoor ground is required. Compare the electric scissor lift platform for firm-floor work and the ZG-YY rough-terrain scissor lift family for a different outdoor duty profile.

Do not select by traction appearance alone. Compare platform height and capacity, stowed size, total machine mass, ground pressure, stabilizer procedure, slope and wind limits, turning method, battery endurance, transport requirements and emergency controls. The right choice may be the smaller machine that fits the route and task, or a different platform class when outreach or ground conditions demand it.

Worksite planning and safe operation

Create an exclusion zone around the machine and below the elevated work area. Separate the lift from forklifts, trucks, cranes, autonomous vehicles and pedestrians. Identify overhead power lines, energized equipment, fragile roofs, doors and moving machinery. Ground personnel must understand the emergency lowering controls, communication method and rescue plan before elevation begins.

Before each shift, inspect tires, chassis, boom sections, pins, fasteners, hydraulic hoses and cylinders, platform guardrails and gate, turntable, controls, alarms, emergency stop, emergency lowering, battery connections and visible structural damage. Test functions in a clear area at low height. A fault affecting stability, steering, braking, boom movement, rotation, lowering or guarding must remove the machine from service until qualified repair and release.

Keep occupants inside the guardrails with both feet on the deck. Never use boxes, ladders or rail climbing to gain extra height. Follow the delivered rules for travel when elevated; do not assume movement is permitted at every height, slope or extension position. Stop operation when wind, rain, mud, ground settlement, traffic or visibility moves outside the approved conditions.

Industry applications

In commercial construction, the 10 m configuration can be evaluated for ceiling services, facade panels, signage and mechanical installation where access routes suit the self-propelled chassis. In factory maintenance, it can support planned work on lighting, ducting and production-area utilities after traffic and energy sources are controlled. In warehouse expansion, it can provide elevated access around new racking or building services without treating the platform as a material crane.

Municipal and venue teams may use articulating boom lifts for inspections and repairs in controlled areas where the ground has been assessed. Seasonal planning matters: freezing, water saturation, loose aggregate and hidden voids can change bearing conditions. The article on pre-winter facility checks and scissor-lift access provides additional task-planning ideas, while the exact machine manual and local rules remain controlling.

Maintenance and lifecycle management

Crawler undercarriages require inspection for debris, tension, damage and uneven wear. Clean soil, wire and construction waste without forcing water into electrical components. Inspect scissor-arm pivots, platform rollers, extension mechanisms, hydraulic lines, battery restraints and control cables at the intervals stated in the delivered manual. Do not weld, drill, heat or straighten structural parts without approved technical guidance.

Maintain a service record with machine identification, date, operating hours or cycles where available, reported fault, diagnosis, parts used and return-to-service approval. Dealers should plan common wear items and diagnostic support around local duty and lead time. Review the parts and dealer support page and include the model, serial information and photographs in each request.

Dealer business and export procurement

A dealer quotation should collect required platform height, load and occupants, surface photographs, ground assessment, access dimensions, gradients, travel frequency, charging supply, climate, transport limits, destination and service capability. Demonstration and handover should cover pre-use inspection, ground assessment, exclusion zones, platform extension limits, stabilizer procedure, emergency lowering, charging, parking and defect reporting. Written application data helps protect both customer and dealer.

For export orders, confirm the exact configuration, power system, charger or supply connection, labels, manuals, packing, shipping dimensions and destination rules before contract. Where CE documentation is required, request and verify the declaration and supporting documents for the exact supplied machine. EPA engine-emissions certification is generally not applicable to an electrically powered lift configuration when it has no combustion engine; confirm the actual power configuration, and electrical, machinery, workplace, battery transport and import requirements may still apply. This page makes no unverified certificate, test-result, export-volume, delivery or customer-case claim.

Configuration support from ZGFORKLIFT / MYZG

Shandong Zhuogong Machinery Equipment Co., Ltd. can review buyer-provided application data, discuss the available family configuration and coordinate product, documentation, packing and parts questions for the proposed order. Final specifications, compliance documents, warranty scope, lead time and commercial terms must be confirmed in the quotation or technical agreement.

Request a ZG-QB16 application review

Send the required platform and working height, total platform load, number of occupants, surface and route photographs, ground assessment, doorway and gate measurements, gradients, work hours, charging supply, destination and after-sales expectations. Contact Shandong Zhuogong Machinery Equipment Co., Ltd. at vip@mingyuforklift.com or +86-0535-2090977, or use the contact and inquiry page. Include “ZG-QB16 articulating boom lift” so the complete application can be reviewed together.
