Automation Handoffs 2026: Electric Stackers for Human-in-the-Loop Robot Cells

Published: October 30, 2026

HTML Meta Description: Plan electric stackers for reliable pallet handoffs between people, warehouse robots, buffer racks and production cells.

Keywords: electric stacker, robot cell handoff, human-in-the-loop automation, pallet buffer, warehouse robotics, narrow aisle handling, electric pallet stacker, material flow, ZGFORKLIFT, MYZG

A robot cell is only as productive as the handoff that feeds and clears it. In 2026, warehouse teams are combining automated task assignment with human oversight for exceptions, damaged pallets and changing production priorities. Electric stackers can serve as a flexible buffer link between receiving, rack storage and a robot transfer point when their dimensions, capacity and turning envelope suit the route. Shandong Zhuogong Machinery equipment Co.,Ltd can help assess electric stacker models for the load and transfer layout. Confirm rated capacities, battery details and site integration requirements with qualified personnel.

Start with a documented task and route survey. Record the narrowest aisle and turn, doorway and gate width, overhead clearance, maximum gradient, dock edges and the worst surface condition. Measure real loads at their actual load centers, including long, offset or irregular items. Nameplate capacity is only a starting point; residual capacity at the required height and with the selected attachment determines practical application fit.

Why this topic matters now

Warehouse automation discussions increasingly emphasize resilient workflows rather than isolated machines. A safe human-in-the-loop process needs clear responsibility for releasing a pallet, confirming its identity, positioning it at the handoff point and responding when a robot or scanner flags an exception. The stacker should not enter an automated cell unless the traffic and interlock design explicitly permits it.

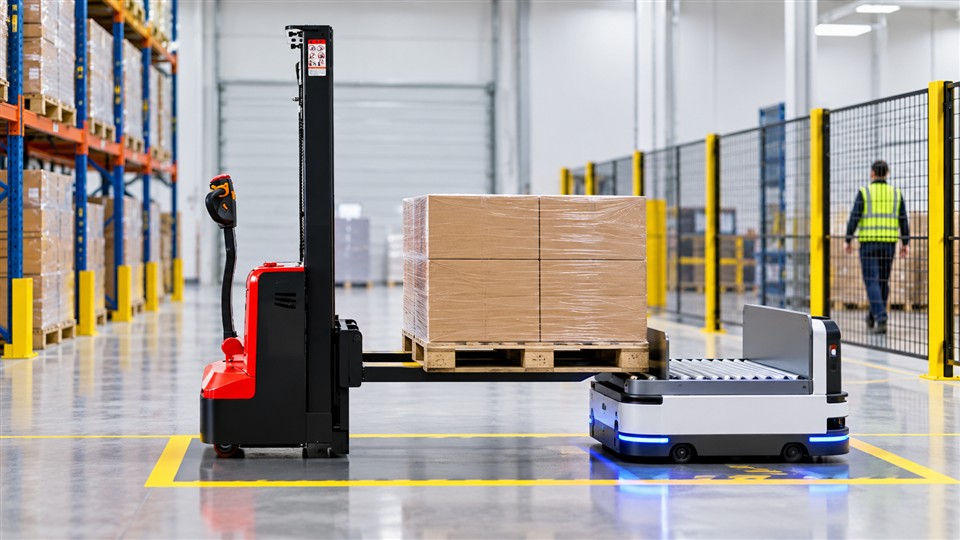

Review the CDD15D electric stacker as the first product reference, then confirm current specifications with the manufacturer.

Configuration priorities

Map pallet dimensions, maximum weight, lift height, aisle clearance, floor condition and transfer-table height. Confirm stacker capacity at the working mast height and with any attachment. Check turning radius, tiller or platform configuration, battery runtime and access to charging. Agree on a standard pallet presentation and stop line with the robot integrator. Add buffers so a delayed robot does not force unsafe parking in an aisle or block an emergency route.

Visibility and control deserve the same attention as capacity. Review the mast, carriage, tyres or wheels, lighting, mirrors or cameras, restraint, warning devices and speed management as one system. Dust, cold, heat, moisture and corrosion may require extra protection and shorter inspection intervals. Operators must see the travel path and place the load without leaving the protected operating position.

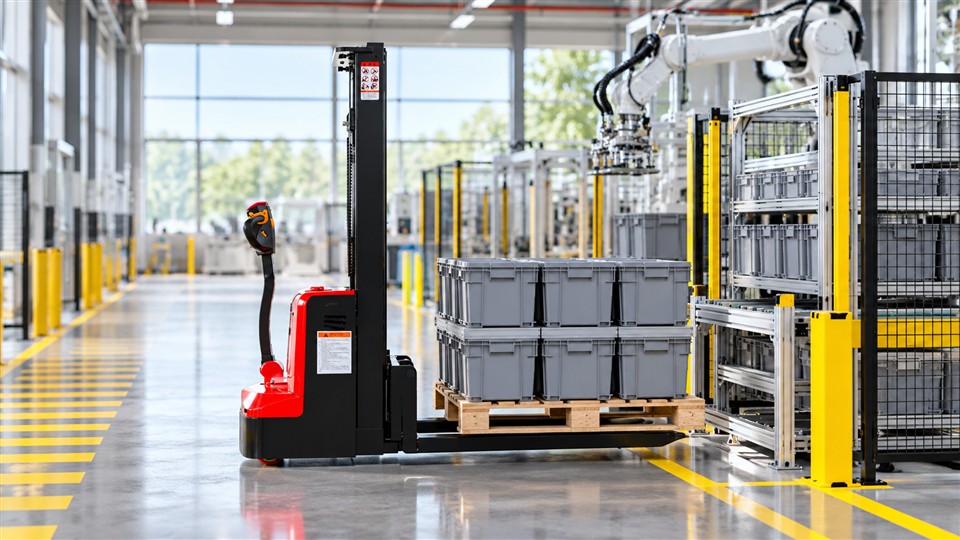

Compare the CDDA15 narrow-aisle stacker for a second view of capacity, manoeuvrability, energy and service access.

Safety and daily control

Separate pedestrian, stacker and robot routes. Use marked handoff zones, visible signals and interlocks where people and automated vehicles share space. Train operators to stop when a pallet is damaged, a scanner rejects the ID or a robot is unavailable. Keep hands and feet clear of the mast, wheels and load. Inspect forks, chains, brakes, steering, controls, battery connections and emergency stop before each shift.

Create a written operating envelope for every approved route: maximum load and lift height, travel direction, pedestrian exclusion points, slope rules and stop-work conditions. Complete a pre-shift inspection of tyres or wheels, forks, chains, hoses, brakes, steering, alarms and the energy or fuel system. Isolate defects affecting stability, braking or visibility until corrected.

Supervisors should observe real work, record near misses, harsh braking, overload attempts, impacts and recurring service issues, then improve layout, traffic separation and coaching. Build the business case around productive hours rather than purchase price alone. Include operator time, maintenance, energy or fuel, infrastructure, transport, downtime risk and resale value.

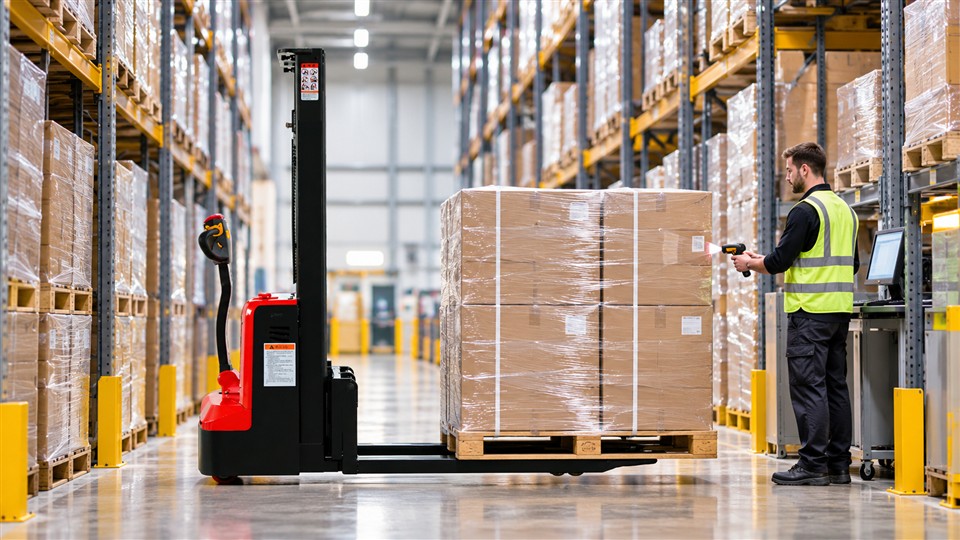

The MYCPDB electric stacker is the third internal product reference for application comparison.

Fleet planning and total cost

Evaluate cost per successful handoff, not simply the number of robot cycles. Include stacker acquisition or rental, charging, service, integration, floor markings, training, downtime and buffer-space requirements. During a trial, record queue length, exceptions, near misses and manual rework. Use the evidence to adjust the robot schedule, stacker routes and pallet standards before expanding the cell.

A staged trial is the strongest way to validate a configuration. Select a representative route, define success measures, brief operators and compare throughput, energy use, handling accuracy and maintenance observations. Review results with operations, safety and finance before fleet-wide deployment. This evidence turns a current industry headline into a defensible material-handling plan.

Implementation checklist

• Document load weight, dimensions, load center and attachment requirements.
• Survey aisle width, turns, gradients, surface condition and overhead limits.
• Confirm residual capacity at the required lift height.
• Plan pedestrian separation, speed zones and emergency procedures.
• Match service intervals and spare-parts support to the duty cycle.
• Train and authorize operators for the specific machine and workplace.
• Record trial data and total cost before scaling the fleet.

ZGFORKLIFT and MYZG can tailor the final specification after reviewing the application. Product availability varies by market; confirm the latest technical data and comply with local regulations before purchase or operation.
