Key Maintenance Essentials for AWP Core Systems: Hydraulic, Lifting and Electronic Control Systems Explained

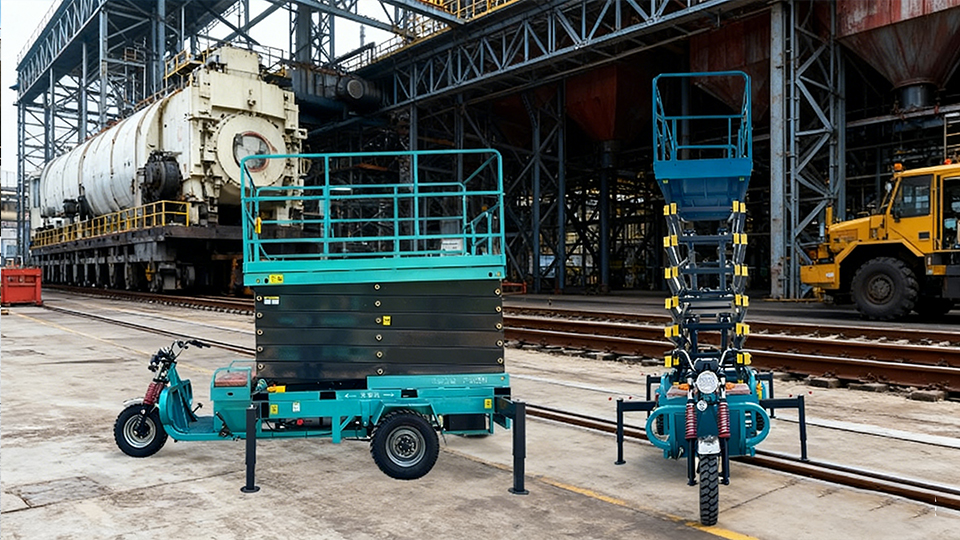

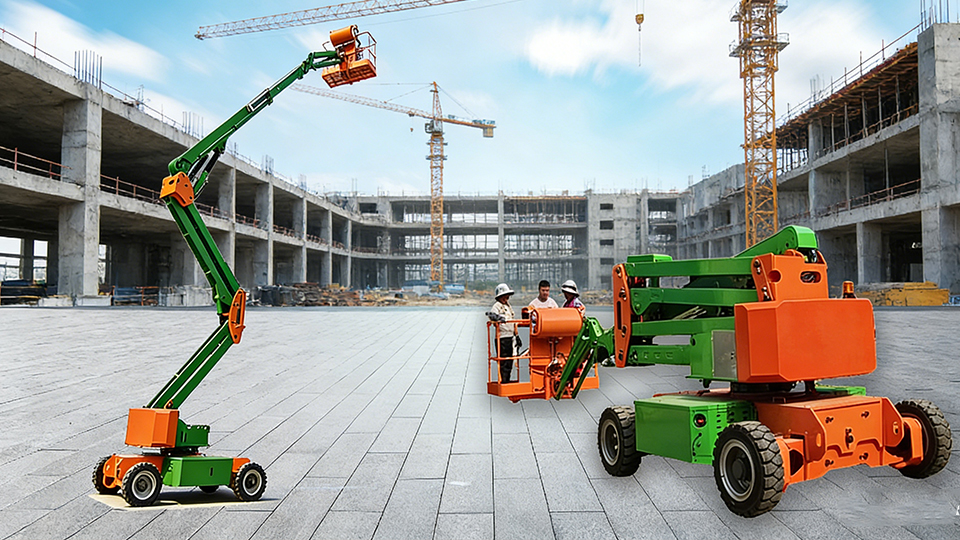

Aerial Work Platforms (AWPs), ranging from scissor lifts and articulating booms to telescopic booms, are indispensable in construction, logistics, manufacturing, and facility maintenance. Their ability to provide safe high-altitude access relies on the seamless operation of three core systems: hydraulic, lifting, and electronic control. These systems work in tandem to ensure stability, precision, and safety during operation. Neglecting their maintenance not only leads to costly downtime and shortened equipment lifespan but also exposes operators to severe safety risks. This article delves into the essential maintenance practices for these three core systems, covering daily inspections, periodic overhauls, common fault diagnostics, and best practices to keep AWPs in optimal condition.

1. Overview of AWP Core Systems and Maintenance Principles

The hydraulic, lifting, and electronic control systems form the backbone of AWPs. The hydraulic system powers elevation and load-bearing functions, the lifting system (including booms, scissor arms, and structural components) enables vertical and horizontal movement, and the electronic control system regulates operation and triggers safety interlocks. Maintenance of these systems must adhere to manufacturer specifications and industry standards (such as ANSI A92.6, EN 280, and ISO 16368), combining preventive care to avoid failures and corrective repairs to address existing issues. The primary goal is to maintain system integrity, ensure responsive operation, and comply with safety regulations—critical for minimizing operational risks in high-altitude work scenarios.

2. Hydraulic System Maintenance Essentials

The hydraulic system is the power source of AWPs, responsible for driving lifting movements, supporting platform loads, and ensuring stable positioning. Its maintenance focuses on leak prevention, fluid quality, and component integrity, as even minor faults can lead to sudden platform drops or unresponsive operation.

2.1 Daily Inspection

Before each use, conduct a 5–8 minute hydraulic system check to identify immediate hazards. First, verify the hydraulic fluid level using the dipstick or sight glass, ensuring it stays within the manufacturer-recommended range—low fluid levels can cause cavitation and pump damage. Inspect all hoses, fittings, cylinders, and valves for leaks: look for fluid stains, dampness, or visible cracks in hoses, and check fittings for looseness. Pay special attention to high-pressure hoses near the boom or scissor arms, as these are prone to wear from friction and movement. Additionally, check the hydraulic filter for clogging indicators (such as warning lights or reduced lifting speed) and ensure the reservoir cap is securely fastened to prevent contamination from dirt, debris, or moisture.

2.2 Periodic Overhaul

Perform in-depth hydraulic system overhauls at specified intervals (typically 250 hours for basic maintenance and 500 hours for comprehensive overhaul). Start by draining and replacing the hydraulic fluid—use only the recommended grade, as incorrect fluid can degrade seals, corrode valves, and reduce system efficiency. Replace the hydraulic filter and strainer to remove contaminants that accumulate over time, as these can scratch cylinder walls and block valve passages. Inspect hydraulic cylinders by fully extending and retracting them, checking for internal leaks (indicated by slow drift when the platform is elevated) and external damage. Replace worn cylinder seals and piston rings to prevent fluid leakage. Inspect the hydraulic pump for abnormal noise, vibration, or reduced pressure—these signs may indicate worn bearings or a damaged rotor. Finally, lubricate all hydraulic fittings, pivot points, and valve stems with a high-quality, compatible lubricant to reduce friction and prevent corrosion.

2.3 Common Fault Diagnostics

Address hydraulic system faults promptly to avoid further damage. If the platform drifts downward slowly, check for cylinder internal leaks or worn control valves. For unresponsive lifting, inspect the pump pressure, filter clogging, or air in the system—bleed air from the hydraulic lines according to the manufacturer’s procedure if necessary. Leaking hoses or fittings should be replaced immediately (never repair a damaged high-pressure hose with tape or temporary fixes), and all replaced components should be genuine manufacturer parts to ensure compatibility and pressure resistance.

3. Lifting System Maintenance Essentials

The lifting system encompasses structural components (booms, scissor arms, platform, guardrails) and mechanical mechanisms (pivot points, hinges, outriggers, stabilizers). Its maintenance prioritizes structural integrity and mechanical mobility, as structural failures can lead to catastrophic accidents during high-altitude operation.

3.1 Daily Inspection

Begin with a visual inspection of structural components. Check the platform, guardrails, and access gates for cracks, dents, or loose fasteners—tighten any loose bolts and replace damaged guardrails immediately, as these protect operators from falls. For boom lifts, inspect the telescoping and articulating booms for bending, corrosion, or weld damage; pay close attention to boom joints and pivot points, ensuring they are free of debris and properly lubricated. For scissor lifts, examine the scissor arms for wear, bent links, or damaged pins—worn components can cause uneven lifting or structural instability. Inspect outriggers (boom lifts) and stabilizers (scissor lifts) for damage, ensuring they extend fully and lock into place securely; unstable outriggers are a leading cause of AWP tip-overs. Finally, check the platform’s emergency descent system by testing it at a low altitude to confirm it functions as a backup for hydraulic failures.

3.2 Periodic Overhaul

Conduct comprehensive lifting system overhauls every 1,000 hours or annually, whichever comes first. For mechanical mechanisms, disassemble pivot points and hinges, clean away accumulated grease and debris, and inspect bushings, pins, and bearings for wear. Replace worn components to ensure smooth, unrestricted movement—loose or worn pins can cause excessive vibration and structural stress. For booms and scissor arms, inspect welds for cracks or fatigue, especially in high-stress areas (boom joints, scissor arm connections). Use a wire brush to remove rust from structural components, then apply a protective coating to prevent corrosion, especially for AWPs used in outdoor or humid environments. Check the platform’s load-bearing capacity by conducting a test load (per manufacturer specifications) to ensure structural integrity. Adjust outrigger and stabilizer locking mechanisms to ensure a tight, secure fit, and replace any worn latches or locking pins.

3.3 Common Fault Diagnostics

If the platform lifts unevenly, inspect scissor arms (for scissor lifts) for bent links or uneven wear on pins, or boom sections (for boom lifts) for misalignment. Creaking or grinding noises during movement indicate insufficient lubrication or worn mechanical components—lubricate affected parts or replace worn bushings. If the platform fails to lock in position, check the outrigger/stabilizer locking mechanisms for debris or damage, and ensure they are fully extended and engaged.

4. Electronic Control System Maintenance Essentials

The electronic control system (ECS) acts as the “brain” of AWPs, regulating lifting speed, direction, and safety functions (overload protection, tilt sensing, emergency stop). It includes batteries, wiring, sensors, control panels, and safety interlocks—maintenance focuses on electrical connectivity, sensor calibration, and component functionality.

4.1 Daily Inspection

Start by checking the battery voltage and state of charge using the AWP’s built-in gauge. Inspect battery terminals for corrosion, and clean them with a wire brush if necessary—corrosion can cause poor electrical connectivity or battery drain. Tighten loose terminals to ensure a secure connection. Inspect all electrical cables, connectors, and switches for damage, fraying, or loose connections—pay special attention to cables near moving parts, as they are prone to wear. Test the platform control panel (lift, lower, rotate) and ground control panel to ensure responsive operation. Verify that safety sensors (overload, tilt, proximity) are functioning: most AWPs trigger an alarm or disable operation if sensors are faulty. Test the emergency stop button to confirm it immediately shuts down all operations. Finally, check the lighting system (warning beacons, headlights) to ensure visibility in low-light conditions.

4.2 Periodic Overhaul

Perform electronic control system overhauls every 1,000 hours or annually. Conduct a comprehensive battery test to check capacity—replace the battery if it fails to hold a charge, as weak batteries can cause intermittent control failures. Inspect all wiring for insulation damage, and repair or replace frayed cables to prevent short circuits. Test the alternator (engine-powered AWPs) or charger (electric AWPs) to ensure it supplies the correct voltage to the battery and control system. Calibrate safety sensors according to the manufacturer’s specifications—misaligned tilt sensors or faulty overload sensors can cause false alarms or unsafe operation. Replace worn switches, connectors, and fuses, and ensure all electrical components are sealed properly to prevent moisture intrusion (critical for outdoor use). Verify that the ECS software (if applicable) is up to date, and reset fault codes after maintenance.

4.3 Common Fault Diagnostics

Intermittent control failures often stem from loose electrical connections or a weak battery—check terminals and test battery capacity. If safety sensors trigger false alarms, recalibrate the sensors or clean them of debris (dirt on proximity sensors can cause misreads). Unresponsive control panels may indicate a faulty switch or wiring damage—inspect the panel connections and replace defective components. For ECS error codes, refer to the manufacturer’s manual to diagnose the root cause (e.g., sensor failure, low voltage) and address it promptly.

5. Cross-System Maintenance Best Practices

Effective AWP maintenance requires a holistic approach to the three core systems, as faults in one system can affect others. Follow these best practices to maximize maintenance effectiveness:

Adhere to Scheduled Maintenance: Follow the manufacturer’s maintenance schedule, as it is tailored to the AWP’s design and usage conditions. Avoid delaying periodic overhauls, as minor issues can escalate into major system failures.

Use Genuine Parts: Replace worn components with genuine manufacturer parts to ensure compatibility and safety. Aftermarket parts may not meet pressure, load, or electrical specifications, increasing failure risks.

Document Maintenance Activities: Maintain a detailed log of inspections, repairs, part replacements, and fault diagnostics. This log helps track system performance, identify recurring issues, and comply with regulatory requirements.

Train Qualified Personnel: Ensure operators and technicians receive specialized training on AWP core systems. Certified personnel can accurately identify faults, perform maintenance correctly, and avoid accidental damage.

Store Equipment Properly: When not in use, store the AWP in a dry, covered area. Lower the platform, engage the parking brake, disconnect the battery, and clean hydraulic and electrical components to prevent damage from moisture, dirt, or extreme temperatures.

6. Conclusion

The hydraulic, lifting, and electronic control systems are the lifeline of AWPs, and their proper maintenance is non-negotiable for safe, efficient operation. Daily inspections identify immediate hazards, periodic overhauls address underlying wear and tear, and prompt fault diagnostics minimize downtime. By following the maintenance essentials outlined in this article—prioritizing fluid quality for hydraulics, structural integrity for lifting systems, and electrical connectivity for control systems—businesses can extend AWP service life, reduce operational costs, and create a safer work environment. Remember, proactive maintenance of core systems is not just an investment in equipment; it is a commitment to protecting operators and ensuring uninterrupted high-altitude work operations. Always consult the AWP’s operator manual for model-specific maintenance procedures, and rely on certified technicians for complex overhauls and repairs.
